Hoshizaki B-1150SS Manuale utente
Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
B-1150SS
B-1300SS
B-1500SS
B-1650SS
Ice Bin
Hoshizaki America, Inc.
Number: 71238
Issued: 3-9-2005
Revised: 8-29-2006
PARTS LIST
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Bin Assembly ..................................................................................................................... 5
B. Snout Assembly ................................................................................................................ 7
C. Door Assembly .................................................................................................................. 9
D. Hinge Assembly-Right ..................................................................................................... 10
E. Hinge Assembly-Left ....................................................................................................... 10
F. Accessories ...................................................................................................................... 11
G. Packaging ....................................................................................................................... 11
H. Options ............................................................................................................................ 11
3
Auxiliary Codes
B-1150SS Q-5 August 2005
R-5 December 2005
R-6 September 2006
B-1300SS Q-5 March 2005
R-5 December 2005
R-6 September 2006
B-1500SS Q-5 August 2005
R-5 December 2005
R-6 September 2006
B-1650SS Q-5 March 2005
R-5 December 2005
R-6 September 2006
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
K-5
Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates significant part changes within the same year for this model. Base is 5 and this number
advances for each change.
Example: P-6
"P" indicates 2004.
"6" indicates the first significant part change for 2004.
5

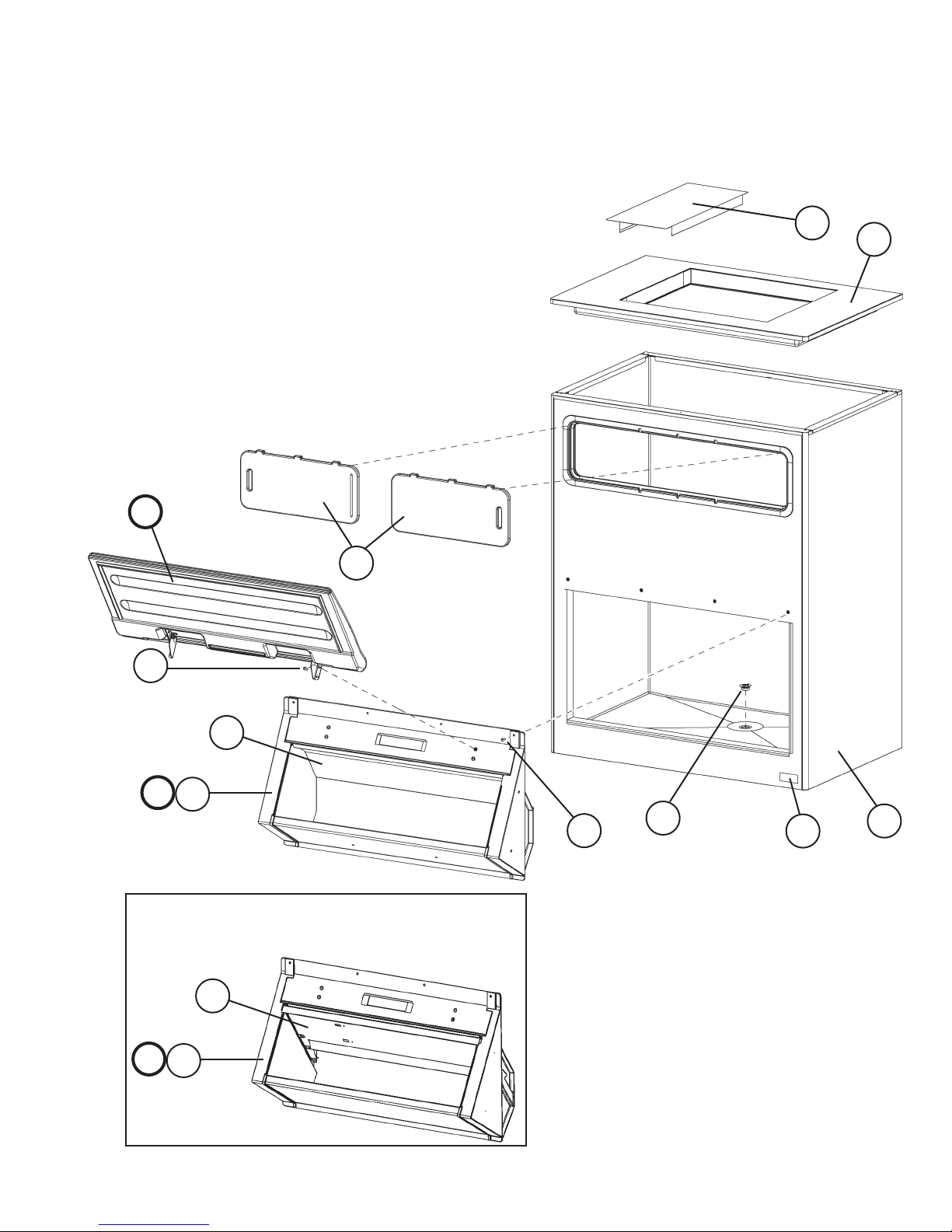

A. Bin Assembly
B-1150SS, B-1300SS, B-1500SS, B-1650SS
Q-5, R-5, R-6
1
C
2
3
4
6
7
C1
5
B2
BB1
Snout Assembly and Baffle appearance at
auxiliary codes Q-5 & R-5
BB1
6
6
Title: A. Bin Assembly Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-5 R-5 R-6
B Snout Assembly - 2A3065A01 1 1 -
2A4023A01 1
B1 For snout gasket, see 5 in F. Accessories
B2 Truss Head Screw 6×20 SS 4A3454-02 4 4 4
C Door Assembly - 2A3066A01 1 1 1
C1 Truss Head Screw 6×20 SS 4A3454-02 4 4 4
1 Bin-Foamed B-1150SS 2A3602G01 1 1 1
B-1300SS 2A3064G01 1 1 1
B-1500SS 2A3621G01 1 1 1
B-1650SS 2A3088G01 1 1 1
2 Top Kit B-1150SS 2A3424G01 1 1 1
B-1300SS 2A3070G01 1 -
2A3424G01 1 1
B-1500SS
B-1650SS
2A3248G01 1 1 1
3 Sliding Door - 2A3079-01 2 2 2
4 Cover-Top Kit SS 3A3197G01 1 -
Cover (A) 3A3198-01 1 1
5 Drain Cap - 322015-01 1 1 1
6 Baffle - 2A3073-01 1 1 -
2A4030-01 1
7 Nameplate B-1150SS 4A3466-03 1 1 1
B-1300SS 4A3466-01 1 1 1
B-1500SS 4A3466-04 1 1 1
B-1650SS 4A3466-02 1 1 1
7

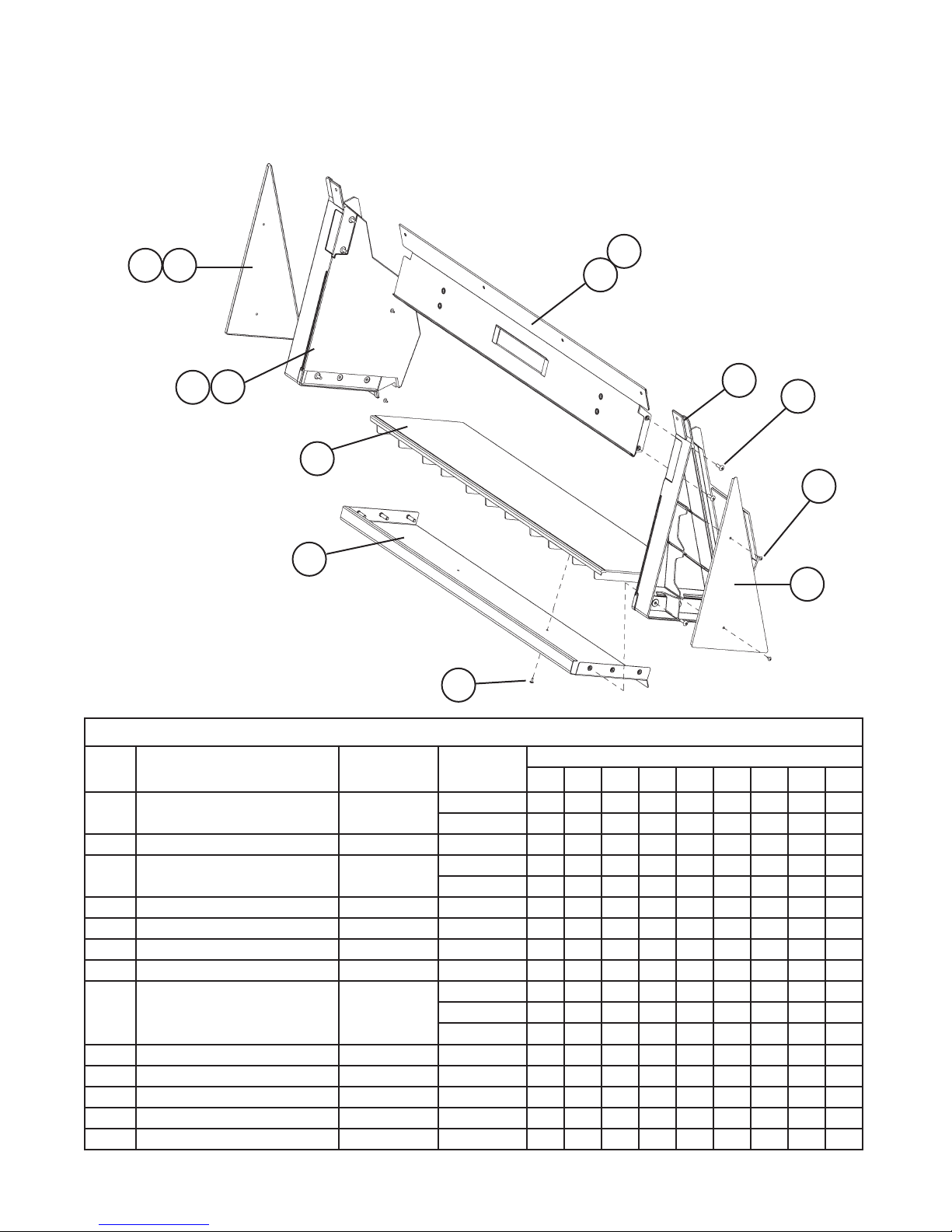

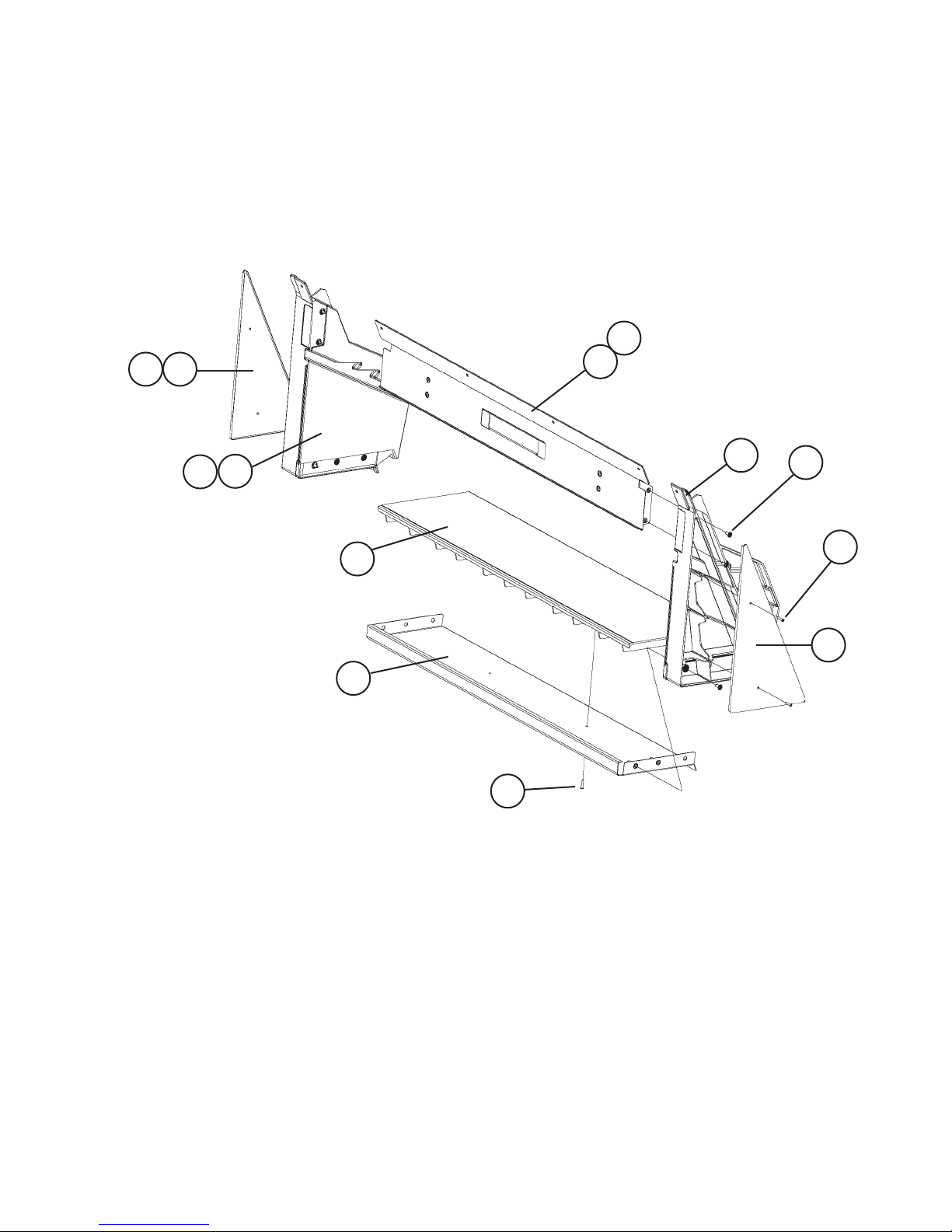

B. Snout Assembly
B-1150SS, B-1300SS, B-1500SS, B-1650SS
Q-5, R-5
12
3
4
4a
7
2a
7a
1a
6 6a 5
5a
8
Title: B. Snout Assembly Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-5 R-5 R-6
1 Snout (L) - 1A0923-01 1 1 -
1A1287-01 1
1a Truss Head Screw 6×20 SS 4A3454-02 5 5 5
2 Snout (R) - 1A0930-01 1 1 -
1A1286-01 1
2a Truss Head Screw 6×20 SS 4A3454-02 5 5 5
3 Snout Bottom (A) - 1A0925-01 1 1 1
4 Snout Bottom (B) - 1A0931-01 1 1 1
4a T2 Screw 4×10 SS 7P32-0410 2 2 2
5 Snout Top Assembly - 2A3069G01 1 -
2A3585G01 1 -
2A4024G01 1
5a Round Vinyl Cap - 4A3498-01 8 8 8
6 Side Cover (L) - 3A3080-01 1 1 1
6a T2 Screw 4×10 SS 7P32-0410 2 2 2
7 Side Cover (R) - 3A3091-01 1 1 1
7a T2 Screw 4×10 SS 7P32-0410 2 2 2
12
3
4
4a
7
2a
7a
1a
6 6a 5
5a
B. Snout Assembly
B-1150SS, B-1300SS, B-1500SS, B-1650SS
R-6
9

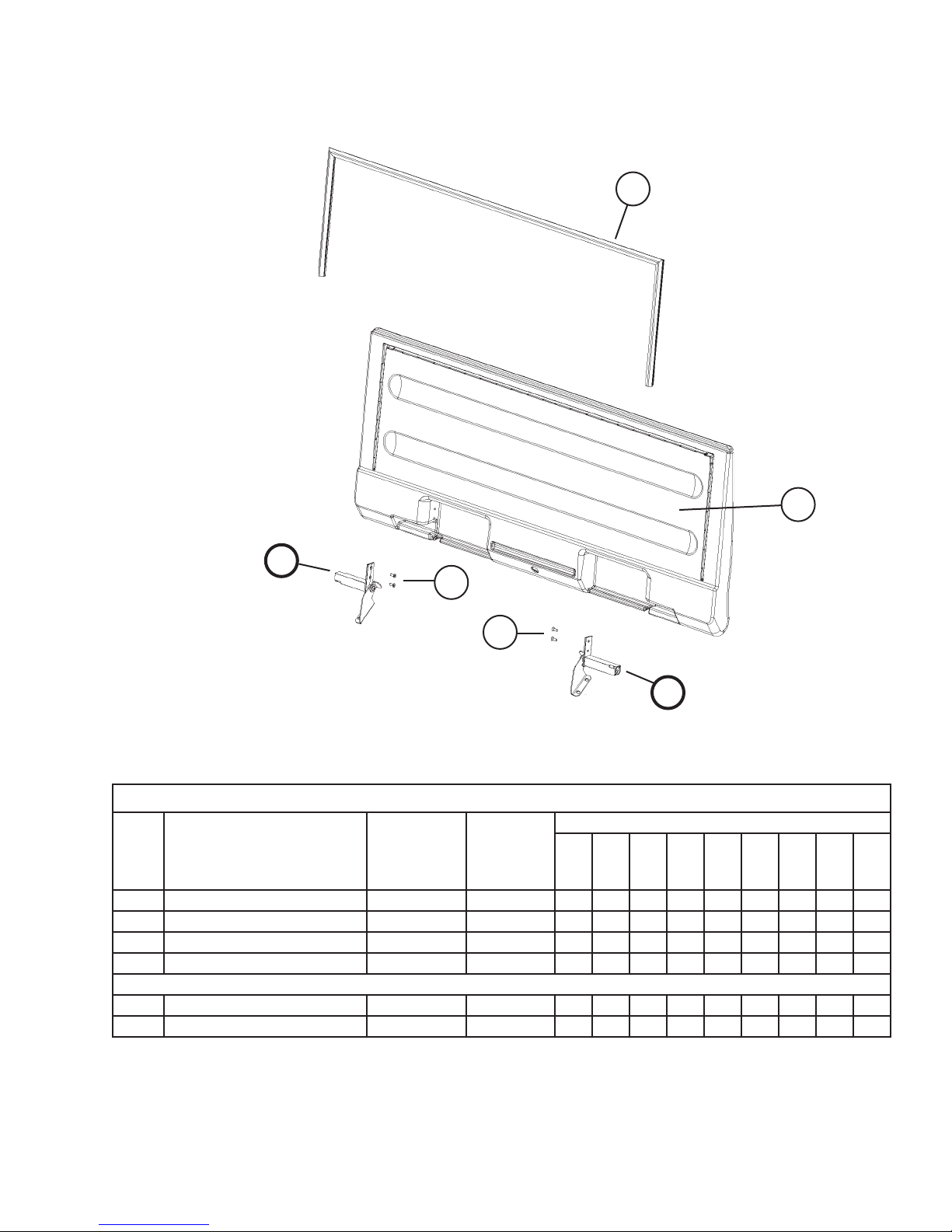

C. Door Assembly
B-1150SS, B-1300SS, B-1500SS, B-1650SS
Q-5, R-5, R-6
1
2
D
D1
E1
E
Title: C. Door Assembly Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-5
to
R-6
D Hinge Assembly - Right - 3A3076A01 1
D1 Countersunk Screw 5×12 SS 4A2894-01 2
E Hinge Assembly - Left - 3A3077A01 1
E1 Countersunk Screw 5×12 SS 4A2894-01 2
1 Door - 1A0926G01 1
2 Gasket - 3A3330-01 1
10

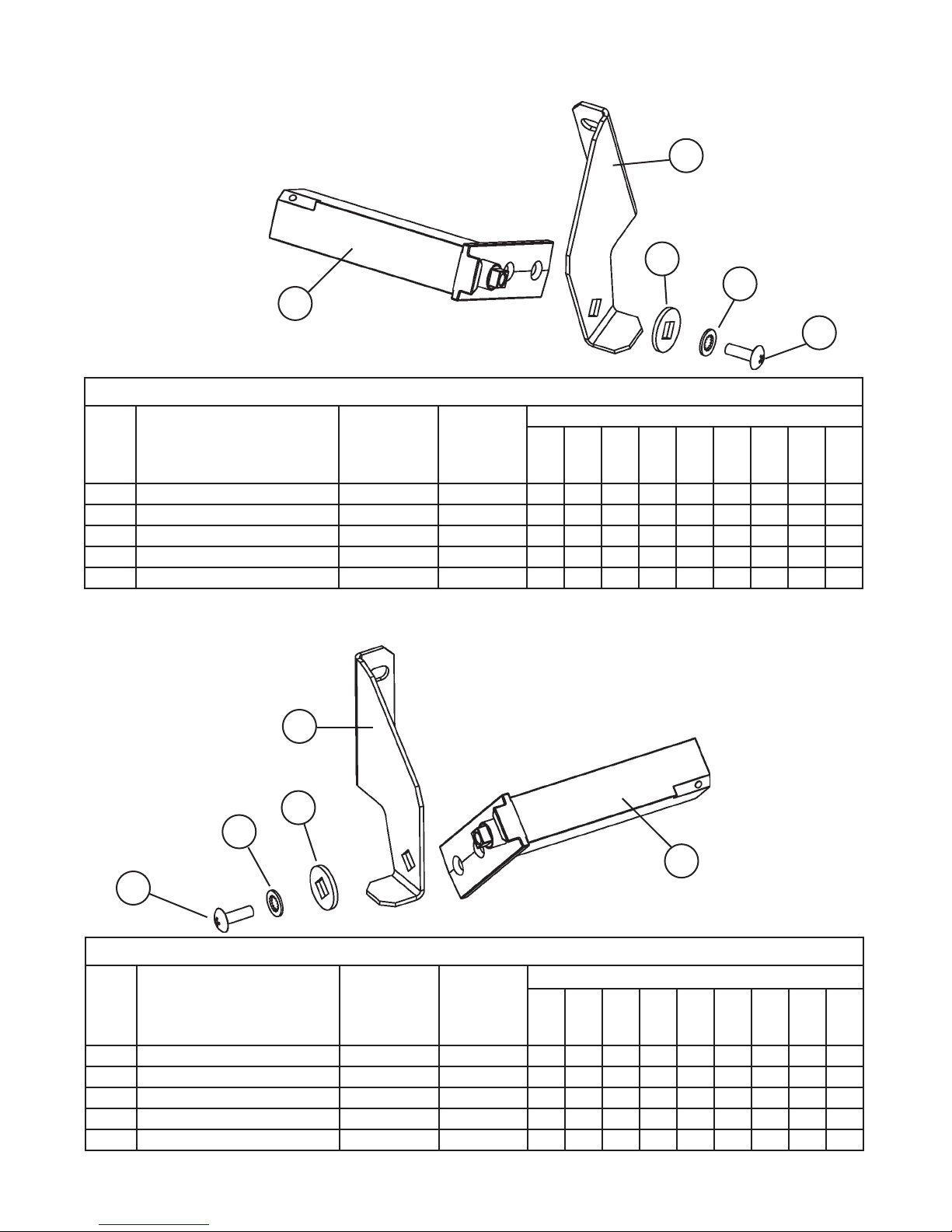

D. Hinge Assembly-Right
B-1150SS, B-1300SS, B-1500SS, B-1650SS
Q-5, R-5, R-6
E. Hinge Assembly-Left
B-1150SS, B-1300SS, B-1500SS, B-1650SS
Q-5, R-5, R-6
1
2b
2c
2a
2
Title: D. Hinge Assembly-Right Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-5
to
R-6
1 Hinge Bracket (R) - 3A3090-01 1
2 Hinge - 4A3360-01 1
2a Truss Head Screw M6 SS 4A3360F02 1
2b Tooth Washer M4 SS 4A3360F03 1
2c Washer - 4A3361-01 1
Title: E. Hinge Assembly-Left Model: B-1150SS, B-1300SS, B-1500SS, B-1650SS
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-5
to
R-6
1 Hinge Bracket (L) - 3A3089-01 1
2 Hinge - 4A3360-01 1
2a Truss Head Screw M6 SS 4A3360F02 1
2b Tooth Washer M4 SS 4A3360F03 1
2c Washer - 4A3361-01 1
1
2
2a
2b
2c
