Hotpoint HDA2100FWW Manuale di servizio

Specification Created 10/00

HDA2100FWW - Hotpoint Built-In Dishwasher

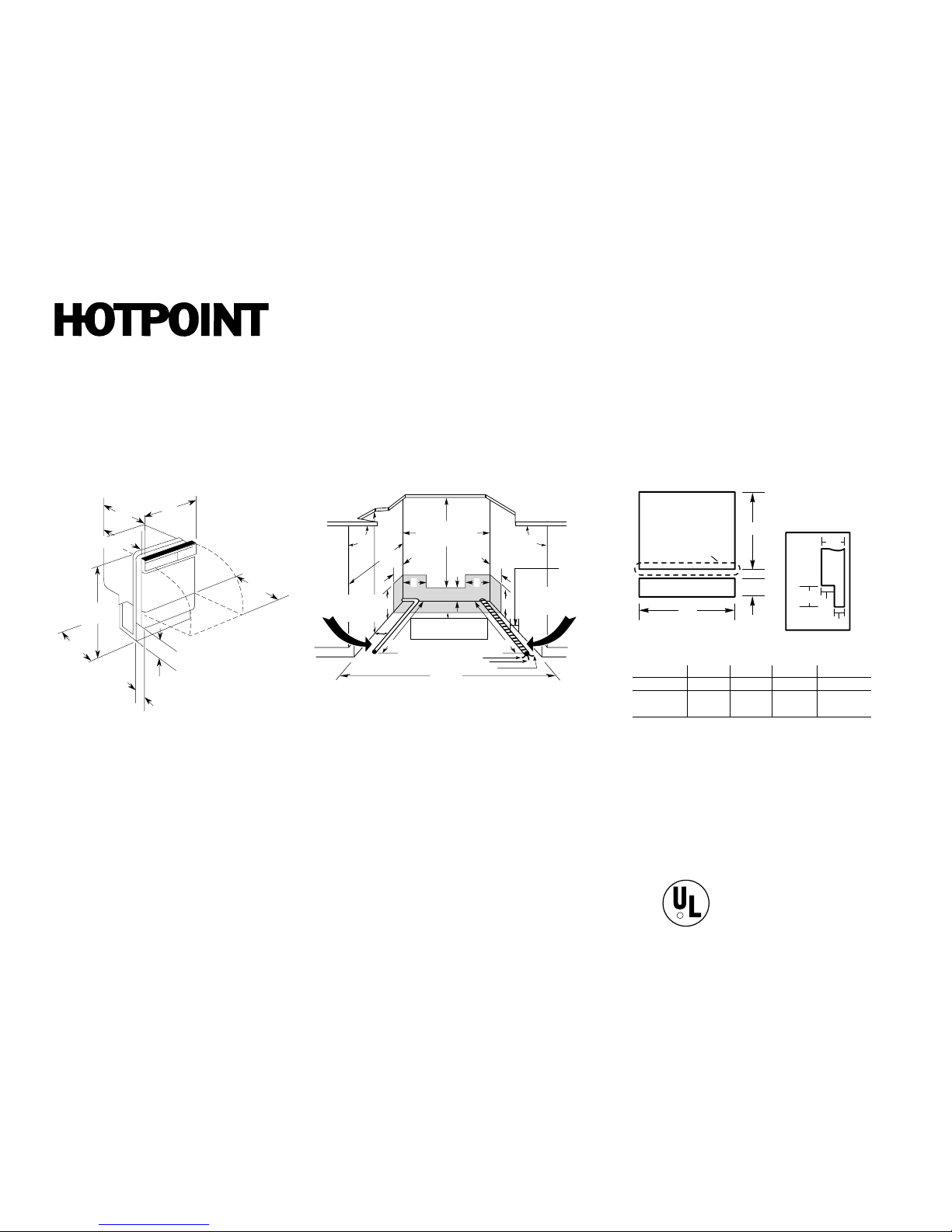

Dishwasher Dimensions (in inches) Wood Insert Cut-Out

Dimensions (in inches)

Installation Information

(in inches)

Note: Dishwasher must not be installed more than 10' from sink

for proper drainage. All plumbing and electrical work must be in

accordance with local codes. Dishwasher includes drain hose

and leveling legs.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Electrical Rating

Voltage AC.......................................................120

Hertz ..................................................................60

Total connected load amperage.......................8.6

Calrod®heater watts.......................................500

For use on adequately wired 120-volt, 15-amp

circuit having 2-wire service with a separate

ground wire. This appliance must be grounded

for safe operation.

Listed by

Underwriters

Laboratories

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34-1/2±1/4"

Underside

of countertop

to floor

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

White (neutral)

Black (line)

Ground

25-1/8*

21-1/2*

3-1/4 4 (Adjustable)

34" MIN.

adj. to 35"

*Add 1/4" for

*rear insulation

23-3/8*

24-3/4

Access insert

Detail D

Panel Thickness

Door insert

Front

Panel

1-1/2 1/2

1/4

3/4

Panel

Models/Kits A B C Thickness

GPF325 Kit 18-7/8”23-9/16”3-11/16”1/4”

4-1/4”to

GPF375 Kit 18-15/16”23-5/8”* 3-3/4”** 3/4”

*Bottom of panel must be notched 1-1/2" x 1/2" to clear

access panel. (See illustration above)

**Adjustment required to match adjcent cabinets fronts due to

leveling leg adjustment, 4" nominal.

Specification Created 10/00

HDA2100FWW - Hotpoint Built-In Dishwasher

OFF

HOT

PREWASH

OPTION

HEAVYWASH HEATED

DRY

(HEATEDDRYOFF)

RINSEONLY

DRYING

OFF

NORMALWASH

WATERSAVER

Features and Benefits

•4 Cycle / 9 Options

•Cycles: Heavy Wash, Normal Wash, Water Saver and Rinse Only

•Heated Dry On/Off

•Hot Prewash Option (Dial)

•2 Wash Levels

•Standard Upper Rack

•Deluxe Flat Lower Rack

•Deluxe Silverware Basket

•Trimless Appearance

•Standard Sound Insulation Package

•Model HDA2100FWW - White on white

•Model HDA2000FBB - Black on black

•Model HDA2000FWH - White

•Model HDA2000FAD - Almond
