LAM9500 Downdraft hob in 950
deep island
Installation Instructions
Contents

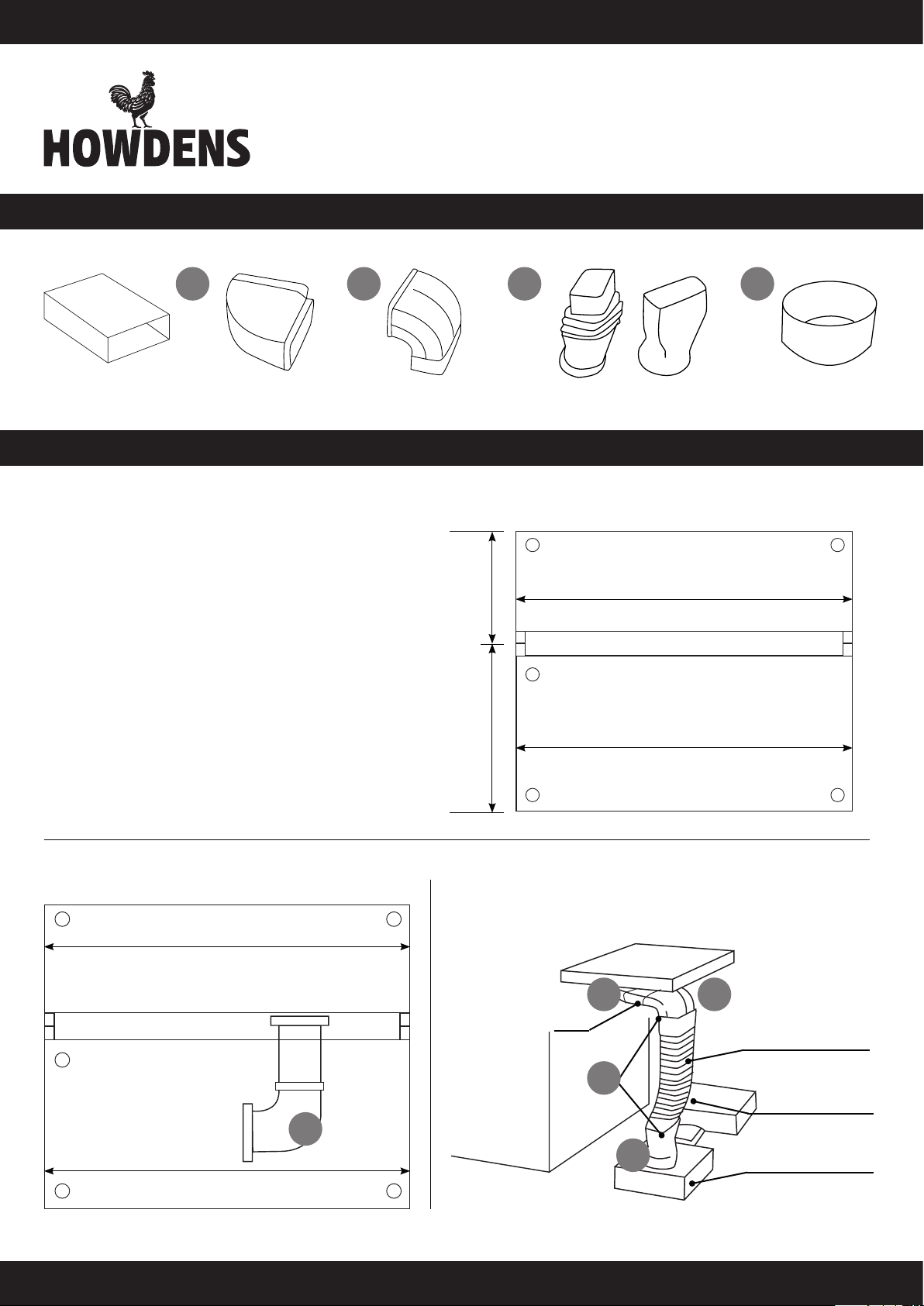

Installation Instructions
1. Remove the rear right foot from the base cabinet.
Rigid
Ducting kit should be placed within the service void.
Flexi
Rigid cut to length
Fan under plinth
Carbon filter
under plinth
Ducting routing
LAM9500 Page 1
1000 Base unit
1000 Wall unit
290mm575mm
1000 Base unit
1000 Wall unit
A B
B
C D
D
A
A
C
NOTE: THIS APPLIANCE IS DESIGNED FOR RECIRCULATION INSTALLATION ONLY
LAM9500
3. The rear and base of the wall cabinet will need to
be cut using the template provided. It has a fold in it
so that you can create the rear and base cut in
one go.
4. Tape the flexi ducting and C together and
feed into the service void. Then join the wall and
base cabinets together using fixing plates or
timber offcuts.
FIT THE FEET TO THE WALL CABINET.
cut the template out and fold along the dotted line
then measure 255mm from the centre of the hob/
cabinet and mark the position.
Place centre line of the template on the cabinet,
make a mark and then fold over the bottome panel
and cut out the base and bottom panel around the
template
2. The back wall of the base cabinet and top rails require cutting prior to joining to the wall cabinet.
Front top rail
515mm
230mm
255mm
110mm
100mm100mm
105mm
15mm
20mm
170mm
Cut out from
template
Fixed area
Cut out in base
Centre line of hob/
cabinet
Page 2
LAM9500
5. Fit the fan motor into the carbon filter box.
Fit D to the fan motor and position under the wall cabinet. Connect the flexi ducting to D.
6. Cutting the breakfast bar(950mm) for the hob.
Connect B(vertical 900)to Cflexi ducting, then cut a rigid rectangular pipe to 150mm long and fit it to B. Then fit A
horizontal to the rigid pipe.
Filter
box Fan
1000 Base unit
1000 Wall unit
USE THE DUCTING TAPE PROVIDED TO SEAL ALL OF THE JOINTS.
1080mm
750mm
500mm
55mm
Front of worktop
Page 3
This is why the foot
has to be removed
Rigid
A
B C
D
LAM9500
7. Position the island into it’s final location, route and
fix decor ends to the island unit.
9. Position the hob into the cut out breakfast bar
using the seal provided.
10. Connect the ducting to the hob and fix the hob
into place using the brackets provided.
11. Plug the hob into the fan unit under the cabinet
and connect the electrics.
12. Cut the plinth for a plinth vent on the rear of the
island, NOTE: FOR FILTER CHANGES YOU WILL HAVE TO
REMOVE THE PLINTH.
13. Fit the plinth to the front of the island then fit the
vented plinth to the rear of the island as required.
14. Clean up, then power on and test.
8. Fix the worktop to the island unit.
SLIDE THE HOB SIDEWAYS INTO CUTOUT AND DUCTING AND
GENTLY SLIDE INTO PLACE.
Page 4
LAM9500 Downdraft hob in 950
deep island
Installation Template
Please cut the below template out
LAM9500
FOLD
160mm wide
223mm wide
