HP Compaq Presario Manuale

Volume Two

3-61

Presario 4700/6700/8700

System Boards (w/o Proc) Assembly Spare Part System

Sys Bd, 8MB, Trio64V 006210-101 238209-001 4704, 06, 10, 12,

14; 6704, 08

Sys Bd, 8MB, Virge 005400-101 237706-001 4706

Sys Bd, 8MB, Virge, w/o

Audio 006086-101 240109-001 4772; 8702, 8712,

8714

Sys Bd, 8MB, Virge, G/W 006659-101 238481-001 4716; 8716

Sys Bd, 16MB, KV w/o

Audio 006418-101 271309-001 8760, 72

Sys Bd, 16MB, KV2 006414-101 271307-001 4764, 76

Sys Bd, 16MB, Virge 006417-101 271308-001 4774, 84, 86; 8770

Sys Bd, 16MB, Trio, 64VT 007055-101 271408-001 4760, 4780, 4782,

4788

Sys Bd, 16MB, KV2 007243-101 271189-001 4770

Configuration Jumper Settings (005400, 006086, 006210, 006659, 007056, 006086,

006418, 006414, 006417, 007055, 007243)

Jumper Pins Function

P7 Replacement battery connector

P8 Bus Speed Select

(005400, 006086, 006210,

006659)

1 - 2

2 - 3

3 - 4

4 - 5

50MHz CPU External Bus Frequency

60MHz CPU External Bus Frequency

66MHz CPU External Bus Frequency

55MHz CPU External Bus Frequency

P8 Bus Speed Select

(007056, 006086, 006418,

006414, 006417, 007055,

007243)

1 - 2

2 - 3

3 - 4

66MHz CPU External Bus Frequency

60MHz CPU External Bus Frequency

66MHz CPU External Bus Frequency

P9 CPU Clock Multiplier A1-A2

B1-B2

A2-A3

B1-B2

A2-A3

B2-B3

A1-A2

B2-B3

1.5x

2.0X

2.5X

3.0X

P11 CMOS Clear 1 - 2*

Open Secure CMOS Power

Remove Jumper for 10 sec, reinstall to clear

* Default

Microprocessors Spare Part System

P54C/133/66 223311-001 4704, 06

P54C150/60 235228-001 8702

P54C166/66 235229-001 4710, 12; 6704; 8702, 14

P55C166/66 MMX 240181-001 4760, 64, 72; 8760

P54C200/66 243118-001 4714, 16, 18, 74; 6708; 8712, 16

P55C200/66 MMX 240181-002 4770, 76, 80, 82, 84, 86, 88; 8770, 72

3-62

Volume Two

Presario 4700/6700/8700

Configuration

Code Assembly System Board

Spare Part Model

HXV3 006086-101 240109-001 8702

HXV6 006086-101 240109-001 8714

HZZ1 006086-101 240109-001 8714

HZZ4 006659-101 238481-001 8716

HZZ6 006086-101 240109-001 8714

HZZ7 006086-101 240109-001 8714

HZZ8 006086-101 240109-001 8714

HZZ9 006086-101 240109-001 8714

HZW1 006210-101 238209-001 6704

HZX5 005400-101 237706-001 4706

HZZ3 006659-101 238481-001 8716

HZZ5 006659-101 238481-001 8716

HZY2 006086-101 240109-001 8712

HXV2 006210-101 238209-001 6708

HYP1 006210-101 238209-001 4704

HYP9 006210-101 238209-001 4712

HYQ1 006210-101 238209-001 4704

HYQ2 006210-101 238209-001 4704

HYQ3 006210-101 238209-001 4704

HYQ4 006210-101 238209-001 4704

HYQ5 006210-101 238209-001 4704

HYQ6 006210-101 238209-001 4704

HYQ7 006210-101 238209-001 4704

HYQ8 006210-101 238209-001 4704

HYQ9 006210-101 238209-001 4704

HYR1 006210-101 238209-001 4712

HYR2 006210-101 238209-001 4712

HYR3 006210-101 238209-001 4712

HYR4 006210-101 238209-001 4712

HYR5 006210-101 238209-001 4712

HYR6 006210-101 238209-001 4712

HYR7 006210-101 238209-001 4712

HYR8 006210-101 238209-001 4712

HYR9 006210-101 238209-001 4712

HXJ2 006210-101 238209-001 4710

HYS2 006659-101 238481-001 4716

HYS5 006210-101 238209-001 4714

Continued

Volume Two

3-63

Presario 4700/6700/8700

Configuration

Code Assembly System Board

Spare Part Model

BKJ2 007055 271408-001 4760

BKJ3 007055 271408-001 4760

BKK2 006414 271307-001 4764

BMX2 007243 271189-001 4770

BKM2 007055 271408-001 4780

BKM3 007055 271408-001 4780

BKM5 007055 271408-001 4780

BKMB 007055 271408-001 4782

BKNB 006417 271308-001 4784

BKN2 006417 271308-001 8770

BKRB 006418 271309-001 8772

BMZZ 006086 240109-001 4772

BKS2 006417 271308-001 4774

BKL2 006417 271308-001 4786

BKMC 007055 271408-001 4780

BKMD 007055 271408-001 4780

BKME 007055 271408-001 4780

BKMF 007055 271408-001 4780

BKMG 007055 271408-001 4780

BKMH 007055 271408-001 4780

BMXB 006414 271307-001 4776

BNK2 006418 271309-001 8760

3-64

Volume Two

Presario 4700/6700/8700

Memory Assembly Spare Part System

4 MB SIMM, EDO, 60ns,

Tin/Lead Contacts1185173-002 236512-001 4704, 06, 10, 12, 14,

16; 6704, 08; 8702,

12, 14, 16

8 MB SIMM, EDO, 60ns,

Tin/Lead Contacts1185172-002 236513-001 4704, 06, 10, 12, 14,

16; 6704, 08; 8702,

12, 14, 16

8 MB Synch DRAM 271107-002 271116-001 4760, 64, 70, 72, 74,

76, 80, 82, 84, 86,

88; 8760, 70, 72

16 MB Synch DRAM 278030-002 278066-001 4760, 64, 70, 72, 74,

76, 80, 82, 84, 86,

88; 8770, 72

32 MB Synch DRAM 278031-002 278067-001 4760, 64, 70, 72, 74,

76, 80, 82, 84, 86,

88; 8770, 72

1 MB Video Memory 004827-001 213859-001 4704, 06, 10, 12, 14,

16, 72; 6704, 08;

8714, 16

1 MB Video Memory 210257-003 271462-001 4460ES; 4760, 64,

80, 82

2 MB Video Memory 006419-001 271174-001 4760, 64, 70, 80, 82,

84, 88, 86; 8770, 72

Cache, 256K 237716-001 243117-001 All

Cache, 512K 240108-001 243117-002 All

1Two each shipped in each model.

Miscellaneous Assembly Spare Part System

Keyboard, U.S./Can. English 237743-301 237835-301 All

Mouse 149998-004 199181-401 All

Speaker, Amplified 239509-001 238206-001 4716, 8700

Speaker 239508-001 238207-001 4700 (ex 4716), 6700

Speaker, Woofer 239513-001 238208-001 8700 (ex 8702)

Riser Card 005451-001 237709-001 All

Scanner Keyboard, Dom 185288-301 6700

Scanner Keyboard Adapter 185536-001 6700

Surge Protector 237719-001 237720-001 6700

Video Phone Camera/Cable 238384-001 186590-001 4772, 82, 84

Controller Boards Assembly Spare Part System

WaveTable Module 004824-001 213858-001 All

Interwave Audio w/ Memory 240110-001 240112-001

Graphics 240111-001 240113-001

Hard Drives Cable Select Spare Part System

1.6 GB, IDE Yes 213990-001 4704, 06

2.1 GB, IDE, 3.50” Yes 271374-001 4760, 74

2.5 GB, IDE, 3.5” Yes 247412-001 4708, 10, 12, 14, 16,

64; 6704; 8702, 14,

16, 60

3.8 GB, IDE Yes 238475-001 4770, 72; 8712, 70

4.3 GB, IDE Yes 271119-001 4776, 80, 82, 88, 84

6.5 GB, IDE Yes 271127-001 4786; 8772

Volume Two

3-65

Presario 4700/6700/8700

CD-ROM Drive Assembly Spare Part System

CD-ROM, IDE, 8-spd, Ivory 185634-401 185674-401 4704, 06, 10, 12, 14,

16, 72; 6704, 08;

8714, 16

CD-ROM, IDE, 16-spd, Tray 270932-404 271138-001 4760, 80, 82, 88

CD-ROM, IDE, 16-spd, Slot 286037-001 4764, 70, 74, 84, 86;

8760, 70, 72

Diskette Drives Spare Part System

1.44 MB, 3.5” 239612-401 All

100 MB, 3.5” 270946-001 4784

28.8K bps Modem, FDSP + TAM, ISA

Country Assembly Spare Part System

N.A. 212920-001 212932-001 6700

33.6k-bps Modem +FDSP+TAM ISA

Country Assembly Spare Part Cable *

Spare Part

Australia 005671-003 225258-011 165224-012

Austria 005671-002 225258-341 165224-341

Belgium 005671-004 225258-181 165224-181

Denmark 005671-004 225258-081 165224-081

Finland 005671-004 225258-351 165224-352

France 005671-005 225258-051 165224-051

Germany 005671-003 225258-041 165224-041

Italy 005671-002 225258-061 165224-062

Korea 005671-001 225258-AD1 165224-AD1

Netherlands 005671-004 225258-331 165224-331

New Zealand 005671-001 225258-API 165224-032

JPN

APD

221500-001 221506-001

221506-191

221506-371

165224-001

Norway 005671-004 225258-091 165224-091

Portugal 005671-002 225258-131 165224-131

Spain 005671-002 225258-071 165224-071

Sweden 005671-003 225258-101 165224-101

Switzerland 005671-006 225258-111 165224-111

U Kingdom 005671-001 225258-031 165224-032

* Use only the cable specified for each modem to ensure telephony features and

agency compliance.

33.6k-bps Modem +FDSP+TAM ISA, 56bps-Ready

Country Spare Part Cable

Spare Part System

N/A 221519-001 165224-012 4776, 84; 8772

3-66

Volume Two

Presario 4700/6700/8700

Cables Spare Part System

Diskette Drive Cable 238184-001 All

Cable Kit, CD, HD, Audio, Disk, Serial 238184-001 All

Hard Drive Cable 238184-001 All

Audio Cable 171109-001 All

Audio Cable, Interwave 240128-001 8700

Serial Interface 237858-001 All

CD-ROM Drive 238184-001 All

Speaker, Amplified 240130-001 8700

Speaker, Woofer 240130-002 8700

Video Phone Cable 162279-001 4782, 84

100 MB Drive Data 271207-001 4784

Audio, 16” 214522-001 4760

ROM Information Spare Part System

System ROMPaq 148218-001 All

Power Supply/Battery Spare Part System

Power Supply, 145W 238007-001 4704, 06, 10, 12, 14, 16,

72; 6704, 08; 8714, 16

Power Supply, 145W PCF, EMEA 238009-001 4704, 06, 10, 12, 14, 16,

72; 6704, 08; 8714, 16

Power Supply, 145W PCF 271128-001 4760, 64, 70, 74, 76, 80,

82, 84, 86, 88; 8770, 72

Real-Time Clock Battery (4.5 v alk.) 160274-001 All

Volume Two

3-67

Presario 4700/6700/8700

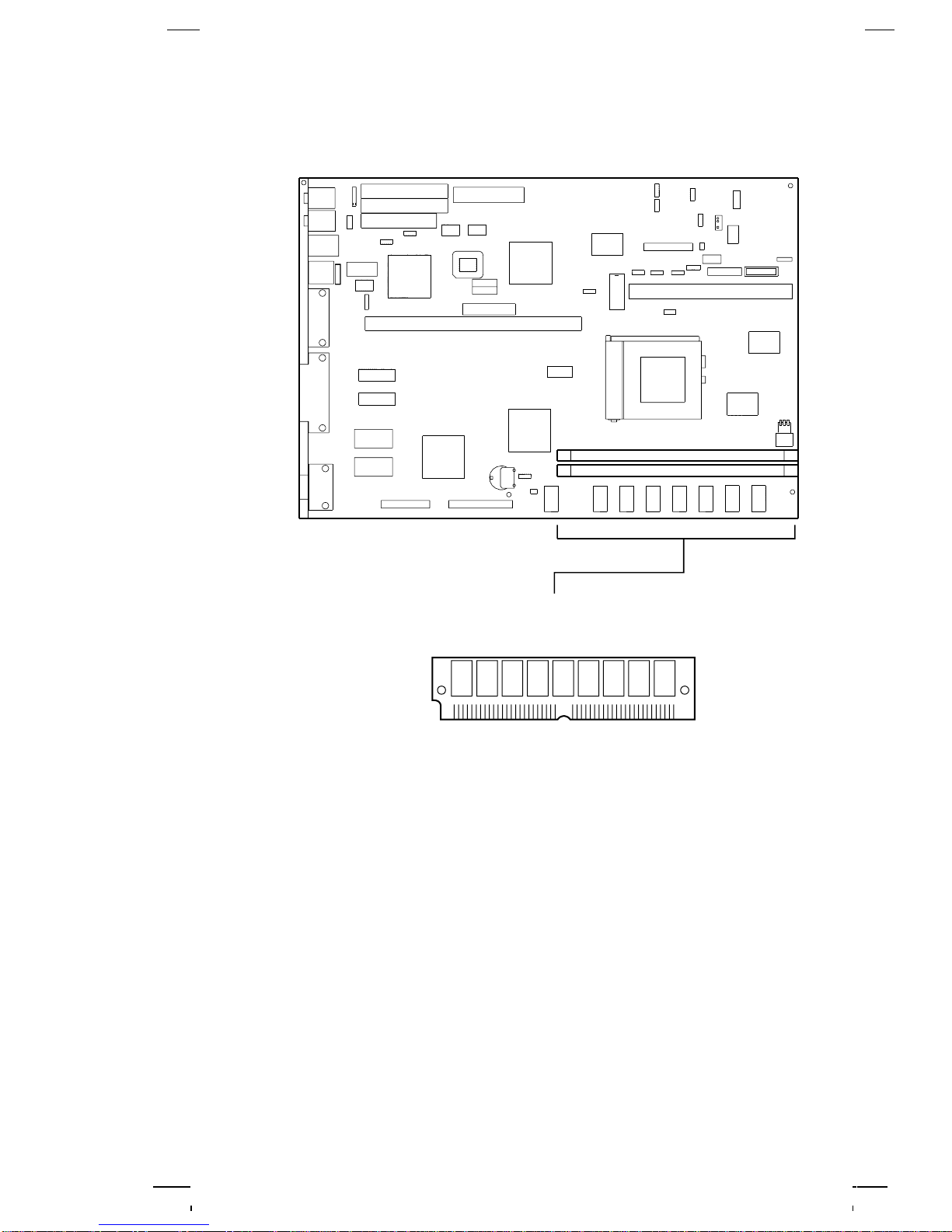

MEMORY UPGRADE CHART

I/O BOARD

006414, 006417, 006418, 007055, 007056

(16 MB)

MAXIMUM SYSTEM MEMORY IS 80 MB

16-MB SYNC DRAM - OPTION PN 271433-001

32-MB SYNC DRAM - OPTION PN 271434-001

NOT NECESSARY TO INSTALL SDRAM DIMMs IN PAIRS

3-68

Volume Two

Presario 4700/6700/8700

MEMORY UPGRADE CHART

I/O BOARD

005400, 006210, 006086, 006659

(8 MB)

MAXIMUM SYSTEM MEMORY IS 128 MEGABYTES

8-MB, EDO, 60ns - OPTION PN 236548-001

Memory upgrade SIMMs must be installed in pairs.

Use SIMMs with tin/lead contacts only. EDO Simms

are recommended for all system boards.

Altri manuali per Compaq Presario

307

Questo manuale è adatto per i seguenti modelli

Altri manuali HP Scrivania

HP D530 - Compaq Business Desktop Manuale utente

HP Compaq Pro 4300 Small Form Factor Manuale utente

HP Pavilion a200 - Desktop PC Istruzioni per l'installazione

HP Pavilion Gaming 690 Istruzioni per l'installazione

HP Z620 Series Istruzioni per l'installazione

HP 315eu - Microtower PC Manuale utente

HP EliteDesk 800 G4 Istruzioni per l'installazione

HP Pavilion v500 - Desktop PC Manuale di istruzioni

HP Brio BA210 Manuale utente

HP EliteDesk 800 G5 Istruzioni per l'installazione

HP SR5605F - Compaq Presario - 1 GB RAM Manuale d'uso e manutenzione

HP -380467-003 - COMPAQ PRESARIO C300 C500 C700 F500 F700 LAPTOP... Istruzioni per l'installazione

HP TouchSmart ENVY 23-d055 Manuale utente

HP Omni 220-1000 Manuale utente

HP s3320f - Pavilion - Slimline Manuale di istruzioni

HP Compaq Presario Manuale utente

HP Vectra XM 5/xxx - 3 Manuale utente

HP Vectra VL800 Manuale del prodotto

HP 300 Series Manuale utente

HP Xw4200 - Workstation - 1 GB RAM Guida di riferimento rapido

HP Compaq dc7800 Series Manuale utente

HP 280 G5 SFF Business PC Manuale utente

HP G5 Manuale

HP Compaq dx7510 Istruzioni per l'installazione

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
