HP Compaq Presario Manuale

Volume Two

3-31

Presario 4800

System Boards (w/o Proc) Assembly Spare Part System

Sys Board, 586, KV3, GX 006951-101 286165-001 4808, 10, 14, 16

Sys Board, P6, Virge 286019-101 286166-001 4824, 30, 34

Sys Board, P6, CPQ 007427-101 286411-001 4830, 24, 34, 40, 50

Riser Card 007261-001 286535-001 All

Configuration Jumper Settings (006951)

Jumper Pins Function

P2 Replacement battery connector

P9 Bus Speed Select 1 – 2

2 – 3 60 MHz CPU External Bus Frequency

66 MHz CPU External Bus Frequency

P11 CPU Clock Multiplier A1 – A2

B1 – B2 X 3.5 (233 MHz only)

A2 – A3

B1 – B2 X 2.0

A2 – A3

B2 – B3 X 2.5

A1 – A2

B2 – B3 X 3.0

P12 CMOS Clear 1 – 2*

Open Secure CMOS Power

To clear CMOS, remove jumper for 10

seconds the reinstall

* Default

Pentium II Speed Configuration Jumpers (286019-101)

Speed (MHz) J1J1 B J1J1B J1J1 C

200 2 – 3 4 – 5 1 – 2

233 1 – 2 4 – 5 1 – 2

266 2 – 3 5 – 6 2 – 3

Jumper Switch Settings (286019-101)

Function Jumper Positions Settings

Boot J8K1 Normal

Recovery 2 – 3*

1 – 2

Setup J1J1 D Enable

Disable 5 – 6*

4 – 5

Power Down Disable J1J1 D Allowed

Disable 2 – 3*

1 – 2

CMOS J1J1 C Normal

Clear CMOS 5 – 6*

4 – 5

* Default

Configuration

Code System Board

Spare Part Model

BN32 286166-001 4824

BNG2 286165-001 4816

BNG3 286165-001 4810

BNG6 286165-001 4814

BNG7 286165-001 4814

BNX2 286166-001 4824

BNZ6 286165-001 4808

3-32

Volume Two

Presario 4800

Microprocessors Spare Part System

P55C200/66 MMX 240181-002 4808

P55C233/66 MMX 286258-001 4810, 14, 16

Klamath, 266 286275-001 4830, 32, 34

Klamath, 233 279868-001 4824

Klamath, 300 297327-001 4850

Heat Sink/ Clip Kit, P55C Processor 238247-001 4810, 10, 14, 16

Fan, Processor 286262-001 4824, 30, 32, 34, 40,

Memory Assembly Spare Part System

16 MB Synch DRAM,

DIMM, 60ns 278030-002 278066-001 All

16 MB SIMM, 60ns, 185174-002 243115-001 4830, 32, 34

2 MB Video Memory 006419-001 271174-001 4824, 34, 30, 32

Cache 512K 237716-002 243117-002

Cache 256K 237716-001 243117-001 4810, 14,16

Miscellaneous Assembly Spare Part System

Keyboard, U.S./Can. Eng,

Ivory 286220-003 304286-033 4808, 14, 16, 24, 34

Keyboard, U.S./Can. Eng,

Sunset 286220-005 286241-005 4840, 50

Mouse, Ivory 149998-006 286231-001 All except 4840, 50

Mouse, Sunset 149998-005 286232-001 4840, 50

Speaker, Iguana 239508-001 238207-001 All except 4834

Speaker, GW 239508-001 238206-001 4816, 34

Game Port Assy 293231-001 286259-001 All

Audio Visual Board 007279-001 286170-001 All

AC Adapter 240119-001 240164-001 4816, 34

Hard Drives Assembly Spare Part System

4.3 GB, IDE, 5.25” 241138-001 271119-001 4808

4.0 GB, IDE 286248-001 4810, 14

6.5 GB, IDE, 5.25” 241139-001 271127-001 All exc 4808, 10, 14

CD-ROM Drives Assembly Spare Part System

CD-ROM, IDE, 24-spd, Slot 282961-401 282965-001 All

DVD Drive 270820-608 286410-001 4848, 50

CD-ROM, IDE, 24-spd, Slot 282961-401 282965-001 All except 4840, 50

ZIP Drive, 100 MB 270946-001 4814

Diskette Drives Spare Part System

1.44 MB, Ivory 239612-401 All except 4840, 50

1.44 MB, Sunset 286247-001 4840, 50

Miscellaneous Assembly Spare Part System

Game Port Assy 293231-001 286259-001 All

Volume Two

3-33

Presario 4800

33.6 Kb/s Modem

Country Assembly Spare Part Cable

Spare Part

APD 007201-001 298927-371 137256-001

Australia 007201-001 298927-011 165224-012

Belgium 007201-001 298927-181 165224-182

Denmark 007201-001 298927-081 165224-081

Finland 007201-001 298927-351 165224-352

France 007201-001 298927-051 165224-051

Germany 007201-001 298927-041 165224-041

Korea 007201-001 298927-AD1 165224-AD1

Netherlands 007201-001 298927-331 165224-331

New Zealand 007201-001 298927-011 165224-033

Norway 007201-001 298927-091 165224-091

Sweden 007201-001 298927-101 165224-101

Switzerland 007201-001 298927-111 165224-111

U Kingdom 007201-001 298927-031 165224-033

56 Kb/s Modem

Country Assembly Spare Part Cable

Spare Part System

Japan 292256-001 292269-001 165224-001 4814

Latin America 292256-001 292269-001 165224-001 4814

Taiwan 292256-001 292269-AB1

U.S. 292256-001 292269-001 165224-001 4808, 14, 16,

24, 34, 40, 50

Cables Spare Part System

Cable Kit: CD-ROM, Diskette, HD, Audio 286276-001 All

Audio Visual 286261-001 All

Audio 171109-001 All

Button 286260-001 All

CD-ROM Drive 286276-001 All

ZIP Drive 271207-001 4814

Diskette Drive (assy 238078-001) 286276-001 All

Hard Drive (assy 238079-001) 286276-001 All

ROM Information Spare Part System

System ROMPaq 148218-001 All

Power Supply/Battery Spare Part System

Power Supply 286009-001 All

Battery, 3v 4824, 30, 32, 34

Battery, RTC, External 160274-001 All

3-34

Volume Two

Presario 4800

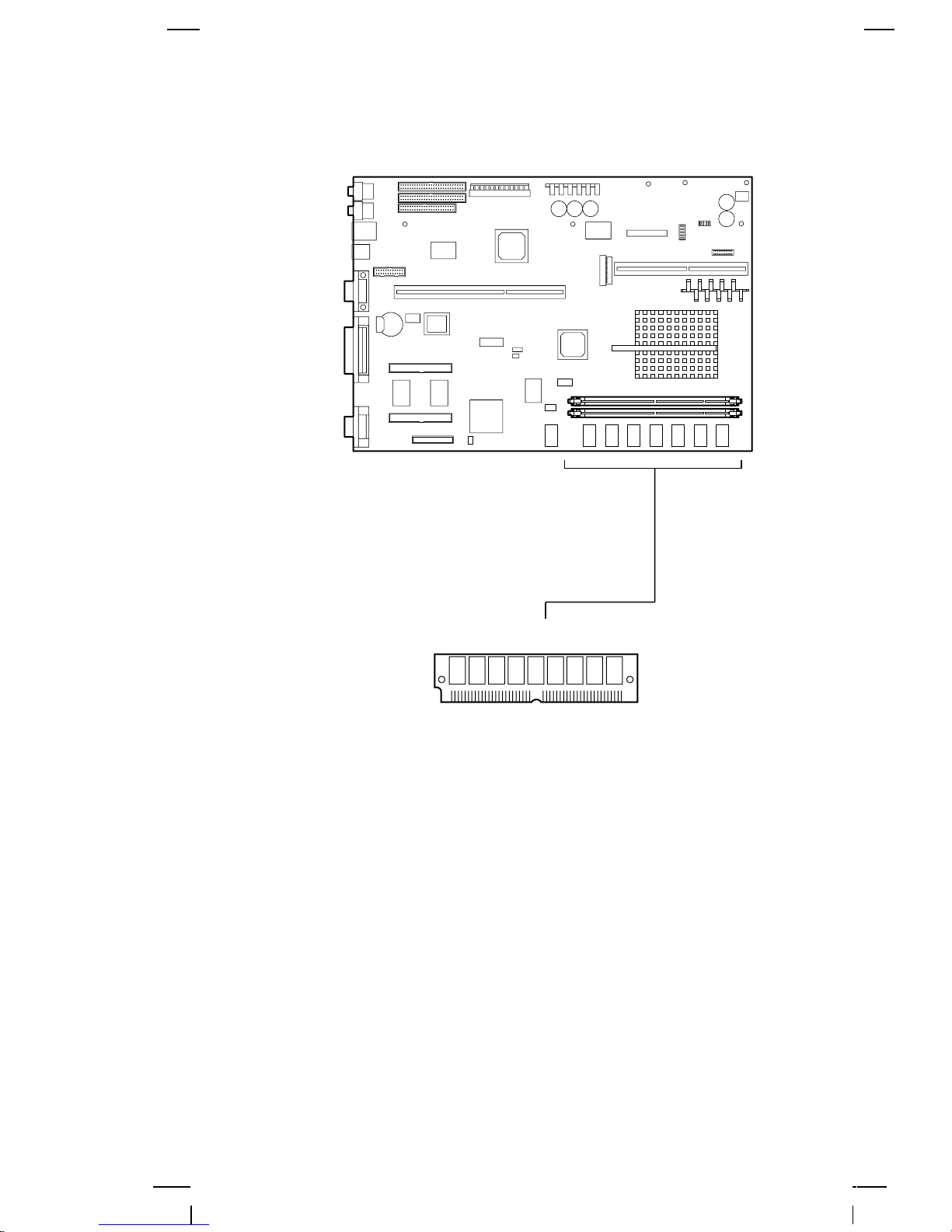

Memory Upgrade Chart

16-MB SDRAM DIMM 60ns - OPTION PN 271433-001

A MAXIMUM OF 256 MB TOTAL MEMORY

I/O BOARD

286165-001

No 4, 8, or 32 MB options

BANK 2

BANK 1

Volume Two

3-35

Presario 4800

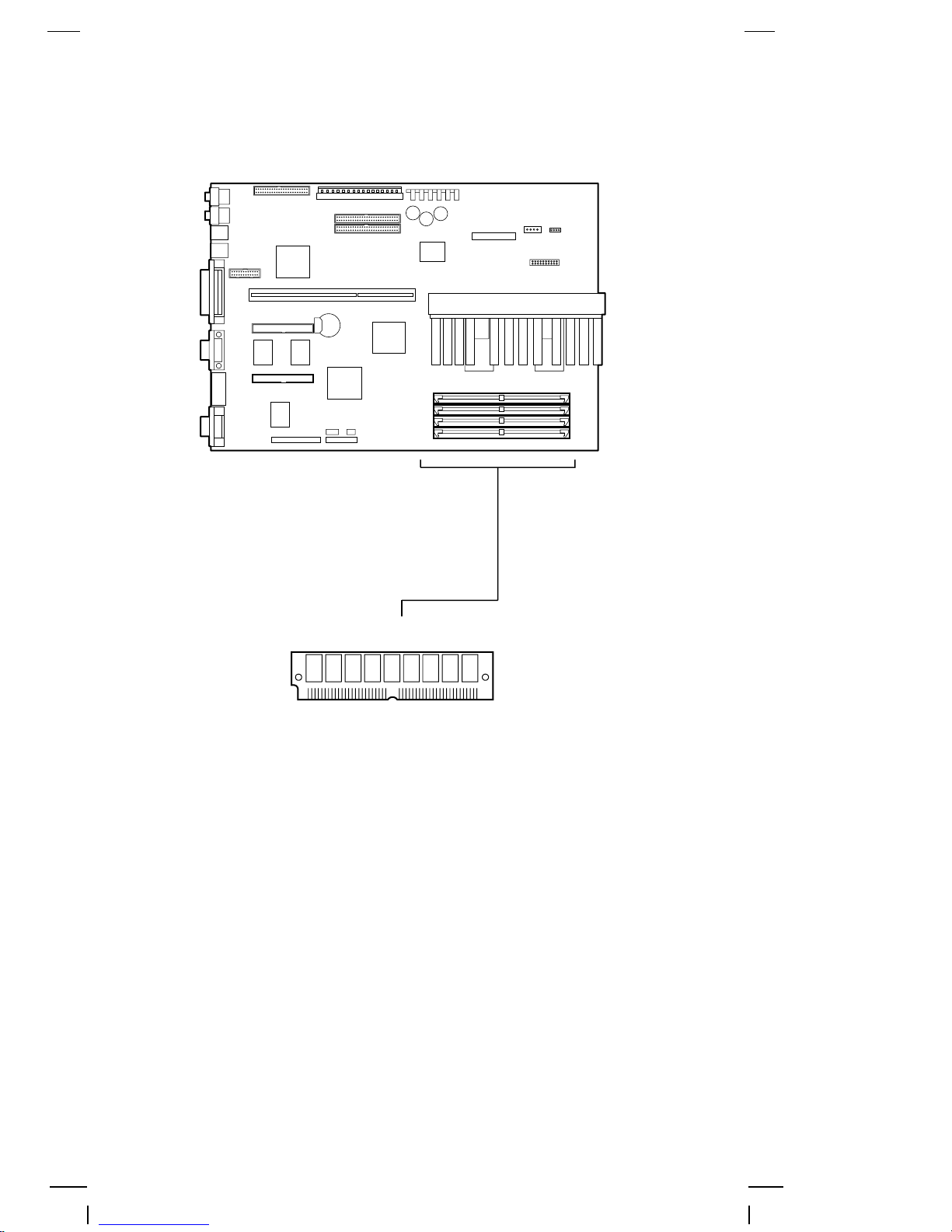

Memory Upgrade Chart

A MAXIMUM OF 256 MB TOTAL MEMORY

I/O BOARD

286411-001

16-MB SDRAM DIMMS 60 ns - OPTION PN 271433-001

32-MB SDRAMDIMMS 60 nx - OPTION PN 271434-001
