technical reference manual

product description - hp e-pc

This technical reference and BIOS document for the HP e-pc contains

summary information only. More detailed information on system hardware is

available in the Technical Reference Manual - HP PC Technology.

HP e-pc

Contents

Francais iii

1systemoverview

hp e-pc components and technical features. . . . . . . . . . . . . . . . . . . . . 2

package features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2systemfeatures

hp e-pc system board layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

architectural view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

main memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CMOS/password switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

mass storage devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

graphic interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

network interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3 serviceability

swapping parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

iv Francais

4BIOSoverview

BIOS summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

power saving and ergonometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

BIOS addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

order in which the POST tests are performed . . . . . . . . . . . . . . . . . 38

beep codes and error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5 drivers and software

drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

BIOS updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

system overview

This chapter introduces the internal and external features, and lists the

specifications of the HP e-pc.

1 system overview

hp e-pc components and technical features

Component HP e-pc

Package

Description

No Free access shelves

Width: 8.9cm (3.5 in); Height: 24.0 cm (9.4 in); Depth: 27.2 cm (10.7 in).

Processor Intel Celeron 500/66, 533/66, 633/66, 700/66

Intel Pentium III 600EB/133, 667/133, 800/133, 866/133

System Board:

Chip set Intel® 810E

Integrated I/O On ICH chip. 2 USB connectors, 1 serial port and 1 parallel port, 2 PS/2 (keyboard, mouse), 1 15-pin VGA connector, audio ports (stereo-in,

stereo-out, microphone in)

Integrated IDE On ICH chip. 2 IDE Ports (Ultra ATA 66)

Integrated

Graphics

Intel® 810E integrated graphics with Direct AGP and Dynamic Video Memory Technology.

Integrated Audio CS4299: CrystalClear™ Sound Fusion Audio Codec ‘97

Integrated network

interface

3COM 10/100 Mbps 3C905C-TX Network Interface (RJ-45 Ethernet port (10/100Base-T)

Mass storage

Hard disks: 8.4GB IDE, 10GB IDE, 20GB IDE

CD-ROM drive: 24X Max-speed slim CD-ROM (in selected models)

DVD drive: 8x Max-speed (in selected models)

CD-RW drive: Available as accessory C4505A

USB Floppy drive: Available as accessory D9510A

Main memory One SDRAM socket using: 64MB, 128MB, 256MB

Input devices HP Standard Keyboard

HP Scrolling Mouse

Power supply External 60W Power Supply

BIOS

Type: AmiBIOS

Version: IN.xx.yy

Setup program: English only

BIOS error messages: English only

1 system overview

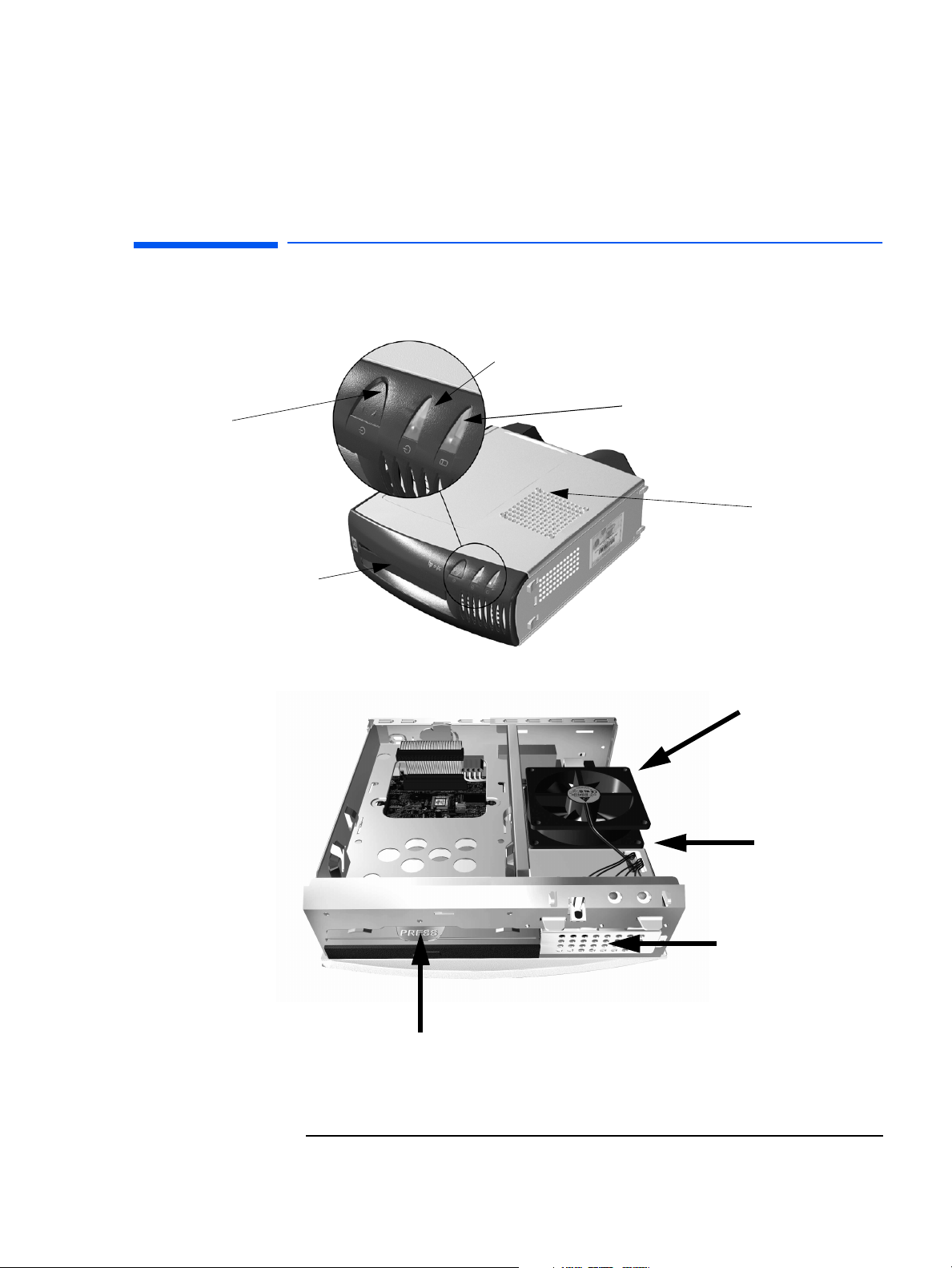

package features

Hard Disk Drive

Activity Light

Front view

Power On/

Off Button

ower on

Status Light

(flashes in

sleep mode)

CD-ROM Drive

(some models only)

Hard Disk Drive

compartment

CD-ROM, DVD or CD-RW drive

Front view with

cover removed

Main Memory located

behind RFI filler plate.

Fan

Processor located

below fan

1 system overview

package features

USB

Parallel Port

Keyboard

Serial Ports

Line In

Microphone

Monitor Mouse

LAN Connector

Speaker

Power

Connector

rear connectors

1 system overview

specifications

physical characteristics

Characteristic Description

Weight

(excluding display and keyboard)

3.5 kg (7.7 pounds)

Dimensions Width: 8.9cm (3.5 inches)

Height: 24.0cm (9.4 inches)

Depth: 27.2 cm (10.7 inches)

Footprint Vertical Position1: 0.021 m2 (0.23 ft.2)

Horizontal Position: 0.065 m2 (0.69 ft.2)

1.Dimensions do not include the stand

Power Adapter Input voltage: 100-240 Vac (auto-range)

Input frequency: 50/60 Hz

Output Voltage: 19V

Maximum output power: 60W (max)

Power Consumption (components) Nominal: 30W

Windows 98 Suspend: 15W

1 system overview

specifications

both platforms power consumption

As an ENERGY STAR partner, HP has determined that this product meets the

ENERGY STAR guidelines for energy efficiency (standard base models).

These are “typical” values given for the standard base models.

NOTE When the PC is turned off with the power button on the front panel, the power

consumption falls below 5 Watts, but is not zero. The special on/off method

used by this PC extends the lifetime of the power supply. To reach zero power

consumption in “off” mode, unplug the AC adapter from the power outlet or

unplug the AC adapter from the HP e-pc. If the PC is turned off, the time

settings are maintained by the battery indefinitely (until the battery runs out

of power).

acoustic noise emission

The values are given for the standard configuration as shipped and can vary

depending on the actual components used.

Power Consumption

(PC running Windows98)

Operating with input/output: 38W

Operating without input/output: 21W

Suspend: 15W

Automatic Sleep Mode: 4.1W

Off: 2.2W

Acoustic Noise Emission

(ISO 7779)

Sound Power

(Average)

Sound Power

(ISO 9296)

Sound Pressure

(ISO 9296)

Operating (idle) LwA =32.4 dBA LwAd = 33 dBA LpA = 24 dBA

Operating with disk access LwA = 39.1 dBA LwAd = 42 dBA LpA = 34 dBA

Operating with CD-ROM access LwA = 44.7 dBA LwAd = 48 dBA LpA = 37 dBA
