QuickSpecs

HP Z620 Workstation

Overview

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 1

HP Z620 Workstation

2 External 5.25” Bays (shown with optional slot-load optical drive)

Power Button

HDD Activity LED

Front I/O: 1 USB 2.0, 2 USB 3.0,

1 Headphone, 1 Microphone, 1 1394a

QuickSpecs

HP Z620 Workstation

Overview

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 2

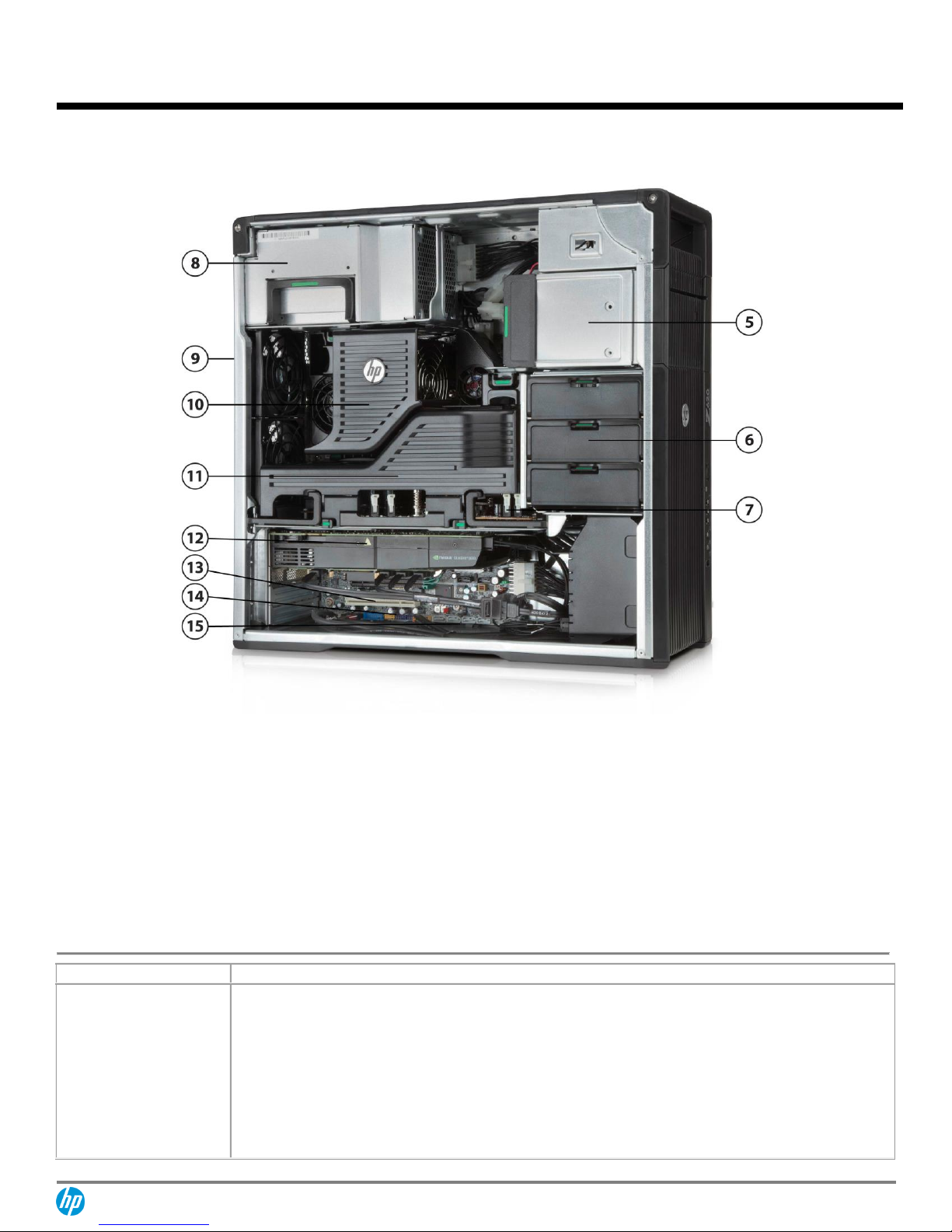

2 External 5.25” Bays

11.

2nd CPU & Memory Module

3 Internal 3.5” Bays

12.

2 PCIe x16 Gen3 Slots

12 DIMM Slots for DDR3 ECC Memory

13.

1 PCIe x8 Gen3, 1 PCIe x8(x4) Gen2, 1 PCIe x4(x1) Gen2, 1 PCI

Slot

800W, 90% Efficient Power Supply

14.

6 Internal USB 2.0 Ports

Rear I/O: Rear Power Button & LED, PS/2 Ports, 1 1394a, 4

USB 2.0, 2 USB 3.0, 2 RJ-45 to Integrated GbE, 1 Audio Line

In, 1 Audio Line Out, 1 Microphone

15.

10 SATA Ports

10.

Intel Xeon Processors E5-1600 family or E5-2600 family

Form Factor

Minitower

Operating Systems

Preinstalled:

Windows 7 Ultimate 64-bit*

Windows 7 Professional 64-bit*

Windows 7 Professional 32-bit*

Windows 8.1 Pro 64-bit

Windows 8.1 Simplified Chinese Edition 64-bit

Windows 8.1 Pro Downgrade to Windows 7 Professional 32-bit

Windows 8.1 Pro Downgrade to Windows 7 Professional 64-bit

QuickSpecs

HP Z620 Workstation

Overview

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 3

HP Installer Kit for Linux (includes drivers for 64-bit OS versions of RHEL 5 & 6 and SUSE Linux

Enterprise Desktop 11)

Red Hat Enterprise Linux Desktop (Preinstall NOT available; 1 year paper license only)

Supported:

Genuine Windows® 7 Enterprise 32/64

SUSE Linux Enterprise Desktop 11

Windows® XP Professional 32/64 (on select configurations)*

Notes: *See the "Windows XP Support Matrix for Z Workstations" at:

http://www.hp.com/support/workstation_manuals

Notes: For detailed OS/hardware support information for Linux, see:

http://www.hp.com/support/linux_hardware_matrix

Available Processors

Name

Cores

Clock

Speed

(GHz)

Cache

(MB)

Memory

Speed

(MHz)

QPI Speed

(GT/s)

Hyper-

Threading

Featuring Intel®

vPro™

Technology

Intel® Turbo

Boost

Technology1

TDP

(W)

Intel Xeon

E5-2643 processor

3.3

1600

8.0

1, 2

130

Intel Xeon

E5-2620 processor

2.0

1333

7.2

3, 5

Intel Xeon

E5-2697 v2

processor

2.7

1866

8.0

3, 8

130

Intel Xeon

E5-2695 v2

processor

2.4

1866

8.0

4, 8

115

Intel Xeon

E5-2690 v2

processor

3.0

1866

8.0

3, 6

130

Intel Xeon

E5-2680 v2

processor

2.8

1866

8.0

3, 8

115

Intel Xeon

E5-2670 v2

processor

2.5

1866

8.0

4, 8

115

Intel Xeon

E5-2667 v2

processor

3.3

1866

8.0

3, 7

130

Intel Xeon

E5-2660 v2

processor

2.2

1866

8.0

4, 8

Intel Xeon

E5-2650 v2

processor

2.6

1866

8.0

4, 8

Intel Xeon

E5-2643 v2

processor

3.5

1866

8.0

1, 3

130

Intel Xeon

E5-2640 v2

processor

2.0

1600

7.2

3, 5

QuickSpecs

HP Z620 Workstation

Overview

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 4

Intel Xeon

E5-2637 v2

processor

3.5

1866

8.0

1, 3

130

Intel Xeon

E5-2630 v2

processor

2.6

1600

7.2

3, 5

Intel Xeon

E5-2620 v2

processor

2.1

1600

7.2

3, 5

Intel Xeon

E5-2609 v2

processor

2.5

1333

6.4

N/A

Intel Xeon

E5-2603 v2

processor

1.8

1333

6.4

N/A

Intel® Xeon®

E5-1660 processor

3.3

1600

3, 6

130

Intel Xeon

E5-1650 processor

3.2

1600

3, 6

130

Intel Xeon

E5-1620 processor

3.6

1600

2, 3

130

Intel Xeon

E5-1607 processor

3.0

1066

N/A

130

Intel Xeon

E5-1603 processor

2.8

1066

N/A

130

Intel Xeon

E5-1680 v2

processor

3.0

1866

4, 9

130

Intel Xeon

E5-1660 v2

processor

3.7

1866

2, 3

130

Intel Xeon

E5-1650 v2

processor

3.5

1866

1, 4

130

Intel Xeon

E5-1620 v2

processor

3.7

1866

0, 2

130

Intel Xeon

E5-1607 v2

processor

3.0

1600

N/A

130

1The specifications shown in this column represent the following: (all core maximum turbo steps, one

core maximum turbo steps). Turbo boost stepping occurs in 100MHz increments. Processors that do

not have turbo functionality are denoted as N/A.

NOTE: Z620 systems configured with E5-1600 series processors may not add a 2nd processor. To

support two processors, E5-2600 series processor must be chosen.

Available Processor

Disclaimers

When ordering two processors, the second processor must be the same as the first. Intel processor

numbers are not a measurement of higher performance. Processor numbers differentiate features

within each processor family, not across different processor families. See:

http://www.intel.com/products/processor_number/ for details

Multi-Core technologies are designed to improve performance of multithreaded software products and

hardware-aware multitasking operating systems and may require appropriate operating system

QuickSpecs

HP Z620 Workstation

Overview

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 5

software for full benefits; check with software provider to determine suitability; Not all customers or

software applications will necessarily benefit from use of these technologies.

64-bit computing on Intel® 64 architecture requires a computer system with a processor, chipset, BIOS,

operating system, device drivers, and applications enabled for Intel® 64 architecture. Processor will not

operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will

vary depending on your hardware and software configurations. See: http://www.intel.com/info/em64t

for more information.

Additional Details

Intel® Sandy Bridge Architecture

Intel® C602 Chipset

Intel® Xeon® processor E5-2600 product family

Intel® Xeon® processor E5-2600 v2 product family

Intel® Xeon® processor E5-1600 product family

Intel® Xeon® processor E5-1600 v2 product family

(Sandy Bridge, Socket R)

Up to 8.0GT/s QPI support with two QPI links between processors

4-channel per processor 1066/1333/1600/1866 MHz DDR3 memory* subsystem

Up to 192 GB Memory capacity with 12 DIMM slots and 16 GB DIMMs (with two processors

installed)

PCI Express I/O and dual PCIe x16 Gen3 graphics support

Dual Integrated Intel Gigabit LAN on Motherboard (LOM)

2 channels of Serial ATA (SATA) 6.0 Gb/s and 8 channels of SATA 3.0 Gb/s natively supported

internally

SATA RAID 0, 1, 5, and 10 support standard on motherboard

SAS RAID 0, 1, and 10 supported using the LSI 9212-4i 6Gb/s controller

SATA optical drives

High Definition integrated audio with internal speaker

800W 90% efficient power supply

ENERGY STAR® qualification and energy-saving features available on selected configurations

(Not supported by Linux)

Protected by HP Services, including a 3 years parts, 3 years labor, and 3 years onsite service

(3/3/3) standard warranty. Terms and conditions vary by country. Certain restrictions and

exclusions apply.

*Each processor supports up to 4 channels of DDR3 memory. To realize full performance at least 1

DIMM must be inserted into each channel. To get full 8 channel support, 2 processors MUST be

installed.

Form Factor

4U Rackable Minitower

Color

Brushed aluminum & black

I/O Expansion Slots

Slot 1 (top):

PCI Express Gen2 x4(1)*

Full-height, Half-length

(not available when 2nd CPU/Memory Module is installed)

Slot 2:

PCI Express Gen3 x16

Full-height, Full-length (with extender)

Slot 3:

PCI Express Gen2 x8(4)* with open-ended connector**

Full-height, Full-length (with extender)

Slot 4:

QuickSpecs

HP Z620 Workstation

Overview

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 6

PCI Express Gen3 x8 with open-ended connector**

Full-height, Full-length (with extender)

Slot 5:

PCI Express Gen3 x16

Full-height, Full-length (with extender)

Slot 6:

PCI 32bit/33MHz

Full-height, Full-length (with extender)

* x<number> = number of lanes or size of the physical/mechanical connector.

(number) = number of lanes supported electrically. Typically communicated as x# mechanical,

x(#)electrical.

** open-ended connector allow a greater bandwidth (e.g. x16) card to be installed physically into a

lower bandwidth connector/slot.

Mass Storage Bays (see

Storage section for more

details)

Total bays = 5

Internal Bays

3 internal 3.5" bays (with acoustic dampening rail assemblies pre-installed)

External Bays

2 external 5.25" bays

(4th HDD occupies one external bay)

Front I/O

2 USB 3.0, 1 USB 2.0, 1 Headphone, 1 Microphone, 1 IEEE 1394a

Rear I/O

2 USB 3.0, 4 USB 2.0, 2 RJ-45 integrated Gigabit LAN, 2 PS/2, 1 Audio Line-In, 1 Audio Line-Out, 1

Microphone

Serial supported with optional connector on PCI bracket cabled to system board connector

Internal USB

6 USB 2.0 ports available by three separate 2x5 headers. Each 2x5 header supports either one HP

Internal USB Port Kit (EM165AA) or one 22-in-1 Media Card Reader.

Chassis Dimensions (H x

W x D)

44.45 x 17.15 x 46.48 cm (17.5 x 6.75 x 18.3 in)

Rack utilization: 4U

System Weight

Actual weight depends upon configuration

Minimum config: 15.5 kg (34.2 lb)

Typical config: 17.9 kg (39.4 lb)

Maximum config: 22.6 kg (49.9 lb)

Temperature

Operating:

5° to 35° C (40° to 95° F)

Non-operating

-40° to 60° C (-40° to 140° F)

Humidity

Operating:

8% to 85% relative humidity, non-condensing

Non-operating

8% to 90% relative humidity, non-condensing

Maximum Altitude (non-

pressurized)

Operating:

3,048m (10,000ft)

Non-operating

9,144m (30,000ft)

Power Supply

Tool-free 800W 90% Efficient wide-ranging, active Power Factor Correction

The Power Supply Efficiency Report for this product may be found at this link: TBD

Interfaces Supported

10-channel SATA Interface (2 @ 6.0 Gb/s and 8 @ 3.0 Gb/s). 6 channels are eSATA configurable (2 @ 6

Gb/s, 4 @ 3 Gb/s) for use with eSATA CTO/AMO Kit. No hot plug / hot swap supported.

Hard Drive Controllers

Supported

SATA and SAS controllers

Backup Devices

For a complete listing of compatible DAT tape drives, LTO tape drives and RDX Removable Disk Backup

System offerings, please visit http://www.hp.com/go/connect

Workstation ISV

Certifications

See the latest list of certifications at

http://www.hp.com/united-states/campaigns/workstations/partnerships.html

QuickSpecs

HP Z620 Workstation

Supported Components

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 7

Processors

Factory

Configured

Option

Kit

Option

Kit Part

Number

Support

Notes

Intel Xeon E5-2600 Series - CTO

Intel® Xeon® Processor E5-2620 6C 2.00GHz

Intel® Xeon® Processor E5-2643 4C 3.30GHz

Intel Xeon E5-1600 Series

Intel® Xeon® Processor E5-1620 4C 3.60GHz

Intel® Xeon® Processor E5-1603 4C 2.80GHz

Intel Xeon E5-2600 Series - Z620 AMO

Z620 Xeon E5-2620 6C 2.00 15MB 1333 CPU2

A6S74AA

Z620 Xeon E5-2643 4C 3.30 10MB 1600 CPU2

A6S77AA

Intel Xeon E5-2600 v2 Series - CTO

Intel® Xeon® Processor E5-2667 v2 8C 3.30GHz

Intel® Xeon® Processor E5-2650 v2 8C 2.60GHz

Intel® Xeon® Processor E5-2643 v2 6C 3.50GHz

Intel® Xeon® Processor E5-2695 v2 12C 2.40GHz

Intel® Xeon® Processor E5-2690 v2 10C 3.00GHz

Intel® Xeon® Processor E5-2637 v2 4C 3.50GHz

Intel® Xeon® Processor E5-2620 v2 6C 2.10GHz

Intel® Xeon® Processor E5-2603 v2 4C 1.80GHz

Intel® Xeon® Processor E5-2660 v2 10C 2.20GHz

Intel® Xeon® Processor E5-2630 v2 6C 2.60GHz

Intel® Xeon® Processor E5-2609 v2 4C 2.50GHz

Intel® Xeon® Processor E5-2640 v2 8C 2.00GHz

Intel® Xeon® Processor E5-2670 v2 10C 2.50GHz

Intel® Xeon® Processor E5-2697 v2 12C 2.70GHz

Intel® Xeon® Processor E5-2680 v2 10C 2.80GHz

Intel Xeon E5-1600 v2 Series

Intel® Xeon® Processor E5-1607 v2 4C 3.00GHz

Intel® Xeon® Processor E5-1620 v2 4C 3.70GHz

Intel® Xeon® Processor E5-1680 v2 8C 3.00GHz

Intel® Xeon® Processor E5-1660 v2 6C 3.70GHz

Intel® Xeon® Processor E5-1650 v2 6C 3.50GHz

Intel Xeon E5-2600 v2 Series - Z620 AMO

Z620 Xeon E5-2640 v2 8C 2.00 20MB 1600 CPU2

E3E09AA

Z620 Xeon E5-2667 v2 8C 3.30 25MB 1866 CPU2

E3E13AA

Z620 Xeon E5-2630 v2 6C 2.60 15MB 1600 CPU2

E3E07AA

Z620 Xeon E5-2650 v2 8C 2.60 20MB 1866 CPU2

E3E11AA

Z620 Xeon E5-2620 v2 6C 2.10 15MB 1600 CPU2

E3E06AA

Z620 Xeon E5-2603 v2 4C 1.80 10MB 1333 CPU2

E3E04AA

Z620 Xeon E5-2690 v2 10C 3.00 25MB 1866 CPU2

E3E16AA

Z620 Xeon E5-2637 v2 4C 3.50 15MB 1866 CPU2

E3E08AA

Z620 Xeon E5-2697 v2 12C 2.70 30MB 1866 CPU2

E3E18AA

QuickSpecs

HP Z620 Workstation

Supported Components

DA –14262 Worldwide —Version 40.1 —May 22, 2014

Page 8

Z620 Xeon E5-2609 v2 4C 2.50 10MB 1333 CPU2

E3E05AA

Z620 Xeon E5-2670 v2 10C 2.50 25MB 1866 CPU2

E3E14AA

Z620 Xeon E5-2660 v2 10C 2.20 25MB 1866 CPU2

E3E12AA

Z620 Xeon E5-2695 v2 12C 2.40 30MB 1866 CPU2

E3E17AA

Z620 Xeon E5-2643 v2 6C 3.50 25MB 1866 CPU2

E3E10AA

Z620 Xeon E5-2680 v2 10C 2.80 25MB 1866 CPU2

E3E15AA

NOTE 1: When ordering two processors, the second processor must be the same as the first. Intel

processor numbers are not a measurement of higher performance. Processor numbers differentiate

features within each processor family, not across different processor families. See:

http://www.intel.com/products/processor_number/ for details.
