HP NetVectra N20 Manuale utente

drac-usr.bk : drac-fc.fb4 Page i Friday, April 30, 1999 3:48 PM

Notice

The information contained in this document is subject to change without

notice.

Hewlett-Packard makes no warranty of any kind with regard to this material,

including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose. Hewlett-Packard shall not be liable for errors

contained herein or for incidental or consequential damages in connection with

the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated to another language without the prior written

consent of Hewlett-Packard Company.

AdobeTM and AcrobatTM are trademarks of Adobe Systems Incorporated.

Microsoft®, MS®, MS-DOS®, Windows®and Windows®NT are U.S. registered

trademarks of Microsoft Corporation.

Hewlett-Packard France

Thin Client Operation

38053 Grenoble Cedex 9

France

1999 Hewlett-Packard Company

drac-usr.bk : notice.fb4 Page ii Friday, April 30, 1999 3:48 PM

User’s Guide

drac-usr.bk : title.fb4 Page iii Friday, April 30, 1999 3:48 PM

Important Safety Information

iv English

Who this Manual is For

This manual is for anyone who wants to:

• Set up the PC for the first time

• Troubleshoot problems on the PC

• Find out where to get more information and support.

Important Ergonomic Information

It is strongly recommended that you read the ergonomic information before

using your PC. Refer to see “Working in Comfort” on page 11 for more

information.

Important Safety Information

WARNING If you have any doubt that you can lift the PC or display safely, do not try to

move it without help.

For your safety, never remove the PC’s cover without first removing the power

cord from the power outlet, and any connection to a telecommunications

network. Always replace the cover on the PC before switching it on again.

To avoid electric shock, do not open the power supply. There are no user

serviceable parts inside.

drac-usr.bk : title.fb4 Page iv Friday, April 30, 1999 3:48 PM

English v

Important Safety Information

WARNING There is a danger of explosion if the battery is incorrectly installed. For your

safety, never attempt to recharge, disassemble, or burn the old battery.

Replace only with the same or equivalent type recommended by the

manufacturer. The battery in this PC is a lithium battery which does not

contain heavy metals. Nevertheless, in order to protect the environment, do

not dispose of batteries in household waste. Please return used batteries to

the shop from which you bought them, or to the dealer from whom you

purchased your PC, or to HP, so that they can either be recycled or disposed

of in a sound way. Returned used batteries will be accepted free of charge.

To avoid electric shock and harm to your eyes by laser light, do not open the

laser module. The laser module should be serviced by service personnel only.

Do not attempt to make any adjustment to the laser unit. Refer to the label on

the CD-ROM for power requirements and wavelength. This product is a class

I laser product.

Do not attempt to connect this product to the phone line during a lightning

storm. Never install telephone jacks in wet locations unless the telephone line

has been disconnected at the network interface. Never touch uninsulated

telephone wires or terminals unless the telephone line has been disconnected

at the network interface. Use caution when installing or modifying telephone

lines. Avoid using a telephone (other than a cordless type) during a lightning

storm. There may be a risk from lightning. Do not use the telephone to report

a gas leak in the vicinity of the leak.

Never touch or remove the Communications board without first removing the

connection to the telephone network.

drac-usr.bk : title.fb4 Page v Friday, April 30, 1999 3:48 PM

Important Safety Information

vi English

drac-usr.bk : title.fb4 Page vi Friday, April 30, 1999 3:48 PM

Setting Up and Using Your PC

LAN Activity

LED

Hard Disk

Activity LED

Power On

Status Light

Power On/Off

Button

Optional CD-ROM

Drive

Optional Floppy

Disk Drive

drac-usr.bk : drac.fb4 Page 1 Friday, April 30, 1999 3:48 PM

1 Setting Up and Using Your PC

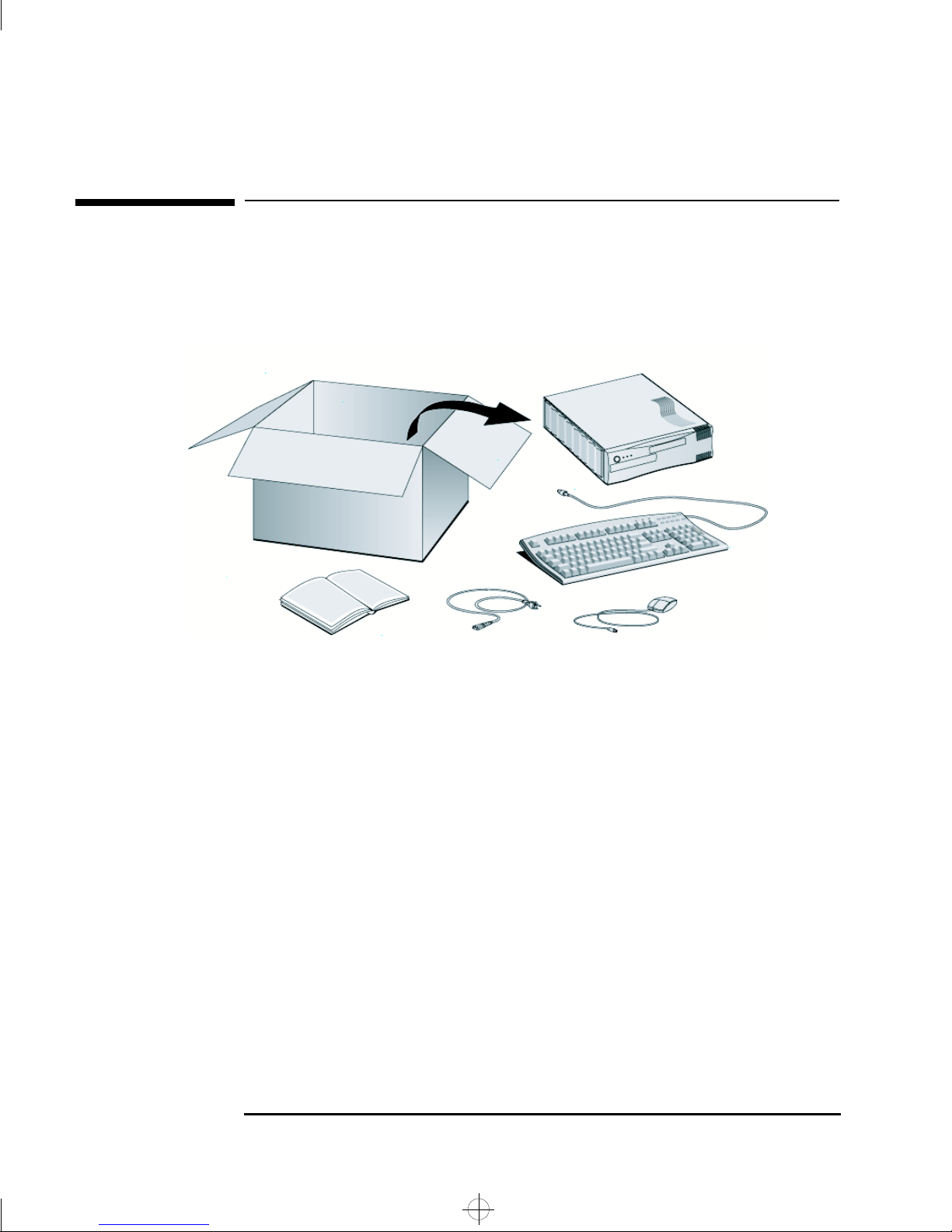

Unpacking Your PC

2English

Unpacking Your PC

drac-usr.bk : drac.fb4 Page 2 Friday, April 30, 1999 3:48 PM

English 3

1 Setting Up and Using Your PC

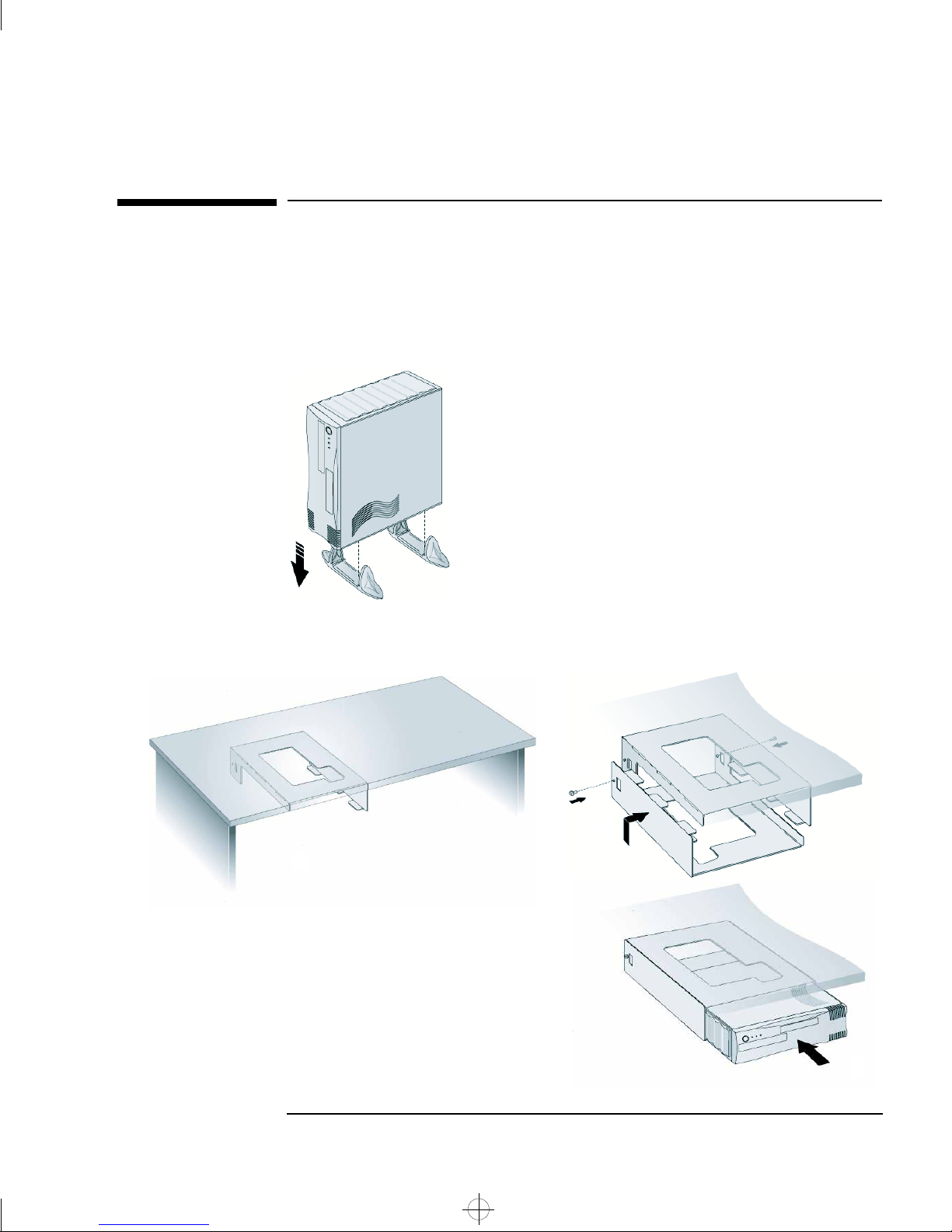

Mounting Your PC

You can use your PC as a desktop, with a foot stand (optional) or with an

underdesk socket (optional).

Attaching the Foot Stand

Attaching the Underdesk Socket

drac-usr.bk : drac.fb4 Page 3 Friday, April 30, 1999 3:48 PM

1 Setting Up and Using Your PC

Connecting Your PC Accessories

4English

Connecting Your PC Accessories

WARNING Always turn the volume down before connecting headphones or speakers, to

avoid discomfort from unexpected noise or static. Listening to loud sounds for

prolonged periods of time may permanently damage your hearing. Before

putting on headphones, place them around your neck and turn the volume

down. When you put on the headphones, slowly increase the volume until you

find a comfortable listening level. When you hear comfortably and clearly,

without distortion, leave the volume control in that position.

NOTE Your PC BootROM supports PXE (Preboot Execution Environment). This

protocol is enabled by selecting Start from Network/Boot from LAN in your PC’s Setup

program, accessed by pressing Del or F2 at Start-up.

USB Connectors

Mouse

Monitor

Serial Connector 1

Parallel Connector

RJ-45 UTP

(Unshielded Twisted Pair)

10/100BT Lan Connector

Line In Connector

Serial Connector 2

Keyboard

Line Out/ Headphone Connector

(microphone connector, some models only)

Microphone connector (line

out/ headphone connector,

some models only)

drac-usr.bk : drac.fb4 Page 4 Friday, April 30, 1999 3:48 PM
