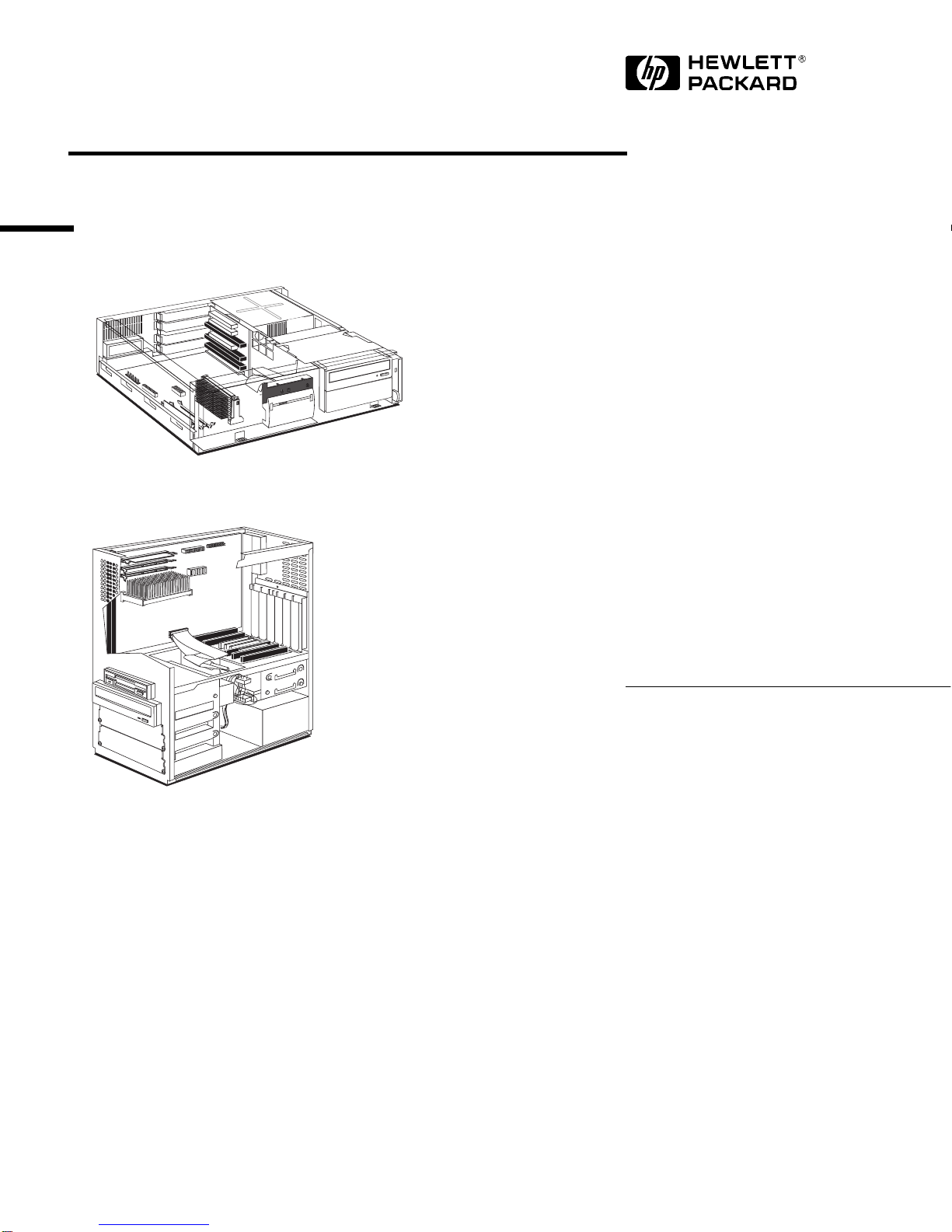

Familiarization Guide

HP Vectra VL

6/xxx series 8 PC

HP Vectra VL Minitower PC

HP Vectra VL Desktop PC

This guide is for experienced technicians who have

already completed the HP Vectra PC family training

course. It is a self-paced training guide designed to train

you to repair the PC. It contains information specific only

to the repair of these PCs. For information on the

installation of accessories, see the User’s Guide and the

Upgrade and Maintenance Guide (available on HP web-

site at http://www.hp.com/go/vectrasupport).

1book.bk : 1bookf.fb4 Page 1 Thursday, June 25, 1998 6:24 PM

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental

orconsequentialdamagesinconnectionwiththefurnishing,performance,oruse

of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its

software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated to another language without the prior written consent

of Hewlett-Packard Company.

Centronics® is a registered trademark of Centronics Data Computer

Corporation.

Microsoft®, Windows®, MS-DOS®, and Windows NT® are registered

trademarks of the Microsoft Corporation.

Pentium® is a registered trademark of the Intel Corporation.

SoundBlasterTM is a trademark of Creative Technology Limited.

Matrox® is a registered trademark of Matrox Electronics Systems Limited.

KensingtonTM is a trademark of Kensington Microware Ltd.

Hewlett-Packard France

Commercial Desktop Computing Division

38053 Grenoble Cedex 9

France

1998 Hewlett-Packard Company

1book.bk : 1bookf.fb4 Page 2 Thursday, June 25, 1998 6:24 PM

1

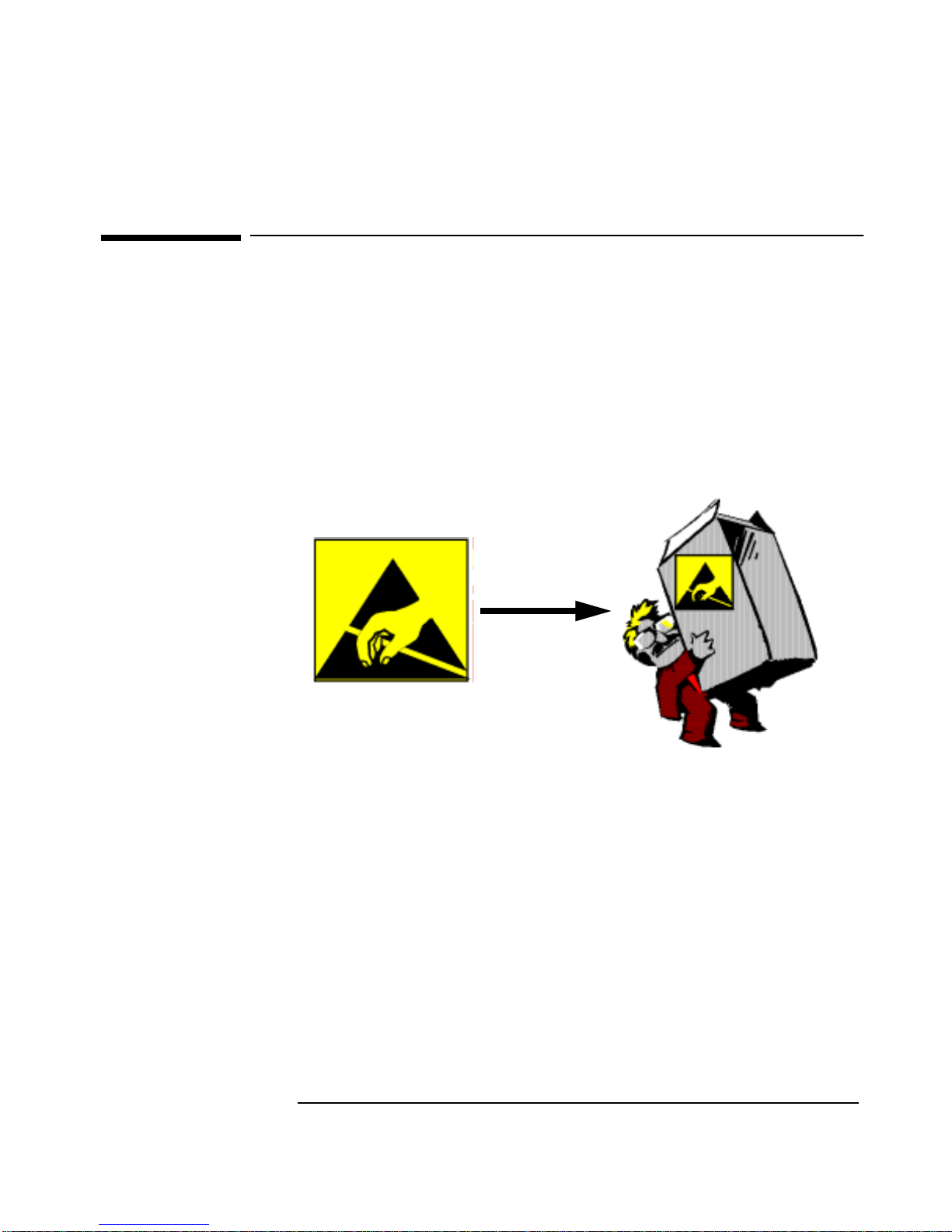

Electrostatic Discharge Warning

Electrostatic Discharge Warning

Electrostatic Discharge (ESD) can damage processors, memory, disks, accessory

boards and other components.

Before installing or replacing a component:

1Donottakethenewcomponentoutofits ESDpackagebeforeconnectingyour

wrist strap and ESD mat to a suitably earthed (grounded) point.

2Donotforget to use the ESD packageprovided with the newparttoreturn the

oldpart. The ESD package isconductive andiseasy to recognize from itslabel.

ESD Label

1book.bk : 1ch01.fb4 Page 1 Thursday, June 25, 1998 6:24 PM

2

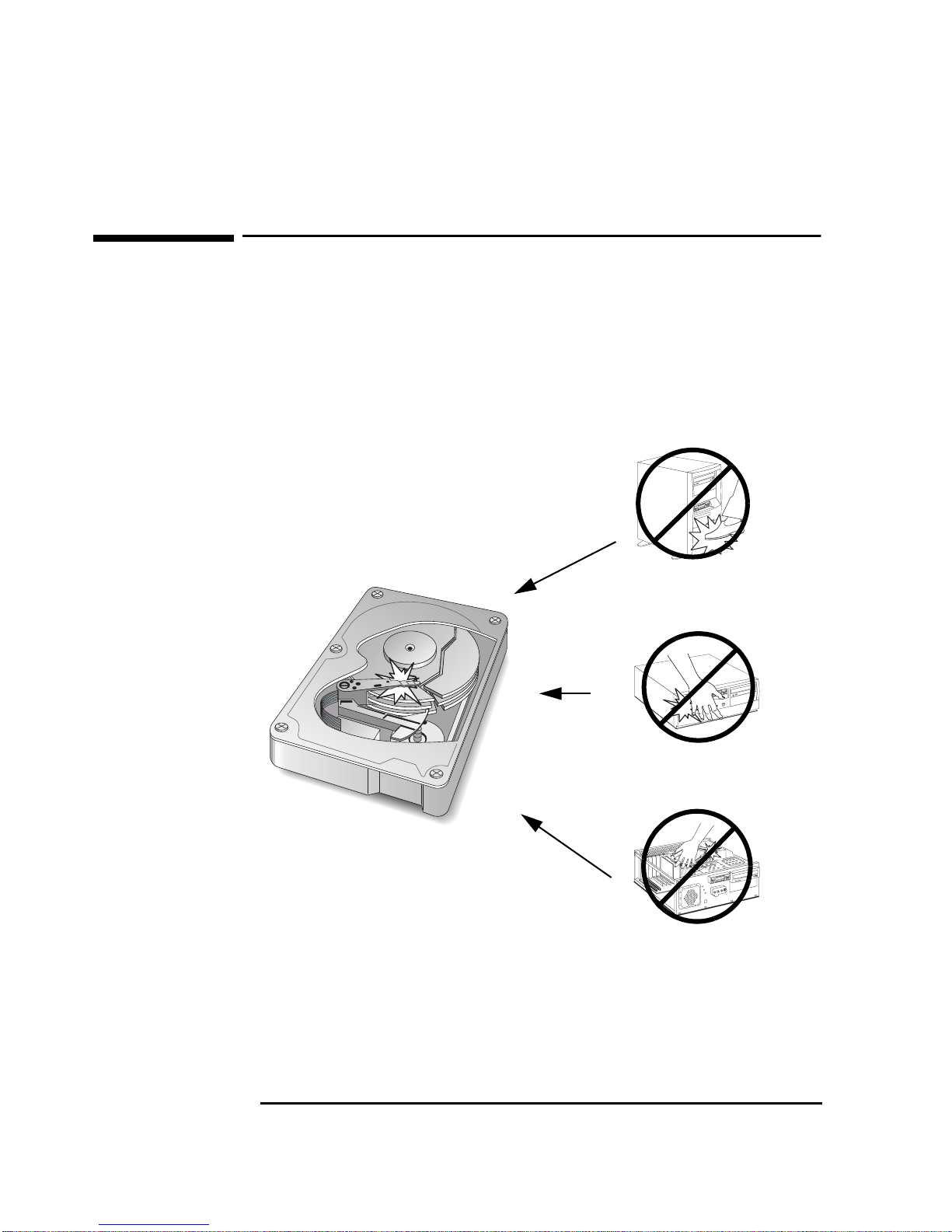

Care of Hard Disk Drives

Care of Hard Disk Drives

Hard disk drives are delicate and are very sensitive to shocks or vibration.

When installing a hard disk accessory, be careful not to drop or knock the

drive. Any shock may damage the drive and prevent it from functioning

correctly.

Hard disk drives already installed in HP Vectra PCs are also sensitive to

shocks. If the PC’s system unit is knocked or dropped accidentally, this may

cause damage to installed hard disk drives.

Avoidstriking the

PC

Don’t move the PC

when powered on

Don’t knock the

hard disk during

installation

1book.bk : 1ch01.fb4 Page 2 Thursday, June 25, 1998 6:24 PM

3

Vectra Product Hardware Comparison

Vectra Product Hardware Comparison

(Bold text indicates the features have changed)

Component HP Vectra VL 6/xxx series 7 PC HP Vectra VL 6/xxx series 8 PC

Microprocessor Pentium II,

233 MHz, 266 MHz, 300 MHz,

or 333 MHz.

32 KB of level-1 cache memory,

512 KB of level-2 cache memory.

Pentium II,

66 MHz bus models: 300 MHz or

333 MHz.

100 MHz bus models: 350 MHz,

400 MHz, or 450 MHz (when

available).

32 KB of level-1 cache memory,

512 KB of level-2 cache memory.

Chipset Intel 440LX AGPset. Intel 440BX AGPset.

Memory Up to 384MB SDRAM. Up to 384MB SDRAM with 128MB

DIMMS (up to 768MB when 256MB

DIMMS become available).

Hard Disks 3.2, 4.3, 6.4GB Ultra ATA. 4.3, 6.4 or 10GB Ultra ATA.

Flexible disk drive ●Standard version without bezel

(desktop).

●Standard version with bezel

(minitower).

●Standard version without bezel

(desktop).

●Standard version with bezel

(minitower).

CD-ROM

(selected models) 24X MAX ATAPI. 32X MAX IDE.

Sound Card

(selected models) SoundBlaster Pro-compatible

(Aztech). SoundBlaster Pro-compatible

(Aztech).

LAN board

(selected models) 10/100Base-T LAN board with RPO/

RWU (Remote Power On/Remote

Wake Up) and WOL (Wake On LAN)

capability.

10/100Base-T LAN board with WOL

(Wake On LAN) capability.

Intel Wake-up connector on

backplane.

1book.bk : 1ch01.fb4 Page 3 Thursday, June 25, 1998 6:24 PM

4

Vectra Product Hardware Comparison

Graphics (integrated) Cirrus Logic Laguna3DA AGP,

2 or 4 MB. Matrox Productiva G100 AGP,

4 MB SGRAM (not upgradable).

Graphics Board Matrox Millenium II PCI card,

8 MB. None.

Operating Systems Windows NT (Service Pack 3 or

higher recommended).

Windows 95 (OSR 2.1 or higher

recommended).

Windows NT 4.0 (Service Pack 3

preloaded).

Windows 95 (Free downgrade of

Service Release 2.5).

Connectors 1Serial,1Parallel,Keyboard,Mouse,

2 stacked USB, VGA, VESA. 1Serial, 1Parallel, Keyboard,Mouse,

2 stacked USB, VGA.

Expandibility

(desktop) Shelves: 5 or 4 (3 front-accessible)

Accessory Slots: 5 or 4

1 PCI,

1 ISA,

2 combination PCI/ISA, (1 PCI).

Shelves: 5 or 4 (3 front-accessible, 2

or 1 internal)

Accessory Slots: 5

2 PCI,

1 ISA,

2 combination PCI/ISA, (1 PCI).

Expandibility

(minitower) Shelves: 6 (4 front-accessible)

Accessory Slots: 6

2 PCI,

2 ISA,

2 combination PCI/ISA.

Shelves: 7 (4 front-accessible, 3

internal)

Accessory Slots: 6

2 PCI,

2 ISA,

2 combination PCI/ISA.

Flash Memory 256K. 512K.

Component HP Vectra VL 6/xxx series 7 PC HP Vectra VL 6/xxx series 8 PC

1book.bk : 1ch01.fb4 Page 4 Thursday, June 25, 1998 6:24 PM

5

Vectra Products Overview

Vectra Products Overview

Component HP Vectra VL Desktop PC HP Vectra VL Minitower PC

Microprocessor Pentium II,

66MHz Front Side Bus models: 300MHz, or 333MHz.

100MHz FSB models: 350MHz, 400MHz or 450MHz (when available).

Chipset Features Intel 440BX AGPset

● New 100MHz Front Side Bus on some models for faster data transfer

between the processor and the main memory.

● AGP-enabled (Accelerated Graphics Port) for enhanced graphics

performance.

● ACPI(AdvancedConfigurationandPowerInterface),enablingtheoperating

system to control the PC’s power management.

● Ultra DMA-33 support (for hard disks on Primary IDE channel ONLY).

● SDRAM support for faster data streaming between the Pentium II, the

graphics accelerator, and PCI devices.

BIOS and System

Management

Features

● Multiple-Boot capability.

User can choose the boot device when the PC is powered-on.

● Chassis Intrusion Detection. If the cover is removed when the PC is

switchedoff,analertwillbegeneratedwhenthePCisnextswitchedon.This

alert can be monitored with HP TopTools.

● New Power Glitch Detection. If the power supply momentarily falls below

4.7 Volts, a reset is triggered and the PC automatically reboots. If the PC

resets for no apparent reason, the user can consult TopTools for a report

about why it occurred.

Main memory ●32 MB or 64 MB 100 MHz SDRAM, upgradable to 384MB with three

128MB DIMMs (768MB version available soon with 256MB DIMMS).

● Three DIMM sockets.

●Support of Serial Presence Detect for detection and identification of

defective memory modules.

1book.bk : 1ch01.fb4 Page 5 Thursday, June 25, 1998 6:24 PM

6

Vectra Products Overview

Communication ports 2 x USB connectors, 1 x serial port, 1 x parallel port, keyboard, mouse,

1 x VGA display port.

Mass storage

(standard models) ●4.3 GB IDE or 6.4GB IDE.

●5or4shelves(3frontaccessand1

or 2 internal).

●4.3 GB IDE, 6.4GB or 10GB IDE.

●7 shelves (4 front access and 3

internal).

Floppy disk drive Standard version without bezel. Standard version with bezel.

Power supply Auto-ranging 100/240 VAC or

manually switched 115/230 VAC,

170 W input, 120 W output.

Auto-ranging 100/240 VAC or

manually switched 115/230 VAC,

220 W input, 145 W output.

Component HP Vectra VL Desktop PC HP Vectra VL Minitower PC

1book.bk : 1ch01.fb4 Page 6 Thursday, June 25, 1998 6:24 PM

7

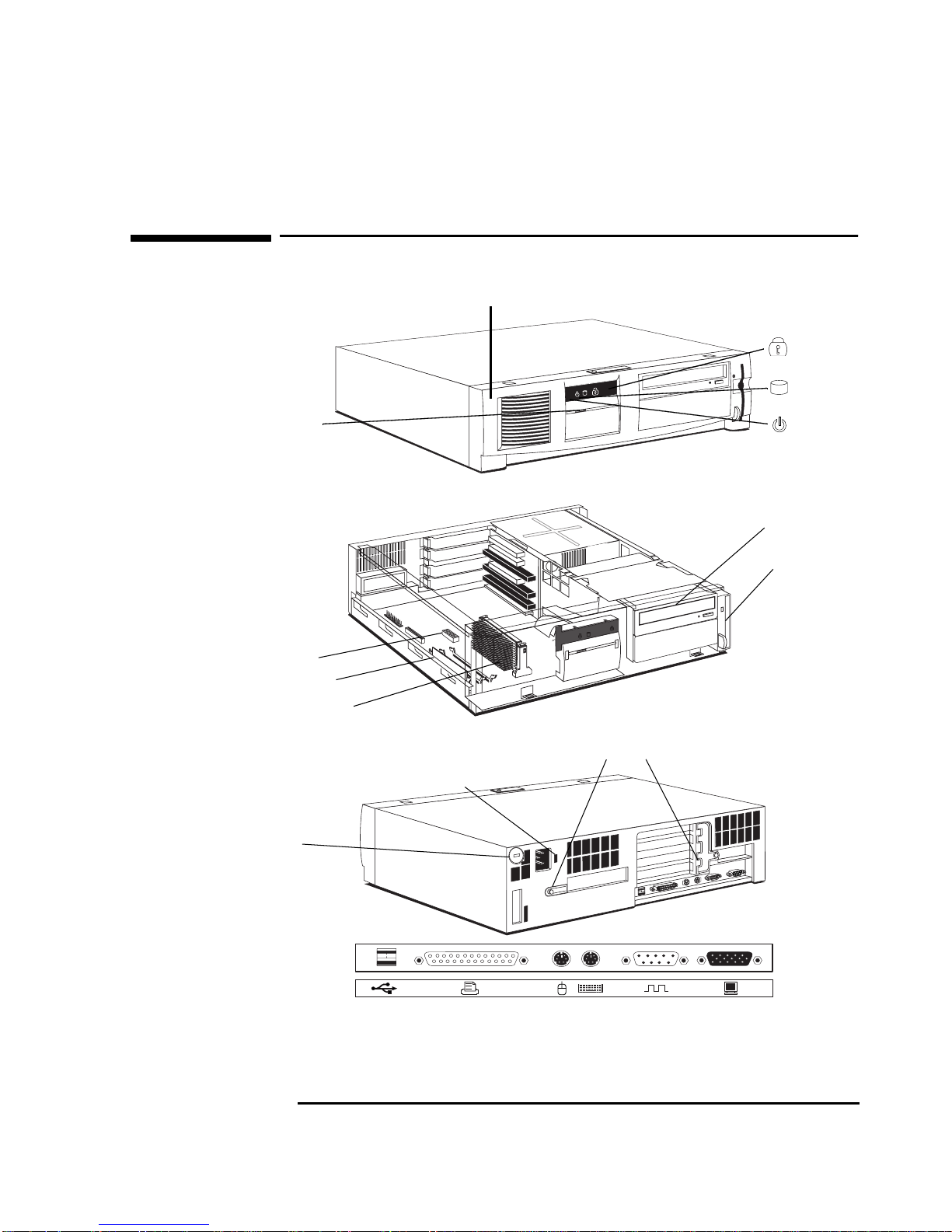

Desktop Models Package

Security lock (inside bezel)

Desktop Models Package

Hard Disk

Drive Activity

Light

Power on Sta-

tus Light

(flashes in

sleep mode)

Front view

Power On/Off

Button

Keyboard Lock

Status Light

System board switches

Processor

Main memory

CD-ROM drive

Floppy disk drive

Frontviewwithcover

removed

Slot for Kensington®

security cable

USB Serial

Parallel Mouse Keyboard Display

Rear view Retaining brackets

Rear connectors

Voltage selection Switch

(some models)

1book.bk : 1ch01.fb4 Page 7 Thursday, June 25, 1998 6:24 PM

8

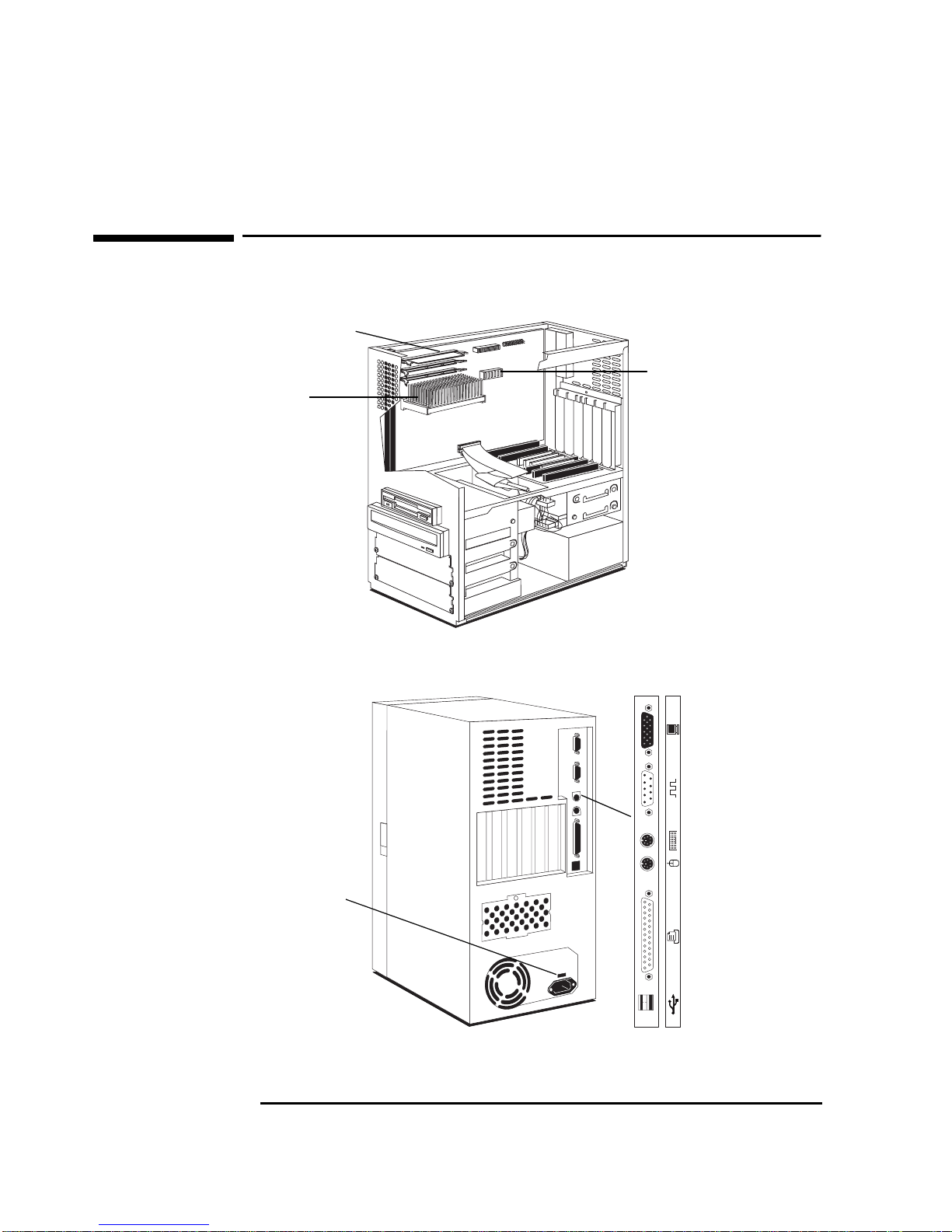

Minitower Package

Minitower Package

System board switches

Processor

Main memory

Frontviewwithcover

removed

USB

Serial

Parallel

Mouse

Keyboard

Display

Rear view

Voltage selection switch

Rear connectors

(some models)

1book.bk : 1ch01.fb4 Page 8 Thursday, June 25, 1998 6:24 PM
