HP Vectra VLi 8 Manuale

Medium-Profile

Desktop Vectras HP Vectra VLi 8 PC 16-1

HP Vectra VLi 8 PC

Models and Accessories

Product

Number Hard

Drive Video

Controller Std.

RAM Multi-media LAN OS1

Vectra VLi 8 PC

Models with Intel Pentium II Processor,

100MHz System Bus Speed, and 512 KB Level 2 Cache Memory

HP Vectra VLi 8 PC 400/100 (CPL: 03/99 )

D7941A/T 6.4 GB

IDE Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

64 MB

SDRAM

100 MHz

no no W95

D7942A/T 3COM

3C905B-

4.0

D7943A/T 8.4 GB

IDE 32 ✕Max IDE

CD-ROM no W95

D7944T 6.4 GB

IDE no NT

4.0

D7945A/T 32 ✕Max IDE

CD-ROM

D8794A no DOS

Vectra VLi 8 PC

Models with Intel Pentium III Processor,

100 MHz System Bus Speed, and 512 KB Level 2 Cache Memory

HP Vectra VLi 8 PC 450/100 (CPL: 03/99 )

D7951A/T 6.4 GB

IDE Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

64 MB

SDRAM

100 MHz

no no W95

D7952A/T 3COM

3C905B-

4.0

D7953A/T 8.4 GB

IDE 32 ✕Max IDE

CD-ROM no W95

D7954T 6.4 GB

IDE no NT

4.0

D7955A/T 32 ✕Max IDE

CD-ROM

HP Vectra VLi 8 PC

16-2 HP Vectra VLi 8 PC Medium-Profile

Desktop Vectras

16 Note

All model have an integrated full-duplex PCI audio controller.

Supported Accessories

1. Operating system preloaded on these models, as indicated in the table.

2. Channel Assembly Program (CAP) models: Processor speed, hard disk size, and memory is

user defined.

HP Vectra VLi 8 PC 500/100 (CPL: 03/99 )

D7961A/T 6.4 GB

IDE Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

64 MB

SDRAM

100 MHz

no no W95

D7962A/T 3COM

3C905B-

4.0

D7963A/T 8.4 GB

IDE 32 ✕Max IDE

CD-ROM no W95

Vectra VLi 8 PC

Models with User Defined Processor, Main Memory, and Hard Disk

HP Vectra VLi 8 PC /xxx2(CPL: 03/99 )

D7950E User

defined Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

User

defined User defined User

defined None

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6501A/T

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20) D6504A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6502A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20) D6505A/T

128-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D6503A/T

256-MB, 32-bit SDRAM, 100 MHz ECC main memory module D6743A/T

Documentation

User’s Guide Manual Kit D7940A

Product

Number Hard

Drive Video

Controller Std.

RAM Multi-media LAN OS1

HP Vectra VLi 8 PC

Medium-Profile

Desktop Vectras HP Vectra VLi 8 PC 16-3

Input Devices

HP Standard Keyboard C4735A

HP Scrolling Mouse C4736A

Video Displays

All current HP Displays (see the HP Vectra Accessory Service Handbook)

Mass Storage

4.3-GB IDE hard disk D8371A

6.4-GB IDE hard disk D8372A

8.4-GB IDE hard disk D8373A

HP 100 MB Atapi II Iomega ZIP drive D6650A

HP 100 MB Atapi II Iomega ZIP drive (pack of 10) D6651A

Multimedia

32✕Max IDE CD-ROM drive (pack of 10) D6656A

32✕Max IDE CD-ROM drive D4384A

Multimedia sound accessory kit (16-bit audio board, cables, and software) -

pack of 10 D5183A

Multimedia sound accessory kit (32✕Max CD-ROM drive, 16-bit audio

board, headphones, cables, and software) D6657A

Data Communications and LAN Adapter Boards

HP 56K V90 PCI Fax Modem D7808A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card D7504A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card (pack of 10) D7505A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter D7506A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter (pack of 10) D7507A

Security

HP Master Pass Key System Kit D6655A

HP Master Pass Key D6658A

HP Locks for Master Pass Key System (pack of 50) D6659A

HP Vectra VLi 8 PC

16-4 HP Vectra VLi 8 PC Medium-Profile

Desktop Vectras

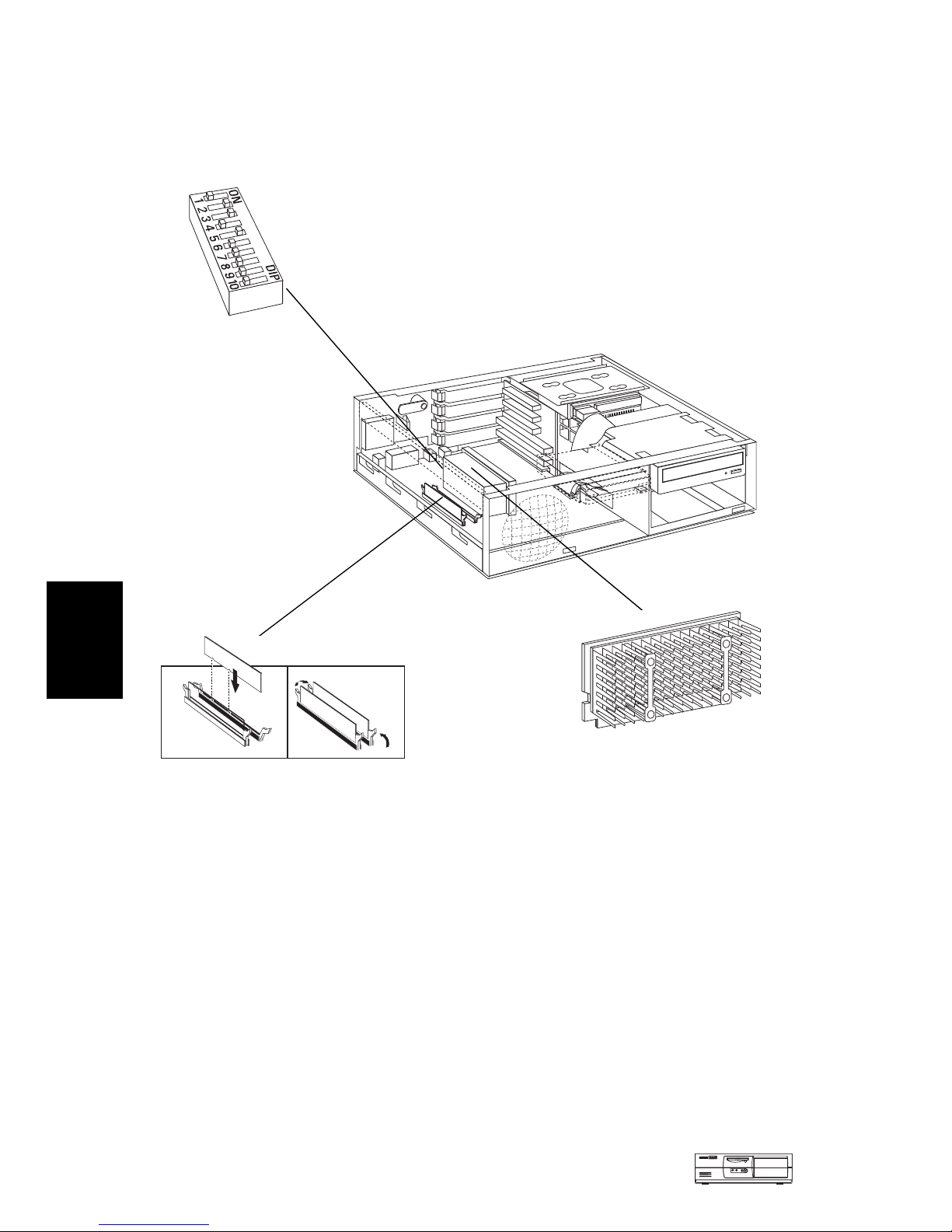

System Board, BIOS, and Memory

Processor: Pentium II

or Pentium III SECC2

package with integrated

heatsink and level-2

cache memory.

Main Memory:

Two DIMM sockets which support

up to a maximum of 512 MB.

Install 32 MB, 64 MB, 128 MB or

256 MB 100 MHz SDRAM modules.

System Board

Switches: See the

table on the next page.

HP Vectra VLi 8 PC

Medium-Profile

Desktop Vectras HP Vectra VLi 8 PC 16-5

System Board Switches

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

1. System and processor frequency is automatically determined by the type of processor.

2. These options are not yet available in any model of the HP Vectra VLi 8 at the time of

printing. This information is provided for completeness only.

Switch Function Default

1—

RESERVED — Do Not Use Off

2On Crash recovery mode: forces booting in the BIOS boot

block area Off

Off Normal operation

3On Normal operation (keyboard space-bar power-on

enabled) On

Off Disables keyboard power- on

4On Clears User and Administrator passwords Off

Off Normal operation

5On Clears CMOS (to reload the Setup program defaults) Off

Off Normal operation

6-9 — Processor frequency, see the following table —

10 — RESERVED — Do Not Use Off

System Frequency1Switch

Bus 100 MHz Bus 66 MHz 6789

350 MHz22332MHz Off On Off On

400 MHz 2662MHz On Off On On

450 MHz 3002MHz Off Off On On

500 MHz 3332MHz On Off Off On

Reserved 3662MHz Off Off Off On

Reserved 4002MHz On On On Off

Reserved 4332MHz Off On On Off

http://www.hp.com/go/vectrasupport/

HP Vectra VLi 8 PC

16-6 HP Vectra VLi 8 PC Medium-Profile

Desktop Vectras

Part Numbers

HP Vectra VLi 8 PC

Medium-Profile

Desktop Vectras HP Vectra VLi 8 PC 16-7

1. For optional disk drive information, see the Accessory Service Handbook.

2. Where “xx” is the code for your national keyboard (see the Accessory Service Handbook).

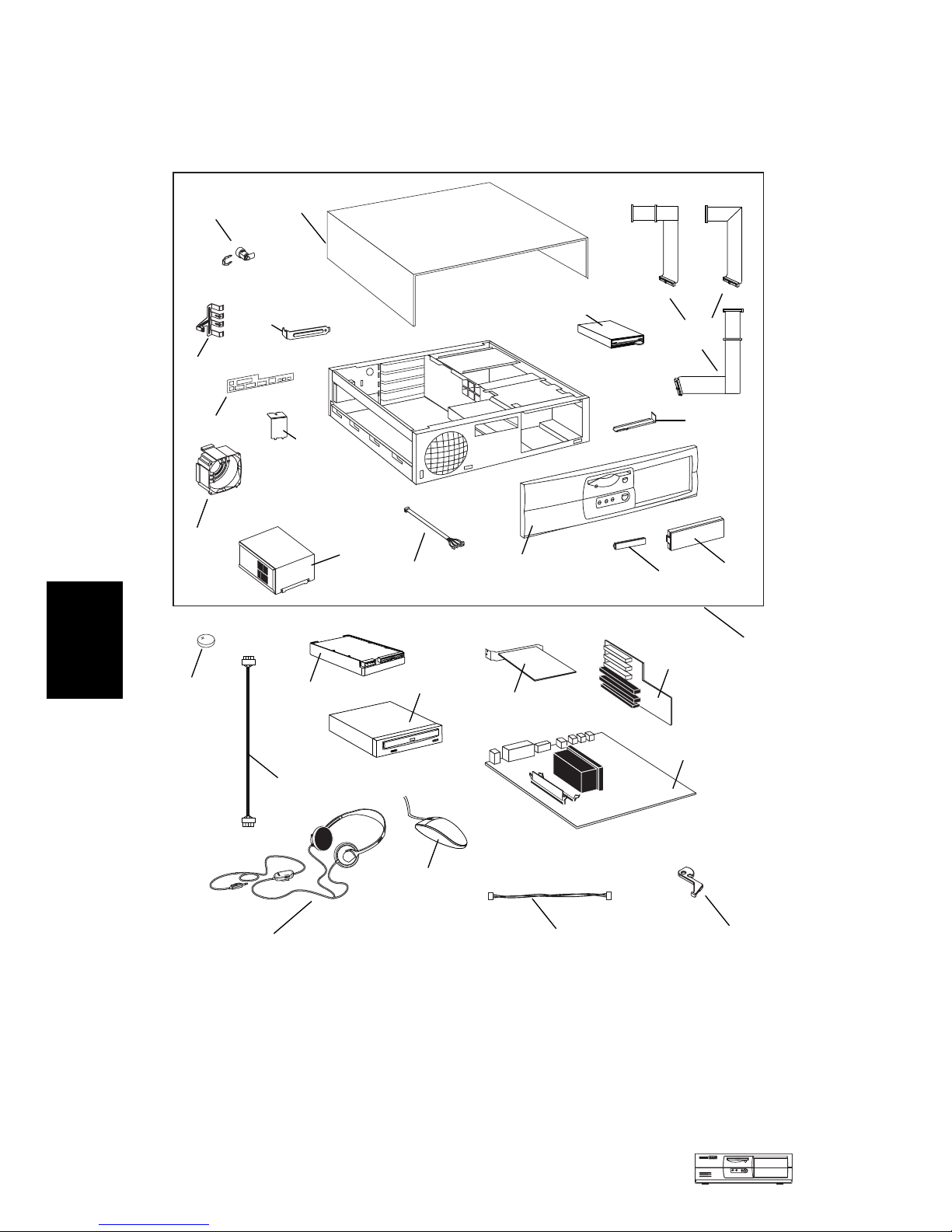

Parts List for HP Vectra VLi 8 PC

Item Description Repl.

Part Number Exchange

Part Number

not

shown

Box assembly:

a Cover assembly

b Bezel assembly

c Status panel assembly

d Blank filler (5.25 inch)

e Blank filler (3.5 inch)

f CD frame rail

g I/O blank panel

hI/Olocker

i AGP blank panel

j HDD, FDD and CD-ROM cable kit

k Master key lock

l Power supply

m Fan assembly

n Rear bezel

o Floppy disk drive (bezel-less)

pAirflowguide

5064-9152

5064-7470

5064-7471

5064-9129

5042-3073

5042-3086

5002-6213

5002-3841

5002-4795

5002-6211

5064-9135

5064-2645

0950-3472

5064-9149

5064-9127

D2035-60391

tbd

—

2 Battery type CR2032 1420-0356 —

3 CD-ROM to audio connector cable 5182-1857 —

4Headphones 5182-3552 —

5IDE hard disk drive 1

6.4 GB

8.4 GB

13.5 GB

—

D8372-69001

D8373-69001

D8435-69001

632 ✕Max IDE CD-ROM drive —D4385-69001

7 Enhanced mouse with scroll/zoom wheel C4736-60101 —

Standard keyboard C4735-603xx2—

Standard keyboard (Japan) C4732-60324 —

Multimedia keyboard C4734-605xx2—

8 Backplane board 5064-7455 —

9 System board See PC’s system board parts list

10 3Com 3C905B-TX LAN board 5064-6787 —

or Intel PRO/100+ LAN board 5064-7434 —

11 3COM Wake on LAN Cable 5183-2769 —

12 Mini NLX board extractor 5064-9114 —

HP Vectra VLi 8 PC

16-8 HP Vectra VLi 8 PC Medium-Profile

Desktop Vectras

16 Notes:

____________________________________________________________________

1. Electronic file available on HP’s Web site.

System Board Parts List for HP Vectra VLi 8 PC

Description Repl.

Part Number Exchange

Part Number

System board:

Vectra VLi 8 system board with Matrox

MGA-G200 video controller and audio

subsystem

— D4066-69001

Processors (SECC2 package):

Intel Pentium II 400/100 512KB L2 cache — D7645-69001

Intel Pentium III 450/100 512KB L2 cache — D7946-69001

Intel Pentium III 500/100 512KB L2 cache — D7957-69001

Main memory modules:

1 ✕64-MB, 100 MHz noon-ECC SDRAM D6502-63001 —

Manuals and Documentation for HP Vectra VLi 8 PC

User’s Guide Manual Kit D7940A

Troubleshooting and Upgrade Guide no number1

Technical Reference Manual: hardware and BIOS no number1

2 How to Install and Replace Components In Your Desktop PC

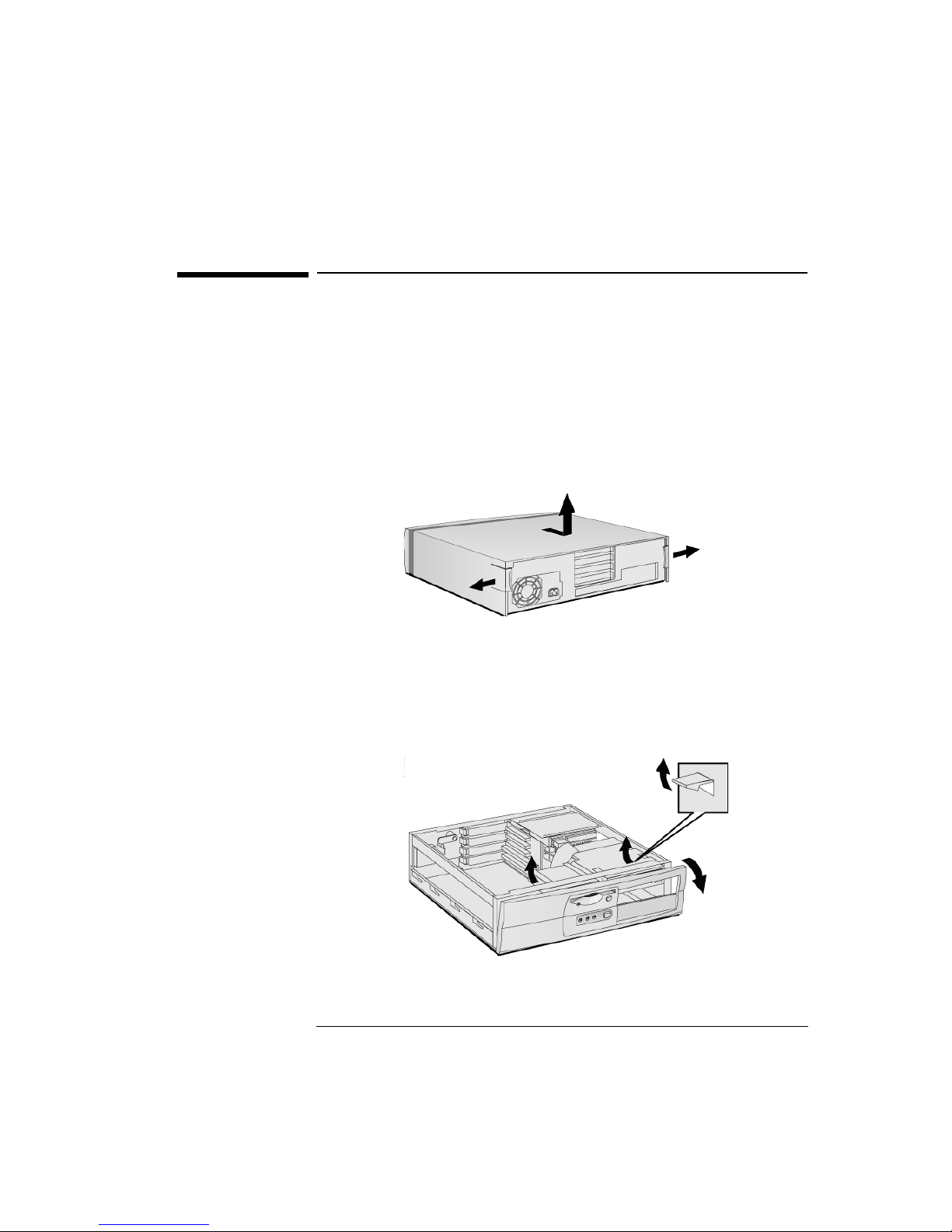

Removing and Replacing the Cover

Removing the Cover

1Switch off the monitor and PC, disconnect all power cords and any

telecommunication cables.

2If necessary, unlock the cover (with the key) at the rear of the PC.

3Open the rear catches ➊and remove the cover ➋.

4Remove the front panel.

➊

➋➊

2 How to Install and Replace Components In Your Desktop PC

Removing and Replacing the Cover

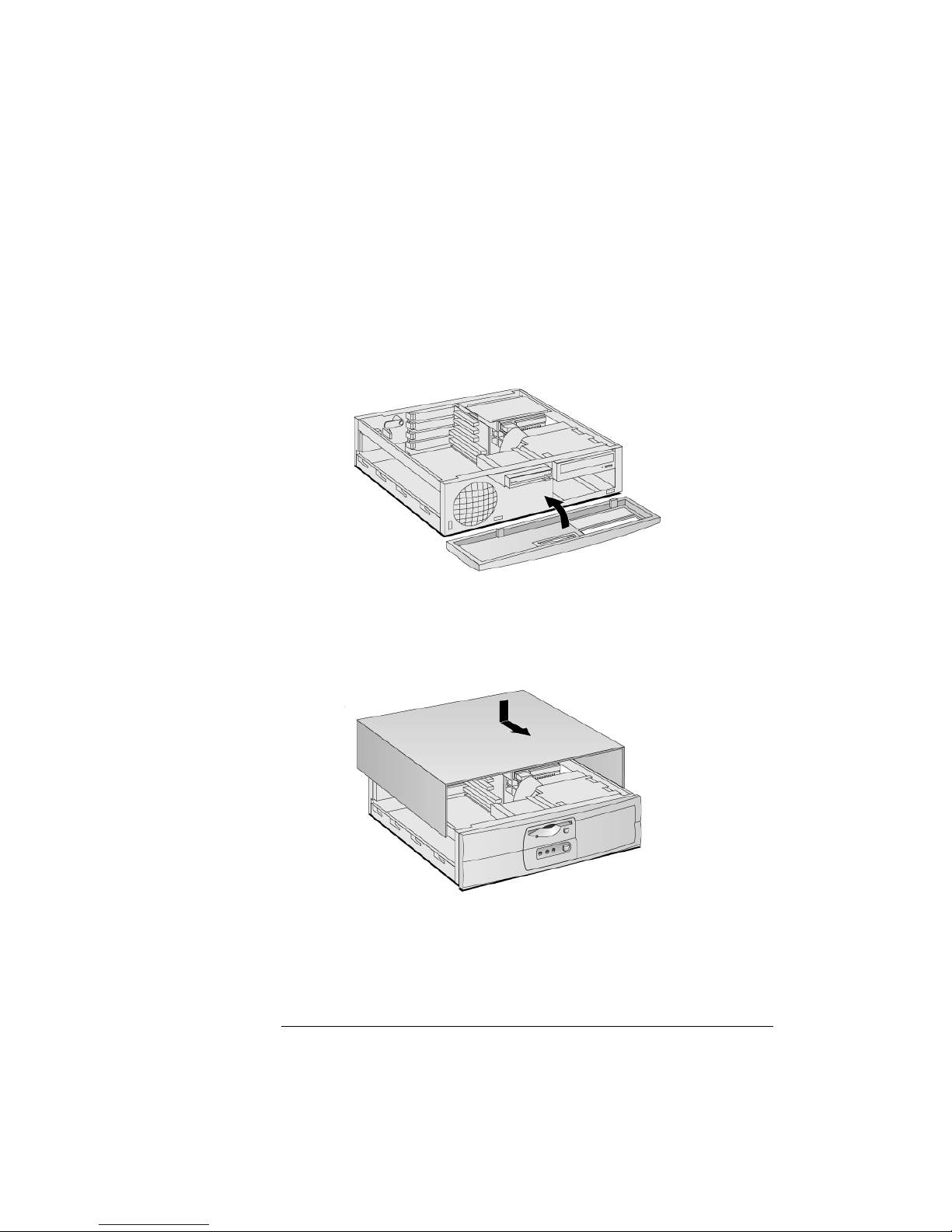

Replacing the Cover

1Ensure that all internal cables are properly connected and safely

routed.

2Replace the front panel.

3Lower the cover and slide it into position.

4If required, lock the cover (with the key) at the rear of the PC.
