product description

hp vectra xe310

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited

to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall

not be liable for errors contained herein or for incidental or consequential damages in connection with

the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved.

No part of this document may be photocopied, reproduced, or translated to another language without

the prior written consent of Hewlett-Packard Company.

Symbios®is a registered trademark of LSI Logic Corporation.

Adobeand Acrobat are trademarks of Adobe Systems Incorporated.

Microsoft, MS-DOS, Windows and Windows NTare U.S registered trademarks of Microsoft

Corporation.

WOL™ (Wake on LAN) is a trademark of IBM Corporation.

CeleronTM is a trademark and Intel®and Pentium®are registered trademarks of Intel Corporation.

CrystalClear™is a trademark and Crystal®is a registered trademark of Cirrus Logic Incorporated.

Adaptec®is a trademark of Adaptec Incorporated.

HP France

Business Desktop Division

38053 Grenoble Cedex 9

France

About this Document

This technical reference and BIOS document for Vectra XE310 PCs contains summary information only.

More detailed information on system hardware is available in the Technical Reference Manual - HP

Business PC Technology.

HP Business PC Documentation

In general, the following documentation is available for HP Business PCs:

Technical Reference Manual

This Technical Reference Manual is a technical reference and BIOS document for personnel providing

system level support. It is available in PDF format on the HP Vectra support web site

(www.hp.com/go/support). It is presented in modular form to provide quick and easy access to

technical information on the PC. It is made up of the following components:

•The Introduction & HP PC Product Line Overview provides a quick reference guide to the hardware

components and BIOS used in the latest HP Business PCs. It also lists some of the available

accessories.

•HP Product Description. Provides technical information specific to the HP Business PC concerned.

This includes summary information on product hardware and detailed information on the BIOS. Read

this manual to see which hardware components are in the PC.

•HP Business PC Technology (this document) provides an in-depth guide to the hardware in all of the

featured HP PCs. Subjects covered include chipsets, processors, graphics controllers, hard disk drives

and DVD drives.

Troubleshooting guide

The Troubleshooting Guide, available in PDF format on the HP Vectra support web site

(www.hp.com/go/support) will help you:

•Troubleshoot your PC

•Find out where to get more information.

Quick Start Card (some models only)

The Quick Start card provided with your PC will help you:

•Set up and begin using your computer for the first time

•Upgrade and replace the hard drive and memory in your computer. More information is available on

the web at: www.hp.com/go/e-pcsupport.

•Find out where to get more information.

Quick User’s Guide

The Quick User’s Guide provided with your computer includes basic troubleshooting information,

technical specifications, warranty and legal information.

Information on the HP support web site

Refer to the HP support web site (www.hp.com/go/vectrasupport or

www.hp.com/go/e-pcsupport) for a wide range of information, including:

•Downloadable documentation

•Service and support options

•The latest BIOS, drivers and utilities

•Answers to Frequently Asked Questions.

System recovery cd-roms

Used for a full system recovery or alternative OS installation. Includes instructions on how to recover

your preloaded software including operating system, drivers and utilities.

Bibliography

❒HP Vectra XE310 troubleshooting and upgrade manuals at:

www.hp.com/go/vectrasupport.

❒Technical Reference Manual -Business PC Technology

www.hp.com/go/vectrasupport

❒HP Vectra XE310 PC Service Handbook Chapter at:

www.hp.com/go/vectrasupport.

❒Hewlett-Packard white papers are available on a variety of subjects including AGP graphics,

SDRAM memory, and the Ultra ATA/100 protocol at:

www.hp.com/desktops/vectra/library.html

❒Datasheets and other information can be obtained at:

❒Intel Chipsets

developer.intel.com

❒Celeron & Pentium III Processors

www.intel.com/design/celeron/datashts

www.intel.com/design/pentiumIII/datashts

❒PC Data Sheets

www.hp.com/desktops/vectra

System Overview

Package Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Features

XE310 System Board Layout. . . . . . . . . . . . . . . . . . . . . . . 8

Mass Storage Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Modems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

BIOS Overview

BIOS Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

BIOS addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Order in Which POST Tests are Performed . . . . . . . . . . . 25

Drivers and Software

Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Status

System Overview

This chapter introduces the internal and external features, and lists the specifications of HP Vectra

XE310 PCs.

System Overview

Package Features

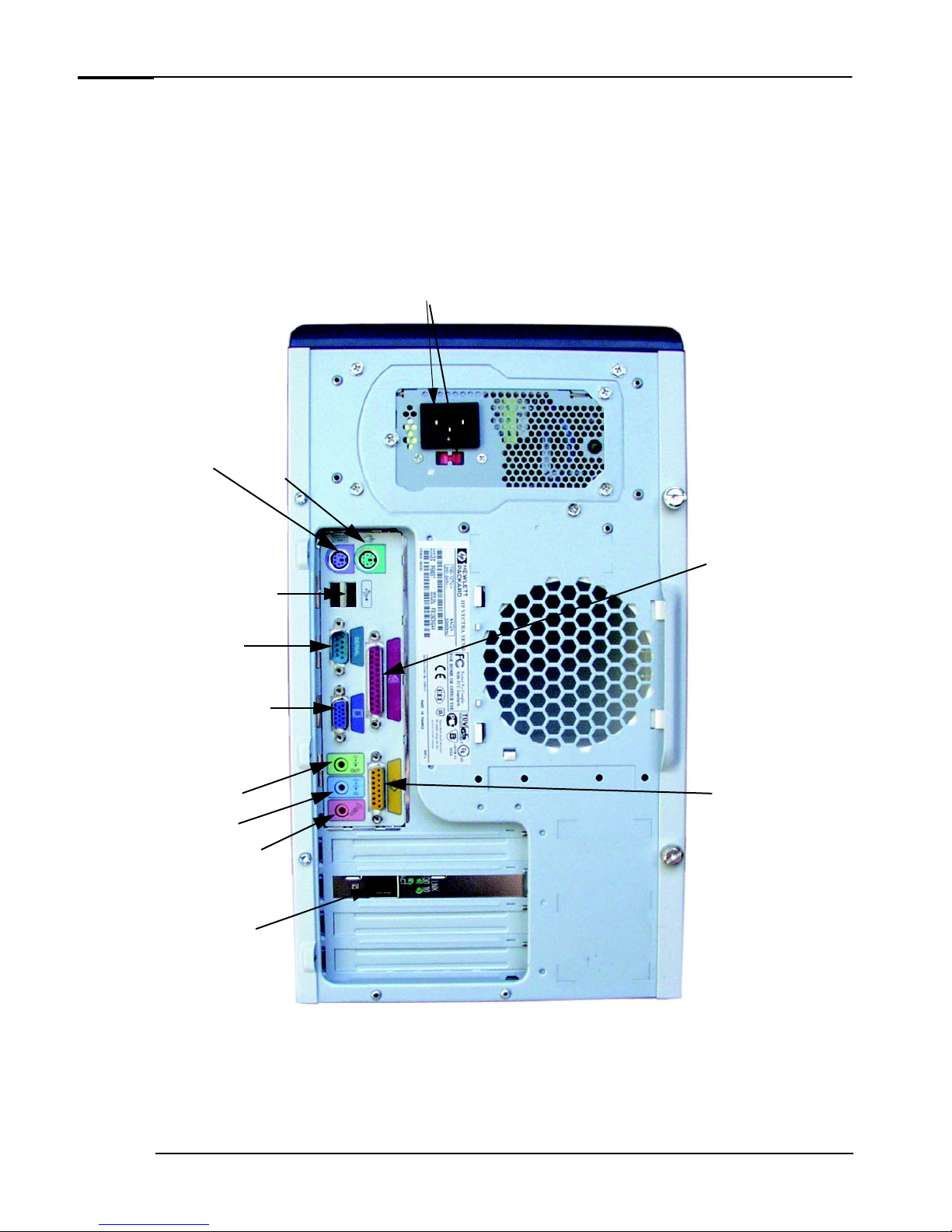

Rear Connectors

Location of the voltage switch and

power connector

25-pin Parallel Connecto

Serial

Connector

Keyboard

Mouse

Network (LAN)

connector

2 USB Connectors

Monitor Connector (this

connector is disabled if the

PC has a VGA graphics card.

In this case, use the

graphics card’s connector.)

Line Out

Line In

Microphone

MIDI Connector

System Overview

Inside the Computer

Front Panel

Main memory

CD-ROM, CD-RW

drive, or DVD drive

Floppy disk drive

Accessory board slots

Hard disk drive

Processor (under the airflow guide)

Airflow guide

Power supply

On/Off power

button

Power on status light

(green)

HDD LED (yellow)

System Overview

Specifications

Physical Characteristics

NOTE Operating temperature and humidity ranges may vary depending on the mass storage devices installed. High humidity

levels can cause improper operation of disk drives. Low humidity ranges can aggravate static electricity problems and

cause excessive wear of the disk surface.

The power consumption and acoustics figures given in the tables above are valid for the standard configuration as shipped.

For more information, refer to the product’s data sheet at HP’s web site: www.hp.com/desktops.

When the computer is turned off with the power button on the front panel, the power consumption falls below 10W, but

it is not zero. The special on/off method used by these computers considerably extends the lifetime of the power supply.

To reach zero power consumption in “off” mode, either unplug the power outlet or use a power block with a switch.

Environmental Specifications

Vectra XE310 Characteristics

Weight (configuration with 1 CD-ROM drive,

excluding keyboard and display)

10 kilograms (22 pounds)

Dimensions 38.0 cm (Depth) by 21.0 cm (Width) by 39.0 cm (Height)

(14.96 inches by 8.27 inches by 15.35 inches)

Footprint 0.068 m2(0.73 sq ft)

Acoustic noise emission (ISO 7779)

Operating (idle)

Sound pressure level at operator position

LpA ≤35 dBA

Power Supply

Input voltage (voltage selection switch):

Input frequency:

100-127 V 4A, 200-240 V 2A

50/60Hz

Power consumption - Windows 98/2000

Max

Operating

Suspend

Off

115 / 60Hz and 230 / 50 Hz

70W

35W

≤25W

≤5W

Available minimum output power 149W

Storage Humidity 8% - 85% (relative)

Environmental Specifications (System Processing Unit, with Hard Disk)

Operating Temperature +10°C to +35°C (+50°F to 95°F)

Storage Temperature -40°F to +70°F (-40°C to +158°C)

Operating Humidity 15% to 80% (relative)

Storage Humidity 8% to 85% (relative), non-condensing at 40°C (104°F)

Operating Altitude 10000ft (3100m) max

Storage Altitude 15000ft (4600m) max
