General Information

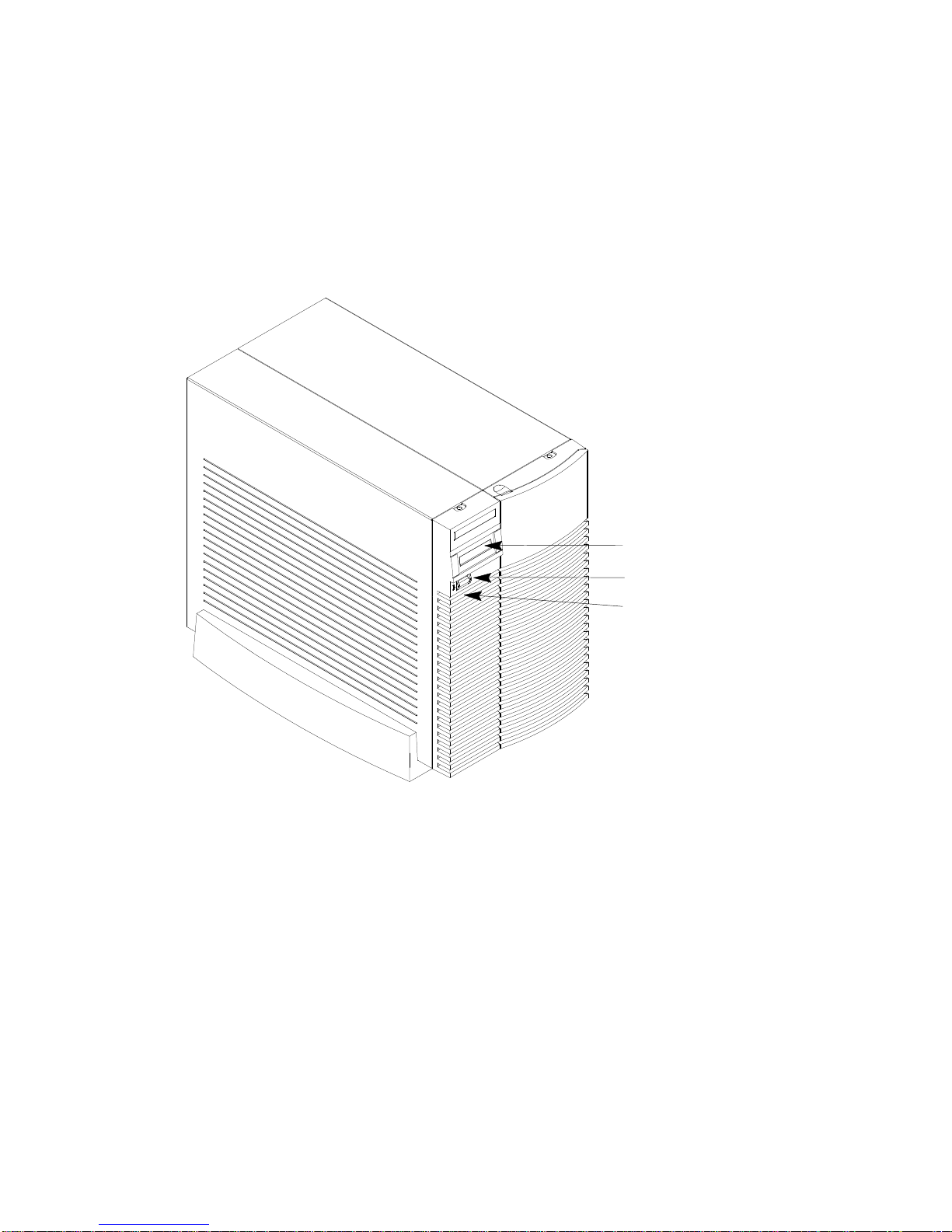

Product Overview

Features

Hewlett–Packard’s J Class Workstations are based on a PA7200 central processing unit (CPU) that

provides a variety of interfaces, graphics, and mass storage.

Table 1–1. J Class Features

Features Functionality

Operating system HP–UX 9.05 HP–UX 10.0 must be used with

multiprocessors

CPU Performance

PA–RISC PA7200

MIPS:

MFLOPS:

SPECint92:

SPECfp92:

SPECrate_int92:

SPECrate_fp92:

100 MHz 120MHz 120MHZ (J210XC)

196.3 237.2

43.9 52.7

138.7 168.4

221.4 266.0

7790.9 (using 2 CPUs)

11745.5 (using 2 CPUs)

External Cache

Instruction cache size

Organization

Bus width

Instruction cache bus peak

performance

Data cache size

Organization

Bus width

Data cache bus peak

performance

256 KByte / 1 MByte/cpu (J210XC only)

Direct mapped

64 bits

960MB/sec I–fetch (8 byte)

256 KByte / 1 MByte/cpu (J210XC only)

Direct mapped

64 bits

960MB/sec load (8 byte), 960 MB/sec single store (8 byte)

Time source Battery–backed Real–Time Clock

Memory

Memory Management Unit

Virtual memory address

Instruction TLB and

data TLB

16 slots

32 MB minimum required

Upgradeable to 768 MB at HP–UX 9.05

Upgradeable to 1 GB at HP–UX 10.0

48 bit

Unified 120 page entries, additional single–entry instruction

TLB lookaside, 16 block entries, fully associative

1-2 General Information J Class Technical Reference

Table 1–1. J Class Features (Cont.)

Features Functionality

Monitor Support 17–inch 1280x1024 color monitor

20–inch 1280x1024 color monitor

Optional Graphics 2D color graphics (single and dual head)

HCRX–8/HCRX–24 Fast 8–plane or 24–plane graphics

HCRX–8Z/HCRX–24Z Accelerated 8–plane or 24–plane graphics

CRX–48Z 24–plane Accelerated, double–buffered graphics

Freedom series 3150 graphics subsystem w/1 MB texture memory

Freedom series 3250 graphics subsystem w/1 MB texture memory

Freedom series 3400 graphics subsystem w/1 MB texture memory

Graphics Performance

Fast 2D Color

HCRX–8, HCRX–24

HCRX–8Z, HCRX–24Z

CRX–48Z

Xmark93 11.7, GPC PLBwire93 83.6, GPC PLBsurf93 34.2

Xmark93 15.4, GPC PLBwire93 93.7, GPC PLBsurf93 43.1

Xmark93 15.4, GPC PLBwire93 94.7, GPC PLBsurf93 95.4

Xmark93 11.0, GPC PLBwire93 102.1, GPC PLBsurf93 138.5

Power supply – max input

power – 664 Watts

Max Continuous output

power – 484 Watts

Five DC output voltages (+5V, +4.5V, +12V, +3.4V, and –12V)

Also +15V auxiliary for standby.

Mass storage Up to two of the following:

1GB, low profile, 3.5–inch, Fast, Wide Differential SCSI hard

disk drive

2GB, low profile, 3.5–inch, Fast, Wide Differential SCSI hard

disk drive

Up to two (with no two alike) of the following SE SCSI devices:

5.25–inch CD–ROM SE SCSI disc drive

3.5–inch, 4–8 GB, 4–mm DDS–format SE SCSI tape drive

3.5–inch SE SCSI floppy disk drive

Network Built–in ThickNet LAN AUI and TP (Twisted Pair) connectors for

the 802.3 (ETHERNET) network. Connections to ThinLAN net-

works require an external transceiver.

I/O Two 9–pin RS–232 ports

One 25–pin HP parallel port

8–bit Single–Ended SCSI–2 interface

16–bit Fast, Wide SCSI–3 interface

Keyboard port for PS2 mouse

Keyboard port for HP HIL devices

Audio and speaker output

Microphone or audio input

1-3

J Class Technical ReferenceGeneral Information

Memory

Minimum memory is 32 MB of 60 ns 4 Mbit, or 128 Mbit of 60 ns 16 Mbit DRAMs, or a combination of

both. 32 MB is the minimum required for the HP–UX operating system. Each workstation has 16

memory slots, labeled 0A, 0B through 7A, 7B.

Memory upgrades include:

HP A3026A 32 MB DRAM Upgrade, two 16 MB DRAM boards.

HP A3027A 128 MB DRAM Upgrade, two 64 MB DRAM boards.

Internal Storage Devices

The J Class workstation can have up to two fixed disk drives, and up to two (no two alike) removable

media drives.

Fixed Disk Drives

HP A4117A 1.0 GB LP Fast, Wide 3.5–in disk drive

HP A4119A 2.0 GB LP Fast, Wide 3.5–in disk drive

Removable Media Drives

CD–ROM Drive

HP A4282A CD–ROM Drive

DDS Tape Drive

HP A4281A 4.0–8.0 GB, 4–mm DDS Tape Drive

HP92283A Box of five 60–meter DDS data cassettes

HP92283B Box of five 90–meter DDS data cassettes

HP92283K Package of two cleaning cassettes

Floppy Disk Drive

HP A4283A SCSI Floppy Drive

HP92192X High–Density Micro Flexible Disks (1.44MB Formatted Capacity) – box of ten diskettes

System Graphics

The supported monitors are:

A4032A 17–inch, 1280x1024 color monitor

A4033A 20–inch, 1280x1024 color monitor

The supported graphics boards are:

A4077A 2D color graphics

A4070A HCRX–8 accelerated 2D/3D wireframe, 8/8 bit planes w/8 overlay plane graphics

A4071A HCRX–24 accelerated 2D/3D wireframe, 24 bit planes w/8 overlay plane graphics

A4079A HCRX–8Z accelerated 3D solids, 8/8 bit planes w/8 overlay, PowerShade software

A4179A HCRX–24Z accelerated 3D solids, 24 bit planes, PowerShade software

A4074A CRX–48Z accelerated 2D/3D wireframe, 24/24 bit planes graphics, PowerShade software

A4078A Dual color graphics card

A4253A Freedom series 3150 graphics subsyustem with 1MB texture memory

A4254A Freedom series 3250 graphics subsyustem with 1MB texture memory

A4255A Freedom series 3400 graphics subsyustem with 1MB texture memory

1-4 General Information J Class Technical Reference

Built–In Interfaces

System Unit Interfaces

The system board’s built–in interfaces have ports on the workstation rear panel.

Audio Interfaces

The J Class workstations have audio input and output capability through external input and output

connectorsontherearpanelandthroughaninternalspeaker.TherearpanelcontainstheAudioIN(Stereo

line–in) and Mic (Mic–in), and Audio OUT (Stereo line–out) and Headphones (Headphone–out)

connectors.

The audio connectors are standard stereo audio mini–jacks. Hewlett–Packard recommends using

gold–plated plugs available through audio retailers for best quality recording and playback through the

external connectors. The following is a summary of the workstation audio features:

•Audio Features Programmable sample rates:

8kHz, 16kHz, 32kHz, 48kHz, 11.025kHz, 22.05kHz, and 44.1kHz.

Programmable output attenuation:

0 to –96dB in –1.5dB steps

Programmable input gain:

0 to 22.5dB in 1.5dB steps.

Input monitoring:

16–bit linear, 8–bit u–law, or A–law coding

•Audio Inputs Line–in

Mono microphone compatible with 1.5V phantom supply

(bias voltage supplied by the system)

CD–ROM audio (if internal CD–ROM is installed)

•Audio Outputs Line–out

Headphone

Built–in mono speaker

DAudio CODEC Crystal CS4215

Table 1–2 summarizes the audio electrical specifications for this workstation.

1-5

Table 1–2. Audio Electrical Specifications

Frequency Response 25–20,000Hz

Input Sensitivity/Impedance

Line in 2.0Vpk/47kohm

Line Out 2.8Vpp/47kohm

Headphone 2.75Vpp/50ohm

Speaker (internal) 5.88Vpp/48ohm

Max Output Level/Impedance

Output Impedance

Line Out

Headphone

Speaker

Line in

Microphone

Line Out

Headphone

Speaker

Line in

Microphone

Line Out

Headphone

619ohm

118ohm

Signal to Noise* 65dB

61dB

63dB

61dB

57dB

THD (w nominal load) –73dB

–70dB

–68dB

–75dB

–73dB

* To convert from dB to number of significant bits use the formula:

n = dB

20 log10

For example, for 61dB S/N then n= 61/6

significant bits, or in other words, about 6 bits of noise.



Microphone 22mVpk/1kohm

Keyboard Interfaces

The J Class workstation provides keyboard interfaces that allow either PS/2 or ITF keyboards. Consult

the documentation that accompanies each input device for specific information concerning its use.

PS/2 Keyboard Interfaces

The PS/2 connectors provide an interface for the keyboard and mouse to the system.

ITF Keyboard Interface

The HP HIL connector provides an interface for the ITF Keyboard to the system and all HP HIL devices.

HP Parallel I/O Interface

The 25–pin HP Parallel I/O interface uses Centronics interface protocols to support peripheral devices

such as printers and plotters. Consult the documentation that accompanies each peripheral device for

specific information concerning its use.

1-6 General Information J Class Technical Reference

Network Interface

The J Class has built–in ThickNet LAN AUI and TP (Twisted Pair) connectors for the 802.3

(ETHERNET) network. Connections to ThinLAN networks require an external transceiver. Your

workstation will autoselect the correct network setting.

The IEEE 802.3 Ethernet Local Area Network (LAN) circuit provides both the AUI interface for

conventionalcoaxial Ethernetand adirect interfaceto atwisted pair(TP) 10BASE–Tnetwork. Only one

built–in interface can be used at a time. The system auto–selects the correct port that is being used.

Ethernet is a 10 Mbit/s packet–switched serial interface employing Carrier Sense Multiple

Access/CollisionDetection(CSMA/CD). Table 1–3liststhesupportedLAN adaptersand othernetwork

devices.

Table 1–3. Supported AUI LAN Adapters and Devices

LAN Adaptor Network Devices

HP 28641B ThinLAN Transceiver

HP 30241A 10Base4 ThickLAN MAU

HP 28692A ThinLAN Hub Plus

HP 28673A 10:10 LAN Bridge

HP 28683A Fiber Optic Transceiver

RS–232 Serial I/O Interfaces

The RS–232 Serial I/O (SIO) ports on the J Class accept a variety of pointing devices or peripheral

devices. Peripheral devices include printers, plotters, modems, and scanners. Consult the documentation

that accompanies each peripheral device for specific information concerning its use.

The SIO ports are programmable, allowing the setting of such functions as bit rate, character length,

parity, and stop bits. SIO Ports are used as interfaces for serial asynchronous devices to the CPU. The

ports operate at up to a 19.2 K baud rate.

Table 1–4 shows the SIO connector pin listings. The serial connectors are 9–pin D–sub connectors.

Signal names are those specified in the EIA RS–232 standard.

Table 1–4. Serial I/O Pins

Pin No. Signal

Request To Send

DCD

RXD

TXD

DTR

GND

RTS

CTS

Description

Data Carrier Detect

Receive Data

Data Set Ready

Clear To Send

Data Terminal Ready

Ring Indicator

Transmit Data

Ground

6 DSR

9RI

1-7

J Class Techn cal ReferenceGeneral Informat on

Small Computer Systems Interface

Use the SCSI connectors to connect external SCSI devices such as DDS–format tape drives and

CD–ROM drives. Consult the documentation that accompanies each SCSI device for specific

information concerning its use. Refer to Appendix C of the J Class Owner’s Guide for information about

connecting SCSI devices to the workstation.

The pr mary funct on of the SCSI-2 nterface c rcu t s to take data from the CPU bus, translate t

to SCSI format, and transm t t down the SCSI bus to a mass storage dev ce, and v ce versa.  A

secondary funct on s to keep track of the status of the SCSI bus and nform the CPU of the status.

SCSI c rcu ts must have term nat ng res stors nstalled on them.  When us ng the external SCSI

conf gurat on, you must use an act ve SCSI term nator at the last external dev ce on the SCSI bus.

All other dev ces, external or nternal, must not be term nated.  Use only HP K2291 term nators to

ensure rel able system operat on.

Recommended SCSI-2 mass storage dev ce bus addresses are l sted n Table 1-5, and SCSI

nterface techn cal nformat on s l sted n Table 1-6.

     

Unit or Mass Storage Device Recommended Bus Address

SCSI host controller

First Hard Disk Drive

Second Hard Disk Drive

DDS Tape Drive

CD ROM Disk Drive

SCSI Floppy

 Arbitration priorities for the single–ended and fast, differential SCSI–2 buses follow

the order 7 through 0. Never use SCSI address7 for any device. Address 7 is always reserved for the host

SCSI controller.

     

Function Data

Type: SCSI–II (ANSI X3.131–1986), single–ended

Data rate: Synchronous – 5 MBs/second

Device limits: 7 internal and/or external peripherals

Connector type: SCSI–II, ALT–1 50–pin high–density thumb-

screw

Maximum external cable length: 4 meters (13.1 feet)

1-8 General Information J Class Technical Reference

Single–Ended SCSI–2

The built–in SCSI–2 port is implemented using an NCR710 macrocell inside the I/O ASIC chip. This

8–bit single–ended implementation is synchronous and compatible with the current 700 series products

and supports 5 MB/sec data transfer rates.

The SCSI bus is terminated to 3.3 volts through 127kΩon the CPU board. If an external disk drive is

used, an active terminator must be used on the drive at the end of the cable.

Fast, Wide Differential SCSI–3

Fast, wide SCSI is an extension to the existing 8–bit, single–ended SCSI. “Fast differential” indicates

thatsignals onthe SCSIbusaredifferentiallydrivenand terminated,andcapableof a10 MHzclock rate.

“Wide” indicates that there are 16 data bits on the SCSI bus.

Thefast,wideSCSIbusisspecified atapeaksynchronoustransferrateof 20MB/sec. Thearchitectureof

the fast, wide SCSI port on the J Class workstation has been designed to allow a 20 MB/sec sustained

transfer rate for long data streams.

Power Cord Connector

Plug the workstation’s power cord into the power cord connector to provide ac power to the system.

1-9

Hardware Architecture

The J Class is a mid–tower style designed to be easy to operate and upgrade. The features in this package

aredesigned for useraccess tothemajority ofthesystem’supgradable parts (disks,memory SIMMs, and

processors) without moving the system.

Figure 1–1 shows the front view of the system. There is a Power Switch with an LED to indicate that the

system is on/off, and an LCD panel that informs users of the system’s status. In the case of a failure, the

LCD indicates the failure code.

System LCD

System Power Switch

System Power LED

Figure 1–1. System Unit Front Panel Controls

Figure 1–2 shows a peripheral door for removable media(s). This door can be removed (snap) and

re–installed easily.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Scrivania

HP Compaq dx2400 Manuale utente

HP Compaq Presario Manuale

HP EliteOne 1000 G2 Istruzioni per l'installazione

HP Compaq Presario Manuale utente

HP Compaq dc7100 DT Manuale di installazione e funzionamento

HP Compaq Presario Manuale utente

HP Vectra 520 Manuale

HP TouchSmart dx9000 Manuale utente

HP 4000 - SureStore DLT 40e Tape Drive Manuale del proprietario

HP dc7900 - Convertible Minitower PC Manuale utente

HP Compaq dx2200 MT Series Manuale utente

HP Pavilion t600 - Desktop PC Manuale utente

HP Compaq Presario Manuale utente

HP Xw4300 - Workstation - 2 GB RAM Manuale utente

HP Pavilion t100 - Desktop PC Guida all'installazione

HP Net PC 20 Istruzioni per l'installazione

HP Compaq Presario Manuale utente

HP EliteDesk 800 G1 series Istruzioni utente

HP Pavilion 20-b000 Manuale utente

HP Presario SR1200 - Desktop PC Manuale utente

HP TouchSmart 9300 Manuale utente

HP TouchSmart Manuale utente

HP Workstation xw3100 Manuale per l'uso e la cura

HP A320m - Pavilion - 256 MB RAM Manuale utente

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
