HP Visualize j6000 Manuale utente

READ BEFORE INSTALLING

Desk-Side/Rack-Mount Conversion Process

This document provides information for converting your workstation from a desk-side system to

a rack-mounted system and from a rack-mount system to a desk-side system. You can find more

detailed information in the Technical Reference for the J6000 located at this web site:

www.hp.com/visualize/support/

Desk Side to Rack Mount Conversion

To convert your desk-side system to a rack-mount system, you will need to order the rack-mount

kit (HP Part Number: A5993A) from your local HP Sales Representative. Rack-mount to desk-

side instructions are on the last page.

1. Unplug the workstation, remove from pedestal, remove bezel and vents. See Figure 1.

Figure 1: Desk-side Cover Removal

2. Remove the workstation’s plastic cosmetic covers from the workstation. See Figure 2. The

same process is used for both covers.

Figure 2: Plastic-skin Cover Removal (same for both sides)

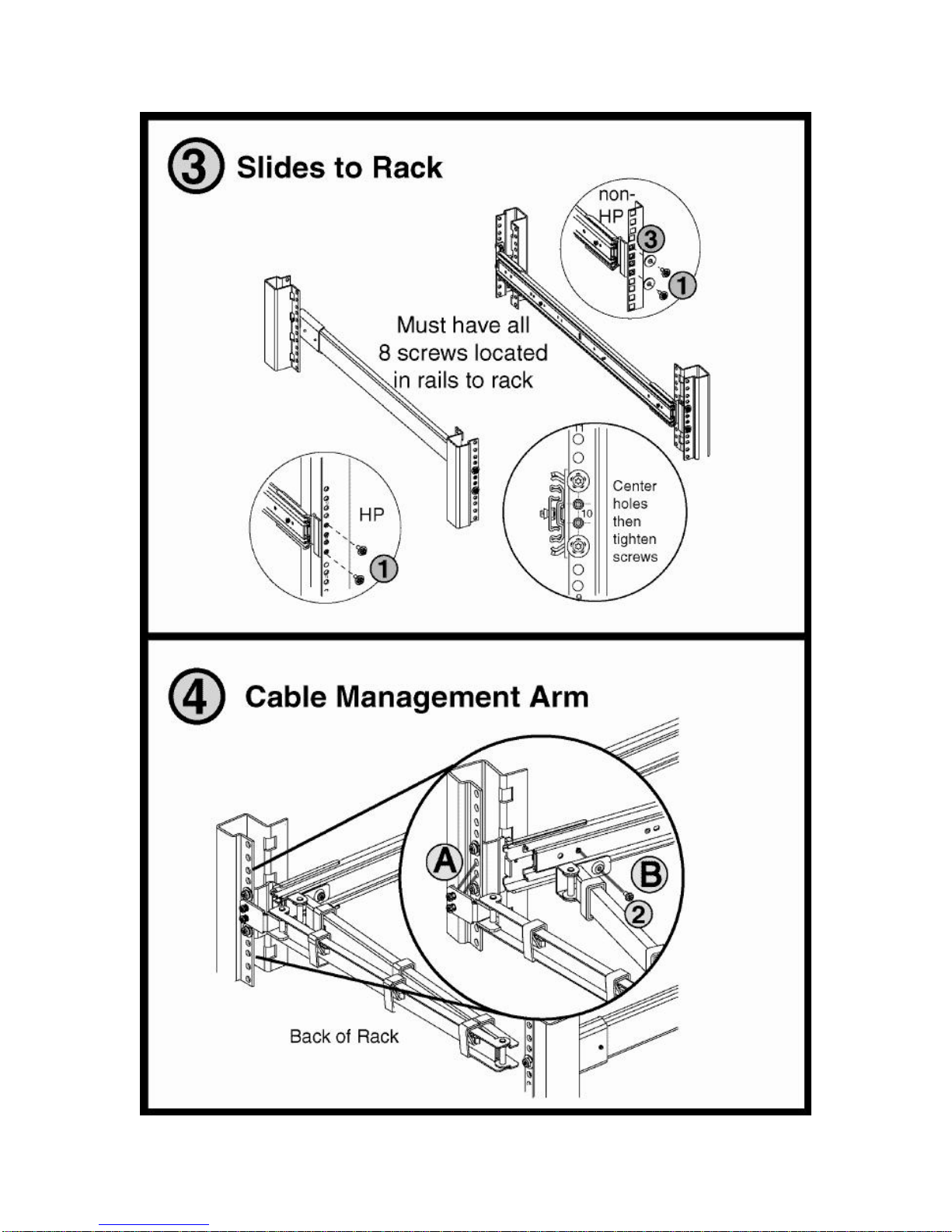

3. Follow the instructions on the subsequent pages for rack mounting your system:

Press snaps and push cover forward, and lift straight up.

!!Do not rotate cover

when removing!!

4. Plug-in the workstation that you just rack mounted and set the fan speed. To set the fan speed,

use the Boot Console Handler (bch) and follow this procedure.

A. Turn on the system and press the [Tab] key until the select display message appears.

Select the display frequency and resolution that are best for you.

B. Stop the boot process by press any key before the ten-second limit. This gets you to

the bch Main Menu. You will only need to do this if you have autoboot turned on;

otherwise, the system stops at the bch Main Menu. When the Main Menu prompt

appears, type:

Main Menu: Enter command > configuration

C. Enter the following command at the Configuration Menu prompt:

Configuration Menu: Enter command > FanChoice RackMount

D. Return to the Main Menu and enter this command at the prompt to continue booting:

Main Menu: Enter command > boot

During this procedure you removed the workstation’s plastic-skin covers, the bezel’s vent inserts,

installed the workstation in the rack, and set the workstation’s fan speed

Rack-Mount to Desk-Side Conversion

To convert your rack-mount system to a desk-side system, you will need to order the desk-side kit

(HP Part Number: A6036A) from your local HP Sales Representative.

1. Unplug the workstation and reverse the above procedure by completing steps 3, 2, and 1

(respectively).

2. Complete Step 4 above, but at the Configuration Menu prompt, type:

Configuration Menu: Enter command > FanChoice DeskSide

This completes the conversion of the rack-mount system to the desk-side system.

*A5990-90004*

A5990-90004
