HP 6602 Manuale utente

HP 6602 routers meet the requirement of FIPS security level 2.

Installing a FIPS enclosure

Installation preparation

Applying tamper evidence labels

BOM:3105A020 Part number:5998-3565R

HP 6602 Router FIPS Enclosure (JG575A) Installation Guide-6PW103

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has

a good skin contact and is well grounded.

The installation procedures must be performed by qualified personnel.

Before installation, you should read the Compliance and Safety Manual for

router compatibility information.

!

Make sure the ambient air is above 10°C (50°F).

Clean the chassis before applying tamper evident labels. Alcohol-based

cleaning pads are recommended.

Apply tamper evidence labels to all removable components on the device.

One tamper evidence label is provided with the FIPS enclosure assembly.

!

Apply tamper evidence labels as shown in the figures.

Installation tools (user supplied)

Needle-nose pliers ESD-preventive

wrist strap Philips

screwdriver Alcohol-based

cleaning pad

FIPS enclosure assembly (supplied with the router)

Opacity shield Hex bolt 2Hex bolt 1 M3 countersunk-

head screw

Only use the screws and hex bolts that are supplied in the opacity shield kit to

secure the opacity shield.

!

Install hex bolts on the chassis as shown in the figures. (Remove the

fastening screws, if any, from where hex bolts are to be installed.)

Align the holes on the opacity shields with the hex bolts.

Press the opacity shields against the side panels, and use M3 countersunk-

head screws to secure the opacity shields.

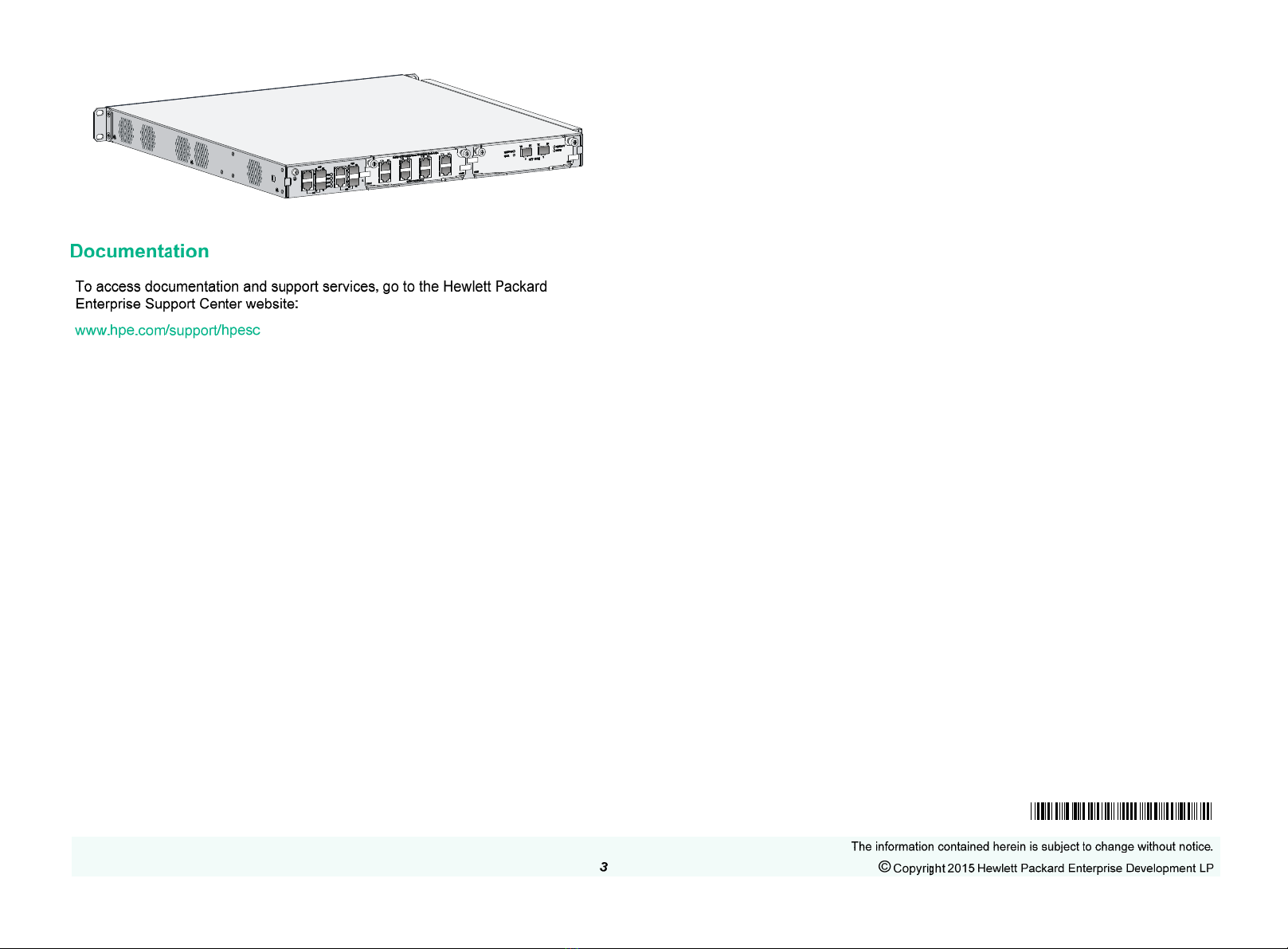

1

2

①Hex bolts 1 (Male M4, Female M3)

②Hex bolt 2 (Male M3, Female M3)

1

2

5998-3565R
