HP Jetdirect Security Guidelines

white

Table of Contents:

Introduction ..................................................................................................................................... 1

HP Jetdirect Overview ...................................................................................................................... 2

What is an HP Jetdirect?................................................................................................................... 3

How old is Your HP Jetdirect?............................................................................................................ 4

Upgrading ...................................................................................................................................... 5

HP Jetdirect Administrative Guidelines ................................................................................................ 6

HP Jetdirect Hacks: TCP Port 9100..................................................................................................... 7

HP Jetdirect Hacks: Password and SNMP Community Names................................................................ 9

HP Jetdirect Hacks: Firmware Upgrade............................................................................................... 9

HP Jetdirect Hacks: Sniffing Print Jobs and Replaying Them................................................................. 10

HP Jetdirect Hacks: Printer/MFP access ............................................................................................ 10

Recommended Security Deployments: SET 1...................................................................................... 11

Recommended Security Deployments: SET 2...................................................................................... 12

Recommended Security Deployments: SET 3...................................................................................... 18

Recommended Security Deployments: SET 4...................................................................................... 28

Further Reading ............................................................................................................................. 33

Introduction

The availability of public information on the Internet for hacking HP Jetdirect products has prompted

customers to ask HP about how they can protect their printing and imaging devices against such

attacks and what is HP doing about preventing those attacks. In all fairness, some of this public

information is of rather poor quality and inflammatory; however, some websites detailing the attacks

and the vulnerabilities on HP Jetdirect are informative and raise valid concerns that need to be

addressed. It is the purpose of this whitepaper to address customer concerns about these attacks and

vulnerabilities and to recommend proper security configurations to help customers protect their

printing and imaging devices. This whitepaper is only a small part of a broad initiative within HP to

educate our customer base about printing and imaging security. Resources such as The Secure

Printing website (http://www.hp.com/go/secureprinting) provide a great deal of information for

customers about products, solutions, as well as configuration recommendations. In general, a lot of

this information can be put to use on existing HP Jetdirect products, mainly because HP Jetdirect was

one of the first print servers to widely implement security protocols such as SSL/TLS, SNMPv3,

802.1X, and IPsec.

If you are new to security and secure configurations, it is important to remember that ‘security’ is a

process. Today’s security configurations and protocols that are thought to be unbreakable for the

next few years may in fact be broken later today. At one extreme, the best security available for

imaging and printing devices is to never unpack them once you buy them. At the other extreme, the

worst security available is unboxing them, powering them up, getting a configuration page to find the

IP address, adding them to your desktop computer system or printer spooler, and then forgetting

about them. Does that last part sound like your printing and imaging security strategy?

One of the challenges HP Jetdirect has in terms of security is actually the result of being “plug-n-play”

and reliable. As we will find out, “plug-n-play” and “security” often do not belong in the same

sentence. Hundreds of thousands, and perhaps a few million HP Jetdirect products have been in use

for years and have never had their firmware updated or their configuration changed. In today’s

increasingly security focused environment, we know that this is not a sound practice for maintaining

the proper operation of an infrastructure, regardless of the type of device in question.

HP Jetdirect Overview

Years ago, the world networked printers by connecting them via parallel ports or serial ports to

computers called spoolers. These spoolers then shared the printers via networking protocols such as

LPD to clients on the network. The length limits of serial and parallel based cables prohibited printers

from moving too far from the spoolers.

The incredible print quality of the HP LaserJet printers compared to other technologies at the time

fueled an unprecedented growth in the printing industry. The complexity and capability of printers

increased and the need to connect to a spooler in order to share printers became a burden. HP

Jetdirect was designed to allow users to share printers on the network without the need of direct

attachment to a spooler. While migrating to networking printers, the goal was to have the same ease

of use as a directly connected printer. HP Jetdirect would automatically initialize all protocols to the

best of its ability in order to allow users to print to Jetdirect immediately. Popular HP tools, such as

Jetadmin, simplified configuration of HP Jetdirect devices by taking advantage of proprietary

protocols as well as well-known default security settings.

At the time HP Jetdirect was introduced, there was a variety of competition in the market place

regarding protocol suites and networking infrastructure. Protocol suites such as AppleTalk, DLC/LLC,

and IPX/SPX were deployed widely and had as much market share as TCP/IP. In addition, Token-

Ring, FDDI, LocalTalk, ATM, and other ways of transporting frames had been adopted (or hyped)

almost as much as Ethernet. During this growth period in network printing, functionality within HP

Jetdirect was designed to promote ‘Ease-of-Use’, to reduce support calls, and to provide a rich

customer experience regardless of the protocol or networking infrastructure they were using. In short,

HP Jetdirect was designed to be “plug-n-play” on the network and behave as if the printer was

directly connected to your PC.

Fast forwarding to the present, we have clear winners in intranet networking connectivity: TCP/IP

and Ethernet. An ‘Ease of Use’ design criterion now has an arch nemesis: ‘Security’. Customers are

starting to ask how to deploy printing and imaging devices securely rather than how to deploy them

as fast and painlessly as possible.

What is an HP Jetdirect?

When printers were directly connected to network spoolers, often a simple hardware protocol was

used to send data from the PC to the printer. Centronics mode on a parallel port would be an

example. As customers demanded faster data transfer speeds and richer status, these protocols

became more complex as in IEEE 1284.4. In short, a printer had direct connect ports (e.g., serial,

parallel) that implemented a hardware protocol and converted encapsulated data into just data for

printer consumption. As customers began to network their printers, HP decided to embark on a

strategy that still remains in use to this day: Use a smart networking card to implement the various

networking infrastructure components to convert encapsulated network data into data for printer

consumption. Thus, the HP Jetdirect was born – one of the first Networking Protocol offload engines.

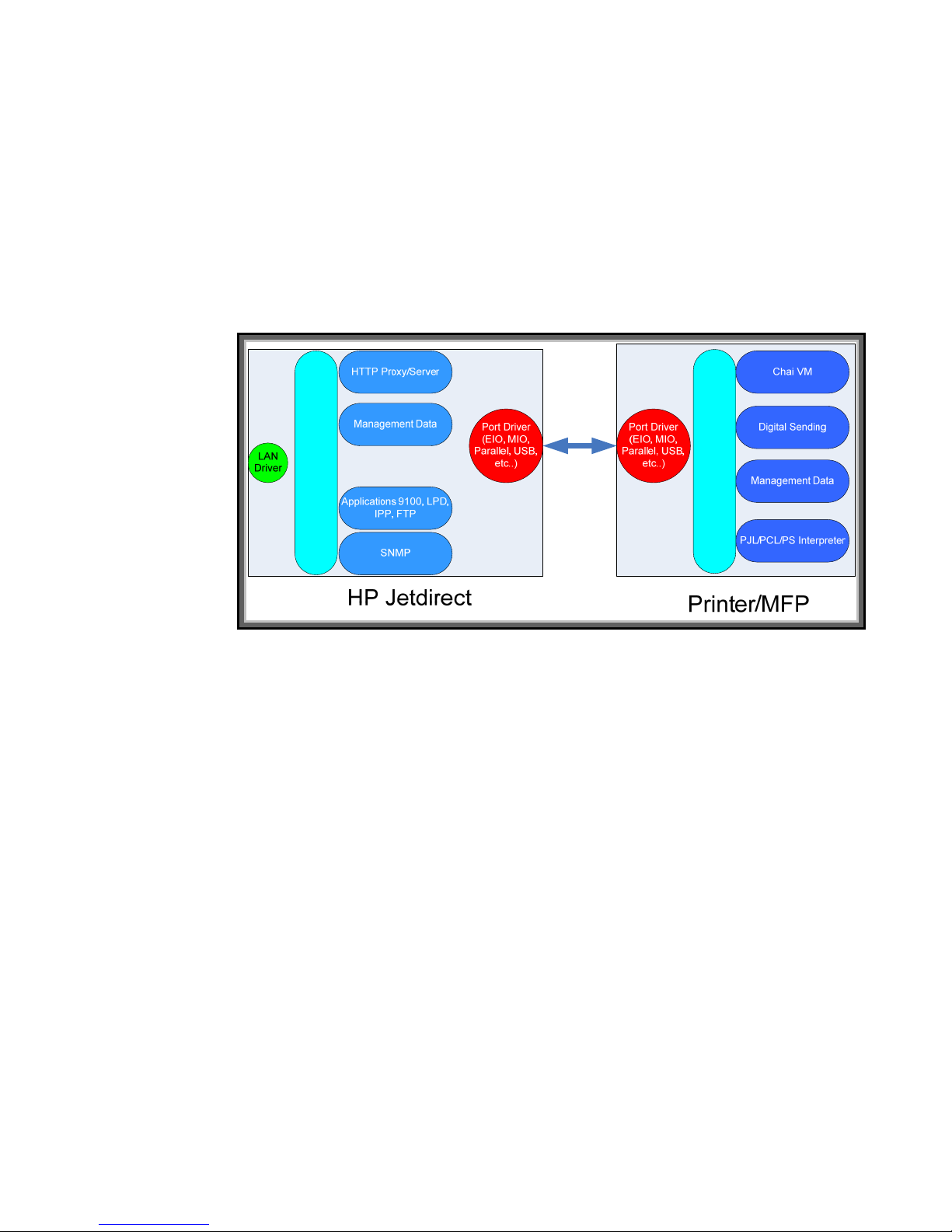

Let’s refer to Figure 1 – Functional Diagram

Figure 1 - Functional Diagram

In Figure 1, you can see the standard diagram of an offload engine. This diagram is by no means

comprehensive, but does convey the difference between HP Jetdirect and Printer/MFP platforms.

Why is this diagram important? First and foremost, we can understand what HP Jetdirect can do to

help in the security of your printing infrastructure. Secondly, we can also understand what HP

Jetdirect cannot do. As an example, some information on the Internet conveys that the PJL parser is

implemented on HP Jetdirect. Based upon this diagram, we know that is false. Upgrading your HP

Jetdirect card to provide your printer more PJL parsing protection is not going to be a good

investment. Upgrading your HP Jetdirect card to control who can and who cannot interact with your

printer is a good investment.

How old is Your HP Jetdirect?

Once in a while, when doing an inventory of a network, an administrator may discover some network

connected devices that rather old but are still working. The same is true for printers and HP Jetdirect

devices. An easy way to get an inventory of your HP Jetdirect devices is to use the HP Download

Manager available here: http://www.hp.com/go/dlm_sw. This utility allows you to discover printers

and their HP Jetdirect devices on the network. For an in-depth management platform, try HP Web

Jetadmin available here: http://www.hp.com/go/webjetadmin. Keep in mind, you don’t have to

update the firmware on your HP Jetdirect products if you don’t want to (HP does recommend it), but

for this particular section we simply want to find HP Jetdirect devices and based upon their product

number, see how old they are. Refer to Table 1 – HP Jetdirect Aging

Description Date Released

Microsoft Windows for Workgroups 3.11 February 1994

HP Jetdirect J2550A, J2552A MIO Print Servers May 1994

Microsoft Windows 95 August 1995

HP Jetdirect J2550B, J2552B MIO Print Servers November 1996

HP Jetdirect J3110A, J3111A EIO Print Servers October 1997

HP Jetdirect J3263A 300X External Print Server January 1998

HP Jetdirect J3113A 600n EIO Print Server January 1998

Microsoft Windows 98 June 1998

HP Jetdirect J3258A 170x External Print Server September 1998

Microsoft Windows 2000 Professional February 2000

HP Jetdirect J4169A 610n EIO Print Server October 2000

Microsoft Windows XP October 2001

HP Jetdirect J6057A 615n EIO Print Server April 2002

Microsoft Windows 2003 Server April 2003

HP Jetdirect J7934A 620n EIO Print Server April 2004

HP Jetdirect J7961A 635n EIO Print Server October 2005

Table 1 – HP Jetdirect Aging

Table 1 is by no means complete. Many Jetdirect cards were introduced before 1994; however,

some popular HP Jetdirect products are listed there and compared to some of the Microsoft Windows

introduction dates. It would be rare to find a reputable security analyst willing to spend time

discussing the security issues associated with Microsoft Windows for Workgroups 3.11 and Microsoft

Windows 95 in today’s environment. When viewing public information about the security

vulnerabilities of HP Jetdirect devices, be sure to keep in mind how old the devices may be.

At the time of this writing (August 2007), migrating to Microsoft Windows XP SP2 and Microsoft

Windows 2003 SP2 is very important to get the most security protection for desktops and servers.

Microsoft provides many guidelines to the proper configurations of their products and many security

consultants make a living by helping customers deploy these configurations. Customers are willing to

carry this expense because the security of their data is very important to them. If your printing

infrastructure is important to you, should you not consider upgrading it and implementing

recommended security configurations as well? As a point of comparison, some companies place a

lot of their faith in a printing infrastructure that they developed in the early 1990s. How many of

these customers would also be willing to run Microsoft Windows 95 on their desktops and Microsoft

Windows Advanced Server 3.51 on their servers today?

Upgrading

Upgrading your HP Jetdirect devices is by no means a requirement, but is highly recommended.

Should a customer choose to do so, HP can provide some guidelines. First, if the HP Jetdirect device

was introduced before the year 2000, HP recommends that it be upgraded to a newer model. Some

security features of the models that are available for customers to purchase as of August 2007 are

shown in Table 2 – HP Jetdirect Models:

HP Jetdirect Security Features

J3258G 170x External Parallel Print server Non-Cryptographic Security, not

upgradeable to newer firmware after

purchase

J6035G 175x External USB 1.1 Print Server Non-Cryptographic Security, not

upgradeable to newer firmware after

purchase

J3263G 300x External Print server Non-Cryptographic Security,

upgradeable after purchase

J7983G 510X External 3-Port Print Server Non-Cryptographic Security,

upgradeable after purchase

J7942G en3700 External USB 2.0 Print Server SSL/TLS for Management, SNMPv3,

802.1X PEAP.

J7934G 620n EIO 10/100 Print Server SSL/TLS for Management, SNMPv3,

802.1X PEAP.

J7949E Embedded Jetdirect 10/100 (not for sale

individually, comes installed on the formatter for

certain printers/MFP devices)

Running V.33.14 or later firmware:

SSL/TLS for Management, SNMPv3,

802.1X PEAP.

J7982E Embedded Jetdirect 10/100 (not for sale

individually, comes installed on the formatter for

certain printers/MFP devices)

Firewall, SSL/TLS for Management,

SNMPv3, 802.1X PEAP, 802.1X EAP-TLS.

J7997G 630n EIO 10/100/1000 Print Server Firewall, SSL/TLS for Management,

SNMPv3, 802.1X PEAP, 802.1X EAP-TLS.

J7961G 635n EIO 10/100/1000 IPv6/IPsec

Print Server

IPsec/Firewall, SSL/TLS for Management,

SNMPv3, 802.1X PEAP, 802.1X EAP-TLS

Table 2 - HP Jetdirect Models

In Table 3 – Discontinued HP Jetdirect Models, some popular HP Jetdirect devices that are no longer

being sold by HP and their security capabilities are shown.

HP Jetdirect Security Features

J4100A 400n 10/100 MIO Print server Non-Cryptographic Security,

upgradeable after purchase

J4106A 400n 10Mbps MIO Print server Non-Cryptographic Security,

upgradeable after purchase

J3110A 600n 10Mbps EIO Print server Non-Cryptographic Security,

upgradeable after purchase

J3111A 600n 10Mbps EIO Print server Non-Cryptographic Security,

upgradeable after purchase

J3113A 600n 10/100 EIO Print server Non-Cryptographic Security,

upgradeable after purchase

J4169A 610n 10/100 EIO Print Server SSL/TLS for Management, SNMPv3

J6057A 615n 10/100 EIO Print Server SSL/TLS for Management, SNMPv3

Table 3 - Discontinued HP Jetdirect Models

As you can see, replacing a discontinued 400n MIO model with a new external parallel port print

server like the 300X will not upgrade the security capabilities of the Jetdirect device. Printers that

have an MIO slot like the LaserJet IIIsi and LaserJet 4si have been discontinued for many years.

Printers and MFPs with an EIO slot are still being sold today. The EIO slot was introduced on the HP

LaserJet 4000 almost ten years ago. One of the great features of having an EIO based printer is the

ability to install a J7961G 635n IPv6/IPsec print server. Using this product, we can take an older

printer like the HP LaserJet 4000 and give it the latest in networking protocol and security support.

This flexibility will come in handy as we evaluate the various attacks employed against HP Jetdirect

and some ways to counteract those attacks. For companies with a lot of EIO based printers, proper

deployment of the 635n can protect their printer/MFP investment and increase the security of their

printing and imaging infrastructure.

HP Jetdirect Administrative Guidelines

In the material that follows, this whitepaper will be addressing some public information available

about vulnerabilities or attacks against HP Jetdirect. In order to properly recommend configurations

for HP Jetdirect, four different administrative guidelines will need to be used. These administrative

guidelines come from the four main HP Jetdirect product lines, referred to as SETs.

•SET 1: The 170x, 300x, 500x, 510x, 400n, 600n models. The administrative guideline for

securing these devices is located here:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=bpj05999.

As a reminder, these devices do not have cryptographic security capability.

•SET 2: The 610n, 615n, 620n, 625n, en3700, and Embedded Jetdirect (J7949E) models.

SET 2 can use the administrative guideline referenced for SET 1 products, but a more

updated administrative tool available via the EWS for securing these devices is located here:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=bpj07576

•SET 3: The 630n and Embedded Jetdirect (J7982E, J7987E, J7991E, and J7992E) models.

SET 3 can use the administrative guideline referenced for SET 2 products, but have additional

security by means of a Firewall. The Firewall can allow/drop packets on the basis of

IPv4/IPv6 addresses as well as service types.

•SET 4: The 635n model and the CM8000 Color MFP series (J7974E). These models have

the most security capability in HP Jetdirect’s product line.

With security configurations, one must be careful not to lock the front door and leave your windows

open. In many cases, one must “lock down” several things before securing one thing can be

effective. Before using the techniques presented here, the administrator at the very least should

do the following:

•Update all HP Jetdirect firmware to the highest level. One of the easiest ways to perform this

operation is to use the HP Download Manager available at http://www.hp.com/go/dlm_sw.

Using Internet Mode, the HP Download Manager will automatically indicate which devices

need to be upgraded. HP recommends always upgrading only a few devices and

performing an evaluation of those devices on your network before upgrading all devices to

the latest firmware.

•An Embedded Web Server (EWS) password has been specified

•The default SNMPv1/v2c SET Community Name has been changed

•All non-active protocols have been disabled (e.g., IPX/SPX, AppleTalk)

•Mark any product that cannot be firmware upgraded to the highest level as a security risk.

•A guideline to popular HP Jetdirect devices and the firmware they should be running as of

August of 2007 is shown in Table 4:

HP Jetdirect Product Number Firmware Version

J7949E Embedded Jetdirect V.33.14/V.33.15

J4100A 400n 10Mbps MIO Print server K.08.49

J4106A 400n 10Mbps MIO Print server K.08.49

J3110A 600n 10Mbps EIO Print server G.08.49

J3111A 600n 10Mbps EIO Print server G.08.49

J3113A 600n 10/100 EIO Print server G.08.49

J4169A 610n 10/100 EIO Print Server L.25.57

J6057A 615n 10/100 EIO Print Server R.25.57

J3263A/J3263G 300x External Print server H.08.60

J3265A 500X External 3-Port Print Server J.08.60

J7983G 510X External 3-Port Print Server J.08.60

J7942A/J7942G en3700 External USB 2.0 Print

Server

V.28.22

J7934A/J7934G 620n EIO 10/100 Print Server V.29.20

J7960A/J7960G 625n EIO 10/100/1000 Print

Server

V.29.29

J7961A/J7961G 635n EIO 10/100/1000

IPv6/IPsec Print Server

V.36.11

Table 4 – Jetdirect Firmware Versions

NOTE: For some Embedded Jetdirect products, you’ll need to upgrade the printer/MFP firmware to

update the JDI firmware.

Now that we covered enough background information, let’s look at some of the reported

vulnerabilities and attacks on HP Jetdirect.

HP Jetdirect Hacks: TCP Port 9100

TCP port 9100 was one of the first ways developed for sending print data to a printer. Some public

references talk about a print protocol that exists on TCP port 9100. There isn’t one. Raw data

delivered to the TCP layer on the HP Jetdirect device is sent to the printer as if it had been delivered

over a parallel port, serial port, or any other port. TCP port 9100 is the fastest and most efficient

way of delivering data to a printer using the TCP/IP protocol suite.

The most common hack for TCP Port 9100 is send a job to that port that has some PJL commands in it.

These PJL command can do a variety of things, one of the most common ones being to change the

control panel display. Remember that HP Jetdirect is stripping off the TCP/IP headers and presenting

this data directly to the printer. The printer is processing the PJL (data) as if the printer was directly

connected to a PC. Many years ago, printer drivers would use the PJL command suite to control the

printer in a variety of ways. As we can see, in the networking world, there is a potential for misuse.

How does an Administrator prevent TCP Port 9100 from being misused? Based upon what we’ve

learned about HP Jetdirect so far, we know we have to control who can and who cannot establish a

TCP connection to TCP Port 9100. Table 5 shows us some options, presented in the form of the least

amount of security (option 1) to higher levels of security (options > 1):

Which hosts need to print? Options

Only computers on the same subnet as HP

Jetdirect

Option 1) For SET 1/2/3/4. Eliminate the

default gateway (set to 0.0.0.0). This

doesn’t prevent HP Jetdirect from

receiving packets from other subnets,

but does prevent the responses from

returning to those remote subnets. As a

result, TCP connections cannot be

formed.

Option 2) For SET 1/2/3/4. Setup an

access control list with the IP address

and mask for the local subnet.

Option 3) For SET 3. Setup a rule to

protect print traffic using the Firewall.

Option 4) For SET 4. Setup a rule to

protect print traffic using the IPsec.

Ten or less individual computers on different

subnets

Option 1) For SET 1/2/3/4. Setup an

access control list for each individual IP

address with a mask of

255.255.255.255.

Option 2) For SET 3. Setup a rule to

protect print traffic using the Firewall

Option 3) For SET 4. Setup a rule to

protect print traffic using IPsec

All hosts in the company. Option 1) For Set 1/2/3/4. Setup an

access control list for the network ID

assigned to your company. As an

example, for HP’s internal network,

there would be two entries: IP - 15.0.0.0

mask - 255.0.0.0 and IP -16.0.0.0 mask

- 255.0.0.0.

Option 2) For SET 3. Setup a rule to

protect print traffic using the Firewall

Option 3) For SET 4. Setup a rule to

protect print traffic using IPsec

Table 5 – Access Control

Because there are many print protocols supported over TCP, the next logical step is to disable all print

protocols that the administrator doesn’t use. How to disable these protocols can be found in the

administrative guidelines for the appropriate product SET.

It is important to note that all TCP/IP traffic to any device (not just HP Jetdirect) that is not

cryptographically protected is subject to IP address spoofing and Man-in-the-Middle (MITM) attacks.

These attacks can target any TCP/IP traffic. Also, some cryptographic protections can be used but

may not be deployed correctly. For instance, if you are relying on SSL/TLS to protect your data, you

need to have the certificates used by SSL/TLS to be properly signed by a trusted Certificate Authority.

Otherwise, SSL/TLS is subject to MITM attacks as well because it depends on a robust PKI to

successfully authenticate the server endpoint (and optionally the client endpoint).

What about the user at work that is allowed to print but keeps changing the display or doing other

mischief with the printer using TCP Port 9100? Well, that really is no different then if they were

printing personal items at work, running the printer out of consumables with large print jobs, etc… If

they are trusted to establish a print connection, they are trusted to print. Some additional protections

can be provided, in the form of Color Access Controls using HP’s Universal Print Driver (UPD), which

allow an administrator to control the amount of color being used by a user. In addition, HP’s Web

Jetadmin includes functionality called Report Generator which facilitates reports on users and their

how their printing behavior. This functionality is useful for auditing and understanding printer usage.

HP Jetdirect Hacks: Password and SNMP Community Names

HP Jetdirect password and SNMP Community Name behavior has definitely evolved over the years.

An excellent resource for the history and current behavior is located here:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=c00004828.

In short, keep your firmware updated on your HP Jetdirect, use the latest client software from HP, and

upgrade to the latest Web Jetadmin management software. After you have upgraded all software

and firmware, change your passwords on these devices to something new. This process will help

make your HP Jetdirect devices behave the same regarding their password handling.

To better protect passwords from passive sniffing, consider using SSL/TLS. SET 2/3/4 support

automatic redirection to SSL/TLS and prevents HTTP from being used to access the EWS (if the

administrator so desires). However, when using SSL/TLS, be sure to update the HP Jetdirect

certificate to a certificate issued by a trusted CA to properly avoid MITM attacks. Also, consider

migrating to SNMPv3. HP Web Jetadmin can be configured to use SNMPv3 automatically. HP

Jetdirect devices that belong to SET 2, 3, or 4 support SNMPv3.

HP Jetdirect Hacks: Firmware Upgrade

A nice overview of the various methods used by HP Jetdirect to upgrade firmware is described here:

http://www.hp.com/go/webjetadmin_firmware.

All HP Jetdirect firmware files follow the same basic format: a recovery partition and a main

functionality partition. In case of an upgrade programming failure (due to a network outage, client

lockup, printer powered down during the upgrade, etc…), HP Jetdirect will be able to recover, albeit

with less functionality. This behavior allows an administrator to restart the upgrade process from the

recovery partition and regain full functionality without having to contact HP support.

There are three common ways of updating HP Jetdirect firmware:

•HP Download Manager / HP Web Jetadmin

•FTP

•Embedded Web Server

When using HP Download Manager or HP Web Jetadmin, the application issues an SNMP SET to the

HP Jetdirect device. If the application has proper credentials, it can populate the firmware upgrade

MIB table with TFTP server information. HP Jetdirect uses this information to start a TFTP client and

pull down the download file. These applications use the well-known default SNMP community names.

However, if an administrator has configured the SNMP SET community name, then the application

must know it to successfully set the TFTP MIB objects for firmware upgrade. Customers can also utilize

SNMPv3 for additional security and HP Web Jetadmin makes using SNMPv3 easy. Also note that

applications such as the HP Download Manager and HP Web Jetadmin are digitally signed by

Hewlett-Packard as proof of their source.

The ability to use FTP to upgrade the firmware of HP Jetdirect devices is described here:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=bpj07129. At the

end of the document is a Security section detailing the security precautions available for FTP firmware

upgrades. Essentially: if a password has been specified, it is required to be entered to utilize FTP

firmware upgrades; if telnet has been disabled to avoid plain-text transmission of the password, FTP

upgrades are also disabled.

The ability to use the EWS to upgrade HP Jetdirect devices is described here:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=bpj07572. How

the EWS is protected determines how the HP Jetdirect firmware upgrade capability is protected. For

users of the EWS, HP recommends setting the redirect from HTTP to HTTPS, using a properly signed

certificate, and of course specifying a good password.

HP Jetdirect Hacks: Sniffing Print Jobs and Replaying Them

Easily available network tools that can perform effective MITM attacks against the TCP/IP protocol

suite has caused of a lot of concern among customers. Let’s review what a MITM attack against the

TCP/IP protocol suite does. A node intercepts IP packets from a node by pretending to be another

node and then forwards the IP packets to the next correct node so it may end up at the final

destination as if no interception had taken place; also, this MITM node intercepts packets traveling in

the opposite direction (from the destination back to the source) in the same manner. What this means

is that the MITM node has a copy of all the data sent between that source and that destination. If the

MITM node has a copy of a PDF file that was sent between an email client and email server, it can

use Adobe Acrobat Reader to open it. If the MITM node has a copy of a text document that was sent

between an FTP client and an FTP server, it can open it with a text editor. If the MITM node has a

copy of a print job, it can “open” it by sending it to a printer. In some cases, as with PostScript or

simple text, a print job can be opened using other applications without having to send it to a printer.

While a valid vulnerability, it is nonetheless a general vulnerability of the TCP/IP protocol suite and is

not a vulnerability specific to printing.

Passive sniffing attacks are where another node on the network can record conversations. These

attacks are analogously similar to using listening device hidden in a conference room to record a

meeting conversation. Active attacks are also used to force network infrastructure equipment to

behave in a manner that allows passive sniffing. This active/passive behavior is analogously similar

to a person not being able to plant the listening device in the conference room and instead pulling a

fire alarm in the building then recording the conversation of the individuals leaving the conference

room. Properly deployed cryptographic protocols are a good defense against passive and active

sniffing attacks. Networking infrastructure equipment can be configured to help hinder active attacks.

Port access controls, such as 802.1X, help protect against unauthorized connections. In addition,

many switch vendors offer various flavors of ARP protection and monitoring since ARP poisoning is a

fundamental step in MITM attacks.

The defense against TCP/IP MITM attacks is the proper deployment of cryptographic protocols such

as IPsec and SSL/TLS with a properly signed HP Jetdirect certificate. HP recommends the proper

deployment of IPsec (SET 4) as a solution to this general vulnerability with the TCP/IP protocol suite.

HP Jetdirect Hacks: Printer/MFP access

Up until now, we have discussed HP Jetdirect security primarily. Some publicly available applications

interface directly with the printer/MFP’s PJL library over a print connection. These tools often claim to

bypass HP Jetdirect security. However, as we’ve seen from our functional diagram, HP Jetdirect

controls the networking stack and does not parse PJL and cannot be configured to block PJL

commands. However, printer/MFPs can be configured to provide a lot of security too. HP

recommends following NIST checklist as a guideline to all customers concerned about printer/MFP

security: http://www.hp.com/united-states/business/catalog/nist_checklist.html.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Software

HP Neoware c50 - Thin Client Manuale utente

HP ProCurve 1600M Manuale utente

HP LeftHand P4000 - SAN Solutions Manuale di istruzioni

HP t5300 - Thin Client Manuale utente

HP VS160 - StorageWorks DLT Tape Drive Manuale utente

HP Rx2620-2 - Integrity - 0 MB RAM Manuale utente

HP TR3271 Manuale del proprietario

HP T5725 - Compaq Thin Client Manuale di istruzioni

HP ProLiant Lights Out-100 Manuale utente

HP StorageWorks 8B - FC Entry Switch Manuale utente

HP 418800-B21 - StorageWorks Modular Smart Array 70 Storage... Manuale di installazione

HP NonStop RDF J-series RVUs Manuale di programmazione

HP StorageWorks P4000 Series Manuale utente

HP NetServer AA 6200 Manuale di servizio

HP SureStore Optical 2600fx Manuale di installazione

HP BladeSystem bc2000 - Blade PC Manuale utente

HP t5565 - Thin Client Manuale di servizio

HP AB500A - Integrated Lights-Out Advanced Guida rapida

HP 348773-001 Manuale utente

HP NC373m - PCI Express Dual Port Multifunction Gigabit Server... Manuale utente

HP C8000 - Workstation - 0 MB RAM Manuale di istruzioni

HP JetCAPS Manuale utente

HP C7791C - DesignJet 130 Color Inkjet Printer Guida alla configurazione

HP Xw460c - ProLiant - Blade Workstation Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente

Novell

Novell SP2 - S Manuale di istruzioni
