HP ProLiant Essentials

Intelligent Networking Pack Windows Edition

User Guide

Part Number 381655-00J

March 2007 (Ninth Edition)

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP

shall not be liable for technical or editorial errors or omissions contained herein.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212,

Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S.

Government under vendor’s standard commercial license.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Windows Server 2003 is a trademark of Microsoft

Corporation.

Audience assumptions

This document is for the person who installs, administers, and troubleshoots servers and storage systems.

HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards

in products with hazardous energy levels.

Contents 3

Contents

Overview..................................................................................................................................... 4

HP ProLiant Essentials Intelligent Networking Pack Introduction........................................................................ 4

Intelligent Networking Pack licenses................................................................................................... 5

Using Virus Throttle ..................................................................................................................... 12

How Virus Throttle works.......................................................................................................................... 12

Installing Virus Throttle for Windows .......................................................................................................... 12

Monitoring Virus Throttle status.................................................................................................................. 13

Virus Throttle Status and Configuration Utility .............................................................................................. 16

Launching the Virus Throttle Status and Configuration Utility................................................................ 16

Configuring Virus Throttle parameters............................................................................................... 17

Using advanced networking features............................................................................................. 21

Configuring advanced features ................................................................................................................. 21

Configuring a Dual Channel team ................................................................................................... 23

Advanced Pack redundancy features ......................................................................................................... 25

Configuring Active Path Failover...................................................................................................... 27

Configuring Fast Path Failover......................................................................................................... 28

Configuring Router Path Failover ..................................................................................................... 29

Advanced Redundancy tab team members information....................................................................... 29

Configuring VLAN IDs.................................................................................................................... 30

Using discovery protocol ............................................................................................................. 32

About Cisco Discovery Protocol and Link Layer Discovery Protocol................................................................. 32

Configuring Discovery Protocols ...................................................................................................... 33

IGMP support............................................................................................................................. 35

Introduction to IGMP................................................................................................................................ 35

Troubleshooting.......................................................................................................................... 36

Potential solutions for INP configuration problems........................................................................................ 36

Installing an Intelligent Networking Pack license ................................................................................ 36

Using Virus Throttle........................................................................................................................ 37

Configuring advanced networking features....................................................................................... 37

Configuring Discovery Protocol ....................................................................................................... 39

Acronyms and abbreviations........................................................................................................ 41

Index......................................................................................................................................... 43

Overview 4

Overview

In this section

HP ProLiant Essentials Intelligent Networking Pack Introduction ...................................................................... 4

HP ProLiant Essentials Intelligent Networking Pack

Introduction

The HP ProLiant Essentials Intelligent Networking Pack-Windows Edition is part of the ProLiant Essentials

software family and is integrated with HP Systems Insight Manager (SIM), SmartStart, and HP

Management agents.

The Intelligent Networking Pack (INP) provides advanced capabilities that allow servers to proactively

adapt to networking infrastructure problems thus improving server availability and network performance.

The Intelligent Networking Pack Windows Edition includes:

•Virus Throttle—a network packet-filtering feature that helps slow down the spread of viruses on your

system. Virus Throttle monitors all outbound connection requests and counts the number of unique

connections. It detects abnormal ("virus-like") behavior in the requests, and slows down excessive

connection requests to new hosts until you can determine if they are viral in nature and take action

•Advanced redundancy and teaming capabilities, including:

oActive Path Failover—an advanced redundancy feature that allows a ProLiant server to detect

blocked paths and to redirect data along an unblocked path to the core network.

oFast Path Failover—an advanced redundancy feature that allows a ProLiant server to use the

quickest path to the core network (or the root bridge).

oRouter Path Failover—an advanced redundancy feature that allows a ProLiant server to detect a

blocked path to a router and to redirect packets along an unblocked path to a router.

oDual Channel Load Balancing—a special type of teaming that allows the creation of two teams,

called groups, inside of a single team. Each group is assigned one or more teamed ports and

can be connected to a different switch to provide switch fault tolerance. Full inbound and

outbound load balancing is provided across both groups. Should any group completely fail,

caused by a failure of all teamed ports in the group or by a failure of the group's switch, the

team remains available through the other group. Two types of Dual Channel Load Balancing

teams can be configured: Switch-assisted Dual Channel Load Balancing teams and 802.3ad

Dynamic Dual Channel Load Balancing teams.

oDual Channel Network Fault Tolerance—a special type of teaming that allows the creation of two

teams, called groups, inside of a single team. All team members within each group are

dynamically placed into a port-trunk/channel by dynamic Link Aggregation Control Protocol

(LACP) agreement with the switch. A failure of a team member to synchronize joining a port-trunk

or channel with the switch is treated as an error and that team member is considered failed.

Dynamic Dual Channel Network Fault Tolerance (NFT) provides the safety of additional backup

links between the server and hub/switch. Dynamic Dual Channel NFT is implemented with one

channel team providing a primary adapter and another channel team providing a secondary,

Overview 5

backup adapter. During normal operations, if the adapters in the primary team fail, a link to one

of the adapters in the secondary, backup team automatically takes over. Four types of Dual

Channel NFT teams can be configured: Switch-assisted Dual Channel NFT teams, Switch-assisted

Dual Channel NFT and Preference Order teams, 802.3ad Dynamic Dual Channel NFT teams,

and 802.3ad Dynamic Dual Channel NFT and Preference Order teams.

NOTE: Dual Channel Network Fault Tolerance teaming capabilities are not supported on

systems running Windows® 2000.

•Cisco Discovery Protocol (CDP) support—a media- and protocol-independent network protocol that is

used to obtain protocol addresses of neighboring devices and discover the platform and other

information of those devices.

•Link Layer Discovery Protocol (LLDP) support—a media- and protocol-independent network protocol

that is used to obtain protocol addresses of neighboring devices and discover the platform and other

information of those devices.

•Internet Group Management Protocol (IGMP) support—IGMP is a session-layer (Layer-3) protocol

used to establish membership in a Multicast group. It can register a router to receive specific

multicast traffic.

The INP features are included with the networking software (release 7.71 and higher). To enable the INP

features, an INP license must be installed on the system. This user guide describes how to install these

licenses on your system and how to configure the features.

For the latest driver, firmware, and documentation updates, go to HP Networking website

(http://h18004.www1.hp.com/products/servers/networking/index.html).

Intelligent Networking Pack licenses

Each server requires a separate INP license. When installed on the system, the license is "attached" to the

server and cannot be revoked. The license will stay with that server for the life of the server. The license is

associated with the server's serial number, so a change in the server's name or IP address will not

invalidate the license. One INP license enables all INP features on the server.

Four categories of INP licenses are available. Each license offers full, unlimited functionality.

•Single license pack—Authorizes one licensed seat.

•Flexible Quantity license pack—Authorizes the set number of licensed seats ordered.

•Activation Key Agreement license pack—Allows you to authorize additional licensed seats under the

terms of a signed and implemented Activation Key Agreement (AKA) only.

•Demo—Allows you to evaluate the features for a set number of seats and a set number of days

Installing an Intelligent Networking Pack license

INP-Windows Edition licenses can be installed through the following:

•HP ProLiant Essentials Network License Manager, which can be launched through one of the

following:

oHP Network Configuration Utility (NCU) (release 7.71 and higher)

oHP Virus Throttle for Windows Utility installation

•HP ProLiant Essentials Network License Manager (nalicense)

Overview 6

•HP ProLiant Essentials Network License Manager (vtlicense)

•HP Systems Insight Manager (SIM) License Manager Utility

Windows operating system requirements

Both the NCU and Virus Throttle utility require that the HP ProLiant system be running

Microsoft®Windows® 2000, Microsoft Windows Server 2003, or Microsoft Windows Server 2003 x64.

Launching the license manager through the Network Configuration Utility

If the NCU software (release 7.71 and higher) is installed on your server, click License Manager on the

NCU Main window to display the License Manager.

If the NCU software is not installed on your server, complete the following steps:

1. Go to the HP website (http://www.hp.com).

2. Click Software & Driver Downloads from the left menu bar.

3. Type the product name in the For product box and press Enter. For example, type NC370T.

4. Select your Operating System software.

5. Click HP ProLiant Networking Software.

6. Click download and save the HP SoftPaq (sp#####.exe) file to a directory on your hard drive. The

SoftPaq file is a self-extracting executable with a file name based on the SoftPaq number.

7. Click the SoftPaq file to extract the files and then open the cmponent.htm file.

8. Click the Network Teaming and Configuration link.

9. Install the component according to the directions. When the NCU is installed, the NCU tray icon

appears on the task bar of the Windows desktop.

Overview 7

10. Click the NCU tray icon to display the NCU Main window.

11. Click License Manager to display the ProLiant Essentials Network License Manager. For information

on installing licenses refer to "About ProLiant Essentials Network License Manager (on page 8)."

Launching the license manager through the Virus Throttle installation

When you first install Virus Throttle the utility looks for a valid INP license on the system. If it does not find

one, it automatically launches the ProLiant Essentials Network License Manager for you to enter a license

key.

To install Virus Throttle and launch the ProLiant Essentials Network License Manager complete the

following steps:

1. Go to the HP website (http://www.hp.com).

2. Click Software & Driver Downloads from the left menu bar.

3. Type the product name in the For product box and press Enter. For example, type NC370T.

4. Select your Operating System software.

5. Click HP ProLiant Networking Software.

6. Click download and save the HP SoftPaq (sp#####.exe) file to a directory on your hard drive. The

SoftPaq file is a self-extracting executable with a file name based on the SoftPaq number.

7. Click the SoftPaq file to extract the files and then open the cmponent.htm file.

Overview 8

8. Click the HP Virus Throttle link. If the utility does not identify a valid INP license on the system, the

following message displays:

9. Click Yes to display the ProLiant Essentials Network License Manager. For information on installing

licenses refer to "About ProLiant Essentials Network License Manager (on page 8)."

NOTE: After the INP license is installed on the system, the Virus Throttle installation

automatically continues.

For additional information on Virus Throttle, refer to "Using Virus Throttle (on page 12)."

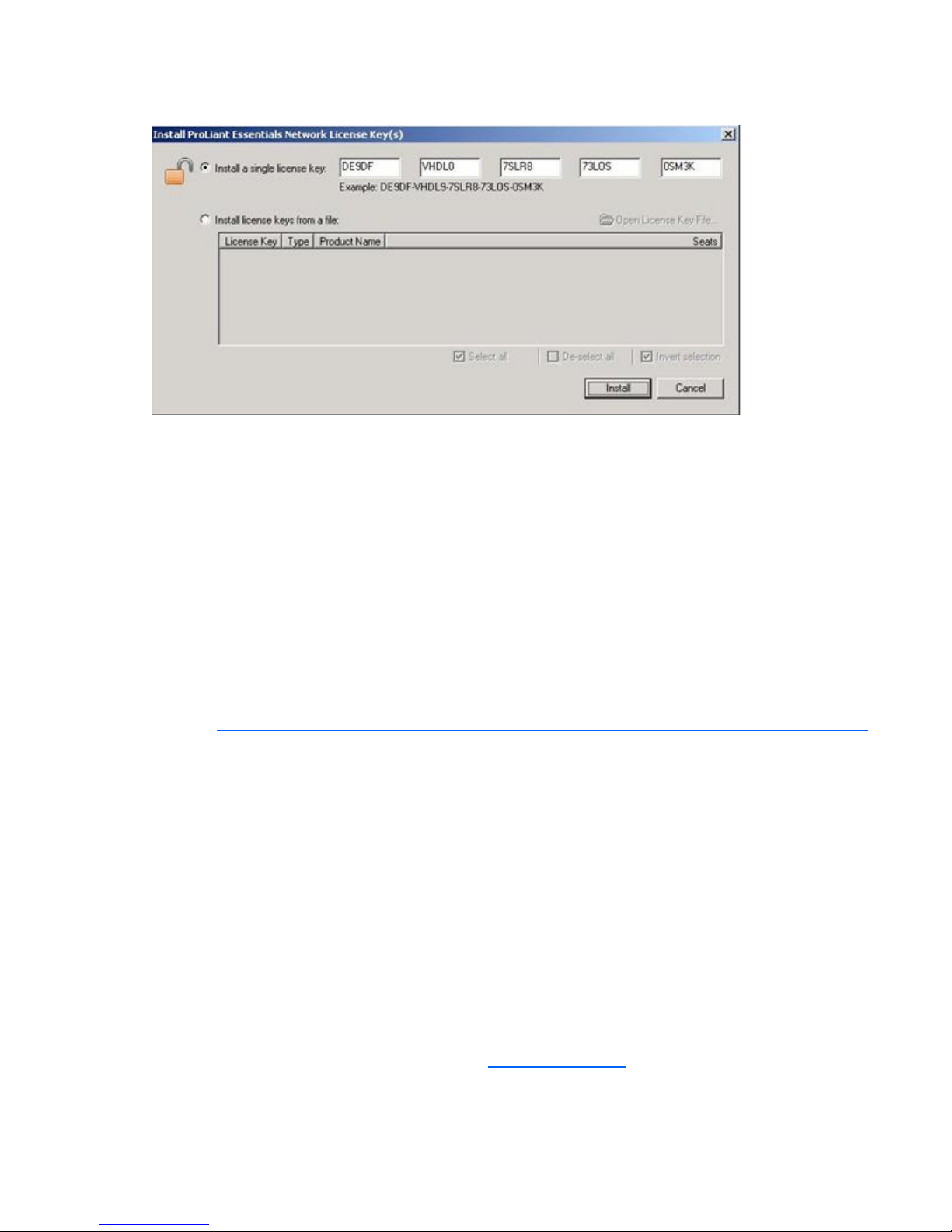

About ProLiant Essentials Network License Manager

The ProLiant Essentials Network License Manager allows you to enter new INP-Windows Edition licenses

as well as view the status of other ProLiant Essentials licenses on your system.

Overview 9

The Currently installed licenses window displays the following information:

•Product Name—the name of the licensed networking product.

•Type—The license type.

oSingle license pack—Authorizes one seat. Depending upon the type of product a seat may be a

single server (INP) or a single port (iSCSI Pack).

oFlexible quantity license pack—Authorizes a set number of seats ordered.

oActivation Key Agreements (AKA) license pack—For use with signed and implemented (AKAs).

Allows you to activate additional seats under the terms of an existing AKA.

oDemo (For evaluation purposes only)—This trial license is provided for a set number of seats and

a set number of days.

•Seats Max—The total number of seats authorized for use by this key.

•Seats Used—The number of seats that are currently used.

•Days Max (Demo key only)—The total number of days authorized for use by this key.

•Days Left (Demo key only)—The number of days remaining for the license.

•License Key—The 25-digit license key string.

The Licensable devices window displays all devices that can be enabled. To enable or disable ports go to

the NCU.

•Licensed and Unlicensed Devices—Enabled ports are displayed with a solid adapter icon and

disabled ports are displayed with a faded adapter icon.

•Non-port based licenses—When a non-port based license is selected in the Currently installed

licenses list, the Licensable devices list is disabled.

•License seat unavailable—If all seats for a given license have been used, a licensed port of the same

type must be disabled to make a license seat available to a different port or an additional license of

the same product type with additional seats must be installed.

The following controls are available:

•Install License(s)—Opens the Install ProLiant Essentials License Key(s) dialog box.

•Export Licenses—Allows you to export currently installed licenses into a formatted license key file so

that you can easily move multiple licenses from one system to another.

•Close—Removes the License Manager dialog box from the screen.

•Help—Launches the License Manager Help file.

To install a license:

You can install single or multiple license keys in the ProLiant Essentials Network License Manager window.

To install a single license key:

Overview 10

1. From the ProLiant Essentials Network License Manager window, click Install License(s)… to display

the Install ProLiant Essentials License Key(s) dialog box.

2. Select the Install a single license key option and enter the license key string. You may also copy the

license key from another source and paste it into the boxes.

3. Click Install. The license is displayed in the Currently installed licenses window.

To install multiple license keys from a key file:

1. From the ProLiant Essentials Network License Manager window, click Install License(s)….

2. Select the Install license keys from a file option and click Open License Key File....

3. Select the [filename].key file and click Open. A list of keys available for installation appears.

4. Select the license keys to install by clicking the check boxes. Selecting Invert selection reverses all

check box selections.

5. Click Install.

NOTE: HP recommends that you retain the license key for future reference. The key is needed

for technical support and future upgrades.

To export a license:

1. Click Export Licenses. The Save As dialog box appears.

2. Enter a license key filename called [filename].key and click Save. A text file is created.

3. Click Close. The NCU Main window appears.

Installing licenses using the nalicense

The HP ProLiant Essentials Network License Manager (nalicense), which ships with the NCU, is a

Windows based command line utility and can be run at the command line of a Command Prompt

window or from a Windows command file.

The nalicense command validates that the license is a proper INP license and if it is valid it adds it to

the system. The nalicense command can also be used to display valid licenses on the system.

For information about the utility, refer to the HP ProLiant Essentials Network License Manager for

Windows User Guide located on the HP website (http://www.hp.com).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Software

HP 201723-B21 - HP StorageWorks Modular SAN Array 1000 Hard... Manuale di istruzioni

HP LeftHand P4000 - SAN Solutions Manuale di istruzioni

HP cc2300 Manuale utente

HP StorageWorks 8/8 - SAN Switch Manuale di istruzioni

HP Compaq dc7900 Business PC Manuale utente

HP Integrity Superdome 2 16-socket Manuale utente

HP StorageWorks 2/140 - Director Switch Manuale di istruzioni

HP Surestore Tape Library Model 10/180 Manuale utente

HP StorageWorks MSA 2/8 - SAN Switch Manuale utente

HP C7791C - DesignJet 130 Color Inkjet Printer Guida alla configurazione

HP BladeSystem bc2000 - Blade PC Manuale utente

HP AB500A - Integrated Lights-Out Advanced Manuale utente

HP D6030A - NetServer - E50 Manuale utente

HP OmniBook 2100 Manuale utente

HP MultiSeat ms6000 Manuale utente

HP e3000 Manuale utente

HP BB118BV - StorageWorks Data Protector Express... Manuale per l'uso e la cura

HP Compaq NC4000 Manuale del proprietario

HP StorageWorks MSA 2/8 - SAN Switch Manuale utente

HP NonStop Pathway/iTS Manuale del proprietario

HP SureStore Optical 2600fx Manuale di installazione

HP 4320t - Mobile Thin Client Istruzioni per il montaggio

HP ProLiant BL280c G6 Manuale utente

HP D2D Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente

Novell

Novell SP2 - S Manuale di istruzioni
