HP StorageWorks 8B - FC Entry Switch Manuale utente

user's guide

version 3.0

zoning

www.hp.com

Notice

Edition: E1201

Hewlett-Packard Company makes no warranty of any kind with

regard to this material, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

This document contains proprietary information, which is protected

by copyright. No part of this document may be photocopied,

reproduced, or translated into another language without the prior

written consent of Hewlett-Packard. The information contained in

this document is subject to change without notice.

Use, duplication, or disclosure by government is subject to

restrictions as set forth in subdivision (c) (1) (ii) of the Rights in

Technical Data and Computer Software Clause at DFARS

252.227.7013.

Warranty

If you have any questions about the warranty for this product,

contact your dealer or local Hewlett-Packard sales representative.

Trademarks

BROCADE, the Brocade B weave logo, Brocade: the Intelligent

Platform for Networking Storage, SilkWorm, and SilkWorm

Express, are trademarks or registered trademarks of Brocade

Communications Systems, Inc. or its subsidiaries in the United

States and/or in other countries.

All other brands, product or service namesare or may be trademarks

or service marks of, and are used to identify products of services of

their respective owners.

Safety notices

Any servicing, adjustment, maintenance, or repair must be

performed only by authorized service-trained personnel.

Zoning User’s Guide iii

Contents

Preface

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Related Publications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

System Requirements and Compatibility. . . . . . . . . . . . . . . . . . . . . . . . vii

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Getting Software Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Chapter 1 Introducing Zoning

Administering Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Customizing Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Optimizing IT Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Implementing Zoning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Chapter 2 Installing Zoning

Installing Zoning with Telnet Commands . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installing Zoning from Web Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Chapter 3 Using Zoning

Understanding Zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Zone Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Zone Enforcement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Enabling a Zone Configuration . . . . . . . . . . . . . . . . . . . . . . 3-4

iv Zoning User’s Guide

Implementing Zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Configuring Zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Modifying Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Adding a Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Merging Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Transactional Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Chapter 4 Zoning and Partnering with QuickLoops

QuickLoop Zoning Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

QuickLoop Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Configuring QuickLoop Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Establish QuickLoop Partnerships . . . . . . . . . . . . . . . . . . . . 4-3

Create a QuickLoop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Define QuickLoop Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Define QuickLoop Zone Configuration . . . . . . . . . . . . . . . . 4-4

Enable QuickLoop Zone Configuration . . . . . . . . . . . . . . . . 4-4

Chapter 5 Detailed Zoning Examples

Set Up a Fabric Zone Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Set Up QuickLoop and Fabric Zones on Dual Switch Configuration (Mixed

Mode Environment) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Set Up Zones in Dual-Switch QuickLoop . . . . . . . . . . . . . . . . . . . . . . . 5-4

Glossary

Index

Zoning User’s Guide v

Preface

Zoning is a standard feature on the HP Surestore FC 1Gb/2Gb Switch 8B and FC 1Gb/2Gb Switch

16B products. It is also available for the HP Surestore FC 1Gb/2Gb Entry Switch 8B if the Zoning

license is installed.

Zoning is supported for the FC Entry Switch 8B, FC Switch 8B, and the FC 16B switch using

Fabric OS version 3.0.1b or later, and for the HP Brocade 2400/2800 and the FC 6164 switches

using Fabric OS version a2.4.1 or later. For information about system requirements, refer to System

Requirements and Compatibility on page vii in this section.

About This Guide

This guide provides the following information about Zoning:

Related Publications

Related product information can be found in the following publications.

Provided with the FC Entry Switch 8B and FC Switch 8B:

•HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb Switch 8B Getting Started

Guide (A7346-90902)

•HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb Switch 8B Documentation

CD (A7346-11001)

Chapter 1

Introducing Zoning Provides an overview of Zoning.

Chapter 2

Installing Zoning Provides instructions for installing Zoning.

Chapter 3

Using Zoning Provides information about configuring and using Zoning.

Chapter 4

Zoning and Partnering with

QuickLoops

Provides information about using and configuring QuickLoop

Zones.

Chapter 5

Detailed Zoning Examples Provides examples of Zoning configurations.

vi Zoning User’s Guide

Provided on the FC Entry Switch 8B and FC Switch 8B Documentation CD, and at the HP Web site

at http://www.hp.com/support/fc8B:

•HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb Switch 8B Getting Started

Guide (A7346-90902)

•HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb Switch 8B Installation and

Reference Guide

•Fabric OS Reference Manual, version 3.0

•Fabric OS Procedures Guide, version 3.0

•Fabric OS Version 3.0.1b Release Notes

•Fabric Watch User’s Guide, version 3.0

•QuickLoop User’s Guide, version 3.0

•Web Tools User’s Guide, version 3.0

•Distributed Fabrics User’s Guide, version 3.0

•Zoning User’s Guide, version 3.0

•MIB Reference Manual, version 3.0

•ISL Trunking User’s Guide, version 3.0

•Advanced Performance Monitoring User’s Guide, version 3.0

•Merging Heterogeneous Fabrics Instructions

Provided with the FC 16B:

•HP Surestore FC 1Gb/2Gb Switch 16B Quick Start Guide (A7340-96002)

•HP Surestore FC 1Gb/2Gb Switch 16B Documentation CD (A7340-11001)

Provided on the FC 1Gb/2Gb Switch 16B Documentation CD and at the HP Web site at

http://www.hp.com/support/fc16B:

•HP Surestore FC 1Gb/2Gb Switch 16B Quick Start Guide (A7340-96002)

•HP Surestore FC 1Gb/2Gb Switch 16B Installation and Reference Guide

•Fabric OS Reference Manual, version 3.0

•Fabric OS Procedures Guide, version 3.0

•Fabric OS Version 3.0.1 Release Notes

•Fabric Watch User’s Guide, version 3.0

•QuickLoop User’s Guide, version 3.0

•Web Tools User’s Guide, version 3.0

•Distributed Fabrics User’s Guide, version 3.0

•Zoning User’s Guide, version 3.0

•MIB Reference Manual, version 3.0

•ISL Trunking User’s Guide, version 3.0

•Advanced Performance Monitoring User’s Guide, version 3.0

•Merging Heterogeneous Fabrics Instructions

Information about Fibre Channel standards and Fibre Channel in general can be found on the Fibre

Channel Industry Association Web site, located at http://www.fibrechannel.com.

Zoning User’s Guide vii

System Requirements and Compatibility

Compatibility with other Products

Fabric OS version 3.0.1b or later can be installed and run on the FC Entry Switch 8B, FC Switch

8B, and FC 16B products.

The FC Entry Switch 8B, FC Switch 8B, and the FC 16B switch running Fabric OS version 3.0.1b

or later can operate in the same fabric with the HP Brocade 2400/2800 and FC 6164 switches

running the a2.4.1 or later versions of Fabric OS.

For more information about configuring FC Entry Switch 8B, FC Switch 8B, FC 16B, HP Brocade

2400/2800, and FC 6164 products to operate in the same fabric, contact your switch supplier.

Getting Help

For information for the FC Entry Switch 8B and FC Switch 8B, visit the HP Web site at

http://www.hp.com/support/fc8B.For the most current technical support information for the FC

16B, visit the HP Web site at http://www.hp.com/support/fc16B. This includes hardware and

software support, all repairs, and spare components.

Be prepared to provide the following information to the support personnel:

•Switch serial number

•Switch world wide name

•Output from the supportShow telnet command

•Detailed description of the problem

•Topology configuration

•Troubleshooting steps already performed

Getting Software Updates

For information on obtaining software updates contact your HP account representative or technical

support.

viii Zoning User’s Guide

Zoning User’s Guide 1-1

Chapter

Introducing Zoning

Zoning allows you to partition your Storage Area Network (SAN) into logical groupings of devices

that can access each other. Using Zoning, you can arrange fabric-connected devices into logical

groups, or zones, over the physical configuration of the fabric.

Zones can be configured dynamically. They can vary in size depending on the number of fabric

connected devices, and devices can belong to more than one zone. Because zone members can

access only other members of the same zone, a device not included in a zone is not available to

members of that zone. This chapter discusses the following Zoning topics:

•Administering Security on page 1-1

•Customizing Environments on page 1-1

•Optimizing IT Resources on page 1-1

•Implementing Zoning on page 1-2

Note: Zoning for interoperability is described in Merging Heterogeneous Fabrics Instructions,

which is available on the HP Surestore FC 1Gb/2Gb Switch 16B Documentation CD

(A7340-11001) and the HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb

Switch 8B Documentation CD (A7346-11001).

Administering Security

Use zones to provide controlled access to fabric segments and to establish barriers between

operating environments. For example, isolate systems with different uses or protect systems in a

heterogeneous environment.

Customizing Environments

Use zones to create logical subsets of the fabric to accommodate closed user groups or to create

functional areas within the fabric. For example, include selected devices within a zone for the

exclusive use of zone members, or create separate test or maintenance areas within the fabric.

Optimizing IT Resources

Use zones to consolidate equipment, logically, for IT efficiency, or to facilitate time-sensitive

functions. For example, create a temporary zone to back up non-member devices.

1-2 Zoning User’s Guide

Introducing Zoning

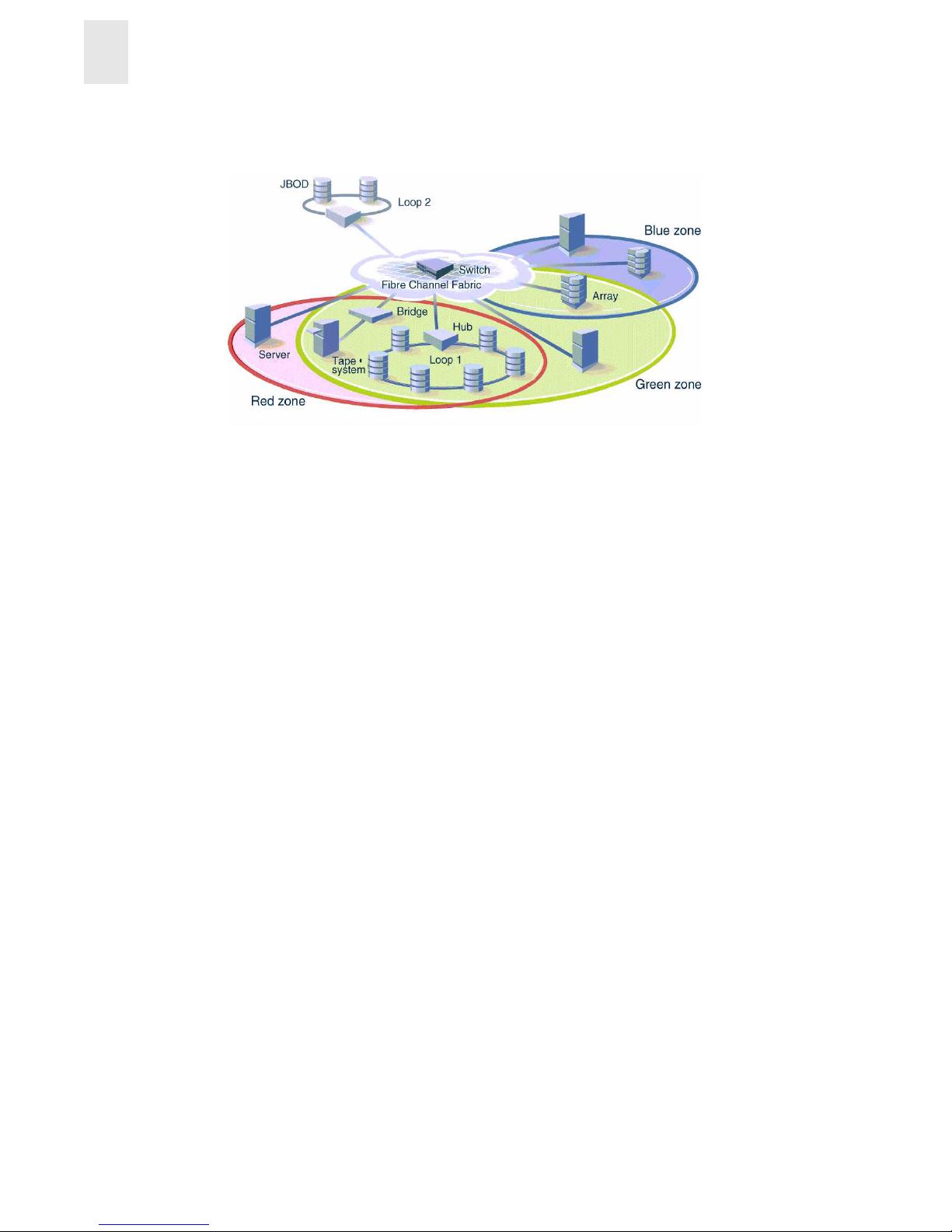

Figure 1-1 below illustrates three zones with some overlap. It also contains devices that are not

assigned to a zone, and are thus not active in the fabric if Zoning is enabled.

Figure 1-1 Fabric with Three Zones

Implementing Zoning

Implementing Zoning simplifies the zoning process in the following ways:

•You can administer Zoning from any switch in the fabric. Configuration changes made to one

switch are automatically replicated to all switches in the fabric.

•Zones can be configured dynamically. When configuring new zones:

•Data traffic on ports and devices is idle for a moment, then resumes according to the new

zoning configuration. With hardware WWN zoning and port zoning, Windows NT ports

may need to be rebooted to access new devices. With HP-UX, a new disc scan may need

to be performed if the zone is altered.

•Data traffic across interswitch links (ISLs) in cascaded switch configurations is not

affected.

•Zoning uses policy-based administration. Because Zoning uses policy-based administration —

separating zone specification from zone enforcement — you can manage multiple zone

configurations and easily enable a specific configuration when it is required. A fabric can store

any number of zone configurations; however, only one configuration is active at a time.

Because the configurations are pre-determined and stored, a new configuration can be easily

enabled.

•Zoning can be configured and administered with either telnet commands or Web Tools.

For information on telnet commands, see the Fabric OS Reference Guide. For information on Web

Tools, see the Web Tools User’s Guide.

No zone

Altri manuali per StorageWorks 8B - FC Entry Switch

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Magazzinaggio

HP StorageWorks NAS 8000 - Version 1.6.X Manuale utente

HP ET353AA Istruzioni utente

HP StoreOnce 4900 Backup Manuale dell'operatore

HP AH164A - StorageWorks 1/8 G2 Tape Autoloader Ultrium... Istruzioni per l'installazione e il funzionamento

HP StorageWorks MSA1510i Guida all'installazione

HP StorageWorks SSL1016 Istruzioni utente

HP XP7 Manuale utente

HP Surestore 160ex - Optical Jukebox Manuale utente

HP P9000 Manuale utente

HP StorageWorks XP1024 Guida rapida

HP Pavilion p6000 - Desktop PC Guida

HP D2D100 Manuale di istruzioni

HP StorageWorks XP10000 - Disk Array Manuale utente

HP DW017B - StorageWorks Ultrium 448 Tape Drive Manuale di istruzioni

HP EVA P6000 Manuale di istruzioni

HP StorageWorks 2000fc Guida

HP ProLiant DL100 G2 DPSS Manuale utente

HP C5726A - SureStore DLT 80E Tape Drive Manuale utente

HP Surestore Disk Array 12h - And FC60 Manuale utente

HP Data Vault Manuale utente

HP STORAGEWORKS ALL-IN-ONE STORAGE SYSTEM Manuale utente

HP AD510A - StorageWorks Modular Smart Array 1500 cs 2U Fibre Channel SAN Attach Controller Shelf Hard... Manuale utente

HP SureStore 4115w Manuale utente

HP STORAGEWORKS MSL4048 Istruzioni utente

Manuali Magazzinaggio popolari di altre marche

QNAP

QNAP TS 32PXU Series Manuale utente

LaCie

LaCie RUGGED RAID Manuale utente

Freecom

Freecom CLS DOCK Manuale utente

PNY

PNY Attache P-FD64MBATT3 Manuale utente

OLT

OLT 6x6 Maximizer Manuale utente

Transcend

Transcend JetFlash 160 Manuale utente

LaCie

LaCie RUGGED MINI Manuale utente

Thunderbolt

Thunderbolt 600 Manuale utente

Panasonic

Panasonic LB-DH8 series Manuale

Intel

Intel RAID High Availability Manuale utente

LaCie

LaCie 12big Thunderbolt 3 Manuale utente

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuale utente

Panasonic

Panasonic LKM-F931-1 Manuale utente

Tabernus

Tabernus Enterprise Erase E2400 Manuale utente

Rocstor

Rocstor COMMANDER 3F series Manuale utente

Western Digital

Western Digital Ultrastar Data60 Manuale utente

Dell

Dell PowerVault MD3600f Series Manuale utente

CFI

CFI TERA STOR SATA RAID IV Manuale utente
