HP ProCurve 1400-8G Manuale utente

Installation and Getting

Started Guide

www.procurve.com

ProCurve Switch 1400-8G

Installation and Getting

Started Guide

Development Company L.P.

The information contained herein is

subject to change without notice.

This document contains proprietary

information, which is protected by

be photocopied, reproduced, or

translated into another language without

prior written consent of Hewlett-Packard.

Publication Number

5991-6266

March 2007

Applicable Product

ProCurve Switch 1400-8G (J9077A)

Safety

Before installing and operating this

product, please read the “Installation

Precautions:” in Chapter 2, “Installing the

Switch”, and the safety statements in

Appendix B, “Safety and EMC Regulatory

Statements”.

Disclaimer

HEWLETT-PACKARDCOMPANY MAKES

NO WARRANTY OF ANY KIND WITH

REGARD TO THIS MATERIAL,

INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE. Hewlett-

Packard shall not be liable for errors

contained herein or for incidental or

consequential damages in connection

with the furnishing, performance, or use

of this material.

The only warranties for HP products and

services are set forth in the express

warranty statements accompanying such

products and services. Nothing herein

should be construed as constituting an

additional warranty. HP shall not be liable

for technical or editorial errors or omis-

sions contained herein.

Hewlett-Packard assumes no responsi-

bility for the use or reliability of its soft-

ware on equipment that is not furnished

by Hewlett-Packard.

Warranty

See the Customer Support/Warranty

booklet included with the product.

A copy of the specific warranty terms

applicable to your Hewlett-Packard

products and replacement parts can be

obtained from your HP Sales and Service

Office or authorized dealer.

Contents

iii

1 Switch Overview

Switch Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Installation Precautions: . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . 2-5

2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . 2-6

3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

4. Connect the Switch to a Power Source . . . . . . . . . . . . . 2-8

5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . 2-9

3 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Diagnosing With the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . 3-4

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . 3-4

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

A Specifications

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

B Safety and EMC Regulatory Statements

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . B-13

C Recycle Statements

Waste Electrical and Electronic Equipment (WEEE)

Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Index

1-1

Switch Overview

Switch Hardware Features

The ProCurve Switch 1400-8G (J9077A) is a multiport switch that can

be used to build high-performance switched workgroup networks.

This switch is a store-and-forward device that offers low latency for

high-speed networking.

Switch Ports

The switch has 8 auto-sensing 10/100/1000Base-T IEEE 802.3ab auto

MDI/MDI-X RJ-45 ports. With this switch you can directly connect

computers, printers, and servers to provide dedicated bandwidth to

those devices, and you can build a switched network infrastructure

by connecting it to hubs, other switches, or routers.

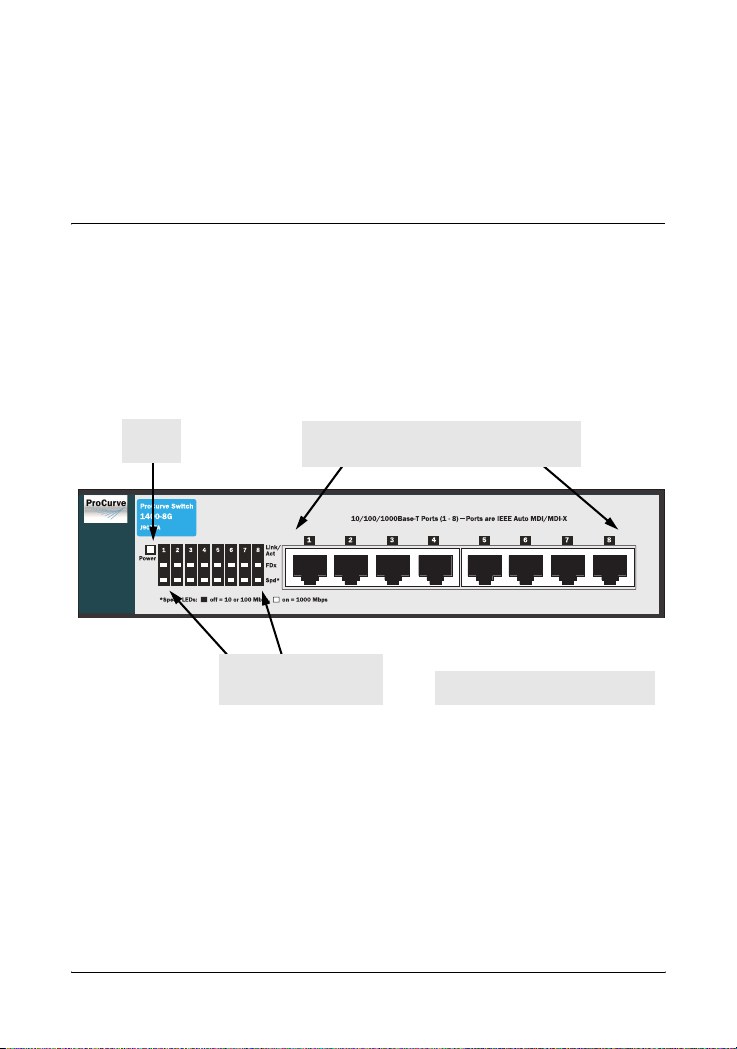

Power

LED 10/100/1000Base-T RJ-45 ports

(all ports have the HP Auto-MDIX feature)

Link/Act, FDx, and Spd

LEDs for each port ProCurve Switch 1400-8G

1-2

Switch Overview

Switch Hardware Features

LEDs

The front panel of the switch provides status LEDs for system

monitoring. The following table details the functions of the various

indicators.

System LED State Meaning

Power

(green) On The switch is receiving power.

Off The switch is NOT receiving power.

Port LED State Meaning

Link/Act

(green –

overlaid with

the port

number)

On The port is enabled and receiving a linkindication

from the connected device.

Off The port has no active network cable connected,

or is not receiving link signal.

Flashing Indicates that there is network activity on the

port.

FDx

(green) On Indicates the port is operating at full duplex.

Off Indicates the port is operating at half duplex.

Spd

(green) On Ports 1-8: Indicates the port is operating at

1000 Mbps.

Off Ports 1-8: Indicates the port is operating at 10 or

100 Mbps.

1-3

Switch Overview

Switch Hardware Features

Switch Features

The features of the ProCurve Switch 1400-8G include:

■8 auto-sensing 10/100/1000Base-T RJ-45 ports.

■plug-and-play networking—all ports are enabled—just connect

the network cables to active network devices and your switched

network is operational.

■IEEE 802.3ab Auto MDI /MDI-X on all twisted-pair ports, meaning

that all connections can be made using straight-through twisted-

pair cables. Cross-over cables are not required, although they will

also work. The pin operation of each port is automatically

adjusted for the attached device: if the switch detects that a 10/

100 Mbps switch or hub is connected to the port, it configures the

port as MDI; if the switch detects that a 10/100 Mbps end-node

device is connected to the port, it configures the port as MDI-X.

■automatic learning of the network addresses in each switch’s

8000- address forwarding table.

■automatically negotiated full-duplex operation for all 10/100/

1000Base-T RJ-45 ports when connected to other auto-

negotiating devices.

■supports pass through (flooding) of spanning tree BPDUs so that

upstream devices on the network which support Spanning Tree

Protocol can detect loops that exist on the ProCurve Switch 1400

interface.
