HP ProCurve Switch 1800-24G Manuale utente

Installation and Getting

Started Guide

www.procurve.com

ProCurve Switch 1800-24G

Installation and Getting Started Guide

The information contained herein is subject to change without notice.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied,

reproduced, or translated into another language without prior written consent of Hewlett-Packard.

Publication Number

5991-6249

April 2007

Applicable Product

ProCurve Switch 1800-24G (J9028B)

Safety

Before installing and operating this product, please read the “Installation Precautions” in Chapter 2, “Installing the Switch”, and the safety

statements in Appendix B, “Safety and EMC Regulatory Statements”.

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and

services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors

or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warranty

See the Customer Support/Warranty booklet included with the product.

A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP

Sales and Service Office or authorized dealer.

iii

Contents

1 Switch Overview

Switch Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . . . . . . 2

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . . 10

5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Installing or Removing mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3 Configuring the Switch

Initial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Changing the PC’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Diagnostic Tips: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Forgotten the IP Address or Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

A Switch Specifications

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Lasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

B Safety and EMC Regulatory Statements

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

C Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . . . 1

Index

1-1

Switch Overview

Switch Hardware Features

The ProCurve Switch 1800-24G (J9028B)is a multiport switch that can be used

to build high-performance switched workgroup networks. This switch is a

store-and-forward device that offers low latency for high-speed networking.

Switch Ports

The switch has 24 auto-sensing 10/100/1000Base-T RJ-45 ports and two dual-

personality ports (ports 23 and 24). Because the RJ-45 ports support automatic

MDI/MDI-X operation, you can use straight-through cables for all network

connections to PCs or servers, or to other switches or hubs.

Dual-personality ports use either the 10/100/1000Base-T RJ-45 connector, or a

supported ProCurve mini-GBIC for fiber-optic connections. By default, the RJ-

45 connectors are enabled.

This switch is designed to be used primarily as a high-density wiring closet or

desktop switch. With this switch you can directly connect computers, printers,

and servers to provide dedicated bandwidth to those devices, and you can

build a switched network infrastructure by connecting the switch to hubs,

other switches, or routers. In addition, the switch offers network management

capabilities.

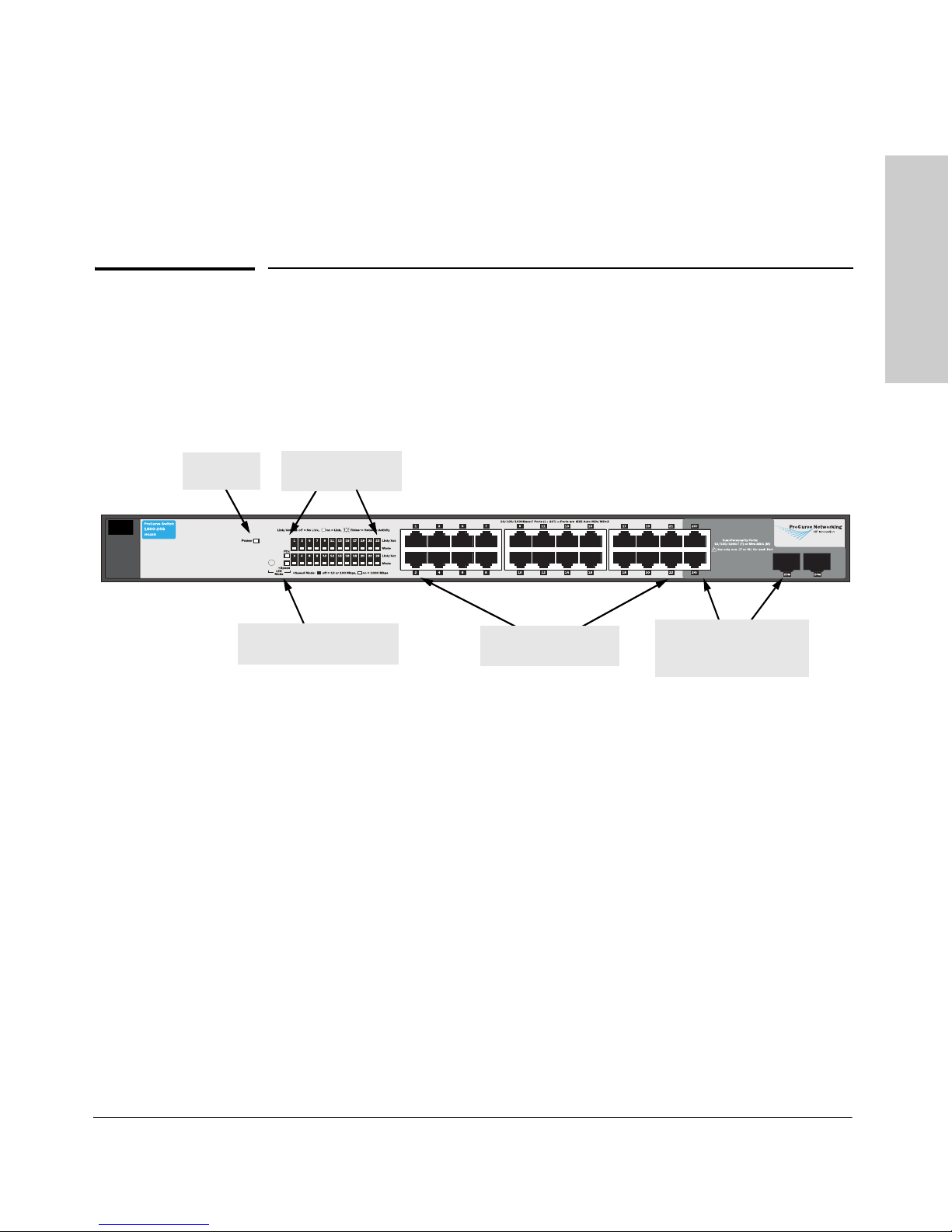

ProCurve Switch 1800-24G

Power LED Port Link/Act and

Mode LEDs

LED Mode Select button

and indicator LEDs 10/100/1000Base-T

RJ-45 ports

Dual-personality ports

(10/100/1000Base-T or

mini-GBIC)

1-2

Switch Overview

Switch Hardware Features

Switch Overview

LEDs

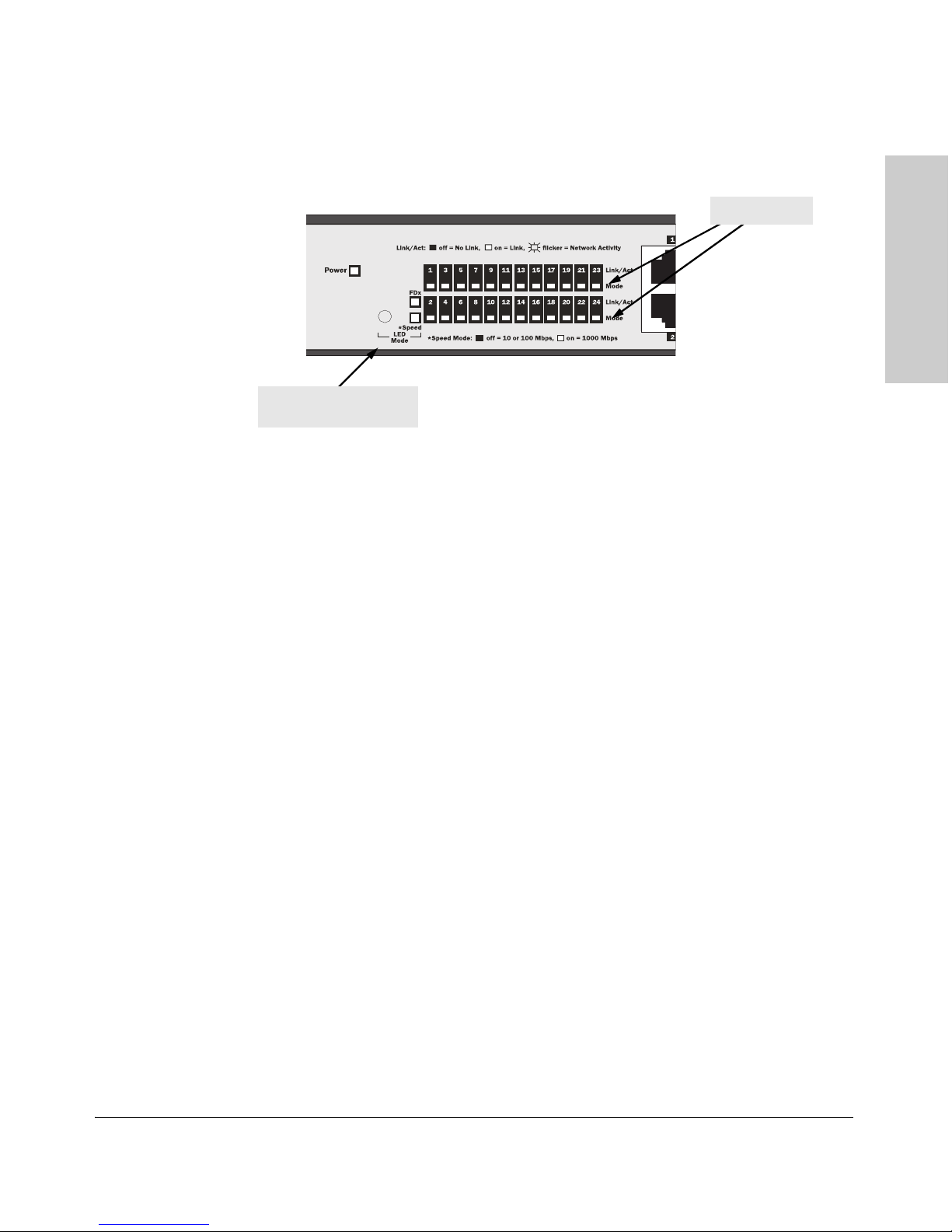

The front panel of the switch provides status LEDs for system monitoring. The

following table details the functions of the various indicators.

LED Mode Select Button and Indicator LEDs

To optimize the amount of information that can be displayed for each of the

switch ports, the ProCurve Switch 1800-24G uses a Mode LED for each port.

The operation of this LED is controlled by the LED Mode Select button on the

switch panel, and the current selection is indicated by the mode indicator

LEDs near the button. Press the button to change from one mode to the next.

System LED State Meaning

Power

(green)

On The switch is receiving power.

Off The switch is NOT receiving power.

LED Mode

Select

(2 green LEDs)

FDx Indicates the port Mode LEDs are lit for ports that are in full-duplex mode.

Speed Indicates the port Mode LEDs are lit for ports that are in 1000 Mbps mode.

* The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.

Port LED State Meaning

Link/Act On The port is enabled and receiving a link indication from the connected device.

Off The port has no active network cable connected, or is not receiving link signal.

Flashing Indicates that there is network activity on the port.

Mode Depending on the mode selected, displays if the port is configured for full-duplex operation or

indicates the operating speed. See “LED Mode Select Button and Indicator LEDs” below for more

information.

1-3

Switch Overview

Switch Hardware Features

Switch Overview

■When the FDx (full duplex) indicator LED is on, the port Mode LEDs turn

on for those ports that are operating at full duplex.

■When the Speed indicator LED is on, the port Mode LEDs turn on for ports

operating at 1000 Mbps. The port Mode LEDs are off for ports operating

at 10 Mbps or 100 Mbps.

Switch Features

The features of the ProCurve Switch 1800-24G include:

■24 auto-sensing 10/100/1000Base-T RJ-45 ports.

■plug-and-play networking—all ports are enabled—just connect the

network cables to active network devices and your switched network is

operational.

■IEEE 802.3ab Auto MDI /MDI-X on all twisted-pair ports, meaning that all

connections can be made using straight-through twisted-pair cables.

Cross-over cables are not required, although they will also work. The pin

operation of each port is automatically adjusted for the attached device:

if the switch detects that a 10/100 Mbps switch or hub is connected to the

port, it configures the port as MDI; if the switch detects that a 10/100 Mbps

end-node device is connected to the port, it configures the port as MDI-X.

■automatic learning of the network addresses in each switch’s 8000-

address forwarding table.

■automatically negotiated full-duplex operation for all 10/100/1000Base-T

RJ-45 ports when connected to other auto-negotiating devices

■the mini-GBIC ports always operate at full duplex. (1800-24G)

LED Mode Select button

and indicator LEDs

Mode LEDs

1-4

Switch Overview

Switch Hardware Features

Switch Overview

■easy management of the switch through several available interfaces:

• Web browser interface — an easy to use built-in graphical interface

that can be accessed from common Web browsers.

• ProCurve Manager (PCM) — allows network administrators to

discover and map the ProCurve Switch 1800 within their network and

launch the ProCurve Switch 1800's built-in graphical interface from

within PCM to configure the switch.

■support for up to 64 IEEE 802.1Q-compliant VLANs so you can divide the

attached end nodes into logical groupings that fit your business needs.

■support for up to 12 trunks so you to assign physical links to one logical

link (trunk) that functions as a single, higher-speed link providing

dramatically increased bandwidth.

■support for many advanced features to enhance network performance—

for a description, see the Management and Configuration Guide.

■download of new switch software for product bug fixes.
