ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 1

T

Ta

ab

bl

le

et

t

P

PC

C

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 2

Getting Started with the Tablet PC:

(How to utilize the Tablet PC for the Assessment)

S

St

te

ep

p

1

1

Power on the Tablet PC by sliding on the Power button located on the front left of

the Tablet (Shown below) Once you’ve powered the Tablet on, unlock the screen

by sliding the unlock button located on the front center of the Tablet

Once you have turned on the Tablet PC and unlocked the screen, you now have

two options: (1) Leave the screen up and use the Tablet PC like a normal laptop or

(2) Rotate the screen the push it down to make it more compact as shown below

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 3

S

St

te

ep

p

2

2

After you have the Tablet PC unlocked and Powered On, Press:

Control – Alt – Delete (By using either the Keypad or Touchpad)

** f using the touchpad, undock the pen which is located

on the left side of the Tablet PC**

Login using the given username and password:

Username: field

Password: DotSrmu1

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 4

S

St

te

ep

p

3

3

If the Tablet PC is fully charged, you will be able to use it for just a couple of hours

at best It is recommended that you use the car charger that was also given to you

periodically throughout the day

**Inside the Briefcase you were given you should find the car charger along

with a wall charger that can be used to charge the Tablet PC over night **

S

St

te

ep

p

4

4

1 At the end of the day make sure you have Saved all your work!!!

2 Save your files also on the USB Drive as a Back-Up each day as well!!

3 Properly shutdown the Tablet PC (Control-Alt-Delete or Start Menu)

4 If you rotated the monitor make sure you rotate it back to normal

5 But the Tablet PC and chargers along with GPS contents back in briefcase

6 Take inside with you…DO NOT leave outside!!

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 5

E

Ex

xt

tr

ra

a

If you have to walk a lot during your assessing, it might be helpful to “undock” the

Tablet PC from its docking station This makes carrying the Tablet PC a little

easier by making it lighter

**To “undock” the Tablet PC, simply pull the lever shown in the first

picture, while at the same time lifting up the Tablet PC Too reattach

them, gently place the Tablet PC on top of the extended battery and

push down **

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 6

G

GP

PS

S

D

De

ev

vi

ic

ce

e

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 7

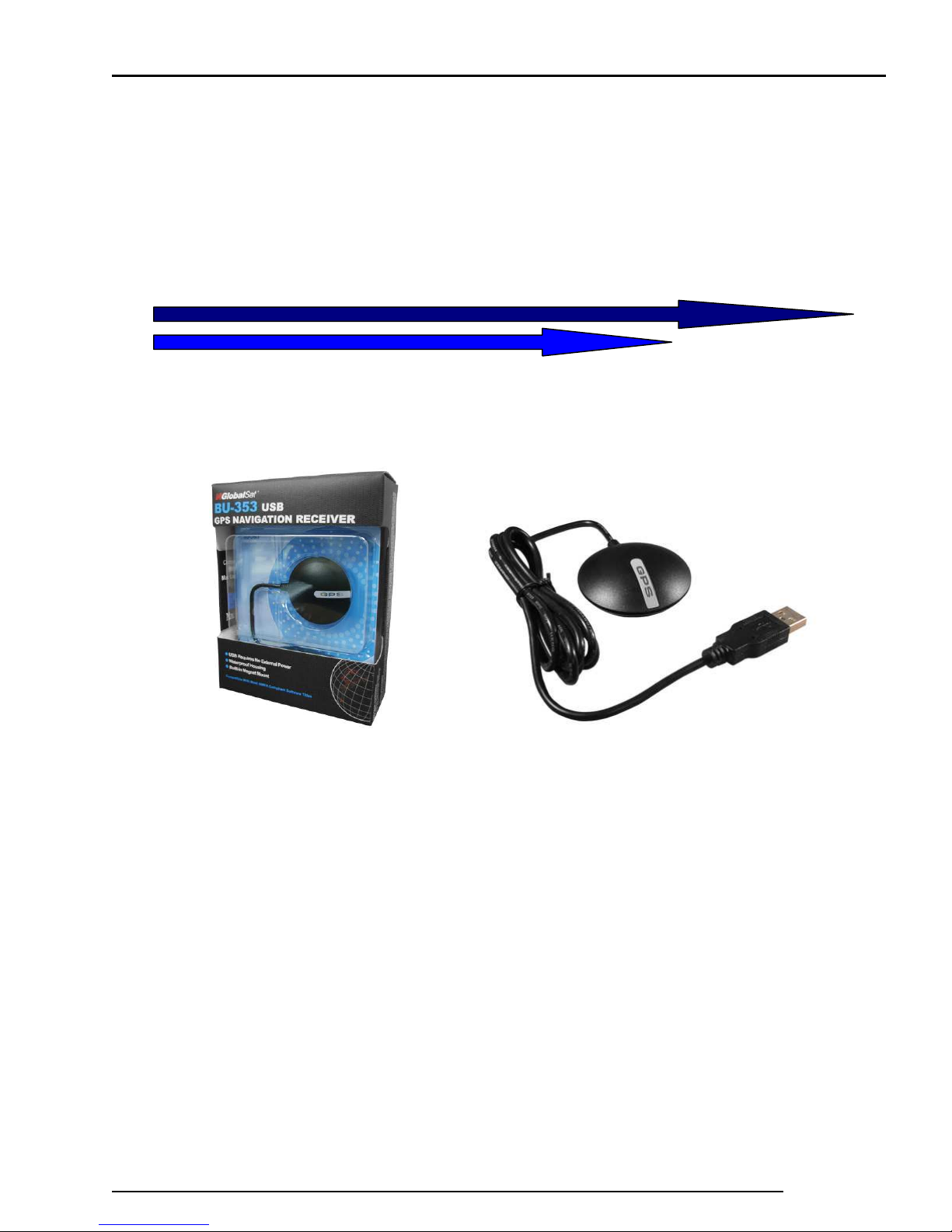

Using the GPS Receiver

(Operating Instructions for the BU-353 GPS Device)

What is a BU-353 GPS Receiver?

A Global Positioning System Receiver that plugs directly into a USB port on the

Tablet PC It then Syncs with ArcPad to show your current location in relation to

all surrounding elements and random sections

How it works:

The BU-353 is suitable for use in vehicle, marine and aviation navigation, as well

as commercial and municipality applications such as fire trucks, police cars, buses,

GIS data collection and much more!

With a 60” cable, placement of the GPS receiver anywhere within the vehicle will

usually get sufficient GPS signal reception, but in those rare occurrences when

towering high-rises offer challenging satellite reception, simply place the BU-353

on the vehicle’s roof (attaches with its built-in magnet) for improved reception

Since power and data are transferred through the same USB cable from the BU-

353, there’s no need for batteries or any other external power source

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 8

S

St

te

ep

p

1

1

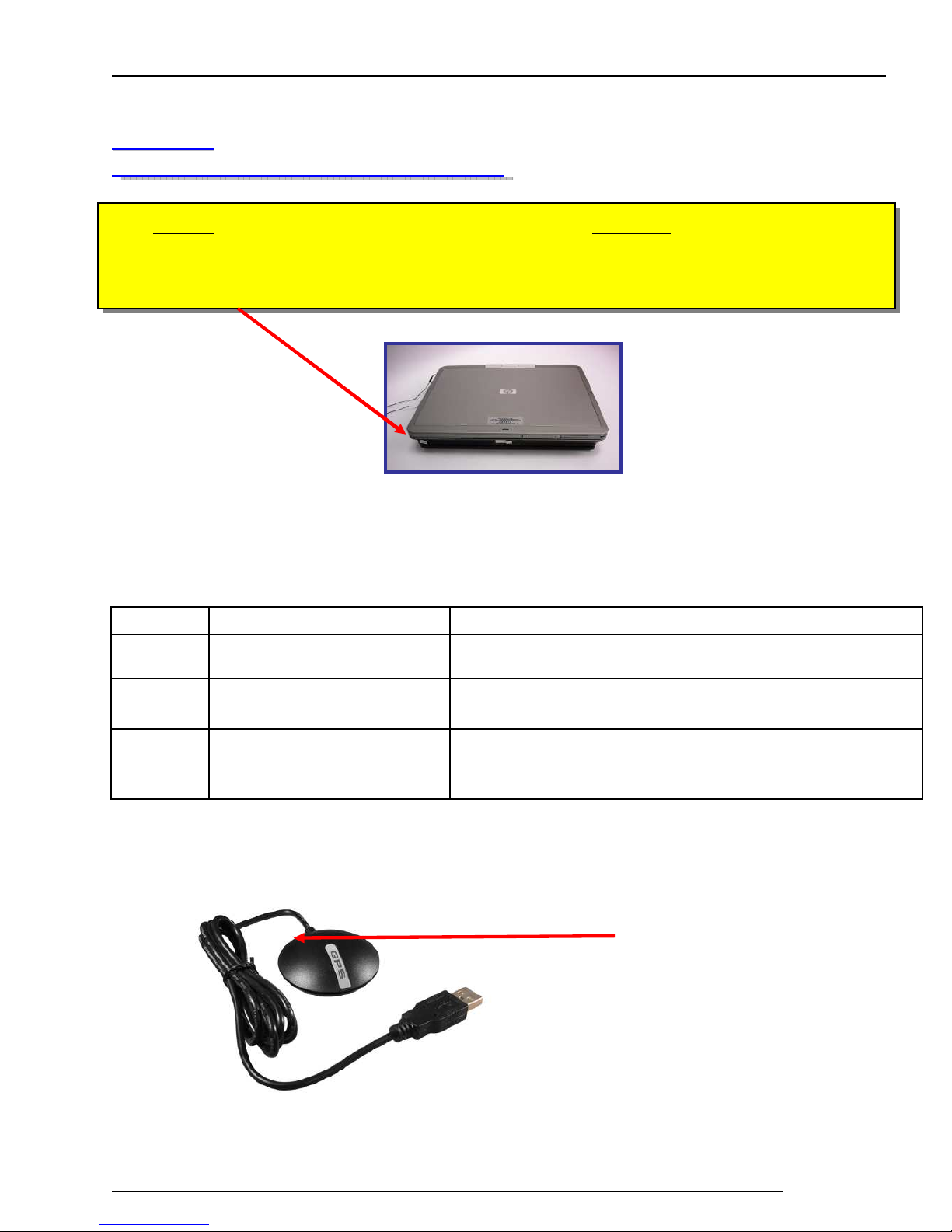

***After you turn on the Tablet PC but Before you open your

ArcPad files plug the GPS Device into the USB Port on the left

hand side of your Tablet PC ***

The GPS Receiver has a built in LED light that denotes 1 of 3 things:

LED ndication What to do?

Off GPS Receiver is Off Make sure GPS is plugged into USB Port, check to make sure

connection is good. If still not working try a different USB Port

On

(solid)

No Fix, searching for GPS

Signals

Turn on ArcPad and make sure on the menu bar that the GPS is

set to Active.

On

(flashing)

Position fix established and

GPS Signals are being

Received

Nothing…Everything is in Sync and ready to begin.

LED Light located at rear of unit

ArcPad User Guide MCAP Assessment

NC Department of Transportation

State Road Maintenance Unit Page - 9

S

St

te

ep

p

3

3

***Reminder***

•For the GPS Receiver to work properly you need to be outside where

satellites can pick up the signal from the receiver

•If you see a Flashing LED light on the device once you have the

Tablet PC on, the GPS Device plugged in, ArcPad Open you are good

to go!

•Any other problem that occurs will be from the ArcPad software

See the ArcPad section for details pertaining to GPS connection

problems
