User’s Manual

SW-HDMI-4

HDMI Switch – 4 Input – 1 Output

UMA1172 Rev. NC

Order toll-free in the U.S. 800-959-6439

FREE technical support, Call 714-641-6607 or fax 714-641-6698

Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780

Web site: www.hallresearch.com E-mail: info@hallresearch.com

CUSTOMER

SUPPORT

INFORMATION

HDMI Switch – 4 Input – 1 Output

TRADEMARKS USED IN THIS MANUAL

Hall Research and its logo are trademarks of Hall Research.

Any other trademarks mentioned in this manual are acknowledged as

the property of the trademark owners.

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment generates, uses, and can radiate radio frequency energy

and if not installed and used in strict accordance with the manufacturer’s

instructions, may cause interference to radio communication. This

equipment is designed to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of

FCC rules, which are intended to provide reasonable protection against

such interference when the equipment is operated in a commercial

environment. Operation of this equipment in a residential area is likely to

cause interference, in which case the user at their own expense will be

required to take whatever measures may be necessary to correct the

interference.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

Model SW-HDMI-4

Contents

1. INTRODUCTION ......................................................................................... 5

1.1GENERAL ..................................................................................................... 5

1.2 FEATURES ................................................................................................... 5

2. INSTALLATION........................................................................................... 5

2.1 PACKAGE CONTENTS .................................................................................. 5

3. CONFIGURATION & OPERATION ......................................................... 5

FIGURE 1-FRONT &BACK VIEW ..................................................................... 6

3.1 RS232 OPERATION ..................................................................................... 6

4. TROUBLESHOOTING ................................................................................ 7

4.1 CONTACTING HALL RESEARCH................................................................... 7

4.2 SHIPPING AND PACKAGING ......................................................................... 7

5. SPECIFICATIONS ....................................................................................... 7

HDMI Switch – 4 Input – 1 Output

1. Introduction

1.1General

This User’s Manual applies to Hall Research Model SW-HDMI-4.

This model is a high performance HDMI Switcher capable of switching and boosting 4 independent HDMI

Video+Audio sources to 1 output.

Make selections by using the front panel push buttons, using the IR remote control or by RS232 from an

external controller.

Since HDMI (and DVI) digital signals have cable distance limitations, the SW-HDMI-4 provides the ability to

boost the output signal to drive long HDMI cables to about 50 feet. Furthermore, the unit has built in automatic

equalizers on the inputs so that it can handle long input video cables (to 65 feet).

1.2 Features

•Perfect solution for high-end home-theatre setups

•Use only one connection to your HDMI compatible HDTV

•Equalizes the inputs for losses in the cable to 65 feet

•Auto signal enhancement (Boost) improves video quality over long cables

•Front panel LED indicators for status monitoring

•Supports PC resolutions to 1920x1200 and HD to 1080p

•Includes a simple to use Remote Control

•Plug and play installation – takes minutes to setup

•Bandwidth of 1.65 Gbps (Gigabits/second) for sharp digital image

•HDMI 1.3, HDCP 1.1, and DVI 1.0 Compliant

•Supports 30/36 bit color depth

•Supports High Definition audio – Dolby Digital TrueHD and DTS-HD

•Supports HDMI Cable Locking

2. Installation

2.1 Package Contents

Your package should contain the SW-HDMI-4 unit, a Universal power supply (5 vDC @ 2A), an IEC320 Power

Cord, an IR remote control and a User’s Manual.

3. Configuration & Operation

•Connect all the video sources to the INPUT connectors on the back of the SW-HDMI-4

•Connect the display device to the OUTPUT connector on the back of the SW-HDMI-4

•Connect the Power Supply to the power input on the back of the SW-HDMI-4

•Connect an external controller or PC to the RS232 port on the back of the SW-HDMI-4, if required.

•Press the POWER button on the front of the unit to turn the unit on. The LED next to the button will

always display the power status.

•Press the INPUT button to cycle thru the available video inputs connected. The input selection

LED’s will show which input is directed to the OUTPUT connector.

Model SW-HDMI-4

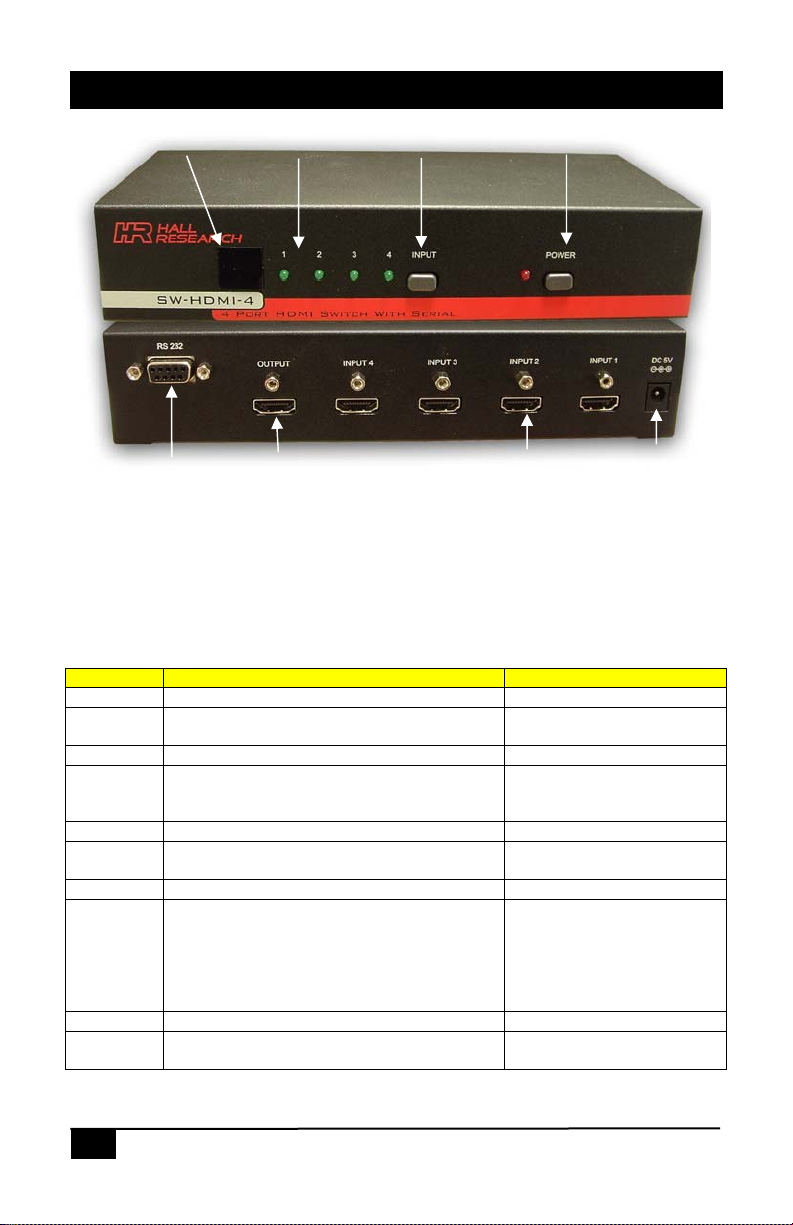

Figure 1 - Front & Back View

3.1 RS232 Operation

•The unit operates at 9600 baud, No Parity, 8 Data Bits and 1 Stop Bit

•When IR is used, the commands response is transmitted out the RS232 port.

•The following commands are available:

COMMAND Syntax Function

? Prints List of commands

PWn<CR> n=0 means POWER OFF

n=1 means POWER ON

Turn unit on or off

PW<CR> Response= PWn<CR> as described above Query Power Status

FR<CR> Firmware Reset to default

Boost OFF

Output 1 to Input 1

FB<CR> Firmware Boot & Power On

BOn<CR> n=0 means BOOST OFF

n=1 means BOOST ON

Boost signal to correct for losses

due to cable length

BO<CR> Response=BOn<CR> as described above Boost Status Query

COn,m<CR> n = output #, m = input #

n=1 (Always a 1 for the SW-HDMI-4)

m=0 thru 4 where:

m=0 means blank

m=1 to 4 means select that INPUT

Connect Output to Input

CO1<CR> Response=CO1<CR> as described above Connection Status Query

ST<CR> Responds with POwer, BOost and COnnection status

query information as described above

Status Query

IR Sensor Source Selection Button

Selection Indicators Power Button

POWER

INPUT

VIDEO

INPUTS

VIDEO

OUTPUT

RS232 Serial

Control Port

HDMI Switch – 4 Input – 1 Output

4. Troubleshooting

There are no field serviceable parts or circuits in the device. Opening the unit will void the warranty.

4.1 Contacting Hall Research

If you determine that the SW-HDMI-4 is malfunctioning, do not attempt to repair the unit instead, contact Hall

Research Technical Support at 714-641-6607.

Before you do, make a record of the history of the problem. We will be able to provide more efficient and

accurate assistance if you have a complete description.

4.2 Shipping and Packaging

If you need to transport or ship your unit:

•Package it carefully. We recommend that you use the original container.

•Before you ship the units back to Hall Research for repair or return, contact us to get a Return

Authorization (RMA) number.

5. Specifications

Frequency Bandwidth 2.25 Gbps (Single Link)

Input Ports 4 x HDMI Female with Locking Capability

Output Ports 1 x HDMI Female with Locking Capability

Power Supply 5 vDC @ 1aDC (US/EU Standard, CE/FCC/UL Certified)

Dimensions 8.1” (206) W x 4.375” (111) D x 1.3” (32) H

Shipping Weight 1.5 lb (0.70kg)

Product Weight 0.75 lb (0.35kg)

Enclosure Metal

Operating Temperature Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-

condensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-

condensing

MTBF 90,000 hours

Warranty 2 years parts and labors
