HSM 105.3 Manuale utente

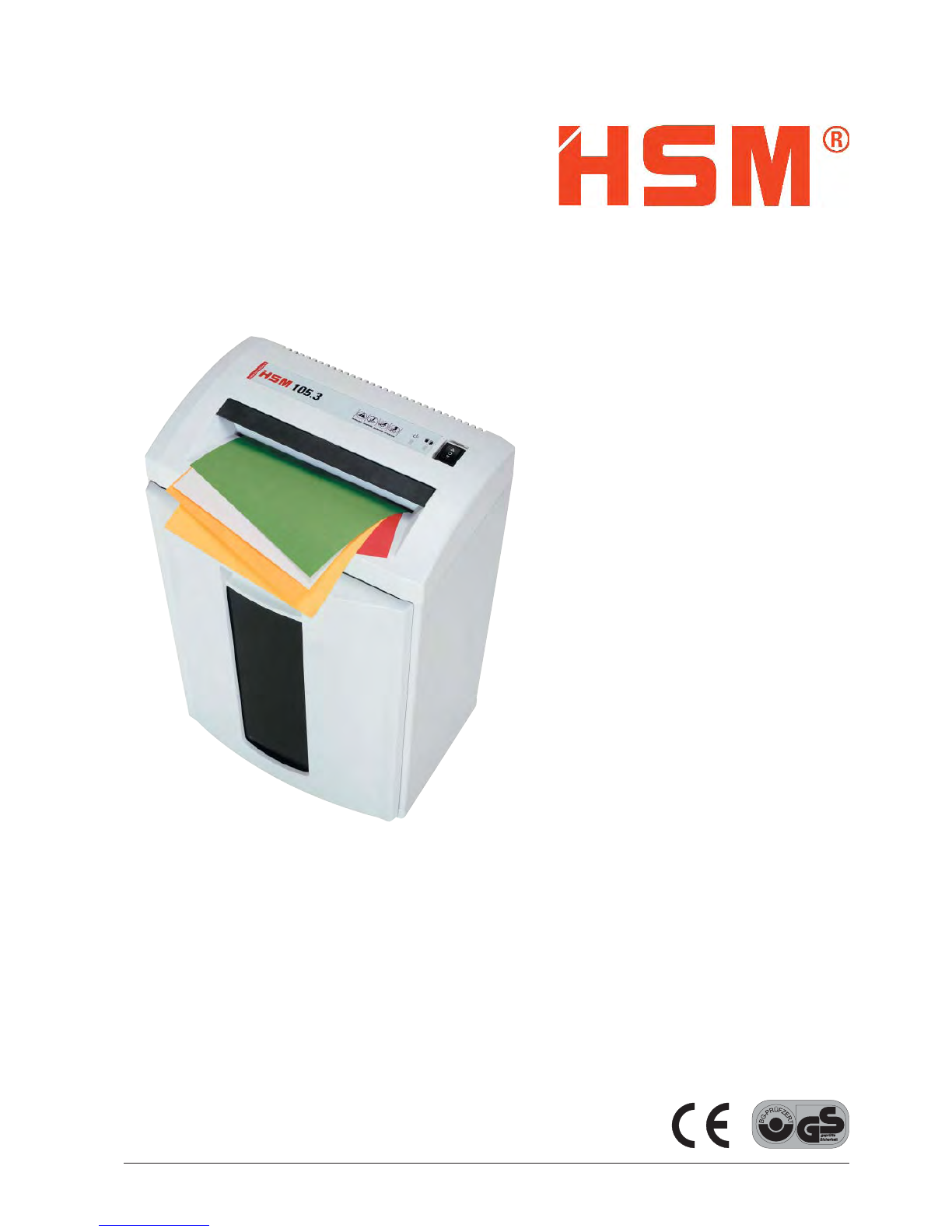

HSM 105.3

BETRIEBSANLEITUNG

AKTENVERNICHTER

OPERATING INSTRUCTIONS

PAPER SHREDDER

NOTICE D‘UTILISATION

DESTRUCTEUR DE DOCUMENTS

MANUALE OPERATIVO

DISTRUGGIDOCUMENTI

INSTRUCCIONES DE SERVICIO

DESTRUCTORA DE DOCUMENTOS

INSTRUÇÕES DE OPERAÇÃO

DESTRUIDORA DE DOCUMENTOS

GEBRUIKSAANWIJZING

PAPIERVERNIETIGER

BRUGSVEJLEDNING

MAKULERINGSMASKINE

BRUKSANVISNING

DOKUMENTFÖRSTÖRARE

KÄYTTÖOHJE

PAPERINSILPPURI

1.289.999.200 – 0511

http://www.monomachines.com/

Aktenvernichter

deutsch

HSM 105.3

deutsch: Aktenvernichter HSM 105.3 ........................................................................ 3 – 6

english: Paper shredder HSM 105.3 ...................................................................... 7 – 10

français: Destructeur de documents HSM 105.3 ................................................... 11 – 14

italiano: Distruggidocumenti HSM 105.3 .............................................................. 15 – 18

español: Destructora de documentos HSM 105.3 ................................................. 19 – 22

português: Destruidora de documentos HSM 105.3 ................................................. 23 – 26

nederlands: Papiervernietiger HSM 105.3 ................................................................. 27 – 30

dansk: Makuleringsmaskine HSM 105.3 ............................................................ 31 – 34

svenska: Dokumentförstörare HSM 105.3 ............................................................. 35 – 38

suomi: Paperinsilppuri HSM 105.3 ..................................................................... 39 – 42

Pressen GmbH + Co. KG

Bahnhofstraße 115

D-88682 Salem

Germany West Chester, PA 19380

Tel.: +49 (0) 75 53 / 822-0 Phone: 001 610 918 4894

4899

E-Mail: [email protected]

www.hsm-online.de

Fax.: +49 (0) 75 53 / 822-160 Fax: 001 610 918

HSM of America LLC

1075 Andrew Drive

Suite C

USA

E-mail: [email protected]

www.hsmofamerica.com

2 0511

http://www.monomachines.com/

Paper shredder HSM 105.3

1. Proper use, warranty

The shredder is designed exclusively for

destroying paper.

Depending on the cutting type, it can also

handle small quantities of the following mate-

rials:

Credit and charge cards:

1.9 / 3.9 / 5.8 / 3.9 x 30 mm only

Thermotransfer ﬁlms: 3.9 x 30 mm only

Its sturdy drive mechanism is not damaged

by paper clips and staples.

We provide a warranty for the device in ac-

cordance with our general sales and delivery

terms. This warranty excludes wear, damage

due to improper handling, natural deprecia-

tion, and actions taken by third parties.

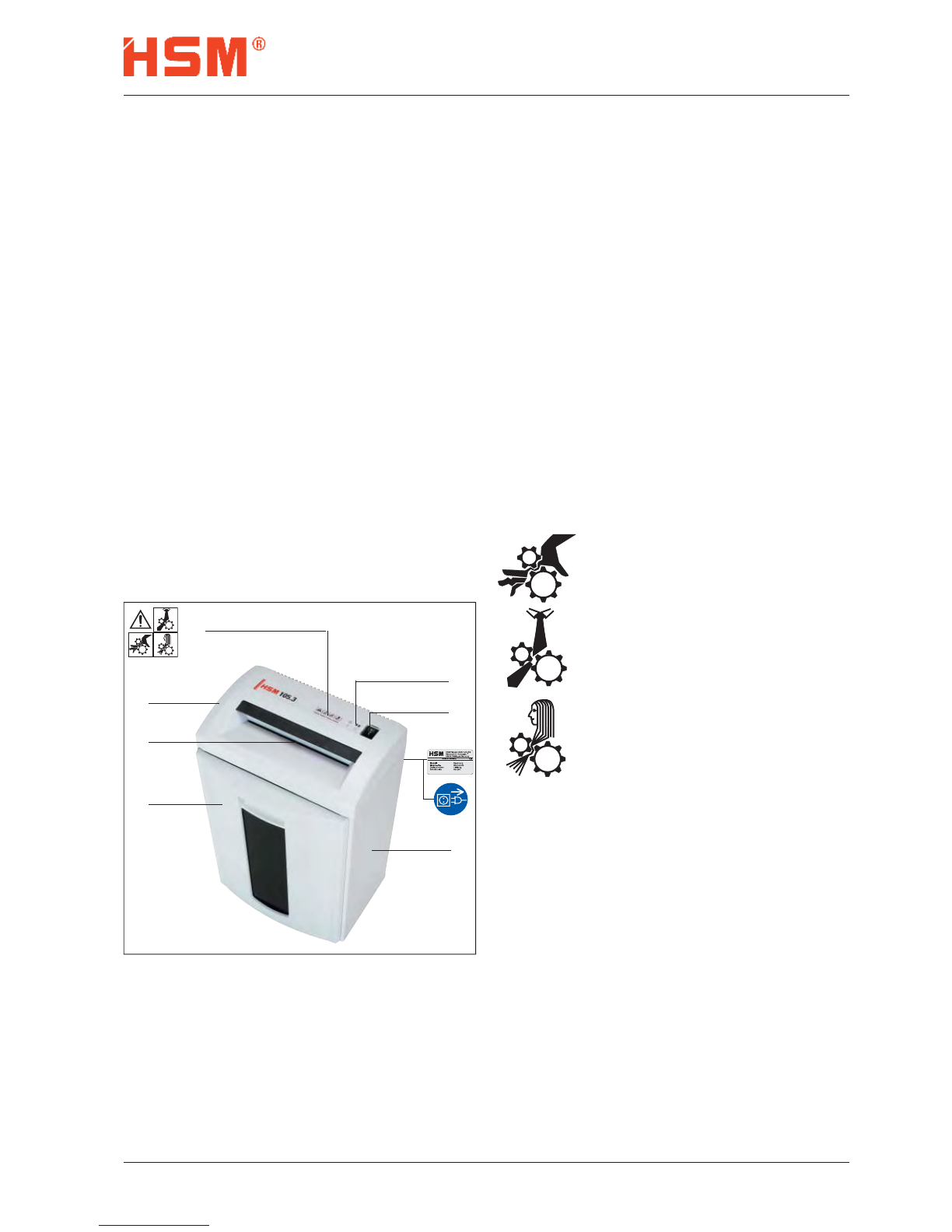

2. Machine components

Warning advice

LEDs

Rocker switch

Cover

Name plate

Caution label

Bottom frame

Shredded material container

Paper feed opening

0511 english 7

3. Safety instructions

• Read all instructions before start-up of the

paper shredder. Save these instructions

for later use.

• Follow all warnings and instructions

marked on the product!

• Make sure no liquid is spilled on or in the

paper shredder.

• If the shredder is damaged or does not

function properly, switch the device off,

pull out the mains plug and inform our

service engineers.

• Keep paper shredder out of the reach of

children.

• This shredder should be operated only

with an operator in attendance.

Risk of injury!

Do not reach into the paper

feed slot.

Risk of injury from slivers!

Wear protective goggles when

destroying hard credit cards.

Risk of injury by pulling in!

Keep long hair, loose articles of

clothing, ties, scarves, jewellery

etc. away from feed opening.

Material with the tendency to

form loops, e.g. tapes, strap-

ping material, etc. must not be

shredded.

http://www.monomachines.com/

HSM 105.3 Paper shredder

Before changing the location,

cleaning or anything else other

than normal operation

turn off and unplug the paper

shredder!

Maintenance and service work

may be performed only by:

• HSM customer service

• specially trained staff

(e.g. qualiﬁed electricians)

• service technicians from our

contracting partners

4. Scope of delivery

• Paper shredder, ready for connection, in

carton packing

• 5 Bags for shredded material

• Special cutting block oil 50 ml (cross cut)

• Operating instructions

Accessories:

• Bag for shredded material,

order No.: 1.661.995.050

• Special cutting block oil 250 ml,

order No.: 1.235.997.401

5. Installation

• This paper shredder should never be

placed near or over a radiator or heat

source.

• The ventilation slots must not be blocked

or covered and they must be at a distance

of at least 10 cm away from walls or furni-

ture.

• Make sure the mains plug is easily acces-

sible.

• Before plugging in the mains plug, check

that the voltage and frequency of your

local mains supply correspond to those

stated on the type plate.

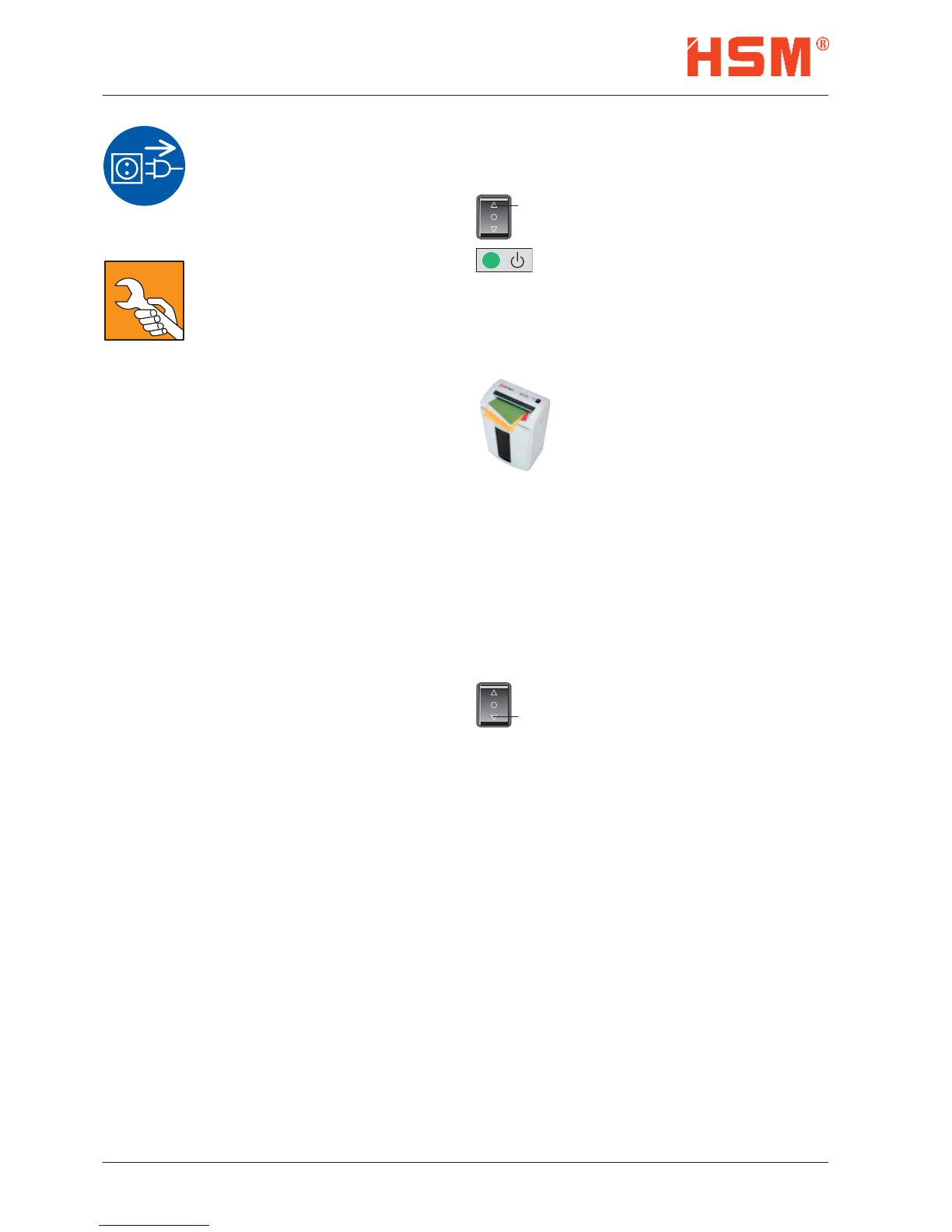

6. Putting into operation

Switching the paper shredder on

• Press rocker switch pos. 1.

• Rocker switch locks in.

• Green LED lights.

• Paper shredder is ready for ope-

ration (standby).

Feed paper

See „Technical data“ for sheet

capacity.

• The shredding process is started

by a photo–cell in the paper fee-

ding opening.

• When the paper feeding opening

is free again, the cutting system

automatically switches off after

approx. 3 sec. and returns to

standby.

Switching paper shredder off

• Tap rocker switch pos. 2.

• Rocker switch resets to zero

position.

8 english 0511

http://www.monomachines.com/

Paper shredder HSM 105.3

7. Troubleshooting

Paper jam

You have fed in too much paper.

Caution!

Do not press rocker switch alter-

nately forwards/backwards

(pos. 1 / pos. 2):

Cutting unit can be damaged.

• Press and hold down rocker

switch pos. 2.

• Paper is pushed out.

• Separate paper stack.

• Press rocker switch pos. 1.

• Feed paper successively.

Cut material container full

• Red LED on control panel lights.

• Paper shredder switches off

Empty the cut material container,

because if it is too full, malfunc-

tions can occur in the cutting sys-

tem

• Tap rocker switch pos. 2.

• Empty full shredded material

container.

Shredded material container con-

tact interrupted

• Red LED on control panel lights.

• Paper shredder switches off.

• Check whether shredded

material container is correctly

inserted in bottom frame.

If other faults occur, please check the follo-

wing before calling our customer service:

• Is mains plug inserted?

• Is rocker switch turned on?

• Is the motor overloaded?

allow motor to cool down for 15 - 20 min.

8. Maintenance and care

Cleaning:

• Switch off the shredder, pull out the mains

plug.

• When cleaning only use a soft cloth and a

mild soap-water solution. Never use scou-

ring agents, cleaning ﬂuid, petroleum or

thinners.

When the cutting capacity drops or

the noise increases (Cross cut):

• Switch paper shredder off:

Tap rocker switch pos. 2.

• Spray special cutting block oil th-

rough paper feed opening across

the whole width of the cutting

system blades.

• Run cutting system backwards

(pos. 2) without feeding paper.

• Paper dust and particles are

shaken off.

0511 english 9

http://www.monomachines.com/

HSM 105.3 Paper shredder

9. Technical Data

Cutting type Strip cut Cross cut

Shred size (mm) 5.8 3.9 1.9 3.9 x 30 1.9 x 15 0.78x11

Safety rating DIN 32757 – 1 2 2 3 3 4 5

Cutting capacity (sheets), DIN A4 70 g/m2

80 g/m2

22 - 24

17 - 19

16 - 18

13 - 15

12 - 14

9 - 11

12 - 14

9 - 11

7 - 9

5 - 6

4 - 5

Weight 11.5 kg 12.5 kg

Cutting speed 80 mm/s 90 mm/s

Noise level (Idle running/ load) 58 dB(A) / 59 - 63 dB(A)

Loading width 240 mm

Voltage 230 V, 50 Hz

100 V, 50/60 Hz – 115 V, 60 Hz

Power for the maximum number of sheets 440 W

Dimensions W x D x H (mm) 375 x 279 x 583

Volume of shredded material bag 33 l

Technical and optical modiﬁcations reserved.

Declaration of Conformity

Machinery directive 98 / 37 / EG

EMC directive 89 / 336 / EWG

Low voltage directive 73 / 23 / EWG

The manufacturer HSM Pressen GmbH + Co. KG, Bahnhofstraße 115, D-88682 Salem

declares herewith, that the paper shredders HSM 105.3 aboved mentioned correspond with the EC Machine Directive inclu-

ding all relevant modiﬁcations.

Applied standards and technical speciﬁcations:

• EN 55014-1:2000 + A1:2001 + A2:2002 • EN 61000-4-4:1995 + A1:2001 + A2:2001

• EN 55014-2:1997 + A1:2001 • EN 61000-4-5:1995 + A1:2001

• EN 61000-3-2:2000 • EN 61000-4-6:1996 + A1:2001

• EN 61000-3-3:1995 + A1:2001 • EN 61000-4-11:1994 + A1:2001

• EN 61000-4-2:1995 + A1:1998 + A2:2001 • EN 60950-1:2001

• EN 294:1992

Salem, 02.11.2005

Rolf Gasteier - Technical Director

Machine type inspection for compliance with the requirements of the EC Machine Directive was carried out by the „Admi-

nistration“/Inspection Authority Committee of Experts, Subject Area „Ofﬁce Machines and Devices“, on the premises of the

Verwaltungs-Berufsgenossenschaft, Deelbögenkamp 4, D-22297 Hamburg. This inspection authority is the authority respon-

sible in accordance with Annex V of the EC Machine Directive.

10 english 0511

http://www.monomachines.com/
