Electrically operated hoists, simple to
install and easy to operate.
Code 69105/7/8/9/12/13/14/16/22/26/32
Electric Chain
Hoist
Operating & Safety Guide LS64
Operating & Safety Guide LS64
LS64/02
LS64/02
©HSS Hire Service Group Ltd 2020 No. LS64/02
76 Talbot Road, Old Trafford, Manchester, M16 0PQ
www.hss.com
…any comments?
If you have any suggestions to enable us to improve the
information within this guide please e-mail your comments or
write to the Safety Guide Manager at the address below
e-mail: [email protected]
... have you been trained
The law requires that personnel using this type of equipment in
the workplace must be competent and qualified to do so.
Training is available at HSS Training
0845 766 7799
Never push the equipment beyond its design limits. If it
will not do what you want with reasonable ease and speed,
assume you have the wrong equipment for the job. Contact
HSS Hire for advice.
Keep the equipment clean - you will find this less of a
chore if you clean it regularly, rather than wait until the end
of the hire period.
When not in use, store the equipment somewhere
clean, dry and secure.
EQUIPMENT CARE
FINISHING OFF
Lower any raised load and detach from the lifting hook.
Detach the hoist from its suspension point and
disconnect from the power/air supply and place in the
case provided ready for return to HSS Hire.
BASIC TECHNIQUES
Attach the hoist to a suitable tested suspension or
anchorage point, using the body hook. Make sure the
gate is correctly closed before proceeding.
Where the item to be moved has a dedicated lifting eye
this should be used.
If the item has no lifting eye, suitable slings/chains must
be used.
Before lifting, ensure the load is free and not restrained
by fixings etc.
Determine the loads weight and centre of gravity as
accurately as possible.
Attach suitable slings / chains to the load and attach to
GETTING STARTED
Double check that the hoist you have hired has a
sufficient Safe Working Load (SWL) for the item being
lifted.
Make sure that the hoist you have hired has a long
enough load chain.
Check and confirm that the suspension/anchorage
point is tested and certified to the equivalent (or
preferably greater) SWL of the hoist.
Visually inspect the hoist, paying special attention to
the condition of the chains and hooks.
Check that the lifting hook assembly has not been
looped between the chains. Looped chains will damage
the equipment and may cause the equipment to fail
during a lift.
Chains should be clean and free from dust, dirt,
moisture and grease. If the chain is gouged, twisted or
has distorted or damaged links DO NOT USE IT, return it
to HSS Hire.
Hooks MUST be distortion free and the
gate must return under spring load.
Allow a 10% safety margin to
accommodate dynamic forces that
may arise during the course of a lift.
To use an electric hoist first connect
the power supply to the fixed plug on
the unit. Either using a suitable fly
lead or alternatively, a loose end cable
drum (available for hire from your local
HSS Hire.
All the hoist controls are found on the
pendent. To raise a load press the
button with the up arrow. To lower a
load, press the button with the down
arrow.
Thereis a red emergency stop button
on the pendent, if pressed the hoist
will stop. To reset the button turn it
clockwise until it pops back out.
the lifting hook ensuring the hook is not overcrowded
and that the hooks gate closes correctly.
Lift the load a nominal distance to check balance and
security of the load.
Use tag lines to control long or bulky loads.
Once raised lower as soon as possible. DO NOT leave the
load suspended or unattended for any reason.
For advice on the safety and suitability of this equipment
contact HSS Hire.
There is a serious risk of personal injury if you do not
follow all instructions laid down in this guide.
The hirer has a responsibility to ensure that all
necessary risk assessments have been completed prior
to the use of this equipment.
This equipment should only be used by an operator
who has been deemed competent to do so by his/her
employer.
This equipment should be used by an able bodied,
competent adult who has read and understood these
instructions. Anyone with either a temporary or permanent
disability, should seek expert advice before using it.
Keep children, animals and bystanders away from the
work area. Cordon off a NO GO area using cones and
either barriers or tape, available for hire from your local
HSS Hire.
Never use this equipment if you are ill, feeling
tired, or under the influence of alcohol or
drugs.
Wear practical, protective clothing, gloves
and footwear and a protective hard hat.
Avoid loose garments and jewellery that could catch in
moving parts, tie back long hair.
Prevent hook overcrowding, with a ‘Bow’ shackle.
Join lifting equipment with a ‘D’ shackle. Protect
sharp edges to prevent load damage.
Before lifting a load, check that the hook safety
catch is engaged and the load chain is untangled,
hanging freely and shows no sign of damage.
Ensure the load is balanced, stable and that
personnel stand clear of the raised load.
Use this type of equipment only on structures that are
able to bear its weight and its load.
Make sure you know how to operate this equipment
safely and are aware of its limitations before you use it.
It is the operator’s responsibility to perform a risk
assessment before using this equipment. You are also
responsible for the safety of any person in the work area.
Make sure that anyone in the immediate work area is
warned of what you are doing.
Do not shock load this equipment.
GENERAL SAFETY IDENTIFIER
ELECTRICAL SAFETY
SAFETY WARNING
This equipment MUST NOT be used to carry or lift
personnel.
HSS Electric Hoists must be provided with a suitable
110V generated supply, or powered from the mains via a
suitable 110V transformer (minimum 3kVA tool rating).
If the equipment fails, or if its power supply cable or plug
becomes damaged, return it. Never try to repair it yourself.
Keep cables out of harm’s way, and clear of the work area.
Extension leads should be avoided, however, if you
have no alternative ensure it is fully unwound and
loosely coiled, away from the equipment.
Never run leads through water, over sharp edges or where
they could trip someone.
Using electrical equipment in very damp or wet
conditions can be dangerous.
To reduce the risk of electric shock, always use a
suitable RCD (Residual Current-Operated Device)
available from your local HSS Hire.
Ensure the power socket is switched OFF before
plugging into the power supply.
STOP
Button
Never leave the equipment loaded or unattended.
Make sure the landing area is unobstructed and able to
accept the load in size and weight.
Never exceed the equipment’s safe working load, see chart.
Always switch OFF and unplug the machine before
making adjustments to it.
Never carry or pull the equipment by its power supply
cable.
Check the condition of the equipment before use.
If it shows signs of damage or excessive wear, return it to
your local HSS Hire.
Comm
Code
SWL
(ton)
Height of
Lift (m)
69105 0.5 9
69107 0.5 12
69108 0.5 15
69109 0.5 25
69112 1.0 9
69113 1.0 12
69114 1.0 15
69116 1.0 25
69122 2.0 12
69126 2.0 25
69132 3.0 15

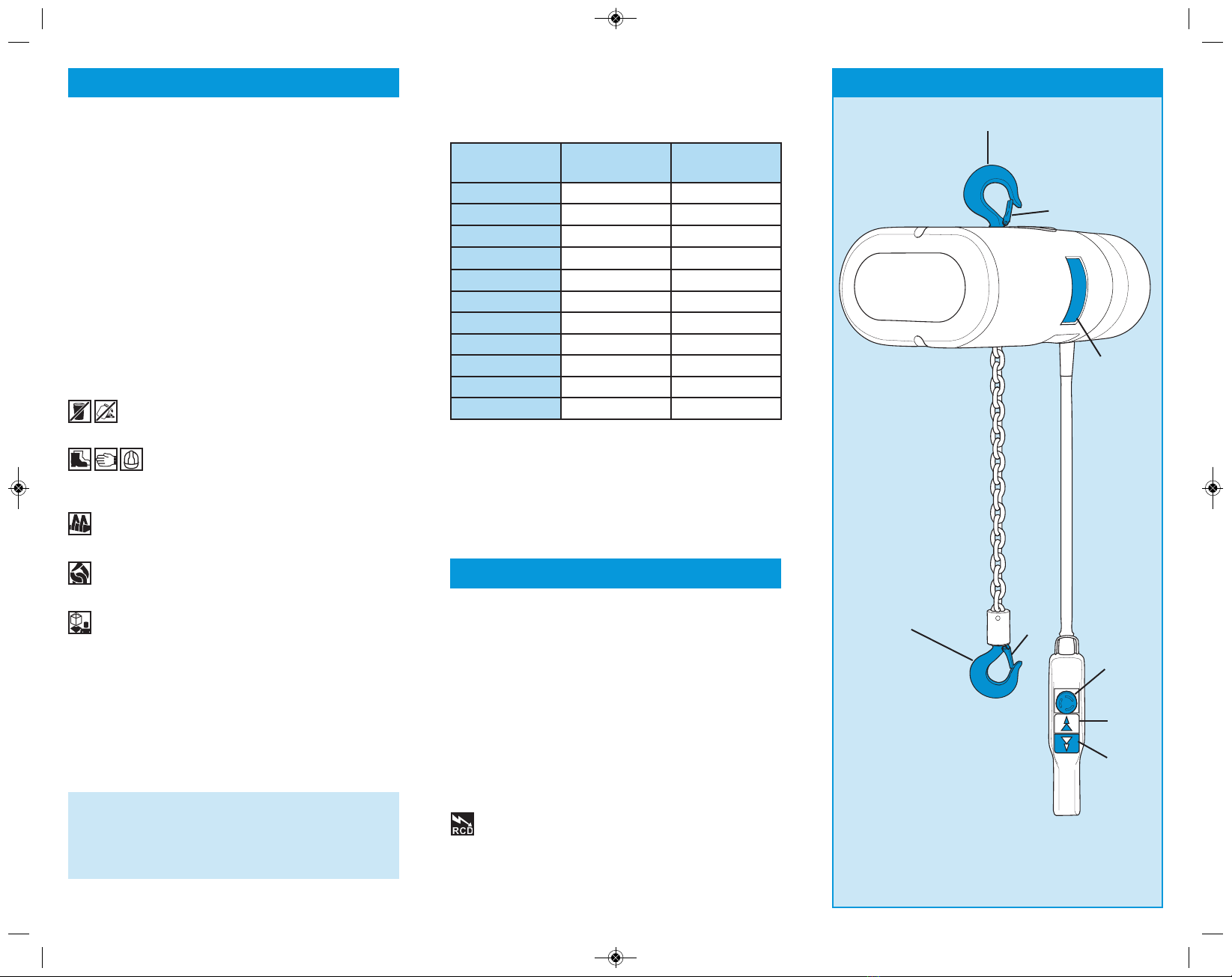

Lifting Hook
Body Hook
Gate
Gate
UP
Button
DOWN
Button
SWL Info
Pe
Petrol Di
Diesel
Ro
Read OPS Guide Ou
Outdoor Use only Hl
Heavy Lifting Cd
Check Oil daily
Cc
Cleaning Charge Rc
Repair Charge
Know Your Symbols
Correct PPE
must be worn
General use PPE / Warning
Fuel and Supply Types
Safe Procedures
Return Responsibility
Clearly marked minimum PPE
will be visible on all equipment,
All hirers must understand and
respect the safe procedures
of all equipment.
It is the responsibility of the hirer
to maintain and return the
equipment in a clean condition
and good working order.
Charges apply to equipment
returned dirty and damaged.
HSS have created clear Icons to inform the hirer of
their responsibilities towards the safe use of hire equipment.
These are designed to reduce the amount of different safety
information labels required for each product for hire.
Danger
Electric shock
2t
2 - Stroke Petrol
Cf
Check Fuel daily
Cw
Check Water daily
Ea
Must be Earthed
Class 1
Doi
Double Insulated
Class 2
21
Swl
Refer to Data Plate
SWL
V
Check Power
Voltage Data Plate
V
Danger
Rotating blade
Danger
Hot exhaust
HAV
Hand Arm Vibration
Caution
Abrasive Wheel
Caution
Finger trap
El
Electric
Electrical Safety
Safe wiring procedures. Enl
Earth Live Neutral
Wire Coding
E
N
L
!
PPE
Bc
Battery Care Sh
Safe Height
Working
Pe
Petrol Di
Diesel
Ro
Read OPS Guide Ou
Outdoor Use only Hl
Heavy Lifting Cd
Check Oil daily
Cc
Cleaning Charge Rc
Repair Charge
Know Your Symbols
Correct PPE
must be worn
General use PPE / Warning
Fuel and Supply Types
Safe Procedures
Return Responsibility
Clearly marked minimum PPE
will be visible on all equipment,
All hirers must understand and
respect the safe procedures
of all equipment.
It is the responsibility of the hirer
to maintain and return the
equipment in a clean condition
and good working order.
Charges apply to equipment
returned dirty and damaged.
HSS have created clear Icons to inform the hirer of
their responsibilities towards the safe use of hire equipment.
These are designed to reduce the amount of different safety
information labels required for each product for hire.
Danger
Electric shock
2t
2 - Stroke Petrol
Cf
Check Fuel daily
Cw
Check Water daily
Ea
Must be Earthed
Class 1
Doi
Double Insulated
Class 2
21
Swl
Refer to Data Plate
SWL
V
Check Power
Voltage Data Plate
V
Danger
Rotating blade
Danger
Hot exhaust
HAV
Hand Arm Vibration
Caution
Abrasive Wheel
Caution
Finger trap
El
Electric
Electrical Safety
Safe wiring procedures. Enl
Earth Live Neutral
Wire Coding
E
N
L
!
PPE
Bc
Battery Care Sh
Safe Height
Working
