HST HB101 Manuale utente
HLogic Security Technology Co., Ltd www. hstfire .com Document Ref: M7033-04 Issue: 1.7 07/2017// Page 1 of 3
INSTALLATION AND MAINTENANCE INSTRUCTIONS
HB101
Conventional Electric Alarm Bell
BEFORE INSTALLING
NOTICE: This manual should be left with the owner/user
of this equipment.
SPECIFICATIONS
Voltage ranges: 22vdc to 26vdc (Rated voltage: 24vdc)
Power and current consumption: 0.5W, 18ma@26vdc(maximum)
Number of standard: EN54-3
Sound level：85dB（A）@1M (minimum)
Bell Tone：4500 Hz Continuous
Service Use: Fire alarm, general signaling, burglar alarm
IP ratings: IP21C
Environment type: Type A (indoor)
Input terminal Wire Gauge: 0.28 mm2to 1.5 mm2
Operating Temp.: -10℃to +55℃
Operating Humidity Range: 10% to 93% Relative Humidity ( Non-condensing)
Material of cover: Aluminum
Dimension: 150mm×55mm（D*H)
Weight: Net Weight 380g, Gross Weight 420g
Structure
Label
The name of component
A1
Cover of bell
A2
Label of front
A3
Screw of fixed
B1
Mounting bracket
B2
Label on bracket
B3
Enclosure
©
Figure1: Fire Alarm Bell
Figure2: The Structure Of Fire Alarm Bell
A1
A2
A3
B1
B2
B3
Front size Back size
HLogic Security Technology Co., Ltd www. hstfire .com Document Ref: M7033-04 Issue: 1.7 07/2017// Page 2 of 3
Terminal designations
General Description
The bell remains the most commonly used alarm for fire evacuation system, for wall applications, indoors.
They are designed to be used in 24 volt DC systems.
Wiring
The system designer must make sure that the total current drawn by the devices on the loop does not exceed the
current capability of the panel supply, and that the last device on the circuit is operated within its rated voltage.
When calculating the voltage available to the last device, it is necessary to consider the voltage drop due to the
resistance of the wire. The thicker the wire, the smaller the voltage drops. Wire resistance tables can be obtained from
electrical handbooks.
Installation and Connect wire of power supply
NOTE:1.All wiring must conform to applicable local codes, ordinances, and regulations.
2. Mounting Indoor Wall Products.
Step1: Connect the wires from panel to the terminal of bell (see figure4).
Step2: Attach mounting bracket to the wall (see figure5).
Step3. Locking the screw with cover of bell (see figure6).

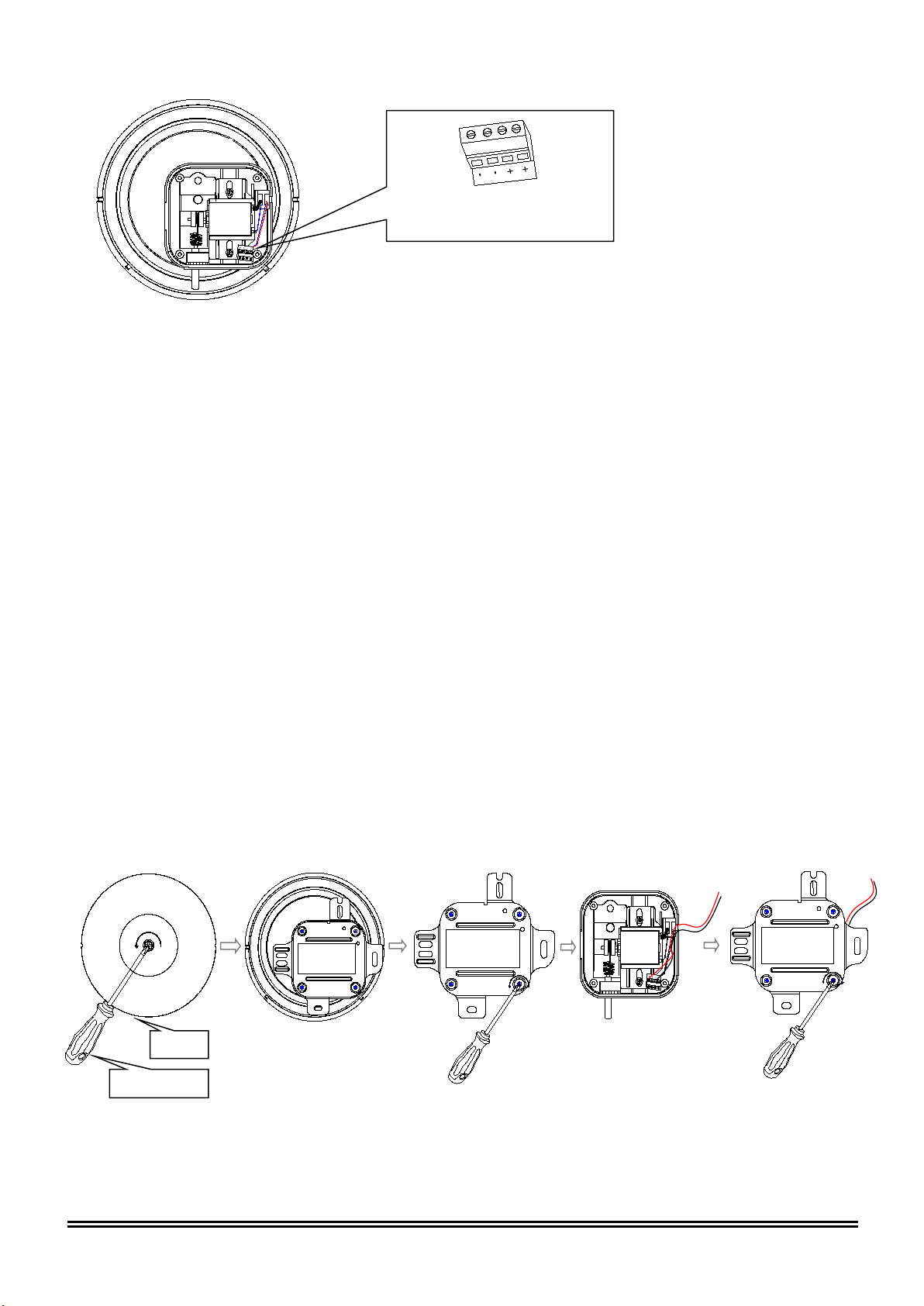

Figure4: Connect wires to terminal of bell
Figure3: Terminal
4 pin terminal in the enclosure
to access two pairs of cables.
Screwdriver
Bell
HLogic Security Technology Co., Ltd www. hstfire .com Document Ref: M7033-04 Issue: 1.7 07/2017// Page 3 of 3
MAINTENANCE
This bell must be tested and maintained regularly.
Before testing, notify the proper authorities that the system is undergoing maintenance, and will temporarily be out of
service. Disable the system to prevent unwanted alarms.
The bell be cleaned at least once a year. Use a vacuum cleaner to remove dust from the cover.
LIMITED WARRANTY
We warrants the bell to be free from defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture.
The Company’s obligation of this Warranty shall be limited to the repair or replacement of any part of the bell which is
found to be defective in materials or workmanship under normal use and service during the three year period
commencing with the date of manufacture.
After phoning HST technical support number for a Return Authorization number, send defective units postage prepaid
to HST local representative office. Please include a note describing the malfunction and suspected cause of failure.
The Company shall not be obligated to repair or replace units which are found to be defective because of damage,
unreasonable use, modifications, or alterations occurring after the date of manufacture.
HLogic Security Technology Co.,Ltd,
4F,Buiding B1,XinHaoSheng High-Tech Park,YongHe
Road FuYong Town,Baoan District,ShenZhen,China
17
7033CPR2016-05-16
EN54-3
HB101 Conventional Electric Alarm Bell
Fire detection and fire alarm systems installed in and around buildings.
According to Construction Products Regulation EU N° 305/2011
17
0359

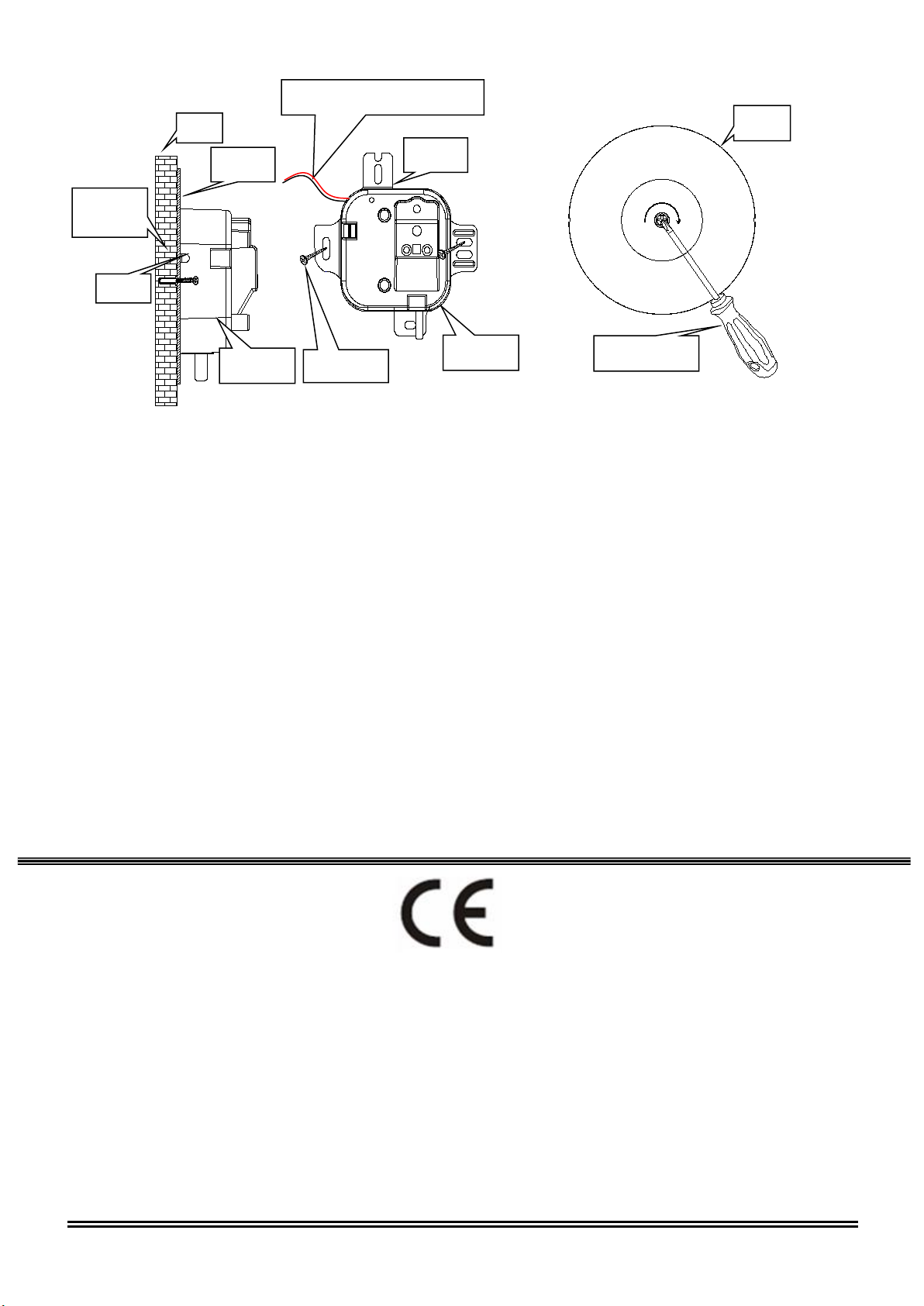

Figure5: Mounting the bracket and install bell
Wall
Bracket
expansion
tube
Screw
Figure6: Locking the screw with cover of bell
Bell
Screwdriver
Enclosure
Screw
The wires from power supply
Bracket
Enclosure
