Installation Instructions V1.0
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? Should you have any issues, please don't
hesitate to contact us.
Telephone：1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Email：[email protected] (US/CA/DE/UK/FR/IT/ES/AU)

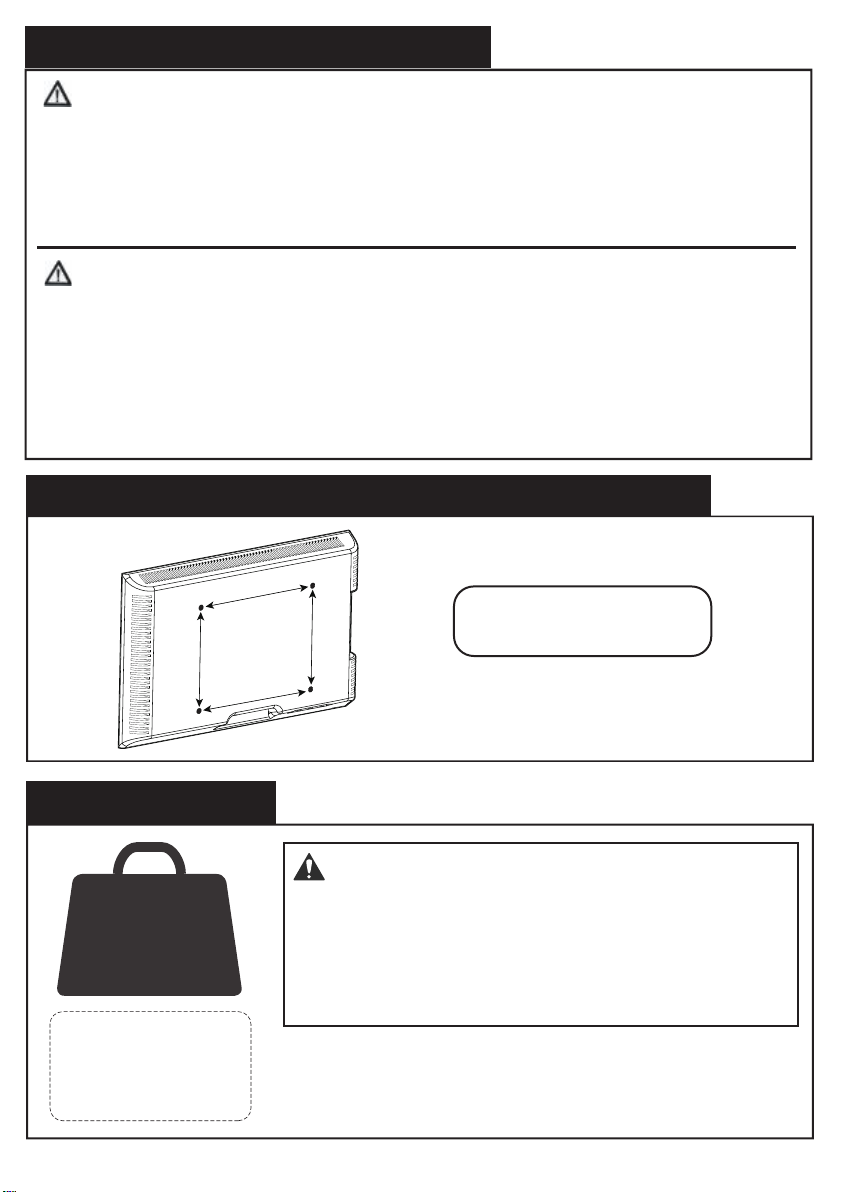

DO NOT exceed the maximum weight indicated. This
mounting system is intended for use only with the
maximum weights indicated. Use with products heavier
than the maximum weights indicated may result in failure
of the mount and its accessories, causing possible injury.
WARNING:
Weight Restrictions
If your monitor weighs more, this mount is NOT compatible.
Check the VESA Pattern of Monitor Before the Installation
MAX: 100mm/4in.
MAX: 100mm/4in.
100 mm ≈ 4 in.
75 mm ≈ 2 7/8 in.
4.4-19.8 lbs
(2-9 kg)
Your monitor (including
accessories) CANNOT
EXCEED 4.4-19.8lbs
(2-9 kg)
1
IMPORTANT SAFETY INFORMATION
組み立てる前に、すべての部品が揃っており、破損してないことを確認してください。足りない部品又は破損して
いる部品のある場合は、当社に連絡して下さい。お問い合わせ先：[email protected]
モニターアームを取り付けるデスクは、モニターとモニターの総重量の3 倍の重量を、保持する強度が必要です。
当製品をパーチクルボードに使用しないでください。
当製品内部が高圧ガススプリングが含まれているため、火気•暖房器具•熱具に近づけないでください。
本製品を叩いたり、踏んだり、蹴ったりしないでください。
本製品を分解、改造しないでください。
不用品回収をプロに依頼してください。
Do not install or assemble if the product or hardware is damaged or missing, if you require replacement
parts, please contact customer service at [email protected].
For safe installation, the desk you are mounting to must support minimum 3 times the weight of the total
load (the mount, the monitor and all accessories weight). Don't use the product on particle board
This product contains a high pressure gas spring, fire and percussion prohibited. Also it is strictly
prohibited to dismantle without professionals. Please return to the manufacturer or hand over to
professional agencies if the product is abandoned.
2

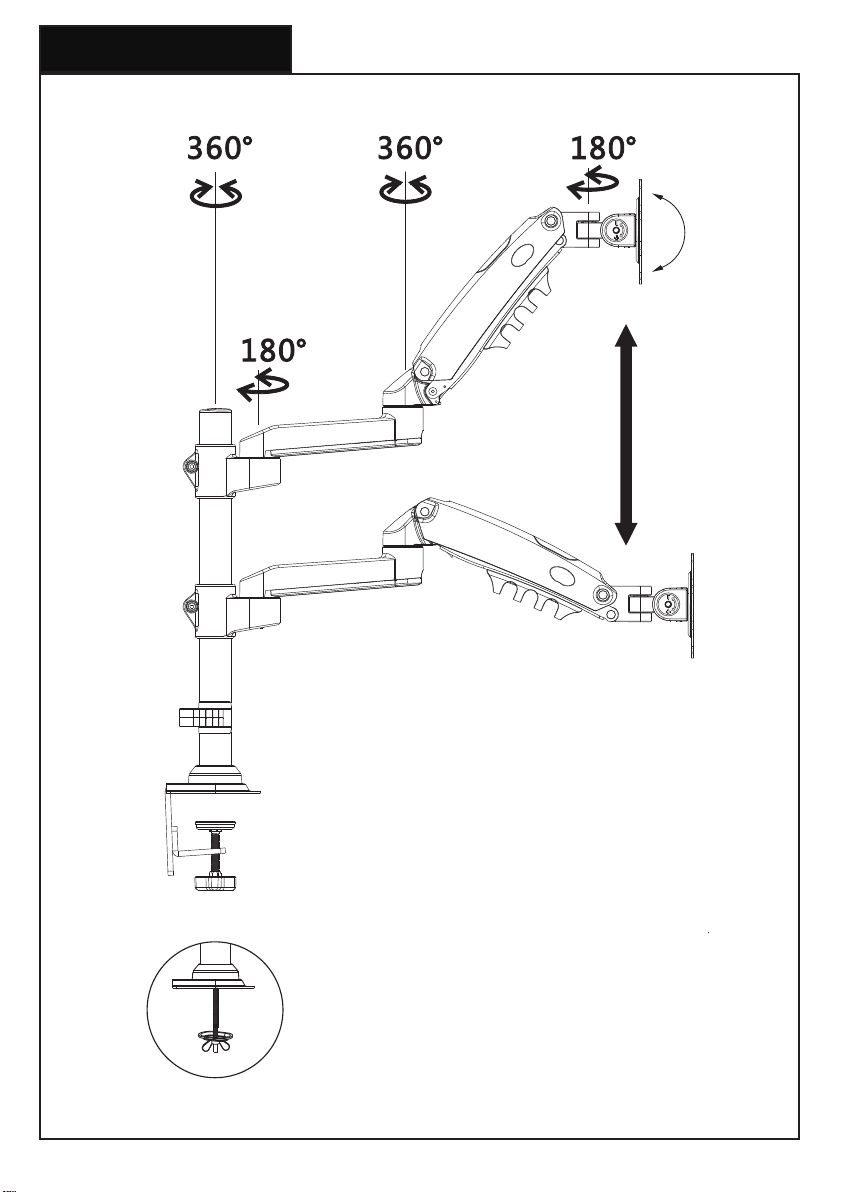

Product Features
C-Clamp Mounting
Grommet Mounting
3
12
1. Install the Base
Warning:
Ensure screws are
secured firmly.
A. For Clamp Mounting A-1 Install the C-Clamp
3
(4mm)
03
X
F
Connect part [X] to pole
assembly [03]
Detach the c-clamp entirely
Connect part [Y] to part [X] according to the thickness of the desktop

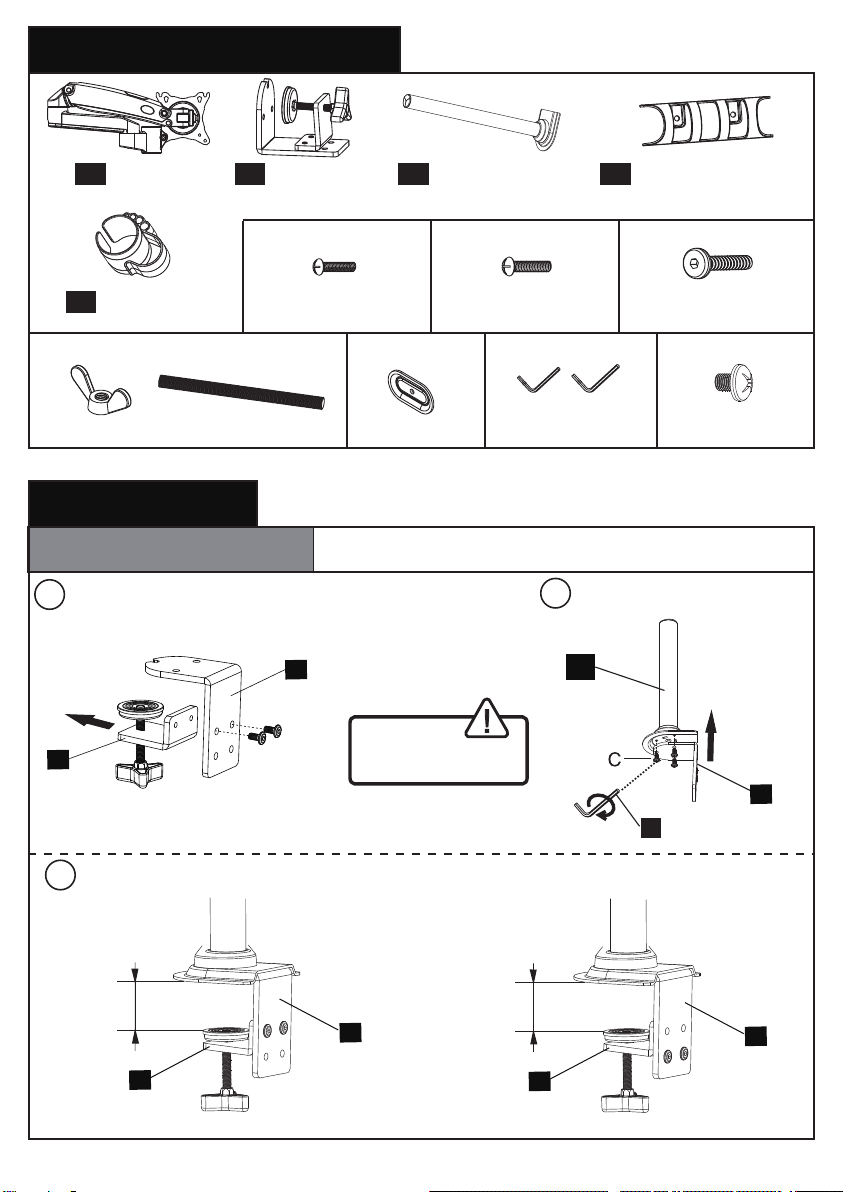

Parts and Hardware Included
01 Arm X2 02 C-Clamp X1 03 Pole Assembly X1 04 Cable Clip Cover X2
D
Butterfly Nut Grommet Bolt
4mm 5mm
Wrench
F
M4x12mm (8pcs)
Screw
A
M5x12mm (8pcs)
Screw
B
M6x12mm (3pcs)
Screw
C
E
Locking Plate M4x6mm (4pcs)
Screw
G
05 Cable Clip X1
OR
X
Y
X
Y
X
Y
4

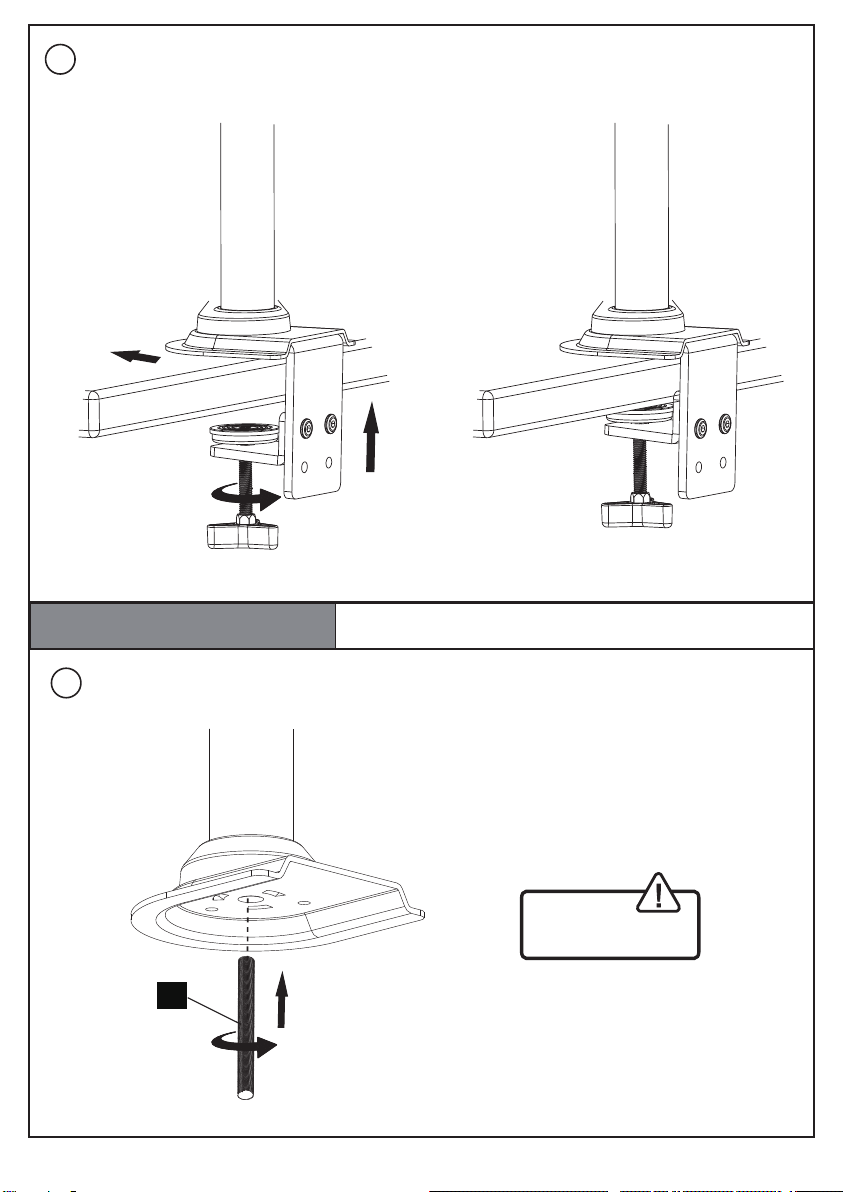

B. For Grommet Mounting
1Install the grommet bolt
Secure the base to the desktop
4
Warning:
Ensure screws are
secured firmly.
D
5
2. Install the Arms
Ensure screws are
secured firmly.
05
03
Warning:
Ensure screws are
secured firmly.
Secure the base to desktop using locking plate and butterfly nut2
E
D
3
01
03
Slide arm [01] to the pole assembly
[03] and secure using wrench [F]
2
1Slide the cable clip [05]
to the pole assembly [03]
6
4. Adjust Gas Spring Tension
Be sure to keep the arm in
horizontal position during
adjustment. Or else, it would
be difficult to adjust the
mount or damage the mount.
1. If the monitor can stay at the desired height
by itself, no adjustment needed.
2. If the monitor rises up, press the arm to keep
it in horizontal position and then use the 5mm
Alley key (F) to turn the screw clockwise(“-”
direction) to reduce tension of the arm only until
the monitor can stay at the desired height by
itself.
3. If the monitor falls down, lift the arm to keep
it in horizontal position and then use the 5mm
Alley key (F) to turn the screw counter-clock-
wise(“+” direction) to increase tension of the
arm only until the monitor can stay at the
desired height by itself.

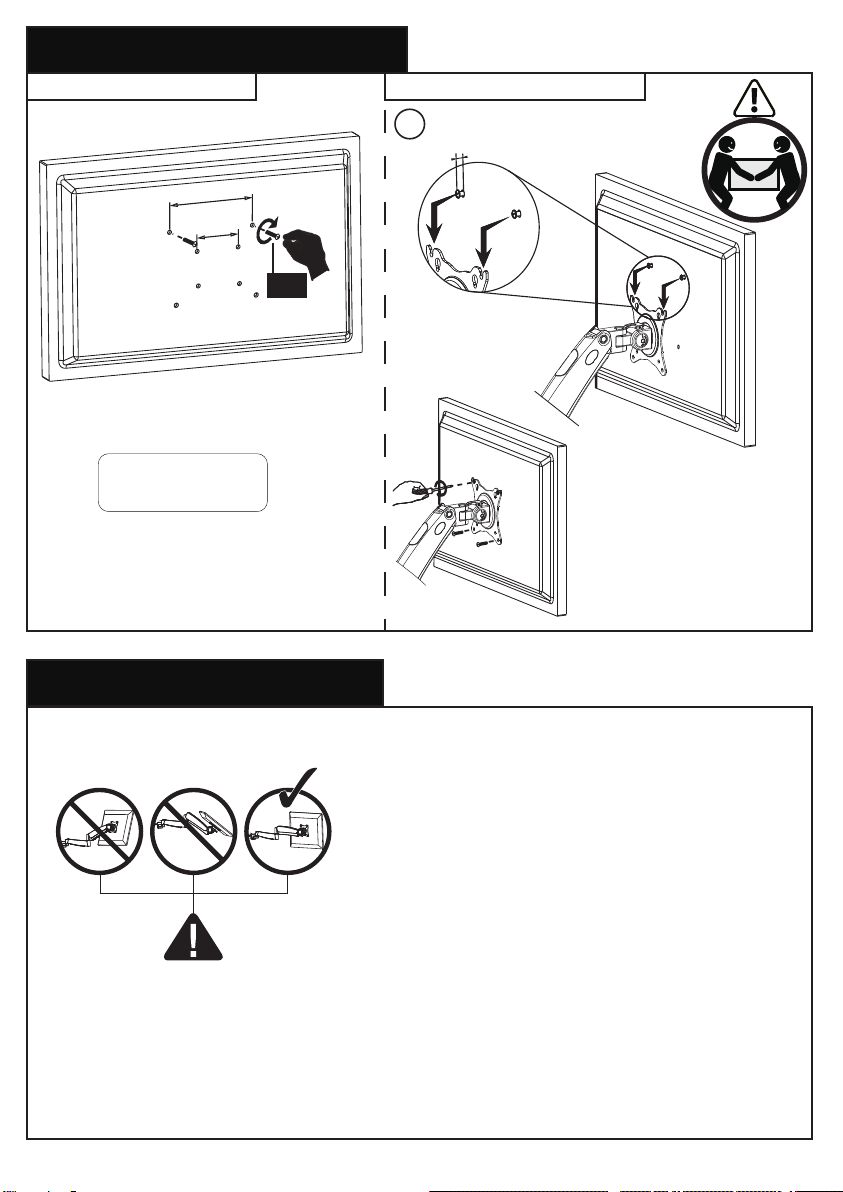

3. Attach Monitors to the Arms
75 mm ≈ 2 7/8 in.
100 mm ≈ 4 in.
3-1 Choose Proper Screws 3-2 Install Monitors to the Arms
13-5mm(0.1-0.2in.) spacing left
The tension is preset at
4-5kg. After hanging the
monitor to the mount,
please release the
monitor slowly to prevent
it from falling suddenly
100x100mm
75x75mm
A/B
5. Rotation Restriction
7
Non-proper usage directions
Proper usage directions
(1 rotation ≈ 1 lb)
8
6. Tilt Adjustment
7. Rotation Adjustment
“+” Clockwise: Tighten
“-” Counter-clockwise: Loosen
Situation 1: If the monitor can stay at the desired tilt angle by itself,
no adjustment needed.
Situation 2: If the monitor can not stay at the desired tilt angle by
itself, turn the screws clockwise or counter-clockwise as shown until
the monitor can stay at the desired tilt angle by itself.
Rotation
Only suitable for the monitors
with the center of gravity in
the center position
04

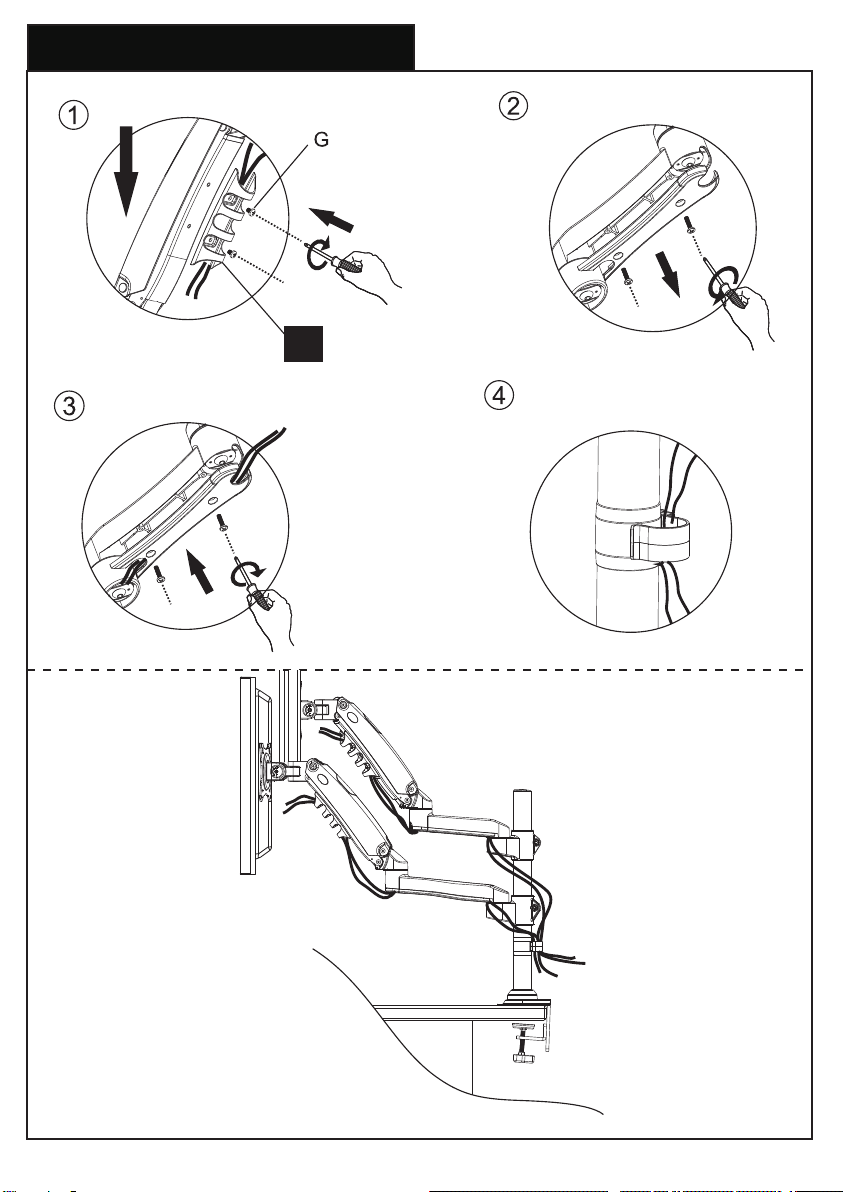

8. Route Cables along the Arms
9
