HUANUO HNCM16 Manuale utente

Monitor Desk Mount Instruction Manual

V2.0

Model: HNCM16

Thank you for choosing this HUANUO product! At HUANUO

we strive to provide you with the best quality products and

services in the industry. Please share your experience of our

product with others at www.huanuoav.com/reviews if you

are satisﬁed. Should you have any issues, please don't

hesitate to contact us.

Technical Support:

1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)

Other Info:

[email protected] (US/CA)

Website:

www.huanuoav.com

IMPORTANT SAFETY INSTRUCTIONS

•Check package contents against Supplied Parts and Hardware List to assure that all

components were received undamaged. Do not use damaged or defective parts. lf you

require replacement parts, contact customer service at [email protected]

•Carefully read all instructions before attempting installation. If you do not

understand the instructions or have any concerns or questions, please contact customer

service at [email protected]

•This product may contain moving parts. Use with caution.

•Do not use this product for any purpose that is not explicitly speciﬁed in this manual.

Do not exceed weight capacity. We cannot be liable for damage or injury caused by

improper mounting, incorrect assembly or inappropriate use.

Check the VESA Pattern of Your Monitor beforeYouBegin the

Installation

If this desk mount is NOT compatible, please contact customer service

at [email protected] to ﬁnd a compatible product.

If your Monitor VESA is greater than 100x100 mm/4x4 in. or less than

VESA 75x75mm/3x3in., this mount is NOT compatible.

75 mm ≈ 3 in.

100 mm ≈ 4 in.

Minimum VESA pattern:

75mm/3 in.(W)x75mm/3 in.(H)

MAX:100

mm/4 in.

MAX:100

mm/4 in.

MAX:100

mm/4 in.

Tool Need（Not Included）

Warning: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or

defective parts. lf you require replacement parts, contact our Product Support line at

1-800-556-0533 or customer service at [email protected].

• Please note: Not all hardware included in this package will be used.

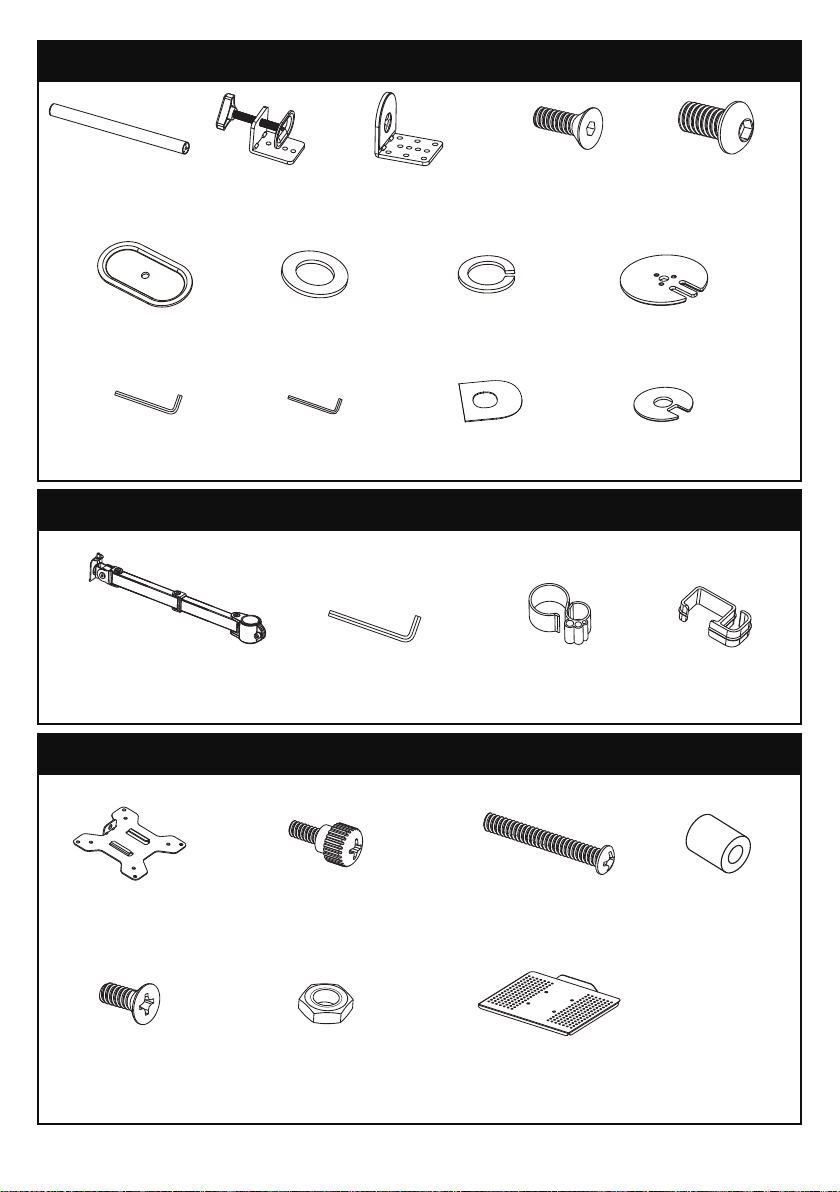

Supplied Parts and Hardware

Phillips Screwdriver Drill(Optional) 1/2 in.(13mm) - 1 in.(25mm)

Drill Bit(Optional)

01 02 03 04 05 06

Swivel Arm

d (x1)

Large Allen Key

o (x1)

Wire Clip

n1 (x1)

Wire Clip

n2 (x2)

Supplied Parts and Hardware for Step 2

VESA Plate

e (x1)

M4x12mm Thumb Bolt

q (x4)

M4 Spacer

s (x4)

M4x30mm Bolt

r (x4)

Laptop Tray

t (x1)

M4x10mm Bolt

u (x4)

M4 Nut

v (x4)

Supplied Parts and Hardware for Step 3

Pole

a (x1)

C Clamp Plate

b (x1)

C Clamp Plate

c (x1)

M5x14mm Bolt

f (x3)

M8x12mm Bolt

g (x2)

Medium Allen Key

o (x1)

Small Allen Key

o (x1)

Bottom Pad

w2 (x1)

Grommet Plate

m (x1)

Locking Plate

j(x1)

Spring Washer

l(x1)

M10 Washer

k(x1)

Supplied Parts and Hardware for Step 1

Bottom Pad

w1 (x1)

01 02 03 04 05 06

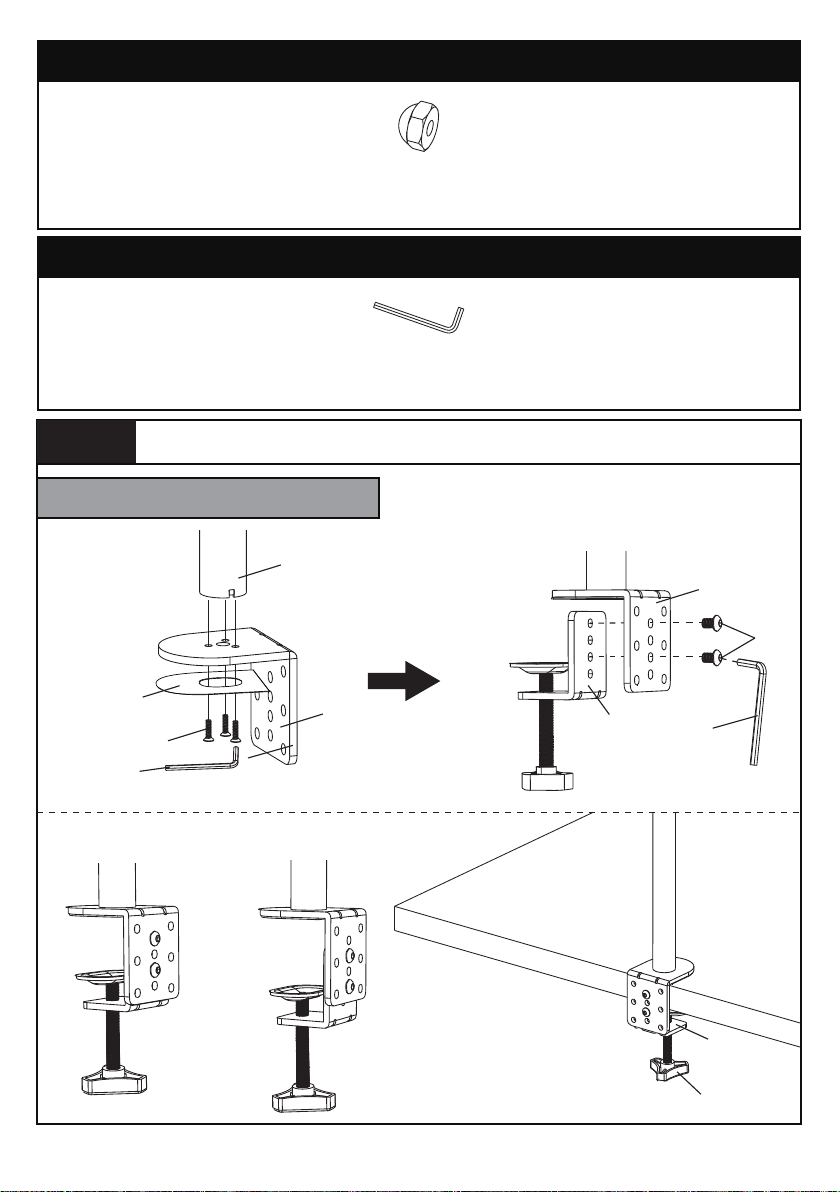

Step 1 Install the Pole to the Desktop

Option A: Desk Clamp Assembly

1A-1

1A-2

Nut

h (x1)

Supplied Hardware for Step 4

Supplied Hardware for Step 5

Medium Allen Key

o (x1)

Medium

Allen Key

Plastic Knob

Small Allen Key

01 02 03 04 05 06

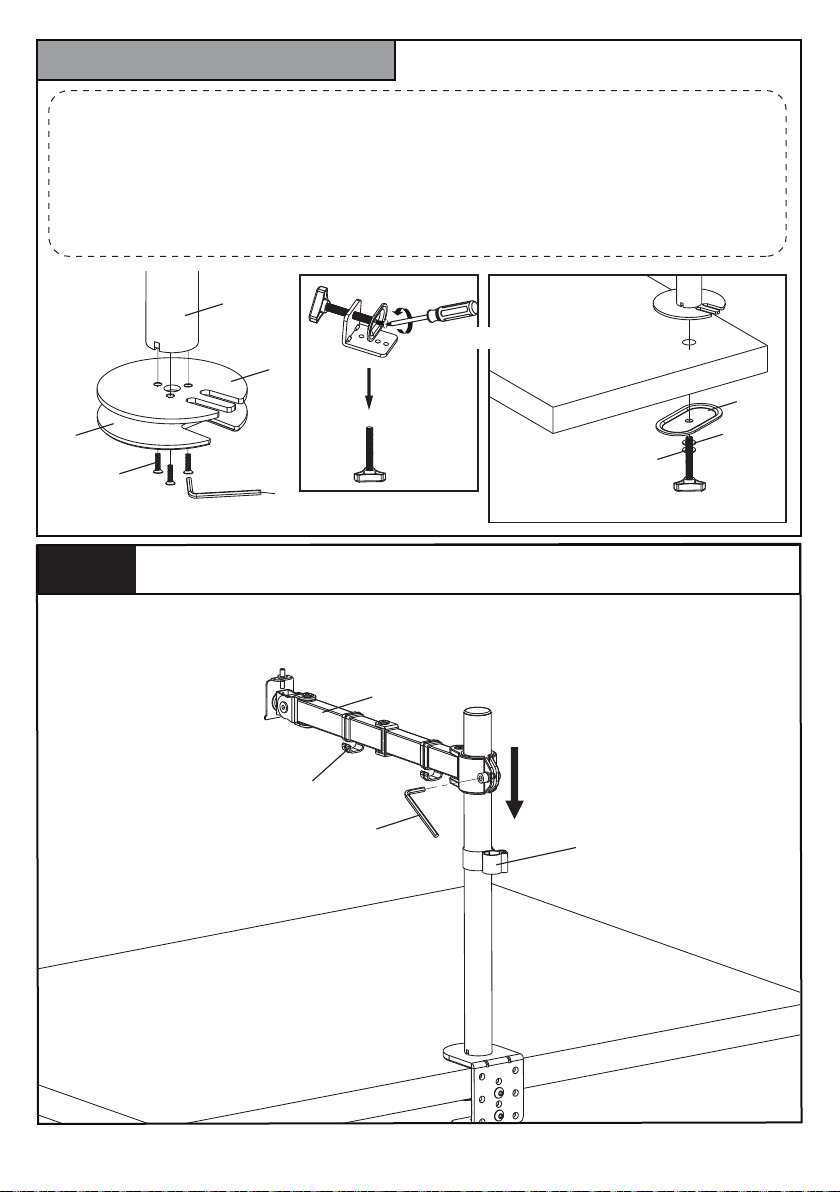

Step 2 Install Swivel Arm to the Pole

Install swivel arm (d) to the pole (a). Fasten the bolt with supplied Allen key (o). Attach

the wire clip (n1,n2) to the pole (a) and swivel arm (d).

Large

Allen Key

Option B: Grommet Base Assembly

1. If the existing grommet hole comes with a plastic protector, remove it to ensure

a ﬂat surface before installing the desk mount.

2. If there is no grommet hole on your desk, position the Pole (a) on the mounting

surface and mark the hole. Drill a hole at the marked position through the mounting

surface.

Note:

Small Allen Key

01 02 03 04 05 06

Phillips Screwdriver

Step 3 Attach the VESA Plate to the Laptop Tray or Monitor

For Laptop

For Monitor with Flat Back

For Monitor with Curved

or Recessed Back

FLAT BACK MONITOR

(UNIVERSAL MONITOR PLATE)

CURVED BACK MONITOR

(UNIVERSAL MONITOR PLATE)

01 02 03 04 05 06

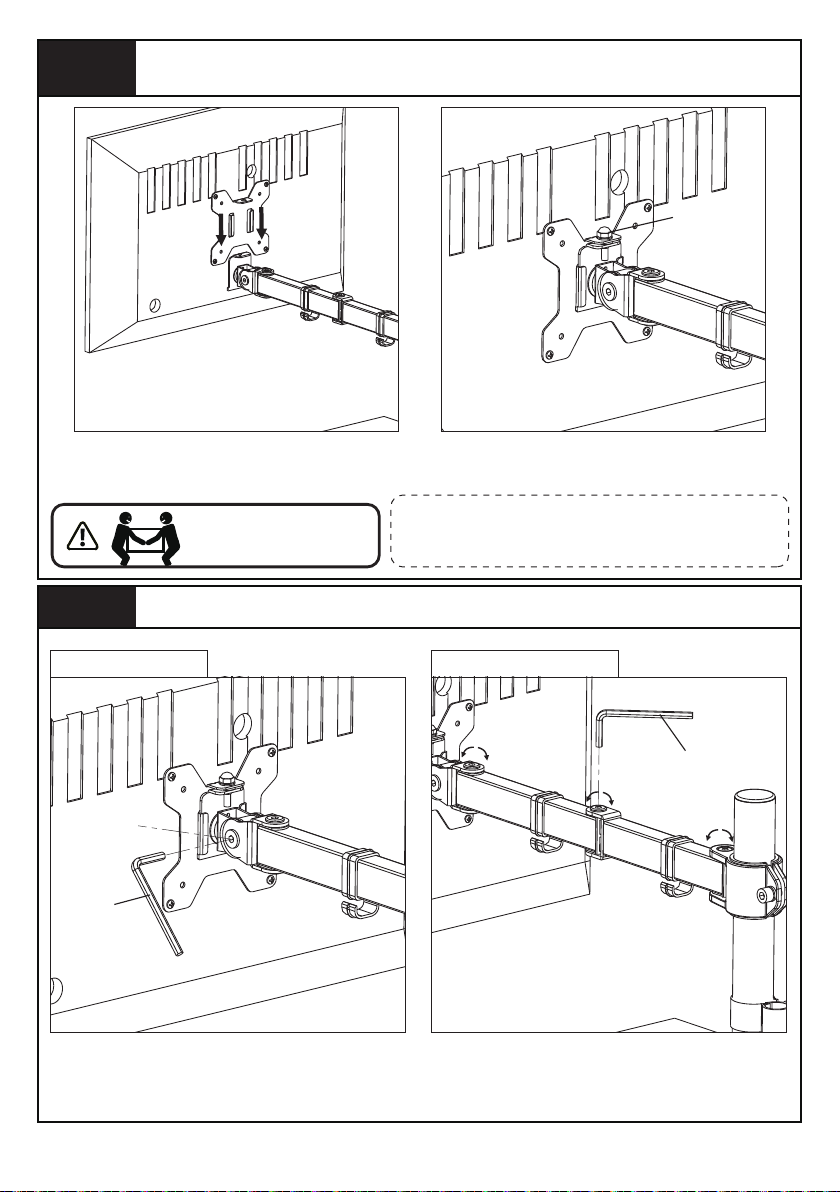

Step 4 Secure the Monitor or Laptop Tray onto the Head of Swivel

Arm

4-1 Slide the monitor onto the head of

Swivel Arm (d) as shown in the above

diagram.

4-2 Secure the Nut (h). Make sure the nut

is installed before you rotate the monitor.

Note: Please refer the procedures 4-1 and 4-2

to install the laptop tray [t] with VESA plate [e]

onto the head of swivel arm

HEAVY! You may need

assistance with this step.

Step 5 Adjust the Tilt and Swivel Angle

1. Loosen the bolt [T] on the swivel arm.

2. Tilt your monitor.

3. Retighten bolt [T] to hold monitor in place.

Tilt Adjustment

1. Loosen the bolt [S] on the swivel arm.

2. Swivel your monitor to your desred position.

3. Retighten bolt [S] to hold monitor in place.

Swivel Adjustment

Medium

Allen Key

Medium

Allen Key

01 02 03 04 05 05 06

Step 6 Manage the Wires and Store the Allen Keys on Wire Clip

01 02 03 04 05 06
