HUANUO HNQF2 Manuale utente

Desk Monitor Arm

INSTRUCTION

MANUAL

Rev00(A)

HNQF2

(US/CA) 1-800-556-0533

(UK) 44-808-196-3874

[email protected]

WWW. www.huanuoav.com

22 lbs /

10 kg

Before getting started,

let's make sure this mount is compatible.

Is the VESA pattern

of your monitor 75 x

75mm (3" x 3") to 100

x 100mm (3.9" x 3.9")?

Does your monitor

(including accessories)

weigh less than 22 lbs

(10 kg) ?

Tools Needed

(NOT lncluded)

Important Safety

Information

Yes - Perfect!

No - This mount is NOT

compatible.

Yes - Perfect!

No -This mount is NOT

compatible.

· Avoid potential personal injuries and property damage!

· DO NOT use this product on desks made of particle board or other

soft woods.

· DO NOT use this product for any purpose that is NOT explicitly

speciﬁed in this manual. DO NOT exceed weight capacity. We are

NOT liable for damage or injury caused by improper mounting,

incorrect assembly or inappropriate use.

· Before starting assembly, verify all parts are included and

undamaged. DO NOT use damaged or defective parts. lf you require

replacement parts, please contact our technical support line at

1-800-556-0533 (US/CA) / 44-808-196-3874 (UK) or customer

service at [email protected].

· This product contains small items that may pose a choking hazard.

NOTE

CAUTION

WARNING

· Please carefully read all instructions before attempting installation.

If you DO NOT understand the instructions or have any questions or

concerns, please contact our technical support line at

1-800-556-0533 (US/CA) / 44-808-196-3874 (UK) or customer

service at [email protected].

· Not all hardware included in this package will be used.

15/32 - 3/4"

(12 - 20mm)

Pole Set

a x 1

Grommet Base

m x 1

M4 x 12mm Thumb Bolt

q x 16

M4 Spacer

s x 16

Wire Clip

n1 x 2

Wire Clip

n2 x 8 Allen Key

o x1

o1 (Small)

o2 (Medium)

o3 (Large)

M10 Washer

k x 1 Spring Washer

l x 1

M5 x 14mm Bolt

f x 3 M8 x 10mm Bolt

g x 2 Nut

h x 4

C Clamp

b x 1 C Clamp Brace

c x 1 Swivel Arm

d x 2

Soft Pad

w1 x 1 Soft Pad

w2 x 1

Contents

VESA Plate

e x 4

M4 x 30mm Bolt

r x 16

1A-1 Secure the C clamp brace [c] to the pole [a] with the bolts [f], and attach the soft

pad [w1]. Then select the proper mounting holes according to the desk thickness to

attach the C clamp.

1A-2 Secure the pole assembly to the desktop by turning the knob.

Option A:

Desk Clamp Assembly

Step 1 Install the Pole to the Desktop

Pre-Assembly

Assemble the pole [a].

Plastic Knob

Desk

3.15″

(80mm)

0.39″

(10mm)

Slightly loosen the set screw, then attach the swivel arms [d] with the set screw facing

the back of the mount. Tighten the set screw to secure, and attach the wire clips [n1]

and [n2].

Secure the grommet base [m] to the pole with the bolts [f], and attach the soft pad

[w2]. Separate the C clamp [b], then secure the pole assembly to the desktop with the

plate [b1], knob [b2], and washers [k] and [l].

Step 2 Install Arm to the Pole

Option B:

Grommet Base Assembly

0.39″ - 2.76″

(10mm - 70mm)

NOTE: 1. If the existing grommet hole comes with a plastic

protector, remove it to ensure a flat surface before

installing the desk mount.

2. If your desk does not have an existing grommet hole,

Phillips Screwdriver

(Not lncluded)

make a mark on the desktop, then use a drill to drill a hole through the mounting

surface.

b1 b1

b2 b2

Back

The bolt should face up.

Slide the monitors to the heads of the swivel arm, and secure them with the nuts [h].

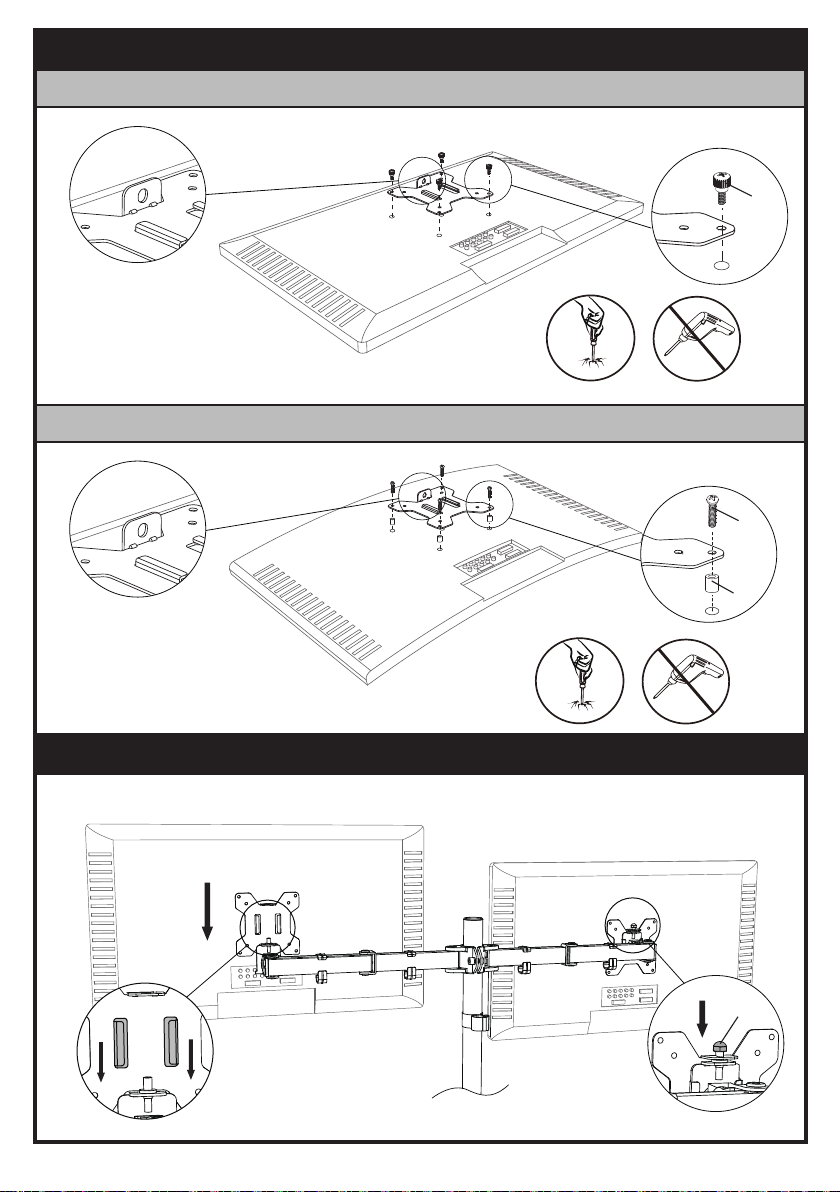

Step 3 Attach the VESA Plate to the Monitor

Option A: For Flat Back Monitor

Step 4 Attach the Monitors to the Mount

Option B: For Curved Back Monitor

The hanging tab is

directed toward the

top of the monitor.

The hanging tab is

directed toward the

top of the monitor.

Step 5 Height Adjustment

Turn the bolt with Allen key [o1] to raise or lower the monitor. Individual monitor height

adjustment helps to perfectly align the monitors.

Note: Remove the nut [h] before adjustment. After adjustment, remember to attach the

nut [h].

Directly tilt the monitor. If it is difficult to tilt the monitor, slightly loosen the bolt, then

adjust the monitor. Retighten the bolt to lock the tilt angle.

Step 6 Tilt Adjustment

Ignore this step if monitors are level.Ignore this step if monitors are level.

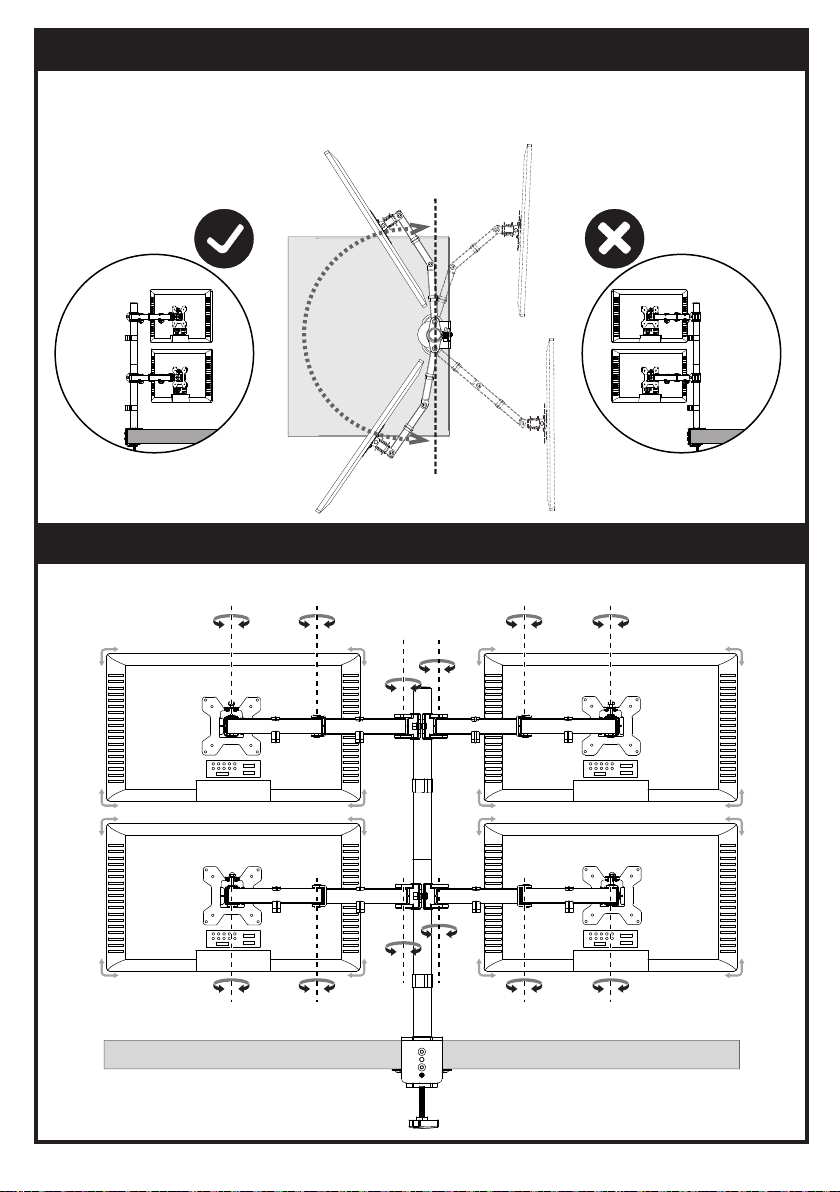

Step 7 Rotation Restriction

Features

WARNING: Be careful not to extend the monitors behind the mount or too forward.

Ensure that the arms are balanced to maintain center of gravity of the base. Instability

may cause the unit to tip over.

860-00546-00 Rev00 08

SwivelSwivel

Swivel

Swivel Swivel

Swivel

SwivelSwivelSwivel

Swivel Swivel

Swivel

Rotation Rotation

Correct orientationCorrect orientation Incorrect orientationIncorrect orientation

Desk
