Quick Installation Guide
HUAWEI Bar 300

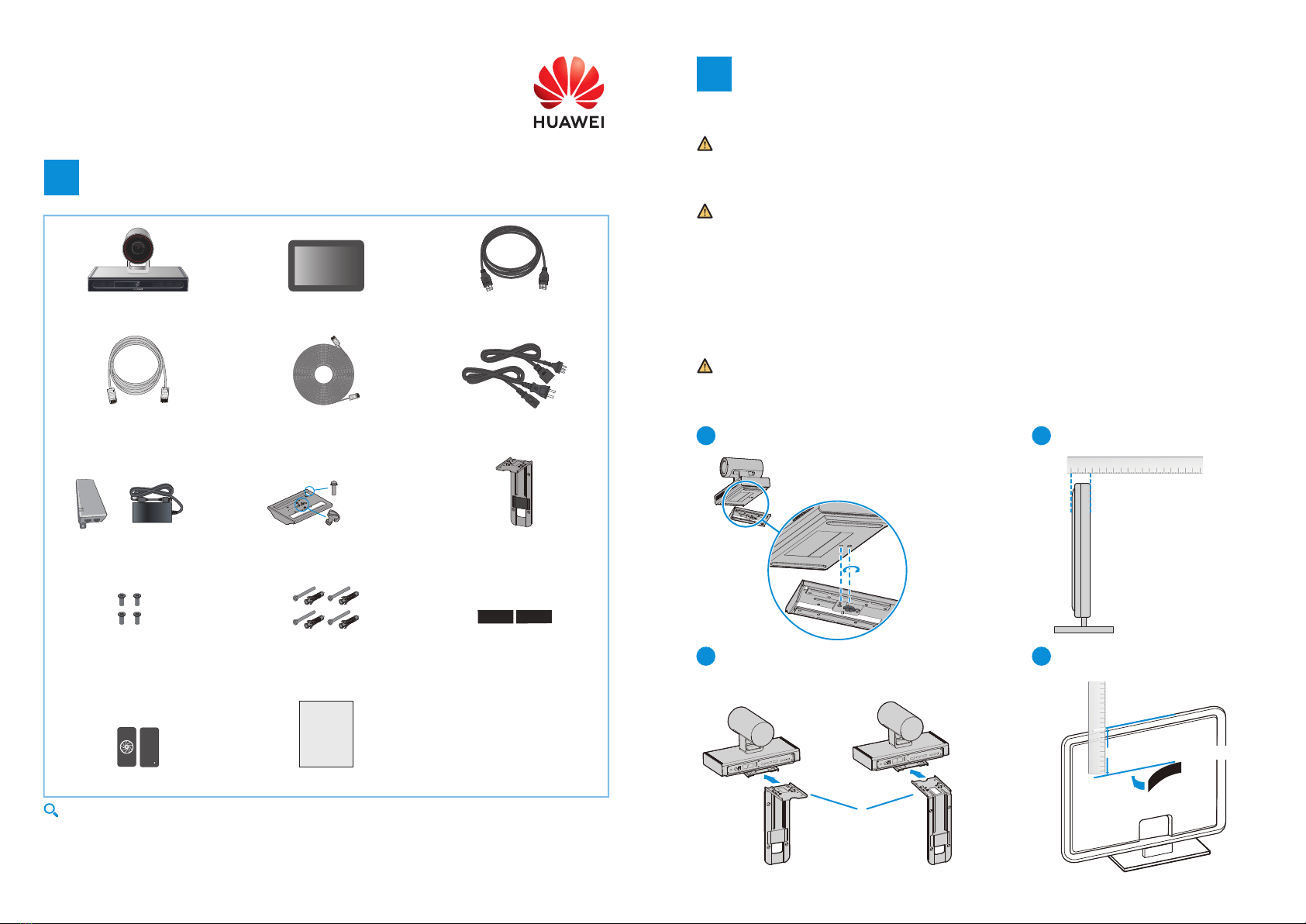

Included Items
1Horizontal Placement
Mounting on Top of a Display
Place the Bar 300 on a flat tabletop and connect the cables.
The Bar 300 can be mounted on top of a display if the display:
• Is thinner than or equal to 80 mm (3.15 in.) , or the thickness of the display ranges from 100 mm
(3.94 in.) to 160 mm (6.30 in.).
• Is placed horizontally.
Required Materials:
Included: L-shaped bracket, base, 1/4"-20UNC screw, M3 x 10 screw, and velcro tape strips.
Not included: ruler.
Installing the Bar 300
2
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
The Bar 300 can be placed horizontally, mounted on top of a display, wall-mounted,
ceiling-mounted, or placed on a tripod. Choose the best method for your site requirements.
If you have to place the Bar 300 on a sloping surface, the slope must be less 15° for the camera PTZ to
function properly.
• Secure the displays before installation. If you need to move the display after installation, remove the Bar
300 together with its base and L-shaped bracket to avoid damage to it. Then, move the display to a
required place and reinstall the Bar 300.
• If the frame width of the display is less than 11.8 mm (0.46 in.) , the front panel edge of the base may
block part of the screen.
Keep the default position of the slider before installation.
1
Install the Bar 300 on the base and
tighten the 1/4"-20 UNC screw.
2
Measure the display thickness.
3
Install the L-shaped bracket on the base.
4
Stick a velcro tape strip to the
back of the display.
119.5 (4.70 in.) –139.5 mm (5.49 in.)
Display thickness ≤ 80 mm (3.15 in.) 100 mm (3.94 in.) < Display thickness
≤ 160 mm (6.30 in.)
Note the bracket direction.
This list is for reference only. The delivered components may dier in appearance. The cables and power
adapter work only with the included endpoints. If a component is damaged, missing, or wet upon being
removed from the box, contact Huawei technical support.
Bar 300
3-meter network cables (2) Power cables
Quick Installation Guide
HUAWEI Bar 300
Quick Installation Guide
10-meter Touch network cable
M3 x 6 Phillips flat head
machine screws
Plastic expansion bolt
(tapping screws and plastic
expansion sleeves)
HDMI cable
Touch
PoE adapter, power adapter Base L-shaped bracket
Velcro tape strips
DATA PoE
AC
PORT
M3 x 10 screw
1/4"-20 UNC screw
Lens
5
Install the Bar 300 on the display.
A display thinner than or equal to 80 mm (3.15 in.)
is used as an example here.
6
Use velcro tape to secure the L-shaped
bracket.Tighten the M3 x 10 screw.
Hole diameter: 8 mm (0.31 in.)
Hole depth: 55 mm (2.17 in.)
Closely
attach the
L-shaped
bracket to
the back
of the
display.
Do not leave a
gap between the
front panel of the
base and that of
the display.
ab

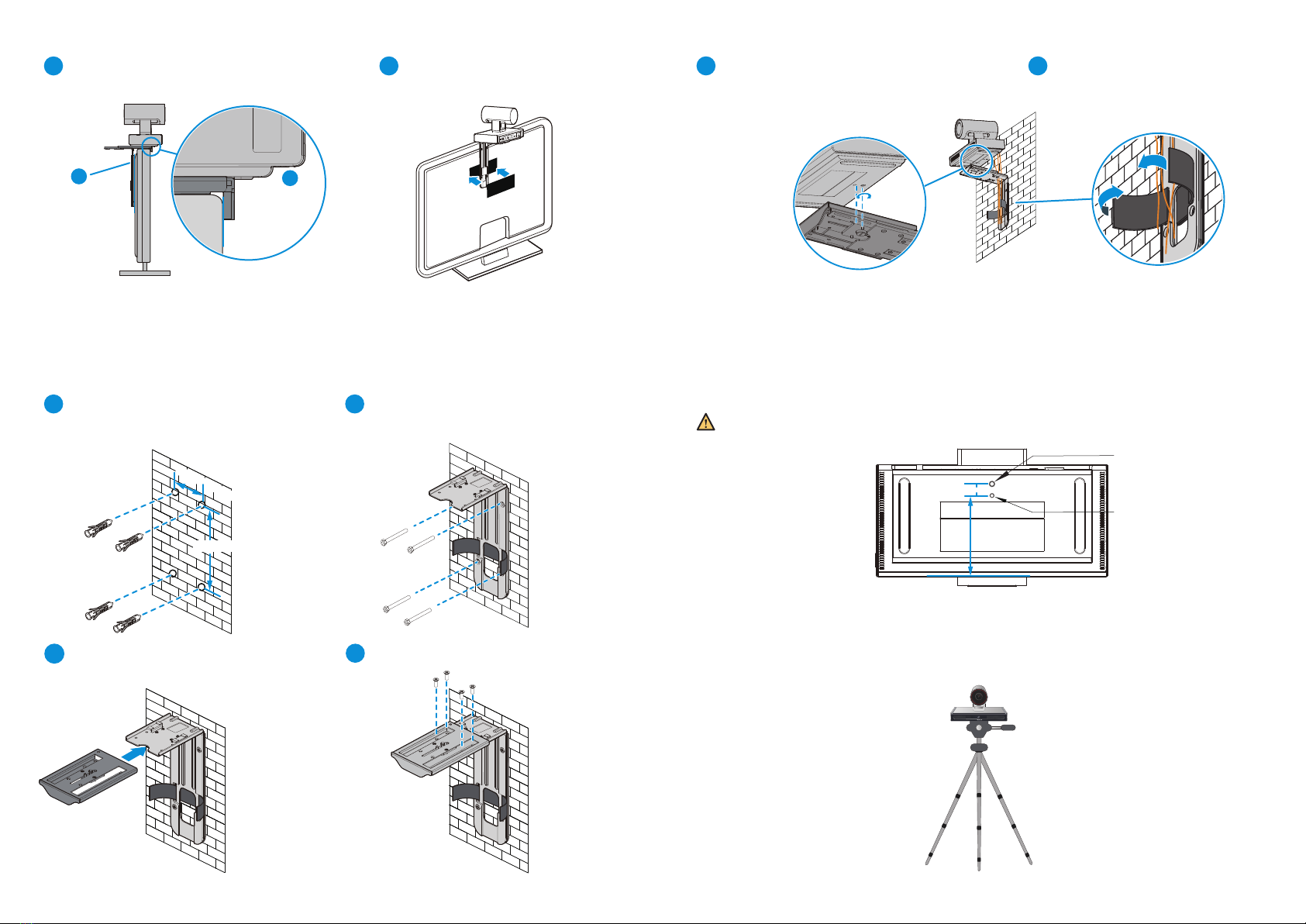

Wall-Mounting
1
Secure the plastic expansion
sleeves to the wall.
3
Install the base.
5
Route the cables out of the hole in the L-shaped
bracket, and connect them to the Bar 300 by
referring to section Connecting Cables.Install the
Bar 300 on the base and tighten the 1/4"-20
UNC screw.
6
Tie the cables together. (The color
of the cable you use may dier.)
The Bar 300 can also be installed on a wall if the display is wall-mounted.
Required Materials:
Included: plastic expansion bolts, L-shaped bracket, base, 1/4"-20 UNC screw, and M3 x 6 Phillips flat
head machine screws.
Not included: hammer drill, cordless electric screwdriver, hammer and Phillips screwdriver.
150 mm (5.91 in.)
75 mm (2.95 in.)
2
Screw the L-shaped bracket with the
tapping screws.
4
Screw the base with M3 x 6 Phillips flat
head machine screws.
14.5 mm (0.57 in.)
101.5 mm (4 in.)
Screw hole
Depth: 4.0 mm
(0.16 in.)
Use 1/4"-20 UNC screws
Location hole
Diameter: 4.3 mm
(0.17 in.)
Ceiling-Mounting
Purchase an additional bracket to mount the Bar 300 to the ceiling. The bracket requires:
• A minimum weight load of 10.5 kg (23.15 lb) and a thickness between 2 mm (0.08 in.) to 3 mm
(0.12 in.).
• A location pillar that fits into the location hole of the Bar 300. The distance between the screw
hole on the bracket and location pillar must be 14.5 mm (0.57 in.) to match the Bar 300.
• A screw hole and one 1/4"-20 UNC screw.
You can also secure the Bar 300 with a tripod. The minimum weight load of the tripod must be
10.5 kg (23.15 lb). Its mounting platform must match the bottom of the Bar 300.
Mount the purchased bracket on the ceiling as needed, and then install the Bar 300 on the bracket.
Mounting on a Tripod
When securing the Bar 300, use the 1/4"-20 UNC screw included with the purchased bracket to avoid a
mismatch.

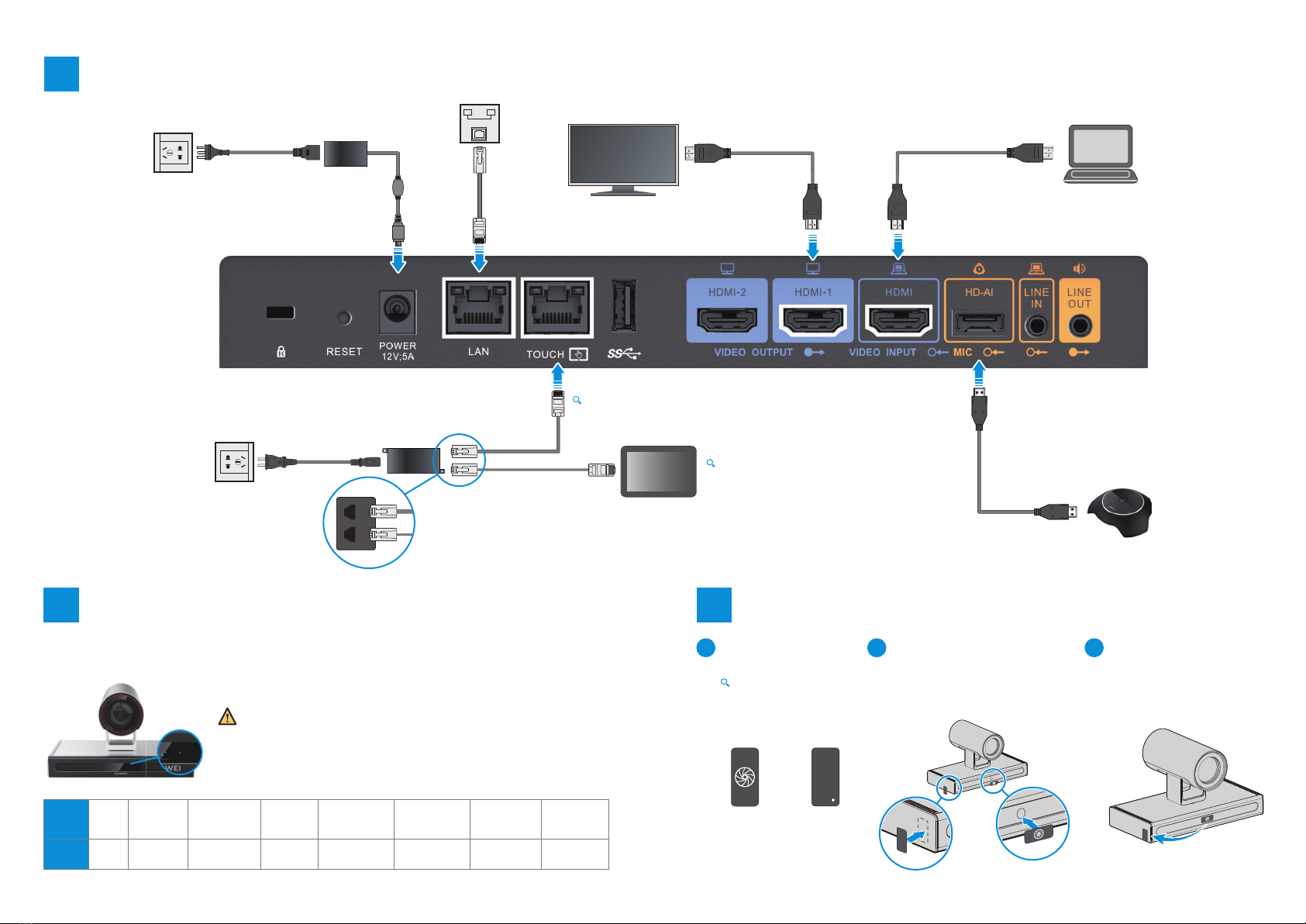

Connecting Cables
3
Powering On the Bar 300
4Installing and Using the "Smart Eye" Cover
5
When the Bar 300 is being powered on or running, manually rotating the
camera PTZ or preventing it from rotating may cause damage.
Power cable
Power cable
Power adapter
PoE adapter
For alternative methods of connecting the Touch
to the Bar 300, see Configuring the Endpoint
Using the Touch > Connecting the Touch to
the Endpoint in the
Bar 300 Configuration Guide.
Wired connection: Connect the Bar 300 using a network cable.
Wi-Fi connection: Connect the Bar 300 using a Wi-Fi network.
HD-AI cable
(included with
the microphone)
HDMI cable HDMI cable (not included)
Ethernet cable
Ethernet
cable
Ethernet cable
for the Touch
DATA PoE
Once all cables are connected correctly, connect the Bar 300 to a power supply using the power
adapter. When the power adapter indicator turns on, the Bar 300 will automatically power on.
Powered
o Starting
Running
On standby
Hardware error
Software errorOverheated
O Blinking green
(twice/second) Steady green
Breathing green
(gradually lighting,
then dimming)
Slowly blinking red
(once/5 seconds)
Rapidly blinking
red
(4 times/second)
Blinking red
(twice/5 seconds)
Rapidly blinking
green
(4 times/second)
Upgrading
Indicator
Status
5
1
Understand the "smart
eye" cover.
Attach the adhesive side of the
securing tab to the left side of
the Bar 300. To disable the
"smart eye", attach the "smart
eye" cover on the "smart eye".
To enable the "smart eye",
attach the "smart eye"
cover to the securing tab
to prevent the cover from
being lost.
23
"Smart eye" cover Securing tab
"Smart eye" cover: attracted
with magnetic force
Securing tab: attached using
adhesive
* The Bar 300-C model does not involve the AI function.
