Huawei IP Phone eSpace 6870

Qucik Start

Welcome to use the Huawei IP Phone eSpace 6870 (hereinafter referred to as the

eSpace 6870).

The eSpace 6870 is a network telephone with high performance. With the eSpace 6870,

you can enjoy convenient communication with excellent voice quality. In addition, the

eSpace 6870 helps you to access the Internet through a network device at a high speed.

1 Packing List

Check the items listed in Table 1-1 after opening the package. If any component is not

included, contact the distributor.

Table 1-1 Packing list

Item

Quantity

Main case

Handset

Coiled handset cord

Straight-through cable

Specialized power adapter

Phone stand

Wall-mount bracket

eSpace 6870 Quick Start

Item

Quantity

PVC card

Paper card

Warranty card

Certificate of quality

2 Preparations for Using the eSpace 6870

eSpace 6870 Keys

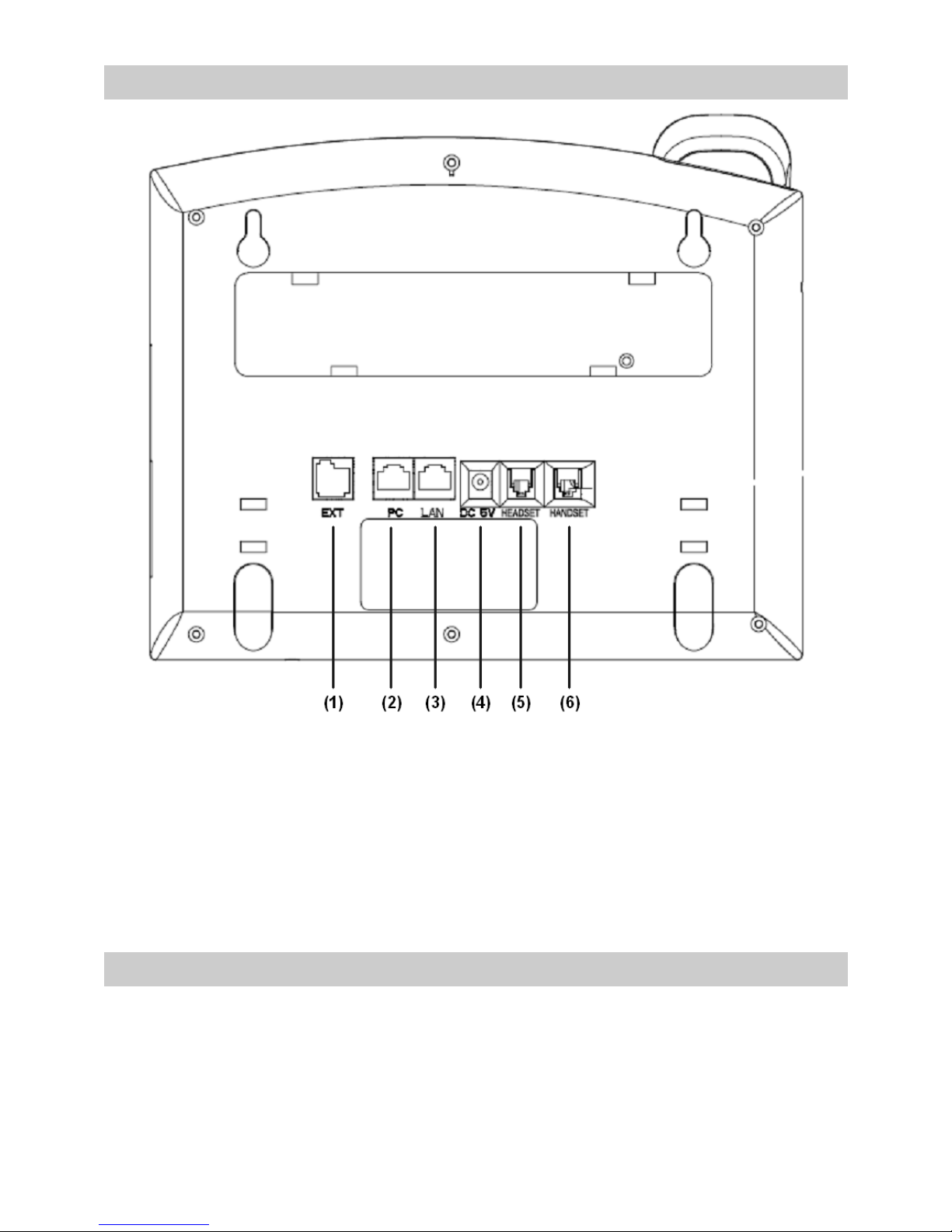

eSpace 6870 Back Panel

(1) Extension board

interface

(2) PC interface

(3) LAN interface

(4) Power interface

(5) RJ-9 earphone interface

(6) Handset interface

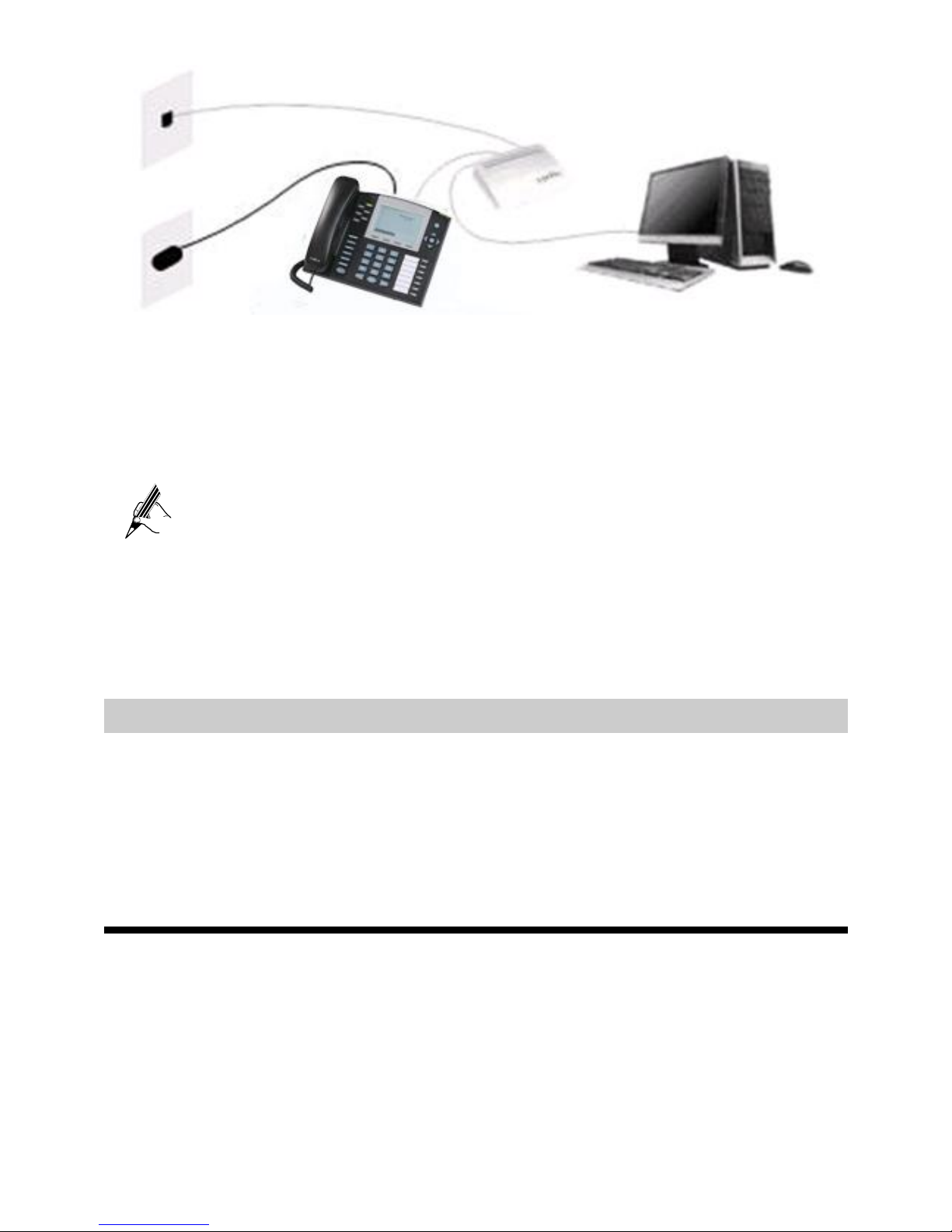

Cable Connection for the eSpace 6870

You can install the eSpace 6870 according to the following steps. It is recommended

that you use the original components of the eSpace 6870.

Step 1 Use the coiled handset cord to connect the handset to the main case.

Step 2 Use the straight-through cable to connect the local area network (LAN)

interface of the eSpace 6870 to the uplink network interface (for example, the

network interface in your office or at your home).

If you have only one external network port but want to connect the computer

and eSpace 6870 at the same time, perform Step 2 and use another

straight-through network cable to connect the computer to the PC port on the

eSpace 6870.

Step 3 Insert the output end of the specialized power adapter into the power interface

of the eSpace 6870 and the other end into a socket.

Starting the eSpace 6870

After the eSpace 6870 is powered on, a progress bar is displayed on its LCD. You

cannot use the eSpace 6870 until the screen display the time and date normally.

3 Configuring the eSpace 6870

After installing the eSpace 6870, you need to configure its IP address. According to

different networking requirements, you can choose one of the following modes: static

IP address, Dynamic Host Configuration Protocol (DHCP), and PPP over Ethernet

(PPPoE).

Configuring a Static IP Address for the eSpace 6870

By default, the IP address of the eSpace 6870 is configured in DHCP

mode. If your PC obtains the IP address from the network in DHCP mode,

skip this section.

Perform the following steps to configure a static IP address for the eSpace 6870.

Step 1 Press MENU (the round button in the center of the arrow keys) to access the

menu.

Step 2 Choose Network. Press MENU to access the Network menu.

Step 3 Access the IP Setting menu and press DOWN to select STATIC IP (DHCP

by default).

Step 4 Access the IP menu and press BackSpace to delete all the default values, and

then type the static IP address. Press OK to confirm and exit.

Step 5 Configure Netmask and Gateway by using the same method.

Step 6 Press MENU to return to the Config menu after setting Gateway. Press

LEFT to return to the main menu.

Step 7 Choose Reboot, and then Press MENU to reboot the eSpace 6870.

Configuring Basic SIP Information in Web Mode

The web-enabled computer has to be connected to the same sub-network as the phone.

This can easily be done by connecting the computer to the same hub or switch as the

phone is connected to. In absence of a hub/switch (or free ports on the hub/switch),

connect the computer directly to the phone by using the PC port on the phone. Make

sure the phone is powered on and displays the IP address. To access the web

configuration menu of the phone, do as follows:

Step 1 Open the Web browser such as the Internet Explorer. Type

http://192.168.0.160/ in the address bar and press Enter to display the login

page.

Where, 192.168.0.160 is the IP address of the eSpace 6870.

Step 2 Type the administrator password, and then click Login.

The default administrator password is admin.

Step 3 After login, click the Accounts tab to display the configuration page, as

shown in Figure 3-1. Table 3-1 lists the information that you must configure.

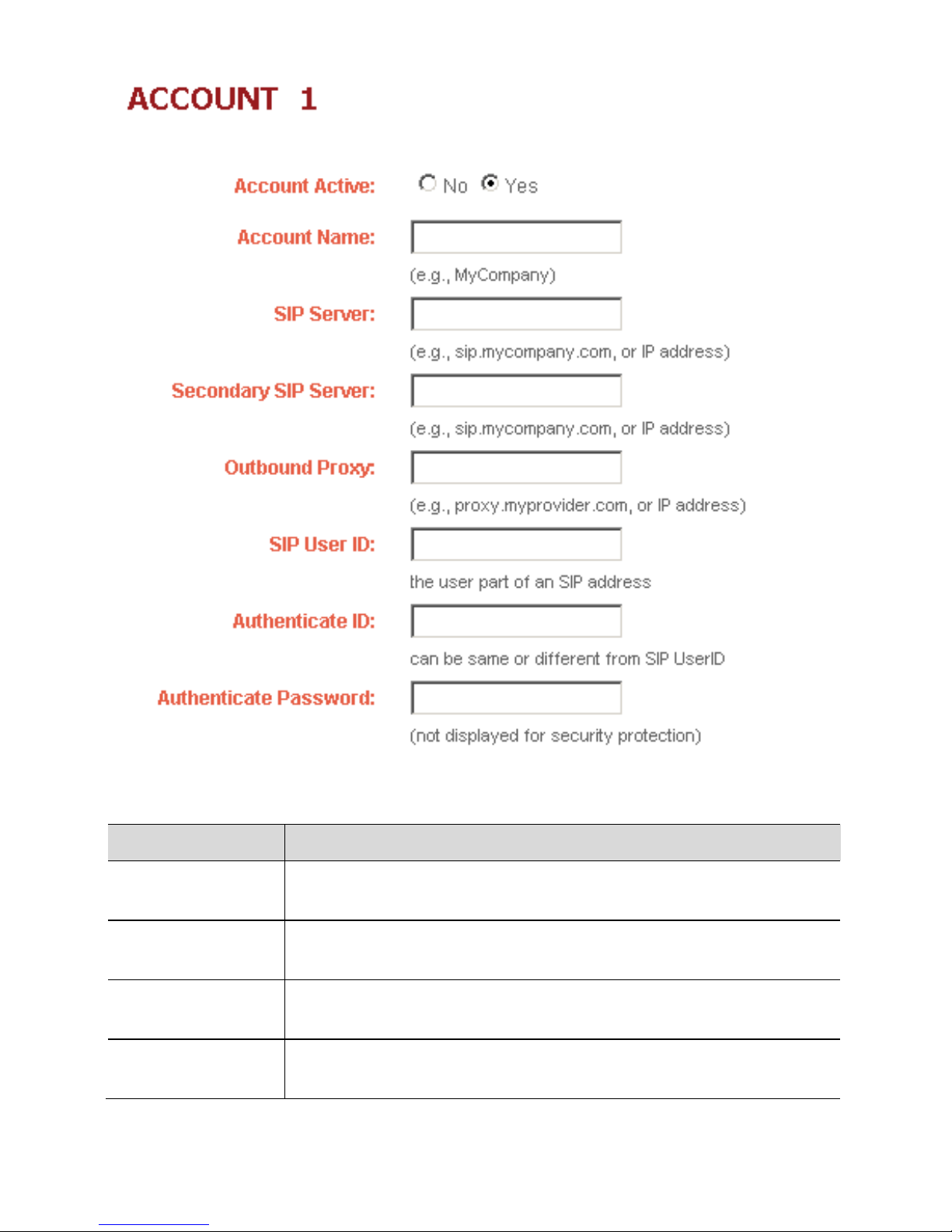

Figure 3-1 Configuration page

Table 3-1 Mandatory parameters

Parameter

Description

SIP Server

Specifies the IP address and the domain name of the SIP server

that is provided by the service provider.

SIP User ID

Specifies the account ID that is provided by the VoIP service

provider.

Authenticate ID

SIP service subscriber's ID used for authentication. It can be

identical to or different from the SIP user ID.

Authenticate

Password

SIP service subscriber's account password for the eSpace 6870

to register to (SIP) servers of ITSP.

Step 4 Click Update to complete and save the configuration.

Step 5 Click Reboot to reboot the eSpace 6870.

For specific SIP configuration information, see the Huawei IP Phone eSpace

6870 User Manual on the user CD.

4 Making and Answering Calls

Making Calls

To make a call, do as follows:

Step 1 Pick up the handset, or press or the corresponding LINExkey.

Step 2 Dial the number of the called party when you hear the dial tone.

Step 3 Press SEND.

When picking up the handset or pressing , you can redial the last called

number by pressing SEND.

Answering Calls

When a call is coming, the eSpace 6870 rings euphoniously. To answer the call,

perform any of the following operations:

Pick up the handset.

Press .

Press the blinking LINExkey.

When a call is coming, the eSpace 6870 displays the calling number on the

LCD. At the same time, the line indicator of the corresponding account

blinks.

5 Checking Missed Calls

When you have missed calls, the message "XNew Missed Calls" is displayed on the

LCD. To check the missed calls, do as follows:

Step 1 Press UP to display the Missed Calls page.

Step 2 Press UP or DOWN to select a missed call record. Press MENU to view the

detailed information about the missed call, Press LEFT to return to the

Missed Calls page.

Step 3 Choose Dial to dial the number,or press LEFT to exit the Missed Calls page.

If there is no Dial in the Missed Calls page, please press More and then press

Dial.

6 FAQs

Q: Why is there neither display nor backlight on the LCD after the eSpace 6870 is

powered on? How to solve the problem?

A: Check that the power connection is in good condition and the specialized power

adapter is appropriate.

Q: Why is the network unavailable after the eSpace 6870 is powered on? How to

solve the problem?

A: Check that the network connection is in good condition and the configuration of

the parameters such as the IP address mode is proper.

Q: How to query the IP address of the eSpace 6870 and the phone numbers on the

eSpace 6870?

A: Press MENU to access the menu and choose Status. The information in the first

row displayed on the LCD is the IP address. You can also query the number of each

line by accessing the Web configuration page and viewing SIP User ID on the

Accounts tab page.

7 Precautions

reserved.

No part of this document may be reproduced or transmitted in any form or by

any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

andother Huawei trademarksare trademarks of Huawei Technologies

Co., Ltd.

All other trademarks and trade names mentioned in this document are the

property of their respective holders.

Notice

The information in this document is subject to change without notice. Every

effort has been made in the preparation of this document to ensure accuracy

of the contents, but all statements, information, and recommendations in this

document do not constitute the warranty of any kind, express or implied.

Issue: 01
