Huawei CR52-LPUF-20 Manuale utente
NE80E/40E LPUF-20 Flexible Plug-in Card
Copyright ©2008 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
NE80E/40E LPUF-20 Flexible Plug-in Card
Overview
The NE80E/40E provides the flexible plug-in card to enhance networking flexibility and
provides low-cost and customized solutions as required. The flexible plug-in card feature is
provided by the motherboard (LPUF-20) and the Flexible plugged-in interface card (FPIC).
The LPUF-20 has two slots. Each slot can be inserted with one FPIC. The LPUF-20 supports
the intermixing of FPICs of various Ethernet interfaces. Users can flexibly choose the FPICs as
required and replace FPICs on the site instead of replacing the LPUF-20. Thus, the cost of
maintaining devices is decreased.
The LPUF-20 supports a maximum of 20G bps bandwidth. It has two types: LPUF-20-A and
LPUF-20-B. The LPUF-20-A supports richer software features, including L3VPN, MVPN, and
IPv6.

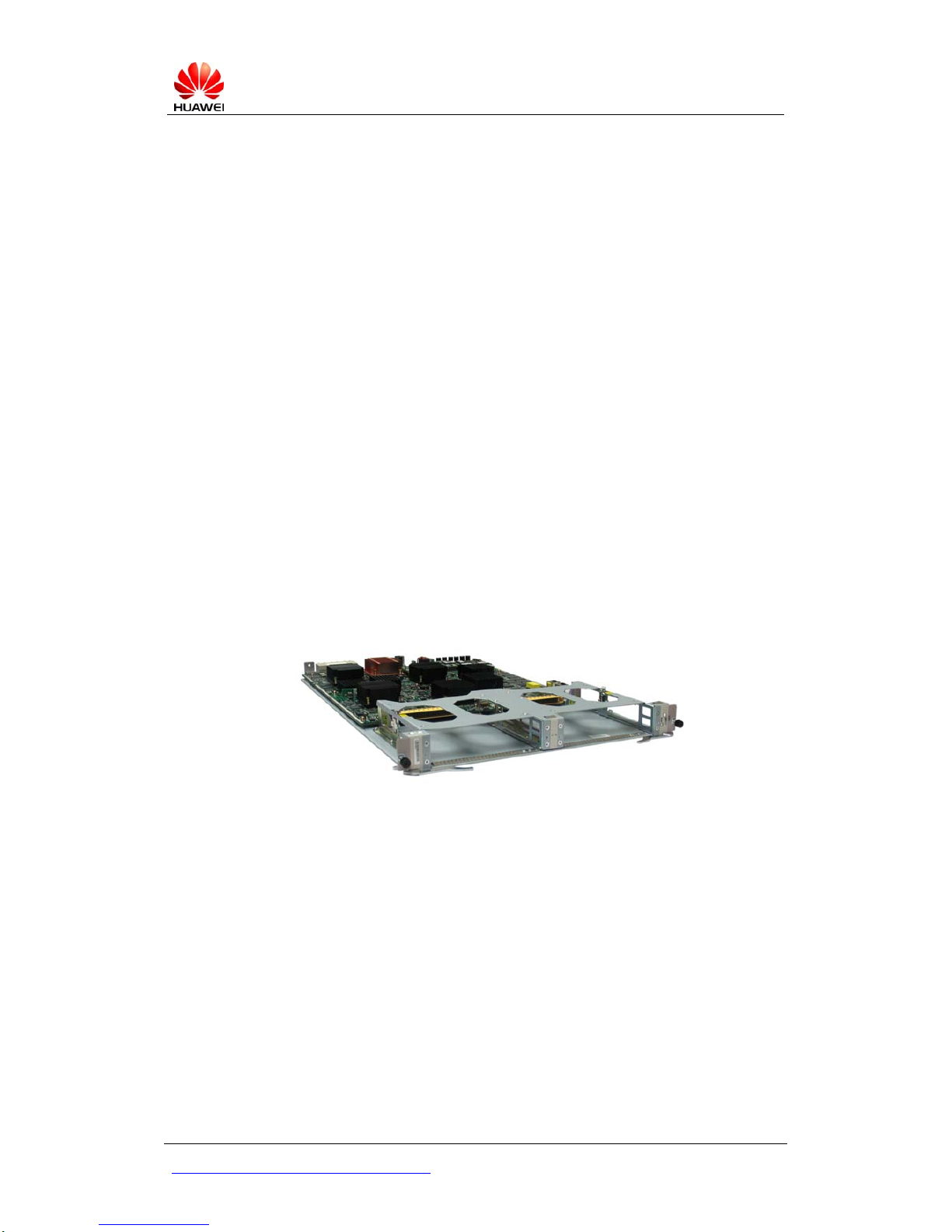

Appearance of LPUF-20-A/B
The LPUF-20 flexible plug-in card provides the function of Ethernet clock synchronization. The
clock quality and stratum can thus be guaranteed. In the IP-RAN solution, the IP network runs
as the bearer layer between Node-B and RNC. With the function of Ethernet clock
synchronization, the problem of clock transmission in the IP network can be solved efficiently.
Specifications
At present, the LPUF-20 supports the following FPIC types:
1-port 10GBase WAN/LAN-XFP FPICz
z12-port 100/1000Base-SFP FPIC
1
NE80E/40E LPUF-20 Flexible Plug-in Card
Copyright ©2008 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
12-port 10/100/1000Base-RJ45 FPIC
2
z

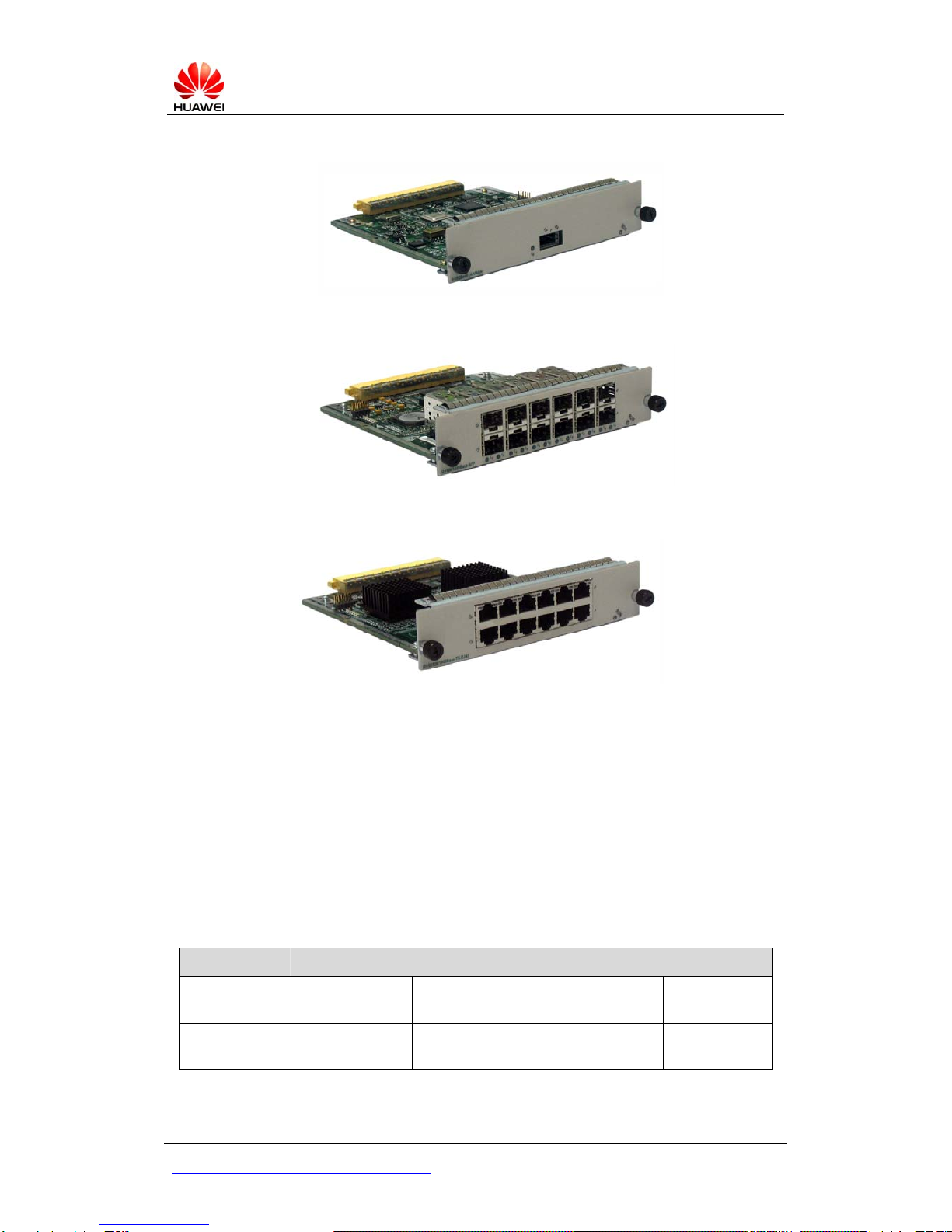

Appearance of 1-port 10GBase WAN/LAN-XFP FPIC
Appearance of 12-port 100/1000Base-SFP FPIC
Appearance of 12-port 10/100/1000Base-RJ45 FPIC
The 12-port 100/1000Base-SFP FPIC has the following functions:
Provides GE optical interfaces through the GE optical module.z
z
z
z
Provides FE optical interfaces through the FE optical module.
Provides 10M/100M/1000M auto-sensing electrical interfaces through the
electrical module.
Supports intermixing of all modules above.
10G XFP optical modules：
Attributes Description
Transmission
distance 0.3 km 10 km 40 km 80 km
Center
wavelength 850 nm 1310 nm 1550 nm 1550 nm
NE80E/40E LPUF-20 Flexible Plug-in Card
Copyright ©2008 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/ 3
Attributes Description
Minimum
Transmitting
power –7.3 dBm –6.0 dBm –1.0 dBm 0 dBm
Maximum
Transmitting
power –1.3 dBm –1.0 dBm 2.0 dBm 4.0 dBm
Receiving
sensitivity –7.5 dBm –11.0 dBm –15.0 dBm –24.0 dBm
Overload power –1.0 dBm 0.5 dBm –1.0 dBm –7.0 dBm
Optical fiber
type Multi-mode Single-mode Single-mode Single-mode
1000M SFP optical modules：
Attributes Description
Transmission distance 0.5 km 10 km 40 km 40 km 80 km 100 km
Center wavelength 850
nm 1310
nm 1310
nm 1550
nm 1550
nm 1550
nm
Minimum Transmitting power –9.5
dBm –9.5
dBm –4.5
dBm –4.0
dBm –2.0
dBm 0 dBm
Maximum Transmitting
power –2.5
dBm –3.0
dBm 3.0
dBm 1.0
dBm 5.0
dBm 5.0
dBm
Receiving sensitivity –17.0
dBm –20.0
dBm –22.5
dBm –21.0
dBm –23.0
dBm –30.0
dBm
Overload power 0 dBm –3.0
dBm –3.0
dBm –3.0
dBm –3.0
dBm –9.0
dBm
Optical fiber type Multi-
mode Single-
mode Single-
mode Single-
mode Single-
mode Single-
mode
1000M colorized optical modules：
Attributes Description
Transmission
distance 70 km 70 km 70 km 70 km 70 km 70 km 70 km 70 km
Center
wavelength 1470
nm 1490
nm 1510
nm 1530
nm 1550
nm 1570
nm 1590
nm 1610
nm
Minimum
Transmitting
power 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm
Maximum
Transmitting
power 5 dBm 5 dBm 5 dBm 5 dBm 5 dBm 5 dBm 5 dBm 5 dBm
NE80E/40E LPUF-20 Flexible Plug-in Card
Copyright ©2008 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/ 4
Attributes Description
Receiving
sensitivity –23.0
dBm –23.0
dBm –23.0
dBm –23.0
dBm –23.0
dBm –23.0
dBm –23.0
dBm –23.0
dBm
Overload
power 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm
Optical fiber
type Single
-mode Single-
mode Single-
mode Single-
mode Single-
mode Single-
mode Single-
mode Single
-mode
100M SFP optical modules：
Attributes Description
Transmission
distance 2 km 15 km 40 km 80 km
Center wavelength 1310 nm 1310 nm 1310 nm 1550 nm
Minimum
Transmitting power –19.0 dBm –15.0 dBm –5.0 dBm –5.0 dBm
Maximum
Transmitting power –14.0 dBm –8.0 dBm 0 dBm 0 dBm
Receiving sensitivity –30.0 dBm –31.0 dBm –37.0 dBm –37.0 dBm
Overload power –14.0 dBm –8.0 dBm –10.0 dBm –10.0 dBm
Optical fiber type Single-mode Single-mode Single-mode Single-mode
Order Information
Module name Description
CR52-LPUF-20-A Flexible Card Line Processing Unit (LPUF-20, 2 sub-slots, Not
hot pluggable for sub cards) A (L3VPN, MVPN, IPv6 Enhanced)
CR52-LPUF-20-B Flexible Card Line Processing Unit (LPUF-20, 2 sub-slots, Not
hot pluggable for sub cards) B
CR52-P20-1x10G
Base WAN/LAN-XFP 1-Port 10GBase WAN/LAN-XFP Flexible Card
CR52-P20-12x100/
1000Base-X-SFP 12-Port 100/1000Base-SFP Flexible Card
CR52-P20-12x10/100/
1000Base-TX-RJ45 12-Port 10/100/1000Base-RJ45 Flexible Card
