Quidway® NetEngine 5000E Core Router OC-192c/STM-64c POS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://www.huawei.com/products/datacomm/ 1

Quidway® NetEngine 5000E Core Router

OC-192c/STM-64c POS Optical Interface Boards

Overview

Based on the 10G platform, the Quidway®NetEngine 5000E core router (hereinafter referred to as

"NE5000E") supports OC-192c/STM-64c POS optical interface boards with different port densities

that can be installed in any service slot of the NE5000E. Having 16 service slots and supporting

multi-chassis cascading, the NE5000E is scalable to provide high-density OC-192c/STM-64c POS

interfaces, fully satisfying super core node requirements of IP backbone networks. The NE5000E

has a switching capacity of 2.56 Tbps, achieving wire-speed forwarding performance on

high-density 10G POS interfaces.

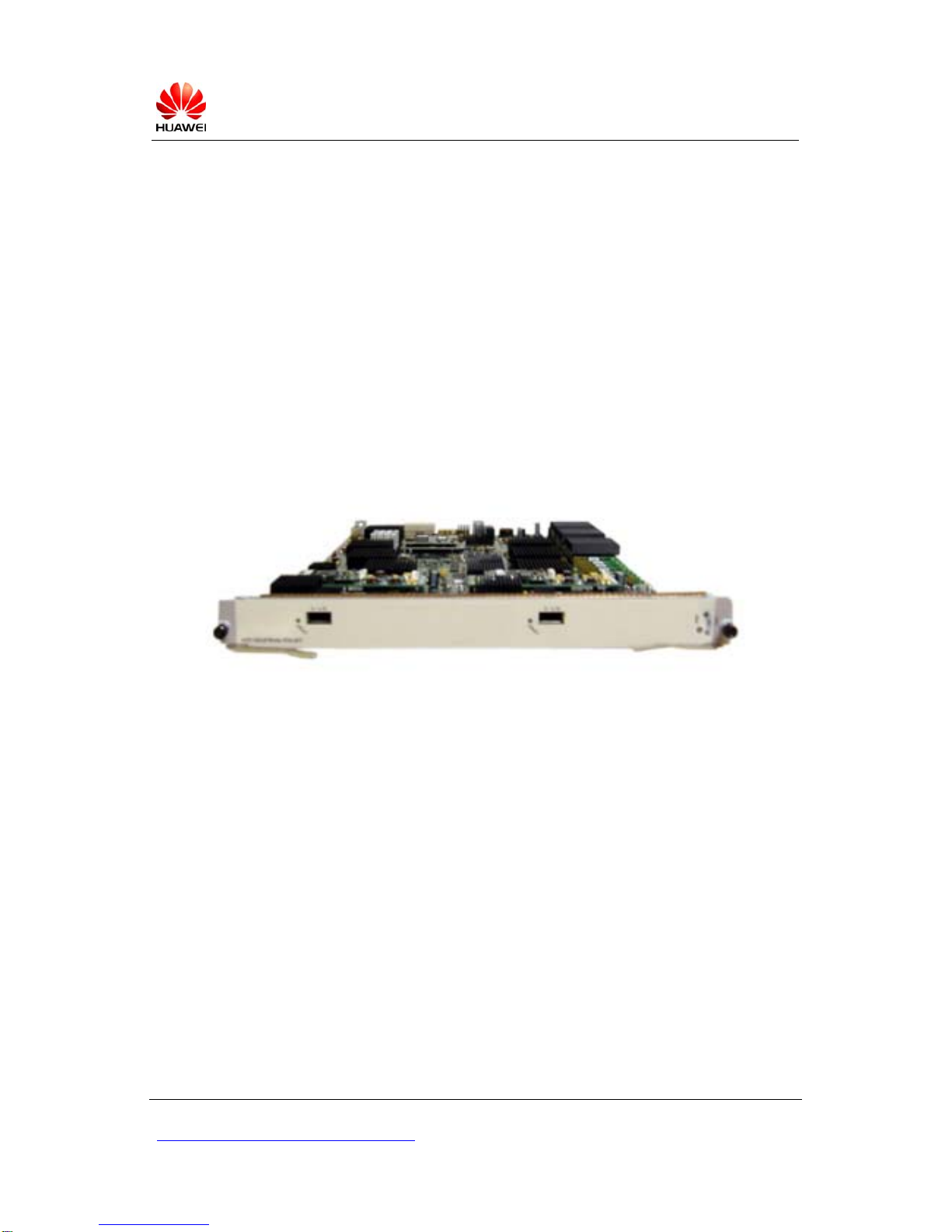

CR52K-2xPOS/STM64-XFP

The OC-192c/STM-64c POS optical interface board implements POS frame encapsulation/

decapsulation of data flows and SDH/SONET mapping/demapping of POS frames, provides

10-Gbps external optical interfaces, and enables such functions as loopback, environment

monitoring and information query.

The NE5000E provides 1-port and 2-port OC-192c/STM-64c POS optical interface boards. The

1-port board uses fixed XFP optical modules, and the 2-port board uses pluggable XFP optical

modules. Before networking, you must first choose between 1-port and 2-port 10G optical interface

boards based on network requirements, and then choose between pluggable XFP optical modules

and fixed optical modules for the board based on transmission distance requirements.

Quidway® NetEngine 5000E Core Router OC-192c/STM-64c POS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://www.huawei.com/products/datacomm/ 2

Specifications

Currently, the NE5000E supports three types of OC-192c/STM-64c POS optical interface boards.

Among them, one uses pluggable XFP optical modules (2-port), and the other two use fixed optical

modules (1-port). The specifications are listed below:

Module name Interface type Description

CR52K-2xPOS/STM64-XFP LC 2-port 10G POS optical interface board:

Different XFP optical modules can be chosen

for different transmission distances.

CR52K-POS/STM64-2KM LC

1-port 10G POS optical interface board: The

center wavelength is 1310 nm, and the

maximum transmission distance is 2 km.

CR52K-POS/STM64-40KM LC

1-port 10G POS optical interface board: The

center wavelength is 1550 nm, and the

maximum transmission distance is 40 km.

Currently, the NE5000E supports the following two types of 10G POS XFP optical modules:

Interface rate 10 Gbps

Transmission distance 2 km 40 km

Center wavelength 1310 nm 1550 nm

Min. -6.0 dBm -1.0 dBm

Transmitting optical

Power Max. -1.0 dBm 2.0 dBm

Receiving sensibility -15.0 dBm -15.0 dBm

Overload optical power -1.0 dBm -1.0 dBm
