Huawei RTN XMC ODU V200 Manuale utente

HUAWEI TECHNOLOGIES CO., LTD.

RTN XMC ODU V200

Quick Installation Guide

Issue: 05

Part Number: 31506440

Date : 2017-09-15

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei

and the customer. All or part of the products, services and features described in this document may not

be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all

statements, information, and recommendations in this document are provided "AS IS" without

warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

support@huawei.com

About This Document

Overview

This document is intended to provide guidelines for hardware quick installation.

Product Version

The following table lists the product version related to this document.

The functions of Fixed Service (FS) for this device are restricted to use and put

into service due to the need for a spectrum license and/or the conditions

attached to authorisation for the use of frequencies within all European Union

countries ( BE / BG / CZ / DK / DE / EE / IE / EL / ES / FR / HR / IT / CY / LV /

LT / LU / HU / MT / NL / AT / PL / PT / RO / SI / SK / FI / SE / UK ).

Product Name

Product Version

RTN XMC ODU V200

V200R001

Contents

Safety Precautions

Installation Tools

Installing the ODU

Components of the ODU

Installation Scenarios

Installation Procedure

Changing Polarization Direction of the Antenna

Installing the ODU on the Antenna

Installing the Hybrid coupler on the Antenna

Installing the ODU on the Hybrid coupler

Installing the ODU Separate Mounting Bracket on the Pole

Installing the ODU on the ODU Separate Mounting Bracket

Installing the Hybrid Coupler on the ODU Separate Mounting Bracket

Installing the Flexible Waveguide

Installing the Flexible Waveguide Support Fixture

Installing the Antenna Adapter on the Antenna

Installing the ODU on the Antenna Adapter

Installing the Hybrid coupler on the Antenna Adapter

Installing the OMT

Installing the ODU on the OMT

Installing ODU Cables

Installing IF Cable

Installing the PGND Cable of the ODU

Installing the Surge Protector and Its PGND Cable (Optional)

Grounding the IF Cable

Installation Check

Items to be Checked for the Antenna, Hybrid Coupler, and ODU

Items to be Checked for Separate Mounting Components

Items to be Checked for the ODU Cables

Parts Replacement

Replacing the ODU

Replacing the Hybrid coupler

Appendix

Terminating the IF Cable with the N Connectors

Terminating the IF Cable with the TNC Connectors

Waterproofing Outdoor Connectors

BNC Voltage (for RSSI) and Receive Signal Level Look Up Table

Safety Precautions

This document is intended to provide guidelines for hardware quick installation.

Thunderstorm

Do not perform operations on towers or poles with high voltage and AC power

during thunderstorms.

Working at Heights

When working at heights, be careful about objects falling down from a height.

Hoisting Heavy Objects

When heavy objects are hoisted, do not stand or walk under the boom or the

objects.

Microwave

High power radio-frequency signals are harmful to human body. Do not stay too

close to the antenna in the emitting direction of the antenna when the microwave

communication equipment is working. When installing or maintaining an antenna

on the tower or pole installed with more than one antenna, avoid the strong

radiation from the other antennas.

IF Cable

Before installing or removing an IF cable, turn off the ODU power switch.

Installation Tools

Tape measure

Philips

Screwdriver Flat-head

Screwdriver

Adjustable

Wrenches

Level carpenters

Socket Wrench Torque Wrench Allen Wrench

Cable Cutter

Diagonal Cutters

Needle-nose Pliers

Pliers

Bayonet Wrench

Utility Knife

Claw Hammer

Marker Pen

Ladder

Compass

Lifting Rope

Lifting Hook

Antistatic Gloves

Multimeter PVC TapeFile Waterproof

Insulation Tape

Antenna interface

Extension tributary interface

Main tributary interface

Front

Top

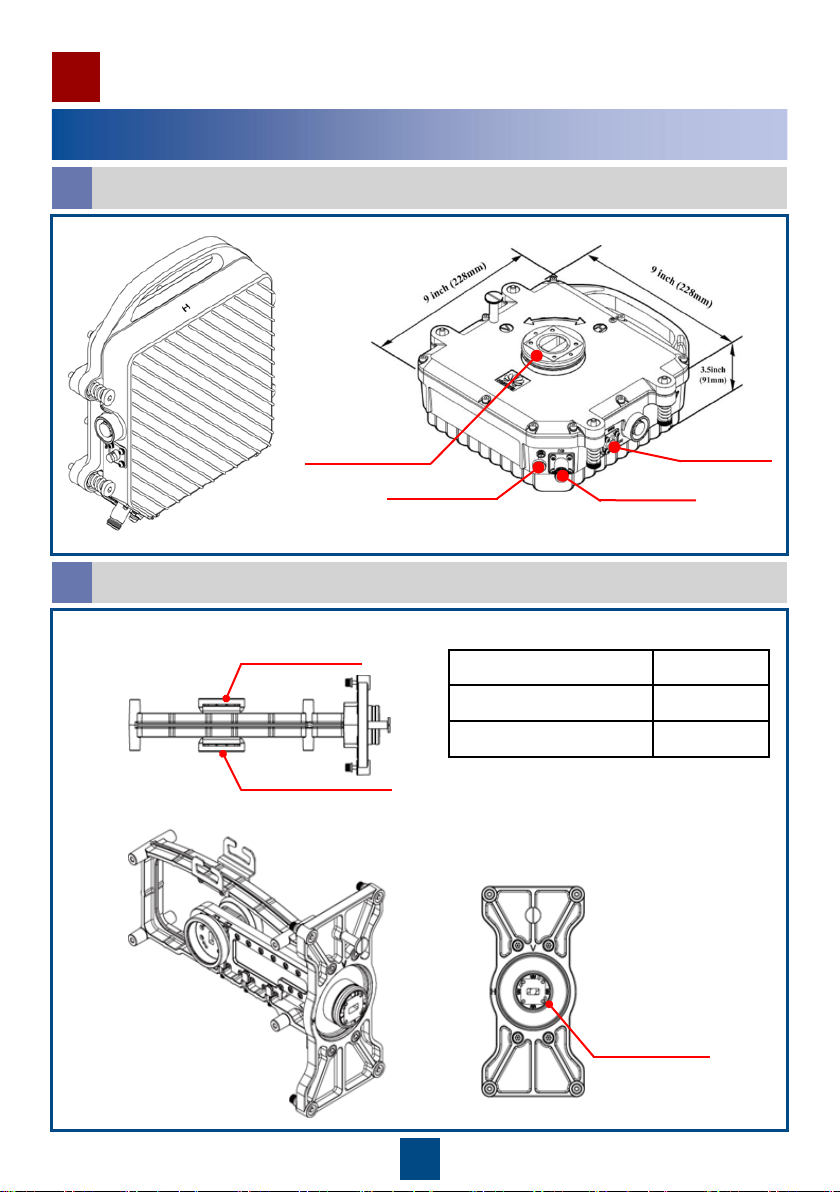

b Appearance and Interfaces of the Hybrid Coupler

a Appearance and Interfaces of the ODU

Components of the ODU

Installing the ODU

Grounding screw IF interface

Antenna interface RSSI interface

Interface Name Interface Label

Main tributary interface MAIN

Extension tributary interface STD BY

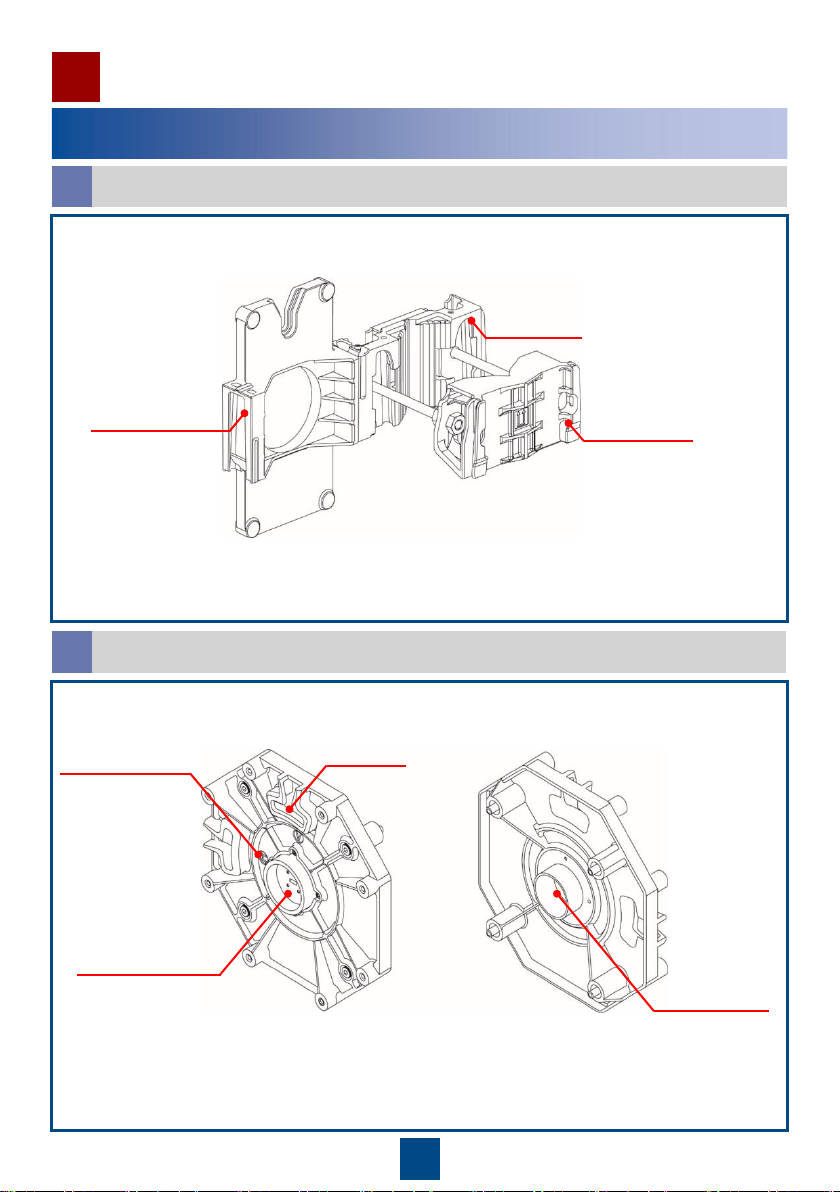

c Appearance of the ODU Separate Mounting Bracket

Components of the ODU

Main bracket

Auxiliary bracket

Transfer component

d Appearance of the Antenna Adapter

Polarization identifier

Interface on the ODU/

hybrid coupler side

Guide trough

Interface on the

antenna side

Installing the ODU

Components of the ODU

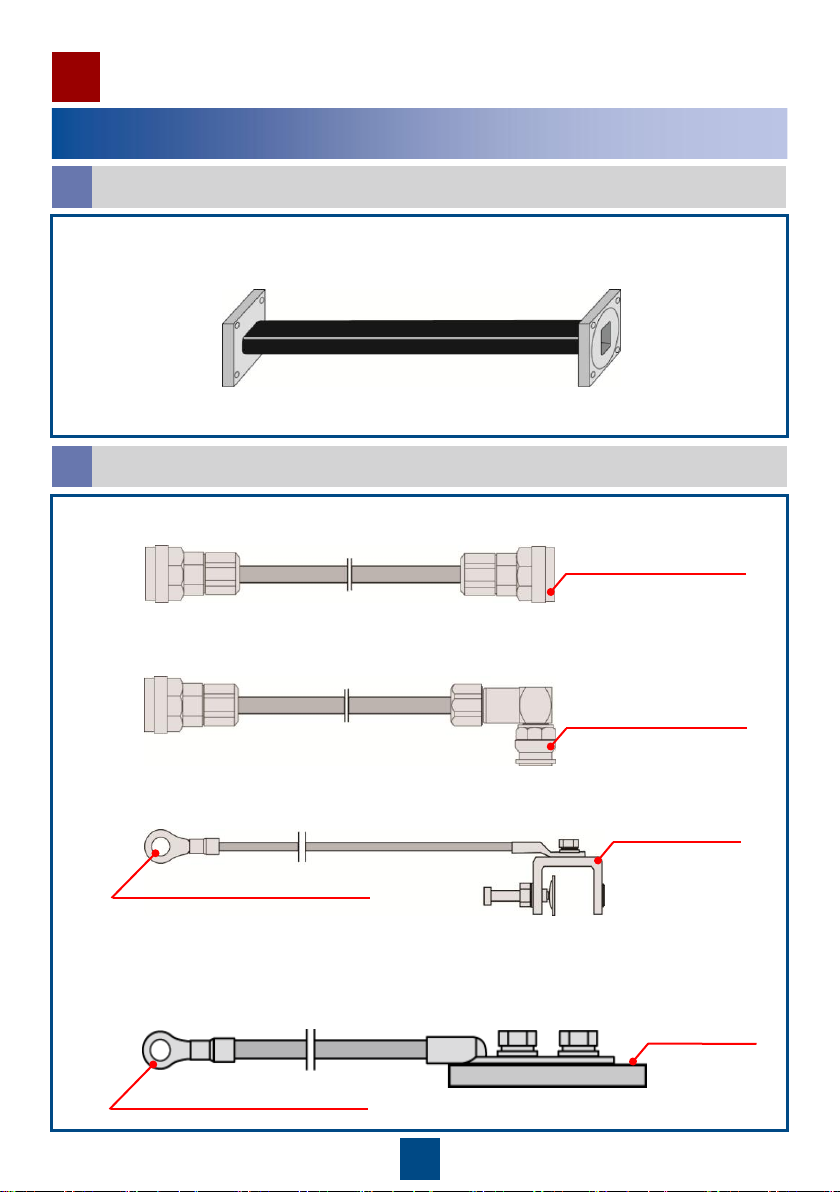

f Cables

RG-8U cable or 1/2-inch cable

5D cable

RF coaxial cable connector,

N-type, male

RF coaxial cable connector,

TNC-type, male

Grounding bar

Naked crimping connector (OT type)

PGND cable of the ODU

e Appearance of the Flexible Waveguide

Installing the ODU

PGND cable of the ODU(NA)

Naked crimping connector (OT type)

Grounding clip base

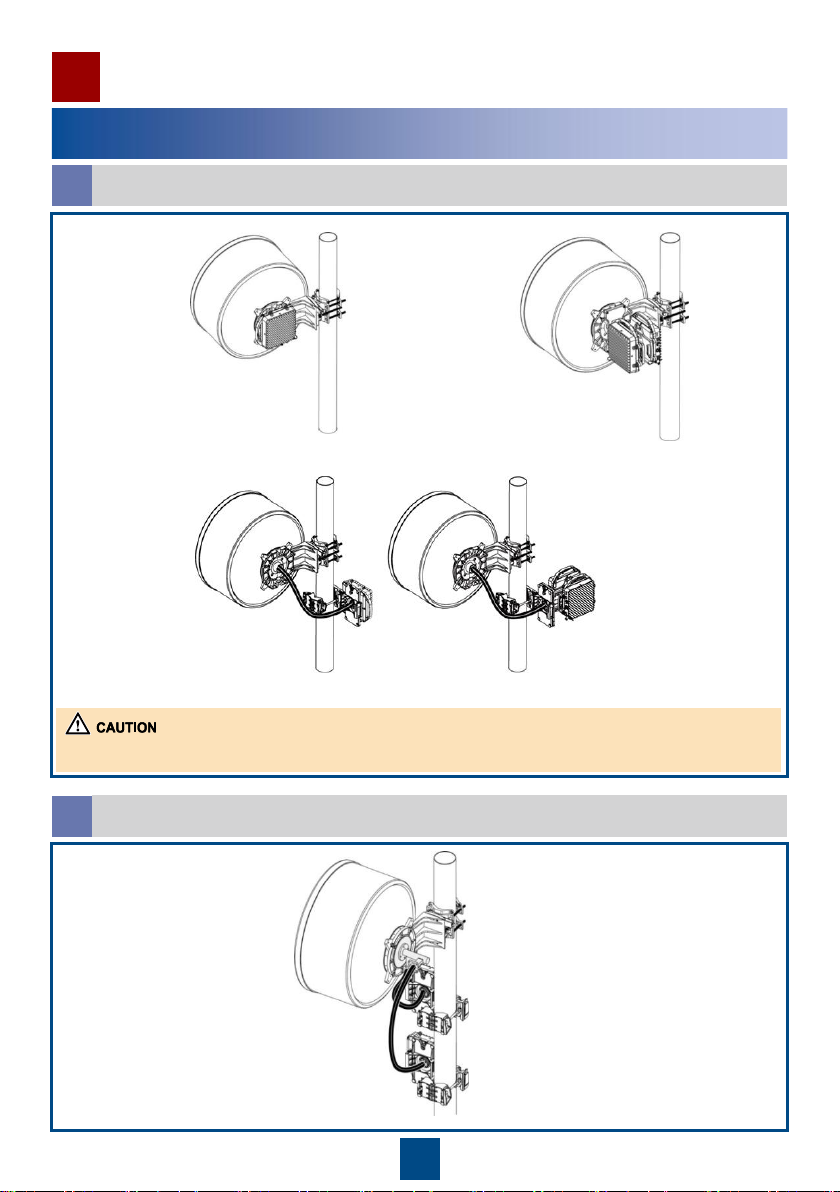

a Installing the ODU on a Single-Polarized Antenna

Installation Scenarios

b Installing the ODU on a Dual-Polarized Antenna

One ODU installed on one antenna Two ODUs installed on one antenna

1. Direct Mounting Mode

2. Separate Mounting Mode

Installing the ODU

One ODU installed on one antenna Two ODUs installed on one antenna

Use a hybrid coupler adaptive to the XMC ODU if two ODUs are configured with only one antenna installed in direct-mounting

mode.
