Huawei B311s-220 Manuale utente

Quick Start

1Product overview

Power indicator Network status indicator

Wi-Fi®indicator LAN/WAN indicator

Signal strength indicator SIM card slot

WPS button Power button

Reset button Power input

LAN/WAN port Landline phone port

2Getting started

Step 1: Installing the SIM card

Choose the correct SIM card and insert it into the SIM card slot as

shown in the preceding diagram and then connect the power adapter

to the router. The router will turn on automatically and search for

available mobile networks.

Indicators：

Cyan/blue/yellow: Connected to an LTE/3G/2G

network.

White: More signal bars indicate a stronger signal.

Note：

Do not insert or remove a SIM card when the router is running, as

this may damage the SIM card.

Step 2: Connecting to your router's Wi-Fi network

Wi-Fi Name: ................

Wi-Fi Password: ..........

abcdefg

XXXXXXXX

Wi-Fi Password:

YYYYYYYY

Once the router has connected to a mobile data network, you can

connect your computer or mobile phone to the router's Wi-Fi network to

access the Internet. Please refer to the label on the bottom of the

router for the default Wi-Fi network name (Wi-Fi Name) and password

(Wi-Fi Password).

Note:

When the indicator is steady on, Wi-Fi is enabled. To

enable or disable Wi-Fi, refer to the router's web-based

management page.

Ensure that you promptly change the Wi-Fi network name and

password on the web-based management page to prevent

unauthorized access to your Wi-Fi network. Once you have

changed the password, you will need to reconnect to the router's

Wi-Fi network.

3Managing your router

You can manage the router using the web-based management page.

Please refer to the label on the bottom of the router for the default IP

address, password and so on.

More information can be found in the web-based management page.

Note:

Ensure that you promptly change the default login password

for the web-based management page to prevent

unauthorized users from changing the router's settings.

You can also manage your router using the HUAWEI

SmartHome app. Scan the QR code below to download.

4Optional configurations

The features described in this section are for reference purposes only.

Your router may not support all of these features.

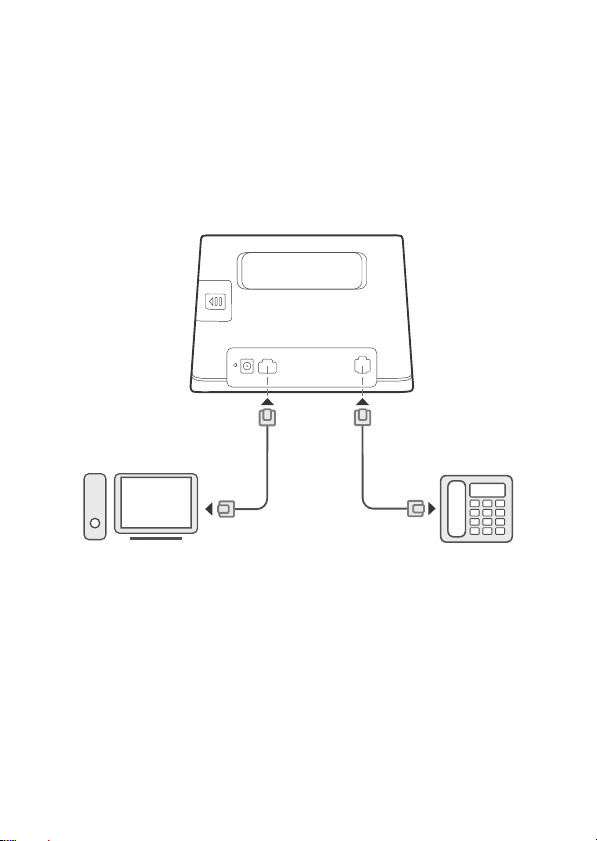

Connecting multiple devices

You can connect a computer, or landline phone to the router to access

the Internet, make telephone calls, and more.

Accessing the Internet through an Ethernet port

You can connect the router to a wall-mounted Ethernet port using an

Ethernet cable to connect to the Internet.

Configure the relevant settings on the web-based management page

before connecting to the Internet through an Ethernet port. For details,

please contact your carrier.

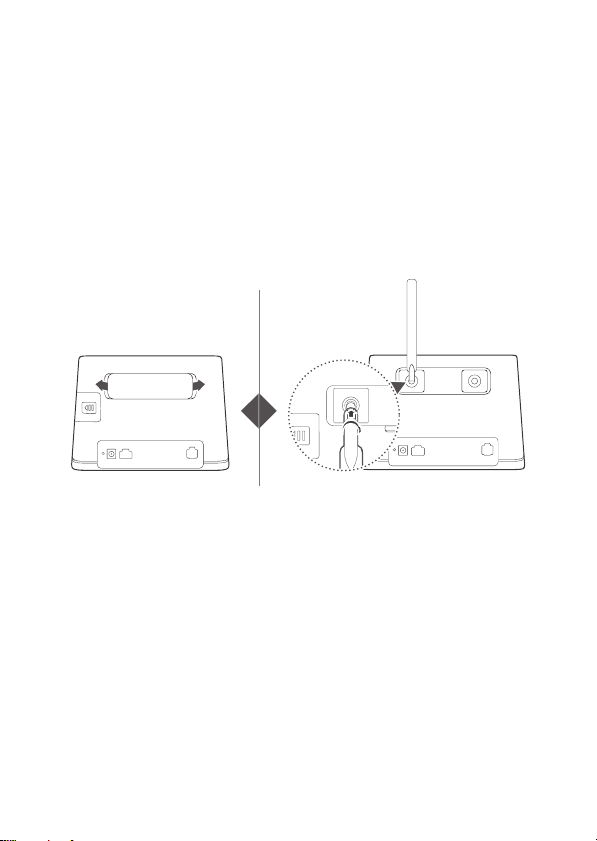

Installing external antenna

In addition to the build-in antenna designed to satisfy your basic needs,

you can also install external antenna to the router to improve signal

reception. Please contact your carrier to purchase the antenna.

Note:

Turn off the router and unplug the power adapter before installing

any external antenna.

External antenna is only suitable for indoor use. Do not use

external antenna during thunderstorms.

Only use external antenna provided by your carrier.

5FAQs

How do I restore factory settings?

When the router is turned on, press the reset button for approximately

3 seconds using a pointed object until the indicator starts to blink.

Restoring factory settings will restore the settings to the default. You

can reconfigure them after the router is restored.

What should I do if I forgot the Wi-Fi password or the login

password for the web-based management page?

Restore the router to its factory settings and then use the default Wi-Fi

password and login password to try again.

What should I do if the indicator is red or an Internet

connection cannot be established?

1. Check if the SIM card is inserted. Refer to the Getting started section

for the right size of SIM card and the right way to insert it into the slot.

2. If the issue persists, restore the router to factory settings and try

again.

3. Contact your carrier to check if your SIM card is out of service. If it's

a new card, check if it has been activated.

What should I do if the Internet speed is slow?

1. Check the signal indicator on the router. If it shows weak

signal, adjust the router’s direction or move it close to a window to

improve signal reception.

2. If your device is connected to the router over Wi-Fi, adjust your

device’s position to receive better signal.

3. Restart the router and your device, and try again.

4. Check if you have reached your data traffic limit for the month. If so,

your carrier may limit your Internet speed.
