Huawei E586BS-6 Manuale utente

Smart Device Simple World

Thank you for choosing HUAWEI Mobile WiFi

Supported functions and actual appearance depend on the specific models you purchased.

The illustrations are provided for your reference only. For details about the model you

selected, consult your service provider.

This guide briefly describes the functions of the Mobile WiFi. For details about how to set

management parameters, see help on the web management page.

THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOSE NOT CONSTITUTE

ANY KIND OF WARRANTIES.

Getting to Know HUAWEI Mobile WiFi

Connection Scenarios

A Wi-Fi device or computer can be connected to the Internet through the Mobile WiFi. The

actual connection procedure depends on the operating system of the Wi-Fi device or

computer. The connection scenarios illustrated here are for your reference.

Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB

Smart phone Game machine

Digital camera

Laptop

Scenario 3: Multi-device access via Wi-Fi and USB at the same time

Smart phone Game machine

Digital camera

Laptop

Appearance

No. Item

1 Screen

2 WPS button

3 Power button

4 USB port

5 microSD card slot

6 Battery button

7 Strap hole

0B 00:00

Screen

No. Item

1 Signal strength

2 Network

3 Wi-Fi enabled

Number of devices connected

4 Internet connection status

5 New messages

Number of new messages

6 Battery level

7 International roaming state

8 Traffic data

Connection duration

Note:

Wi-Fi: Wireless fidelity

WPS: Wi-Fi protected setup

Traffic statistics are for your reference only. To obtain the actual traffic data, contact

your service provider.

Before You Start

Installing the SIM Card and the Battery

Caution: Do not use any SIM card that is not standard or

is incompatible with the Mobile WiFi. Otherwise, the

Mobile WiFi may be damaged.

Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction,

as shown in figure 2, and then slide the SIM card into the slot.

1234

Installing the microSD Card

1. Remove the rubber cap from the microSD

card slot. Then insert the microSD card into

the slot.

2. After inserting the microSD card completely, attach the rubber cap.

Note:

The microSD card is an optional accessory. If a microSD card did not come with your

Mobile WiFi, you may purchase one yourself.

To remove the microSD card, press in the card gently. The microSD card will pop out

for removal.

Do not remove the microSD card when it is in use. Doing so may damage the card

and the Mobile WiFi, and data stored on the card may be lost.

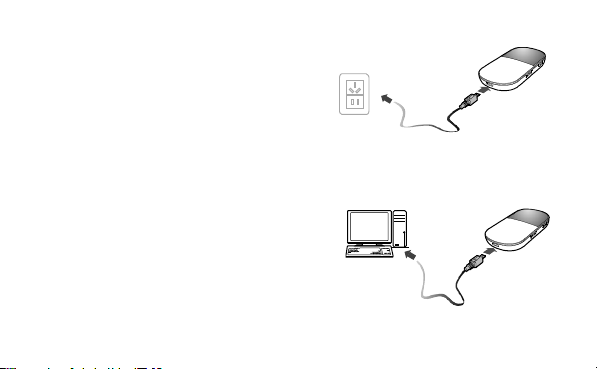

Charging the Battery

Note: If the battery has not been used for a long

time, it must be charged first.

Method 1: Using the charger

Caution: Only use chargers compatible with the Mobile WiFi and provided by a

designated manufacturer. Use of an incompatible charger or one from an unknown

manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire.

Such use voids all warranties, whether expressed or implied, on the product.

Method 2: Connecting to a PC for charging

Connect the Mobile WiFi to a PC using a

compatible data cable.

POWER

Accessing the Internet via Wi-Fi Connection

Note: By default, management parameters are preset on the Mobile WiFi according to the

requirements of the service provider. Follow the steps below to quickly access the Internet.

For the details about how to set management parameters, see help on the web

management page.

Step1: Power on the Mobile WiFi

Press and hold

POWER

until the screen lights up. The

Mobile WiFi is powered on.

Note: Press and hold

POWER

to power off the Mobile

WiFi.

Step2: Establish a Wi-Fi Connection (Take a computer with Windows® XP

operating system as an example)

1. Make sure that the Wi-Fi is enabled.
