Huawei EchoLife EG8245H5 Manuale utente

EchoLife EG8245H5

Quick Start for QR code

Issue 05

Date 2022-11-02

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees

or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every eort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: https://www.huawei.com

Email: [email protected]

Contents

1 Placing the Device................................................................................................................... 1

2 Connecting Cables................................................................................................................... 3

3 Indicator Description.............................................................................................................. 5

4 Technical Specications......................................................................................................... 7

5 FAQs............................................................................................................................................ 8

EchoLife EG8245H5

Quick Start for QR code Contents

1 Placing the Device

NO TE

● Do not install the ONT outdoors or in an outdoor cabinet.

● The ONT can be mounted onto a wall or placed on a desk. Do not install the ONT in

other modes, such as ceiling.

● Keep 10 cm clearance on all sides to ensure adequate ventilation.

● It is recommended that the computer and ONT be put far away from electric appliances

that generate strong magnetic or electric elds, such as microwave ovens.

Mounting an ONT on the desk

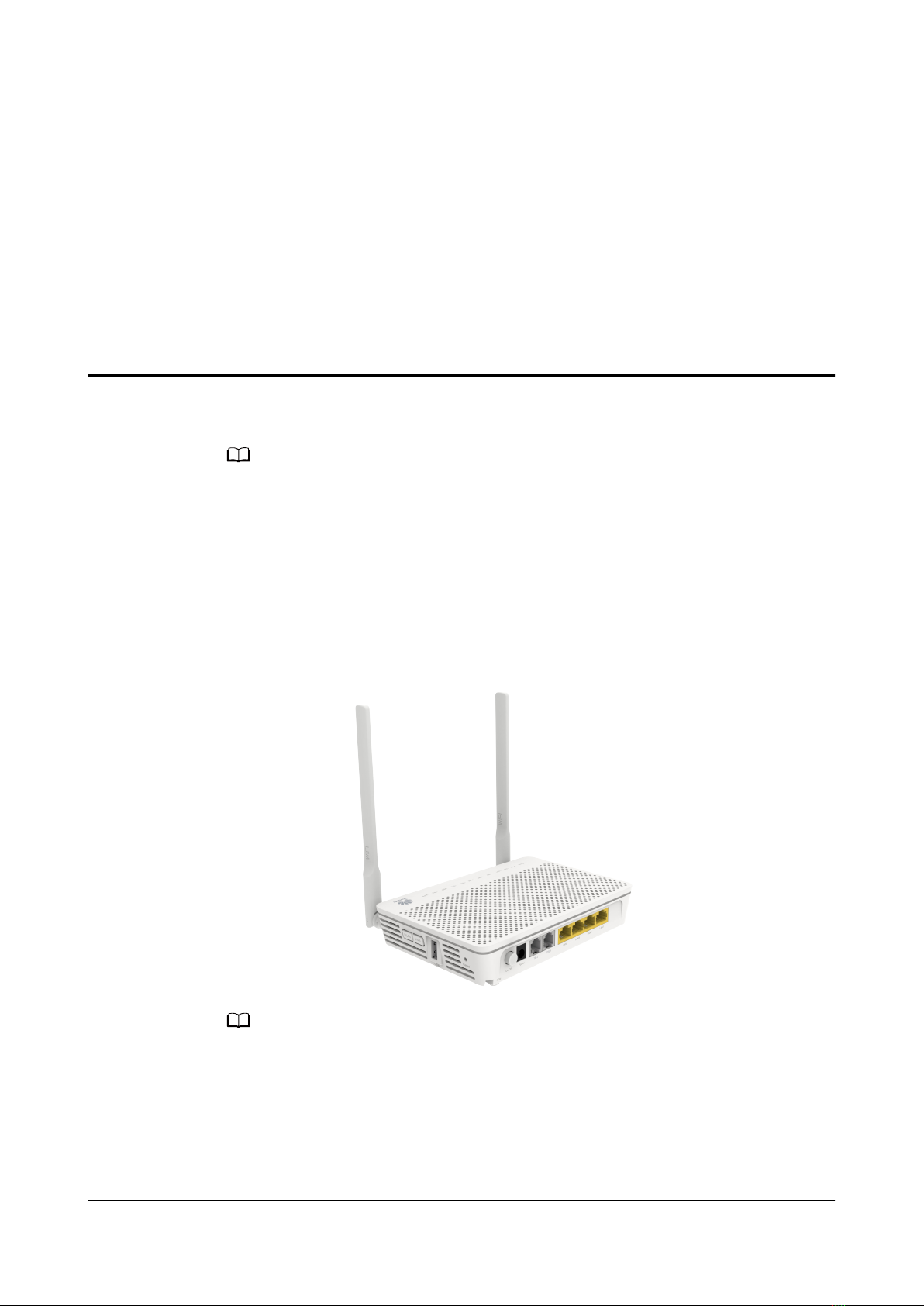

The gure below shows an ONT that is horizontally placed on a desk.

NO TE

The appearance shown in this document may be dierent from the actual appearance of

the product. The actual product prevails.

Mounting an ONT onto the wall

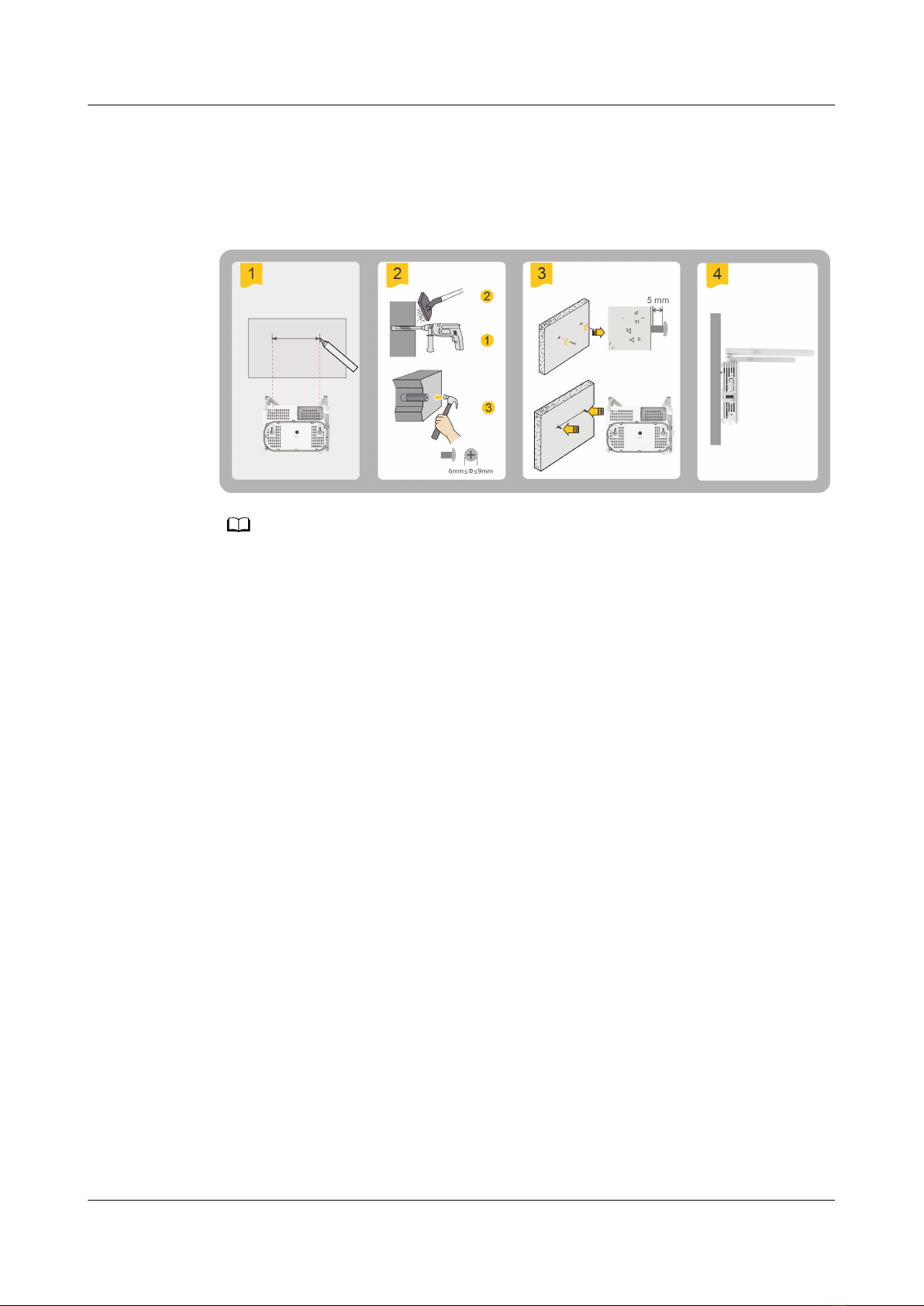

1. Mark two positions with the same spacing as that between the two mounting

holes of the ONT using a marker on a wall.

EchoLife EG8245H5

Quick Start for QR code 1 Placing the Device

2. Select a proper drill bit according to the outer diameter of the screws. Use a

hammer drill to drill the marked positions on the wall. Then clean the holes

and install two expansion bolts.

3. Use a screwdriver to fasten the screws into the expansion bolts, reserving 5

mm ends out of the wall, and mount the ONT onto the screws.

NO TE

It is recommended that the screw be about 4 mm in diameter and longer than 20 mm.

EchoLife EG8245H5

Quick Start for QR code 1 Placing the Device

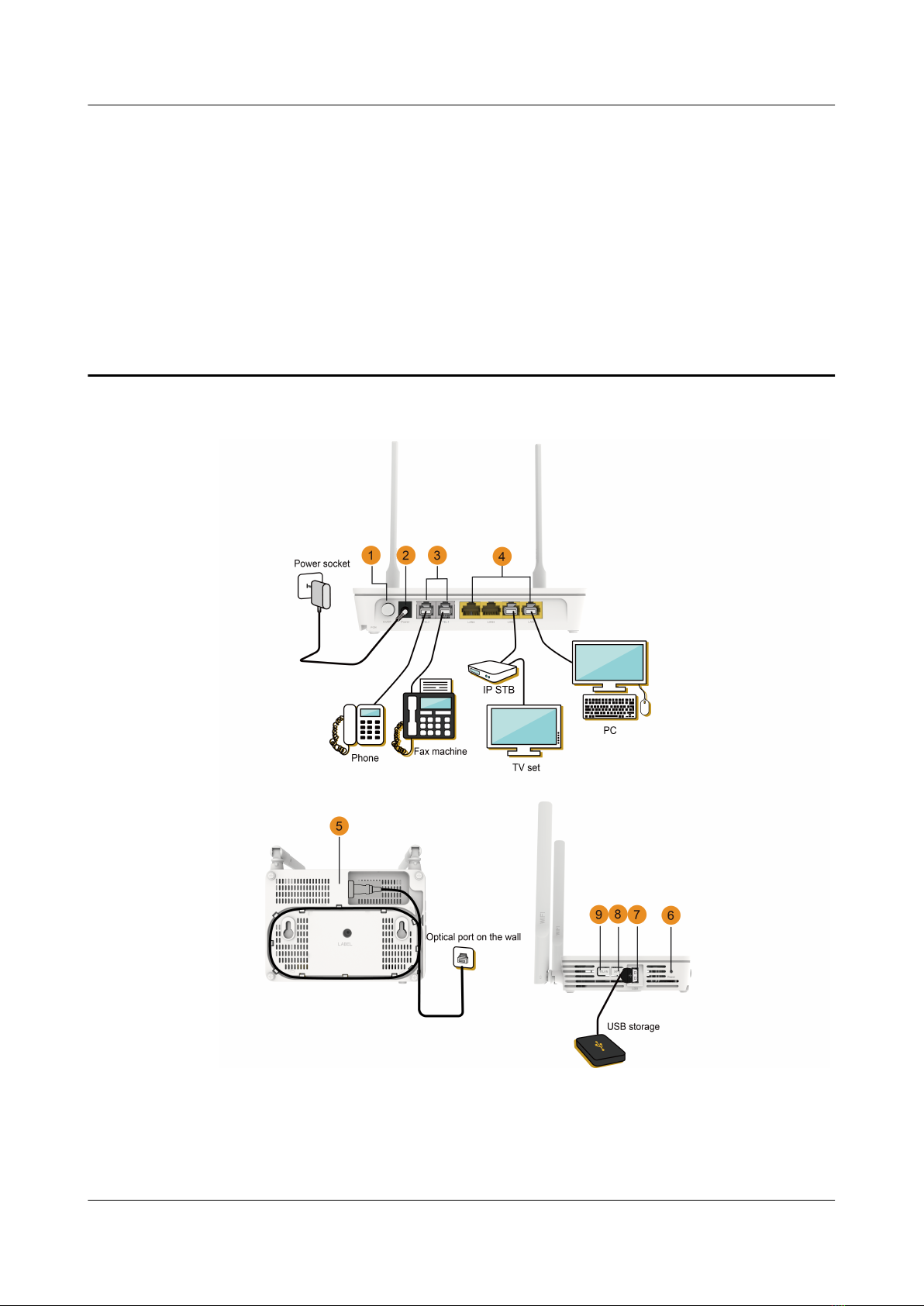

2 Connecting Cables

EchoLife EG8245H5

Quick Start for QR code 2 Connecting Cables

NO TE

● The ber connector connected to the optical port on the wall varies depending on

actual conditions.

● To ensure normal use of bers, make sure that the ber bending radius is larger than 30

mm.

No. Item Description

1On/O Powers the ONT on or o.

2 Power Connects to a power adapter.

3 TEL1-

TEL2

Connects to the ports on a telephone or fax machine.

4 LAN1-

LAN4

Connects to PCs or IP set-top boxes (STBs).

5 Optical

port

The optical port is equipped with a rubber plug and

connected to a ber for upstream transmission.

The type of the optical connector connected to the optical

port can be SC/APC.

6 Reset Press the button for a short time to reset the device; or press

the button for a long time (longer than 10s) to restore the

device to the default settings and reset the device.

NOTE

Reset Huawei ONTs with caution. Otherwise, the ONTs may fail to

access the Internet. If an ONT cannot access the Internet after a

reset, contact your Internet service provider.

7 USB Connects to USB storage devices.

8 WPS When the WLAN is on, press the WPS button (> 3s) and

release the button to start Wi-Fi protected setup (WPS)

negotiation.

9 WLAN Used to enable or disable the WLAN function

- When the WLAN is disabled, press the WLAN button (> 3s)

and release the button to enable the WLAN.

- When the WLAN is enabled, press the WLAN button (> 3s)

and release the button to disable the WLAN.

EchoLife EG8245H5

Quick Start for QR code 2 Connecting Cables

3 Indicator Description

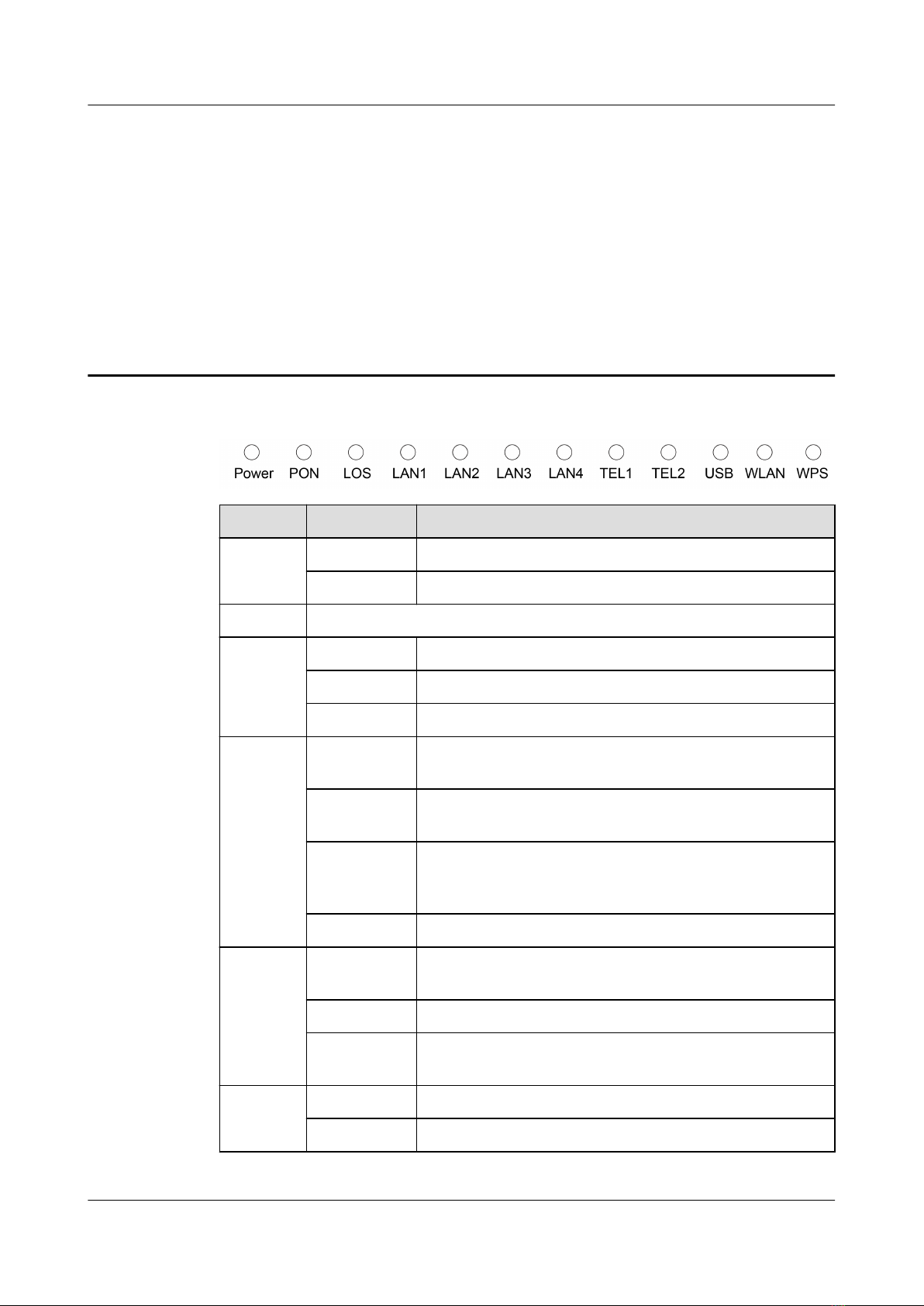

Indicator Status Description

Power Steady on The ONT is powered on.

O The power supply is cut o.

PON/LOS See the following table.

LAN1-

LAN4

Steady on The Ethernet connection is in the normal state.

Blinking Data is being transmitted over the Ethernet port.

O The Ethernet connection is not set up.

TEL1-

TEL2

Steady on The ONT is registered with the softswitch but no

service ows are transmitted.

Blinks twice

a second

The ONT is registered with the softswitch, and data is

being transmitted on the port.

Blinks once

every 2

seconds

The ONT fails to be registered with the softswitch.

O The POTS port is disabled.

USB Steady on The USB port is connected and working in the host

mode, but no data is transmitted.

Blinking Data is being transmitted on the USB port.

O The system is not powered on or the USB port is not

connected.

WLAN Steady on The WLAN function is enabled.

Blinking Data is being transmitted over the WLAN port.

EchoLife EG8245H5

Quick Start for QR code 3 Indicator Description

Indicator Status Description

O The WLAN function is disabled.

WPS Steady on The WPS function is enabled.

Blinking A Wi-Fi terminal is accessing the system.

O The WPS function is disabled.

Statu

s No.

PON

Status

LOS

Status

Description

1O O The ONT is prohibited by the upper-layer

device or blinks abnormally. Contact the

service provider for help.

2 Blinks

twice a

second

Blinks

twice a

second

3 Blinks

twice a

second

O The ONT attempts to set up a connection

with its upper-layer device.

4 Steady on O A connection is set up between the ONT and

its upper-layer device.

5O Blinks

once every

2 seconds

The ONT is not connected to bers or does

not receive optical signals.

6 Blinks once

evey 2

seconds

Blinks

once every

2 seconds

The hardware is faulty.

EchoLife EG8245H5

Quick Start for QR code 3 Indicator Description

4 Technical Specications

Product Function

EG8245H5 ● 4 Ethernet ports

● 2 POTS ports

● 1 USB port

● 2.4 GHz Wi-Fi

● Power adapter input: See the nameplate on the adapter.

● System power supply: See the nameplate on the device.

● Ambient temperature: 0ºC to +40ºC

● Ambient humidity: 5%–95% (non-condensing)

● Dimensions (H x W x D): 30 mm x 168 mm x 115 mm (without external

antenna and pads)

● Weight: About 230g

● Maximum system power consumption: 12 W

NO TE

The weight and power consumption of dierent versions varies slightly.

EchoLife EG8245H5

Quick Start for QR code 4 Technical Specications
