HUAWEI SVN5630/5660/5830/5850

V200R003

Quick Start

Issue: 02

Part Number: 31507272

Date: 2015-06-18

Thank you for using Huawei SVN5630/5660/5830/5850 products. This product can serve as a remote access gateway to

provide low-cost SSL VPN services. This document describes the appearance, cabling, and network and basic SSL VPN

conﬁgurations of the device. For detailed hardware description and installation guidelines, refer to the

Hardware Guide

. For

detailed conﬁgurations, refer to the

Administrator Guide

Safety Precautions

Be aware of the following safety precautions when installing the device.

•Deactivate power whenever possible before performing maintenance on power cables.

•Always wear a properly-grounded wrist strap before touching the device or expansion cards in it.

Device and Accessories

Your product package includes the following items:

SVN5800

4 HDD 5 PWR 6 PWR

INPUT OUTPUT

OFF

~100-240V;50/60Hz;2.5A

XXXXXXXXXXXXXXXXXXXXXXXXXXX

SM-HDD-SAS300G-B

SVN5800

0 1 2 3 4 5 6 7 8 9 10 11

RST

SYS

ALM

PWR

HDD

MGMT

MODE

0/1 2

CONSOLE

MGMT

WSIC(Slot 3)

WSIC(Slot 2)

4 HDD 5 PWR 6 PWR

4x1GE SFP

Rubber feet

Management

port

Console port

ESD jack

Protection ground

terminal

Power socket

PGND cable

Power cable

retention clip

Quick start

screw

Rack-mounting ears

AC power cable

screw

Equipment

Serial Number

10/100/1000M autosensing

Ethernet electrical port

0/1 2

Front panel

Rear panel

The ﬁgure above uses the SVN5660/5830/5850 as an example. The ﬁxed interface board on the front panel provides 8

10/100/1000M autosensing Ethernet electrical ports, 4 GE optical ports, and 2 USB ports. The power module on the rear pan-

el is removable. For the SVN5630, the ﬁxed interface board on the front panel provides 6 service ports (4 GE electrical ports

and 2 combo ports) and 1 USB port, and the power module on the rear panel is non-removable.

AC power cables vary by country or area, and the AC power cable in the ﬁgure is used for reference only.

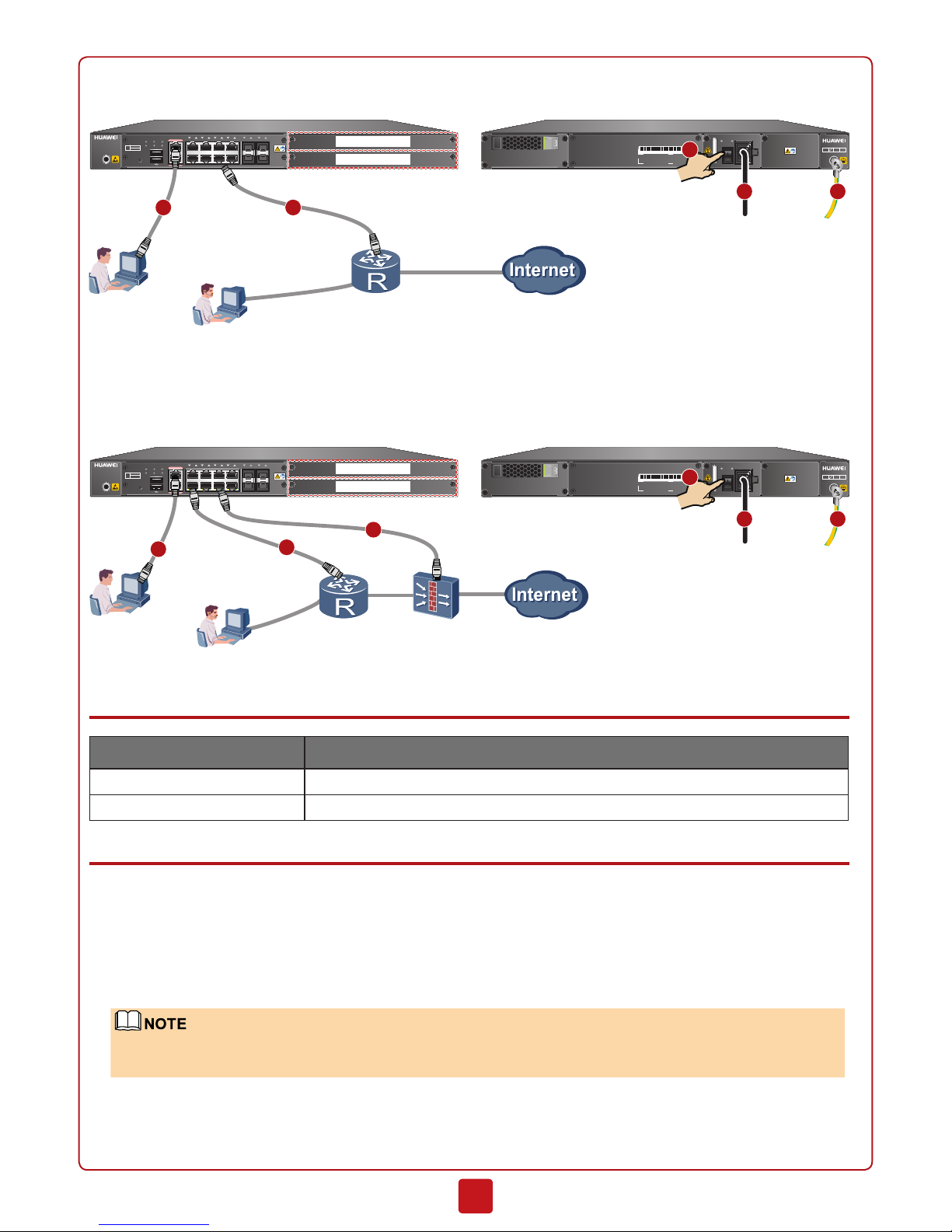

Cabling

•One-armed mode: Connect the device to a router or ﬁrewall out-of-path. This mode requires fewer

ports and does not change existing network topology.

1. Connect the ground terminal on the device to the ground bar using a PGND cable.

2. Connect port GE1/0/4, for example, to a router or firewall.

3. Connect the device's MGMT port to a PC where the NMS client is installed using a network cable.

4. Insert the cable retention clip into the hole close to the power socket. Then insert the power cable into the socket, and fix

it using the clip.

5. Turn on the power switch. When the SYS indicator on the front panel is blinking (once every two seconds), the device is

running and ready for configuration.

SVN5800

4 HDD 5 PWR 6 PWR

INPUT OUTPUT

OFF ~100-240V;50/60Hz;2.5A

XXXXXXXXXXXXXXXXXXXXXXXXXXX

SM-HDD-SAS300G-B

SVN5800

0 1 2 3 4 5 6 7 8 9 10 11

RST

SYS

ALM

PWR

HDD

MGMT

MODE

0/1 2

CONSOLE

MGMT

Front panel Rear panel

Administrator

WSIC(Slot 3)

WSIC(Slot 2)

4 1

Router or Firewall

Intranet

GE1/0/4

GE0/0/0

•Two-Armed Mode: Connect one port to the router and another (uses the pre-NAT virtual gateway

address) to the ﬁrewall.

The SVN is connected to both the intranet (router or core switch) and Internet (the ﬁrewall).

SVN5800

4 HDD 5 PWR 6 PWR

INPUT OUTPUT

OFF ~100-240V;50/60Hz;2.5A

XXXXXXXXXXXXXXXXXXXXXXXXXXX

SM-HDD-SAS300G-B

SVN5800

0 1 2 3 4 5 6 7 8 9 10 11

RST

SYS

ALM

PWR

HDD

MGMT

MODE

0/1 2

CONSOLE

MGMT

Front panel Rear panel

Administrator

GE0/0/0

WSIC(Slot 3)

WSIC(Slot 2)

4 1

Intranet

GE1/0/4

GE1/0/0

Default Conﬁguration

Item Description

MGMT (management port) The MGMT port is numbered GE0/0/0 and assigned with IP address 192.168.0.1.

Administrator account/password You can use the default account/password (admin/Admin@123).

Use the Web conﬁguration wizard to complete basic network conﬁguration.

1. Set the IP address to 192.168.0.2 (or any other in the range of 192.168.0.2 to 192.168.0.254) and subnet mask to

255.255.255.0 of the corresponding network interface on the administration PC.

2. Open a web browser and navigate to https://192.168.0.1:8443.

3. Enter the user name (admin) and password (Admin@123) in the login dialog box, and then click Login. You need to

change the user password as instructed after the first login.

4. In the Basic Network Configuration Wizard page that is displayed, select a networking mode according to your cabling

and click Next.

If the Basic Network Conﬁguration Wizard page is not displayed, click the System tab and choose Wizard >

Basic Network Conﬁguration Wizard on the left navigation tree.

5. Select and activate the License file and click Next. To obtain the License file, refer to

License Application Guide

6. Configure the interfaces. In one-armed mode, configure the service interface (GE1/0/4 in the cabling figure); in two-armed

mode, configure the inside interface (GE1/0/0 in the cabling figure) and outside interface (GE1/0/4 in the cabling figure)

and click Next.

7. Verify the configurations and click Next if they are correct.

After basic network conﬁgurations, conﬁgure routes to ensure the connectivity between the SVN and the intranet

and Internet.

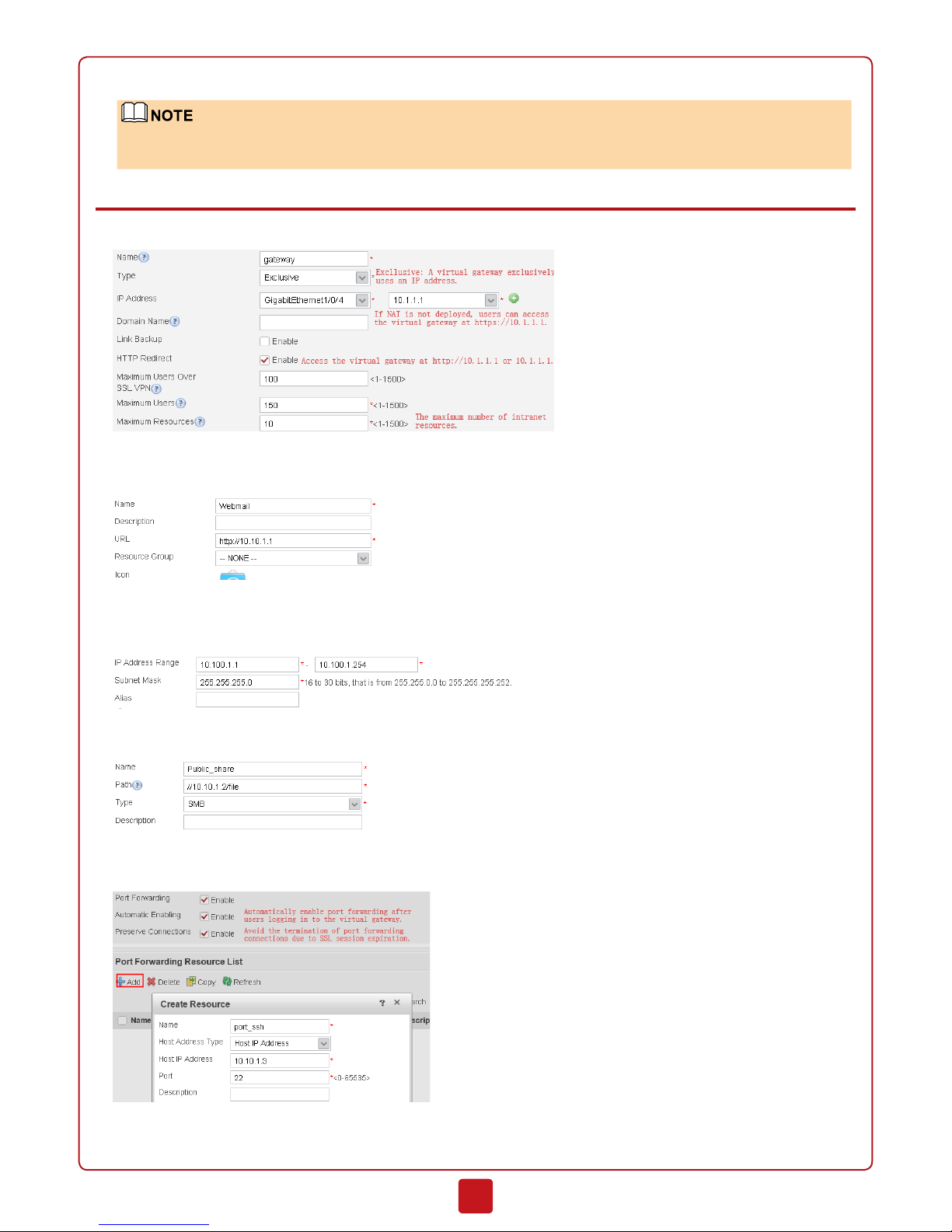

Use the virtual gateway to conﬁgure SSL VPN services (in one-armed mode in this example).

1. Choose Wizard > Virtual Gateway Configuraion Wizard. In Gateway Configuration, set the parameters and click Next.

2. Select necessary services. After a service is enabled, the configuration page of the service will appear in the wizard.

3. (Optional) In Web Proxy, create Web proxy resources and click Next.

4. (Optional) In Network Extension, set the client IP address allocation method to IP Address Pool Mode, create an

IP address pool, and click Next. In this example, the client IP address and the internal server address are on different

subnets. Therefore, you must configure routes on the SVN and router to reach the internal server and client.

5. (Optional) In File Sharing, enable file sharing, create file sharing resources, and click Next.

6. (Optional) In Port Forwarding, enable Port Forwarding, Automatic Enabling, and Preserve Connections, create port

forwarding resources, and click Next.

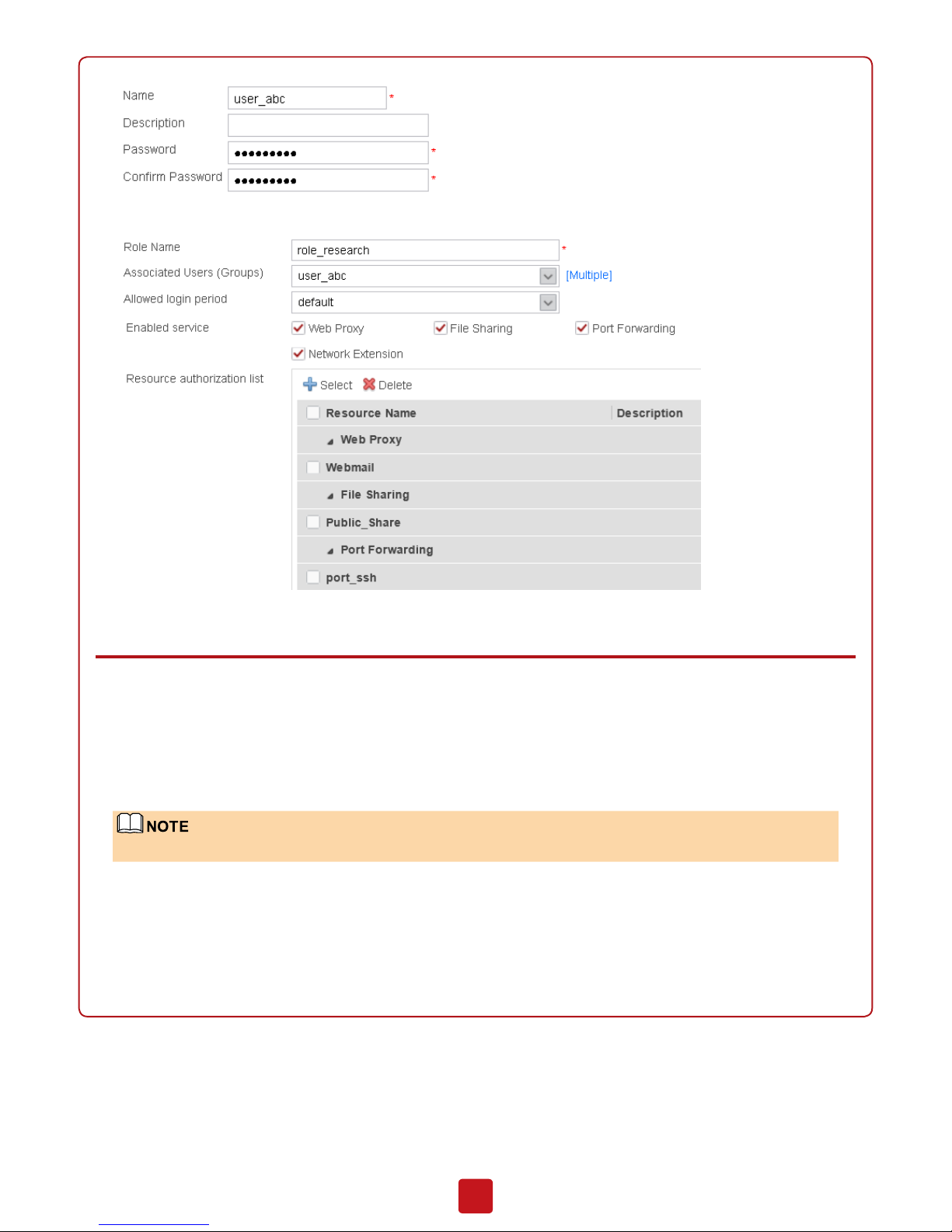

7. In User List, create a local user to access the virtual gateway resources and click Next.

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Industrial Base Bantian Longgang

Shenzhen 518129

People's Republic of China

enterprise.huawei.com

8. In Role Authorization List, create a role to assign SSL VPN service access permissions to user and click Finish.

Now you have completed the basic SSL VPN service conﬁgurations. For more details, refer to the

Administrator Guide

Appendix

•Obtaining Product Documents

The latest documents of all products are published at the technical support website (http://support.huawei.com/enterprise)

of Huawei Technologies Co., Ltd..

•Obtaining Technical Support

Contact your local representative for further information.

The contact information is available at http://support.huawei.com/enterprise.
