Huawei OceanStor HVS85T Manuale utente

Introduction to the OceanStor HVS85T&HVS88T

Overview

This document guides you through a time-saving process for installing a storage system. For details about the

installation, see the OceanStor HVS85T&HVS88T Storage System V100R001C00 Installation Guide.

As a new-generation storage system designed for large-scale enterprise data centers, HUAWEI OceanStor

HVS85T&HVS88T features massive storage capacity, high-speed data access, high data availability, high

storage utilization, environment protection, and ease of use.

OceanStor HVS85T&HVS88T

Storage System V100R001C00

Quick Installation Guide

Issue: 03

Release date: 2014-08-20

Before You Start

Where to get help

Feedback

You can register for a Huawei support account at this website to browse and download valuable information and

Your feedback is important to us. If you have any comments about this document, please submit them to us on

http://support.huawei.com/enterprise.

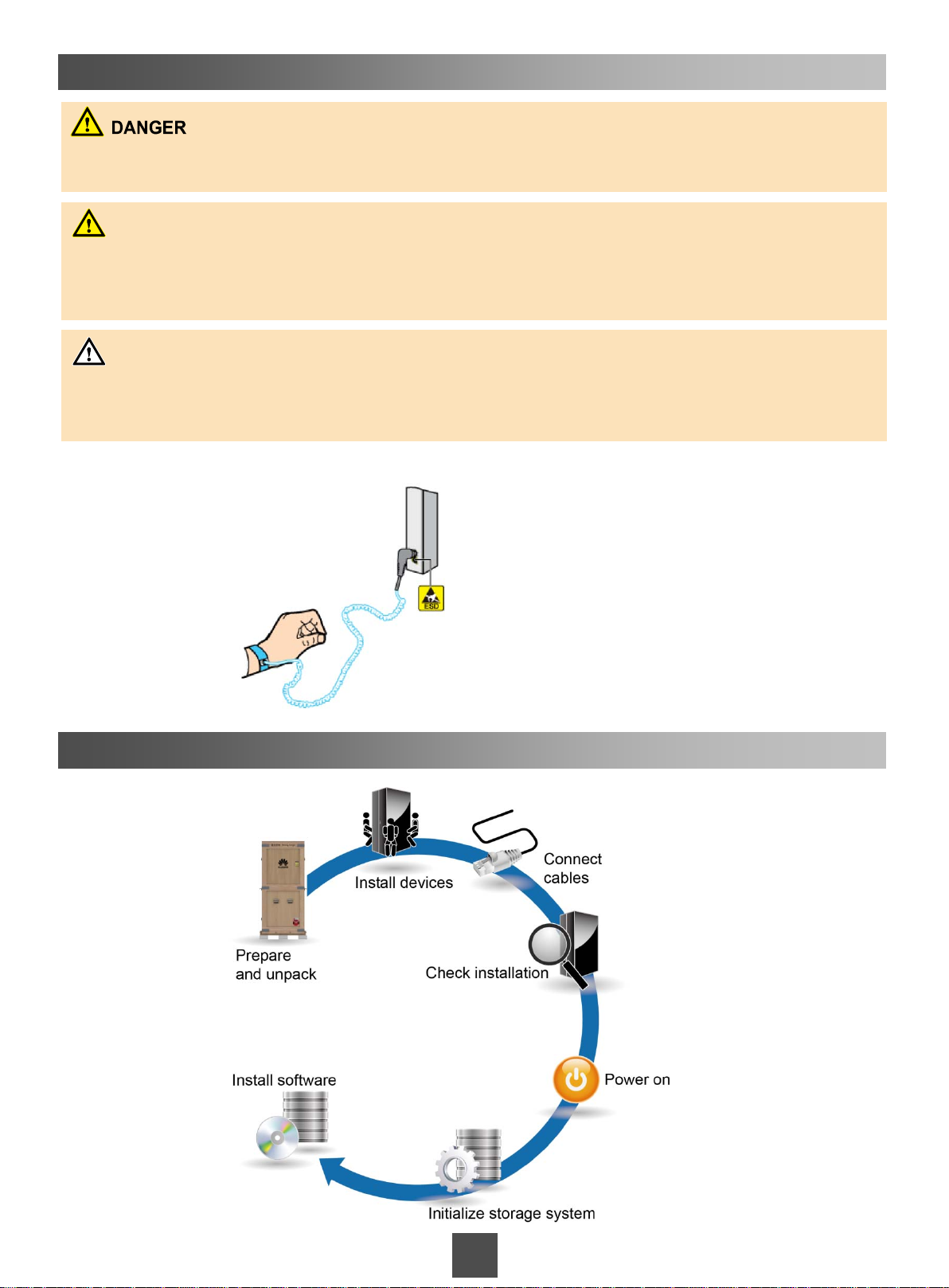

Installation Process

Safety Information

Correct method for wearing an ESD wrist strap whose ground terminal is a plug.

Do not operate devices or handle cables on a stormy day.

To avoid eye injuries, do not look into the optical outlets without eye protection.

Before you handle devices, wear ESD clothes, a pair of ESD gloves, or an ESD wrist strap and

remove conductive objects such as ornaments and watches.

Do not wear an ESD wrist strap during power-on to avoid electric shocks.

To avoid data loss, do not insert or remove hard disks, controllers, expansion modules, or cables

during power-on.

To avoid device damage, ensure that all devices are properly grounded before power-on.

CAUTION

NOTICE

1 Installation Preparations

Checking installation tools

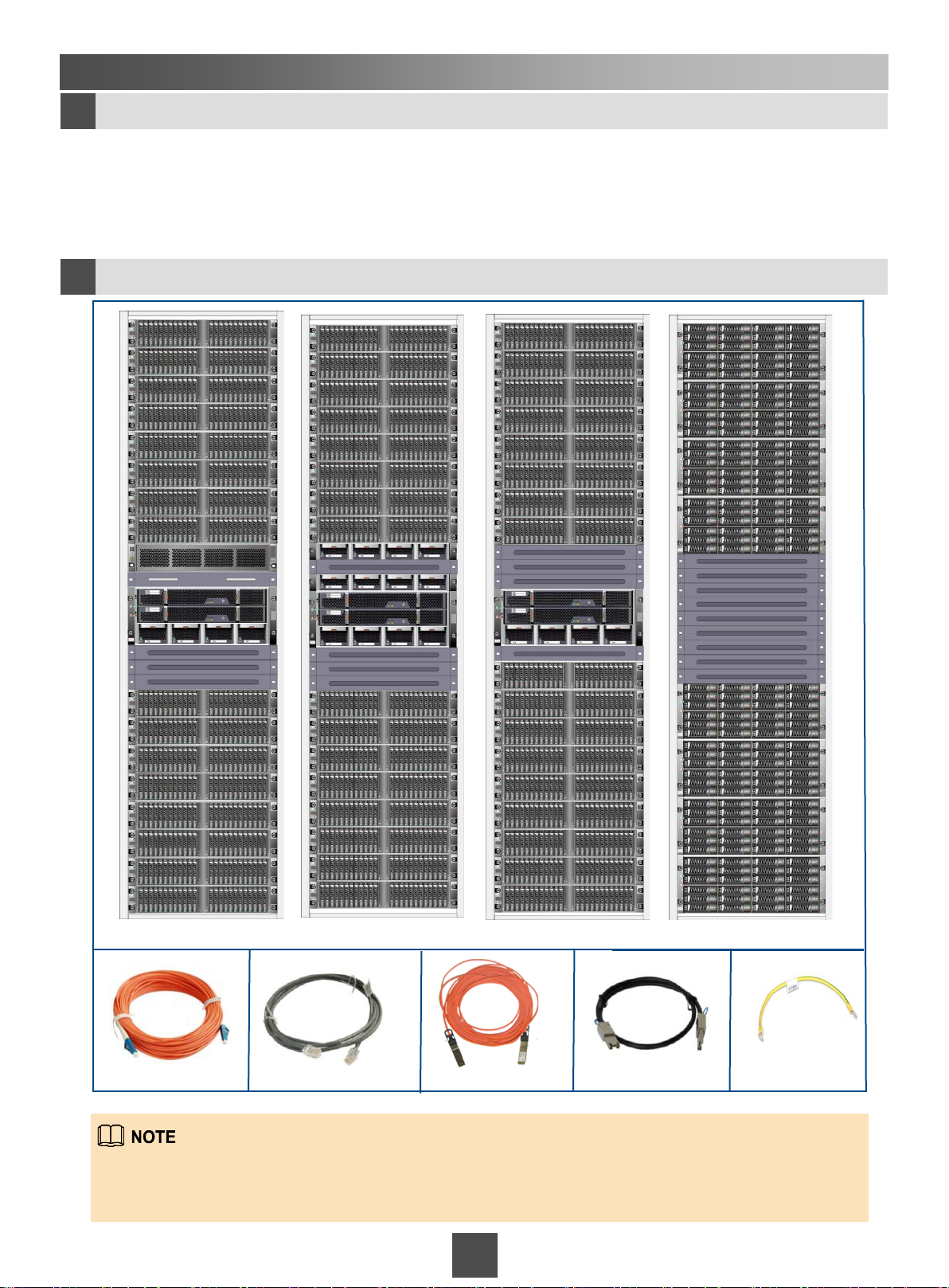

1b Checking components

The following installation tools are required:

Phillips screwdriver (M3 to M6)

Diagonal pliers

Adjustable wrench

mini SAS cable

Network cable

Ground cable

The materials delivered to you vary depending on the disk configuration and the quantity of

system bays specified in your order.

For information about the full list of required components, see the Packing List.

AOC cable

System bay 0 System bay 1 System bay 2 to 7 Disk bay

Multi-mode optical

fiber cable

Planning positions of bays on the floor

2 Planning Installation Positions (on Raised Floor)

Configuration HVS85T HVS88T

Full

configuration

2.5-inch disks: four system bays

3.5-inch disks: four system bays and two

disk bays

2.5-inch disks: eight system bays

3.5-inch disks: eight system bays and

two disk bays

Single system

bay

One engine

System bays 0 and 1: up to sixteen 2 U disk enclosures (with 2.5-inch disks) or eight 4 U

disk enclosures (with 3.5-inch disks)

Other system bays: up to seventeen 2 U disk enclosures (with 2.5-inch disks) or eight 4 U

disk enclosures (with 3.5-inch disks)

One 2 U SVP (only for system bay 0)

One 1 U KVM (only for system bay 0)

Two data switches (only for system bay 1)

Single disk bay 3.5-inch disks: eight 4 U disk enclosures (If a system bay is fully configured with 2.5-inch

disks, no disk bays are needed.)

Scenario 1: standard layout

Planning positions of holes on the floor (only for underfloor cabling)

Scenario 2: distributed layout

Unit: mm

3 Installing Bays

(Optional) Removing side panels

Do this procedure only when your storage system is configured with system bays and disk bays.

In this case, there is one system bay and one disk bay placed beside each other. You need to

remove the system bay side panel against the disk bay and the disk bay side panel against the

system bay before installation so that SAS cables can be routed between the two bays.

To remove a side panel, do as follows:

1. Insert the key (locks on the front and rear doors and the side panels use the same key) delivered with the

bay to any of the two keyholes on the side panel and turn the key clockwise to open the lock, and then do

the same in the other keyhole.

2. Pull the handle below the keyhole to detach the side panel's upper part from the bay.

3. Remove the side panel from the bay.

3 Installing Bays

Securing bays

Leave a 6 mm to 8 mm space between every two bays so that the front door of the bay on the right can

move free when the front door of the bay on the left is fully open.

Use an adjustable wrench to extend the leveling caster until the caster are not touching the ground and

the bay is level.

NOTICE

3 Installing Bays

Connecting bays

The connecting plates are delivered with the bays. Obtain the connecting plates at the bay

bottom near the rear door.

Connecting two bays needs six connecting plates (two at the top, two at the front and two at

the back).

Use screws to fasten one end of a connecting plate to one of the adjacent bays and the other end to the

other bay. Then install the other connecting plates in the same way.

4 Connecting Cables

Routing cables between bays

Perform this step only when your storage system

has system bays and disk bays.

Route cross-bay network cables, optical fiber cables, and

AOCs overhead, as shown in the following figure.

Route the SAS cables between the adjacent system bay and disk

bay, as shown in the left figure.

You can also route them underfloor if there are

holes for cables routing on the floor.

4 Connecting Cables

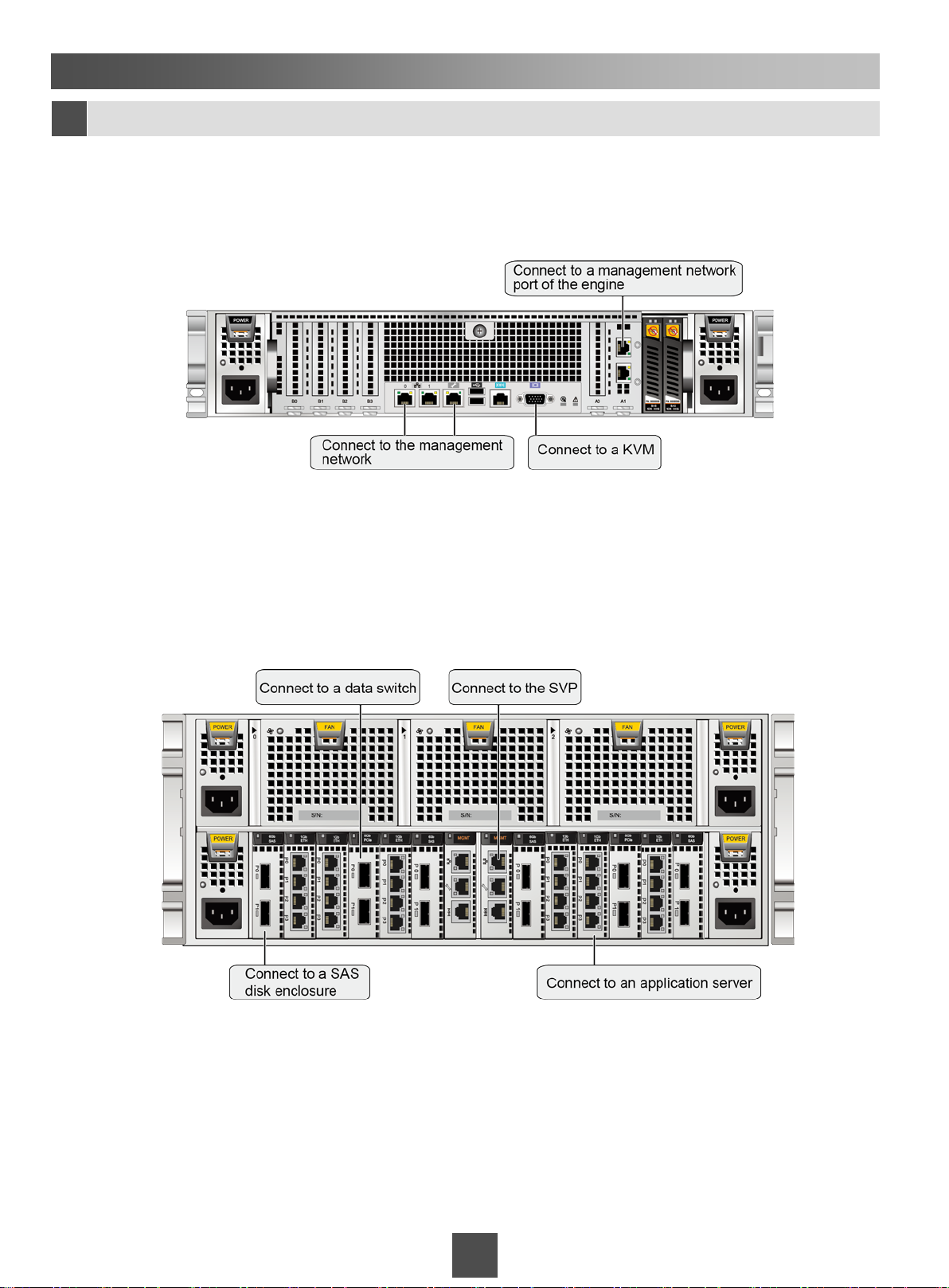

Connecting cables for the SVP and the engine
