1 Product Overview
Huawei OptiXstar K153-10 is a Slave FTTR for the Huawei FTTR OptiXstar F30 Pro.
It supports ultra-gigabit broadband access through upstream bers and provides
users with ultra-gigabit dual-band Wi-Fi and ultra-gigabit network ports.

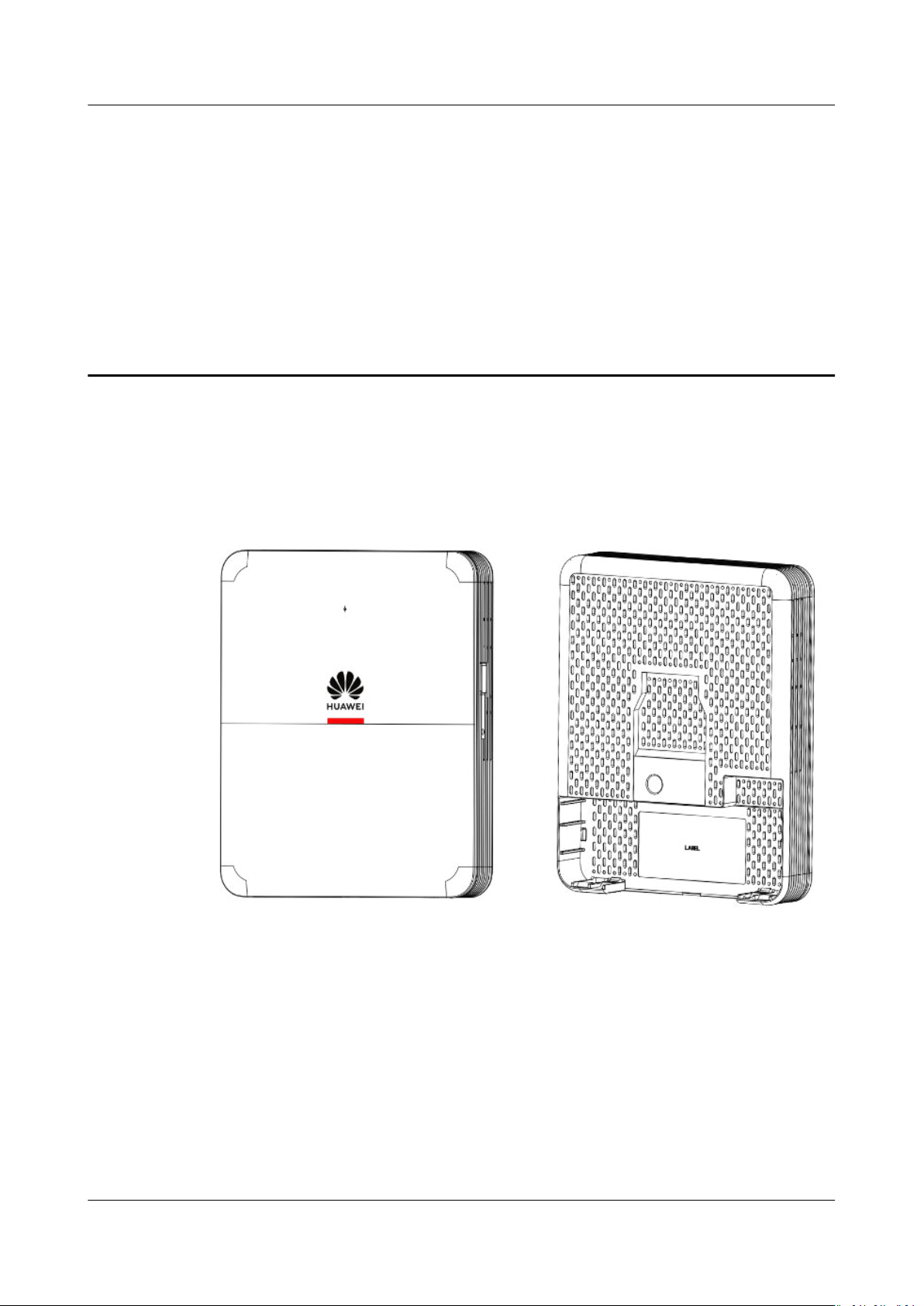

Figure 1-1 Device Appearance
Huawei OptiXstar K153-10
Quick Start 1 Product Overview
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 1

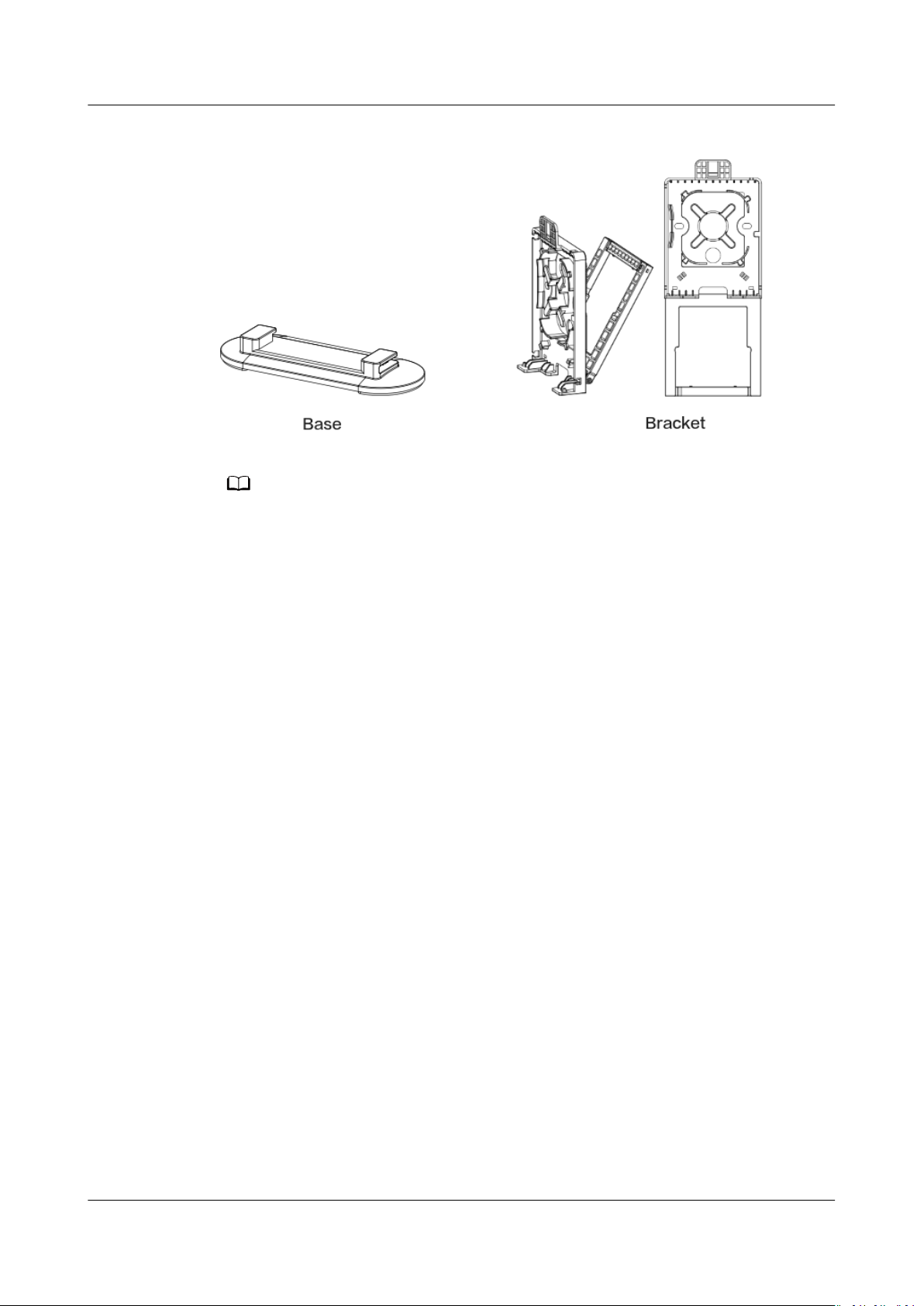

Figure 1-2 Mounting accessories
NO TE
● The appearance shown in this document may be dierent from the actual appearance
of the product. The actual product prevails.
● This device is recommended only for single room Wi-Fi coverage.
● Working mode of the device: bridge mode.
Huawei OptiXstar K153-10
Quick Start 1 Product Overview
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 2
2 Placing the Device
The device can be placed vertically on a desk, clamped in a socket panel,
embedded in a 86 Box, or mounted on a wall.
CA UTION
Do not expose the device outdoors.
WARNING
1. Install devices only by professional personnel. Do not install devices without
permission.
2. For your safety, install an accessible disconnection device on the outside of the
product. The disconnection device and the product must be installed by
professional personnel. Installation and disassembly are not allowed without
permission. At the same time, be sure to disconnect the power supply before
installation and removal by professional personnel.
3. Before installation, disconnect the power supply. In the 86-type electrician box,
ask professional personnel to lead out the cables from the wall. Keep a certain
distance between the cables to avoid contact with each other.
4. Do not use cleaners, gasoline, ammonia or other corrosive chemicals to wipe
the product.
5. This product is only suitable for installation on concrete or non-ammable
surfaces.
6. During the installation, use protective terminals to protect the optical ber to
prevent the end face of the optical ber from being contaminated.
7. The tools and auxiliary materials that are not delivered with the equipment
must be prepared by professional personnel.
Huawei OptiXstar K153-10
Quick Start 2 Placing the Device
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 3
NO TE
● Suitable for hotels, families and other places. For dierent household types, match
products as needed.
● Please use the international standard 86-type electrician box for installation.
● Keep the device away from electrical appliances that generate strong magnetic or
electric elds, such as microwave ovens.
● All diagrams in this document may be dierent from the actual product. These
dierences do not aect the functions of the product.
2.1 Stand up on the desktop
2.2 Clamped in a socket panel
2.3 Embedded in a 86 Box
2.4 Mounted on a Wall
2.1 Stand up on the desktop
After connecting optical bers, network cables, and power cables to the device,
push the base in the direction shown in the gure until it is completely clamped to
the device.
NO TE
When the device is placed vertically on a desk, if the device is connected to a bent network
cable, the device may not be stable on the desk. Users are advised to arrange the network
cable before connecting the device.
Huawei OptiXstar K153-10
Quick Start 2 Placing the Device
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 4
2.2 Clamped in a socket panel
WARNING
1. It is recommended that the operation be performed by an engineer with an
electrician certicate.
2. Before the installation, disconnect the power supply.
Step 1 Remove the cover of a socket panel and loosen the screws. Open the folding
bracket, clamp it behind the socket panel, and tighten the screws to secure the
cover.
NO TICE
You only need to loosen the screws on the panel, and do not need to remove the
screws.
Huawei OptiXstar K153-10
Quick Start 2 Placing the Device
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 5
Step 2 Connect cables, such as optical bers, network cables, and power cables, coil the
cables in the bracket, and secure the cables with adhesive tapes.
NO TICE
● The outer ring of the braclet is used to coil optical ber, and the inner ring is
used to coil power cable.
● When coiling bers, exercise caution to prevent the bers from being bent or
damaged.

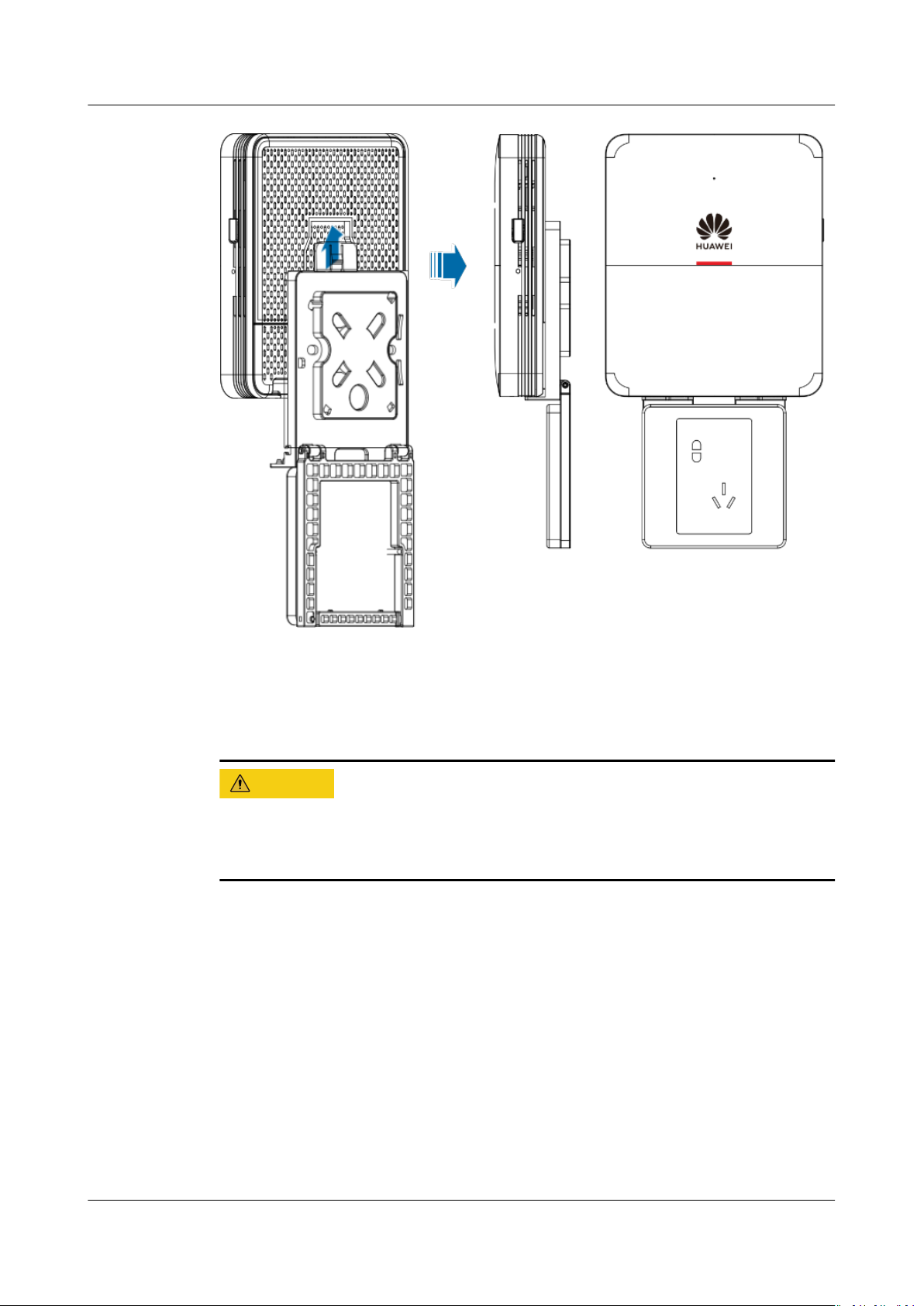

Step 3 Insert the card hole at the rear of the device into the buckle of the bracket to
secure the device.
Huawei OptiXstar K153-10
Quick Start 2 Placing the Device
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 6
----End
2.3 Embedded in a 86 Box
CA UTION
The device cannot be installed in an 86-type electrician box with strong current. It
can be installed only in an 86-type electrician box that is empty or has only weak
current.
Step 1 Lead the cable out of the wall through the cable hole of the bracket.
Huawei OptiXstar K153-10
Quick Start 2 Placing the Device
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 7
