iBAT 2.0-CIM01C2
Quick Guide
Issue: 06
BOM Number: 31010VJT
Date: 2020-03-20
Name Model Function Description
CIM CIM01C2 Intelligent battery
management module One CIM can support a maximum of 300
BIMs, and manage BIMs of a maximum of
four battery strings.
BIM BIM01C3 12 V intelligent battery
monitoring module The two models of BIMs are installed and
commissioned in the same manner. This
document uses the BIM01C3
as an example.
BIM02C1 2 V intelligent battery
monitoring module
1. The information in this document is subject to change without notice. Every effort has been made
in the preparation of this document to ensure accuracy of the contents, but all statements,
information, and recommendations in this document do not constitute a warranty of any kind,
express or implied.
2. This document describes the procedure for installing the CIM and BIM. Read the iBAT 2.0-
CIM01C2 User Manual before installation to learn the product information and safety precautions.
3. Use insulated tools when installing the equipment.
4. Only Huawei engineers or engineers certified by Huawei are allowed to install and maintain the
CIM and BIM. Otherwise, personal injury or equipment damage may occur, and the resulting
equipment faults are beyond the warranty scope of Huawei.
2Installing Equipment (Battery Cabinet)

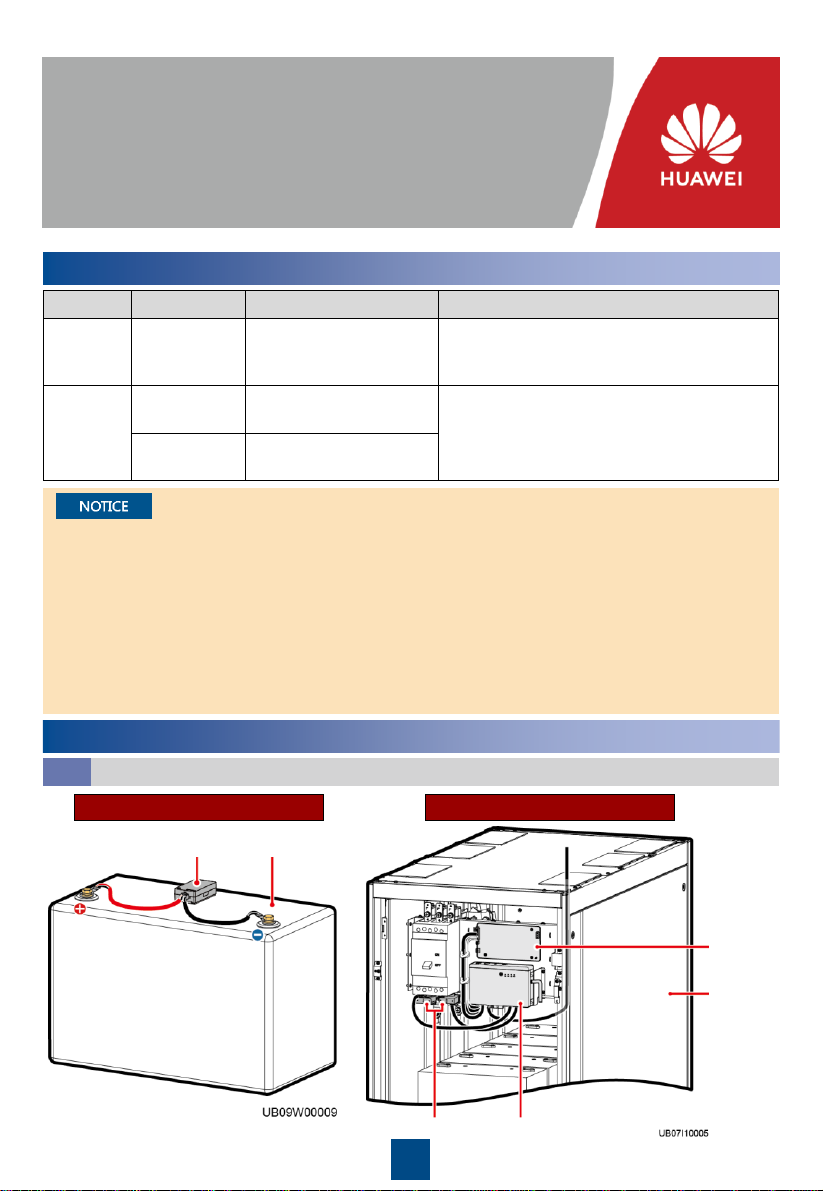

Installation Position
2.1
BIM installation position
BIM Battery
CIM installation position
Battery
cabinet
BIB
CIM
Hall effect sensor
1Product Introduction Copyright © Huawei Technologies Co., Ltd. 2020. All rights reserved.
2
•The battery appearance is for reference only.
•In the figure, the circuit breaker panel of the battery cabinet has been removed. Before
removing the circuit breaker panel, knock off the cover on the CIM indicator hole on the panel.
•If battery cabinets are combined, remove the side panels between battery cabinets.
•If the battery string is configured with the neutral wire, measure the currents of the positive and
negative battery string cables. If the battery string is not configured with the neutral wire,
measure the current of either the positive or negative battery string cable. The following uses
the scenario where the battery string is configured with the neutral wire as an example.
Installing a BIM
2.2
Bolt
Spring washer
Flat washer
OT terminal
Battery connecting kit

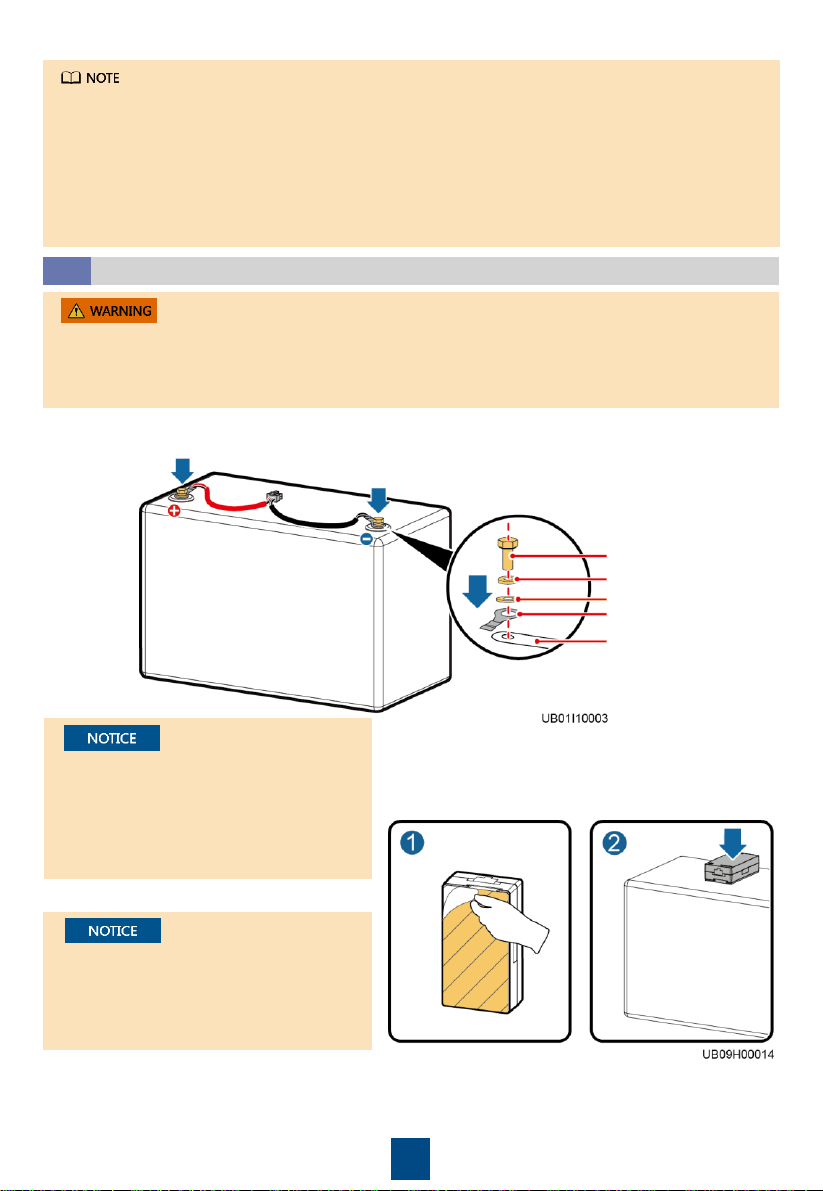

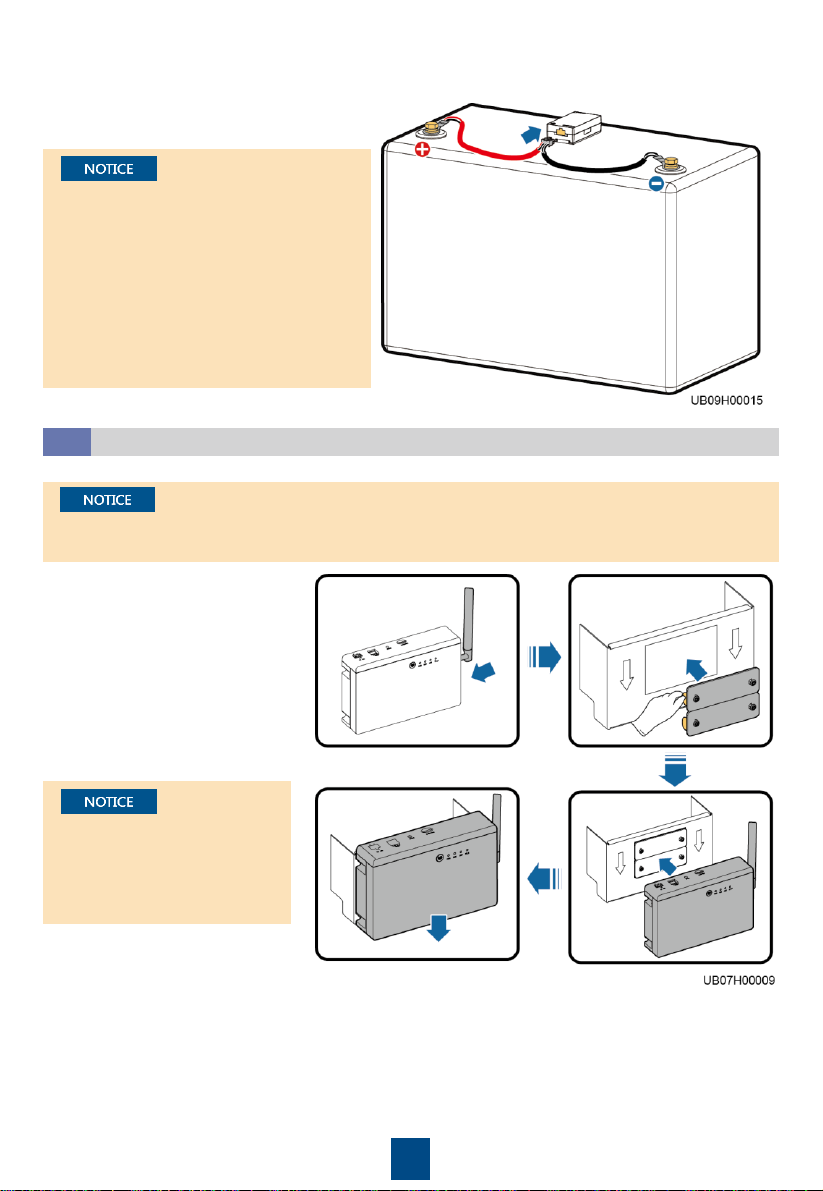

1. Open the battery string switch. Connect the positive and negative BIM cables respectively to
the positive and negative wiring terminals or poles of the battery.
Use an insulated torque wrench during
battery installation. The terminal torque
depends on battery specifications.
•M6: 4–6 N·m
•M8: 13–15 N·m
•M10: 15–20 N·m
•Voltages on the BIM cable are hazardous. Therefore, wear insulation gloves when
performing operations on the cable.
•The red terminal is positive, and the black terminal is negative. Connect battery
terminals correctly.
2. Secure the BIM.
(1) Strip the adhesive tape from the
BIM fastener.
(2) Attach the BIM and press it for
more than 10 seconds.
•Ensure that the attaching area is clean.
•Ensure that the BIM fastener is evenly
and firmly attached.
•Ensure that terminals are visible when
installing the BIM.
3
3. After connecting all power cables to the system, connect the BIM cable to the BIM panel port.
•Before connecting the cable to the
BIM panel port, connect all power
cables to the system.
•Before disconnecting the BIM cable,
disconnect the cable from the BIM
panel port.
•After the product is installed, if the
battery is not charged for more than
30 days, you are advised to remove
the iBAT from the battery cables.
Installing a CIM
2.3
The CIM must be installed 1 meter above the ground to ensure proper wireless communication
between the CIM and the BIM.
1. Connect the antenna
delivered with the CIM to the
RF_Z port on the CIM.
2. Strip the adhesive tape from
the CIM fastener, and attach
the fastener to the bounding
frame on the CIM fixed mount.
Then press the fastener for
more than 10 seconds.
3. Clamp the CIM to the fastener.
•Ensure that the
attaching area is clean.
•Ensure that the fastener
is firmly attached with
even strength.
4
BIM
Battery
Battery
BIM
3Installing Equipment (Battery Rack)
Installation Position
3.1

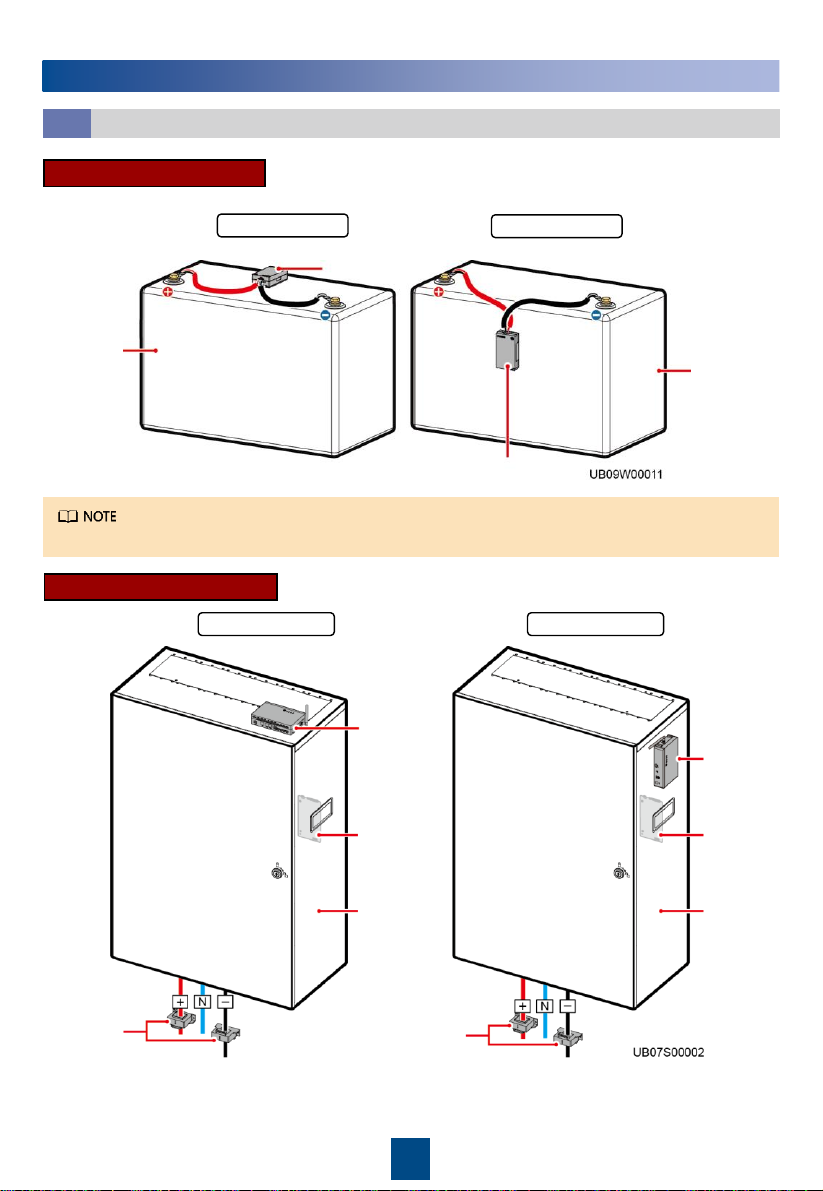

BIM installation position
Top installation Side installation
The battery appearance is for reference only.
CIM installation position
Top installation Side installation
BIB
CIM
CIM
BIB
Hall effect
sensor
BCB box BCB box
Hall effect
sensor
5
•When selecting a position to install the CIM, ensure that the communication distance between
the CIM and the BIM is not greater than 15 meters.
•Dimensions (L x W) of the center hole of the Hall effect sensor are 40.5 mm x 30.5 mm (LEM) or
40.5 mm x 40.5 mm (TAMURA).
•If the battery string is configured with the neutral wire, measure the currents of the positive and
negative battery string cables. If the battery string is not configured with the neutral wire,
measure the current of either the positive or negative battery string cable. The following uses
the scenario where the battery string is configured with the neutral wire as an example.
When installing the CIM in the battery switch cabinet, do not use the delivered antenna. Attach the
external antenna to the top of the battery switch cabinet, and connect the antenna cable to the
RF_Z port on the CIM.
Installing a BIM
3.2
Installing a BIM by referring to section 2.2 "Installing a BIM."
Installing a CIM
3.3
Installing a CIM by referring to section 2.3 "Installing a CIM."
Installing a Hall Effect Sensor
3.4

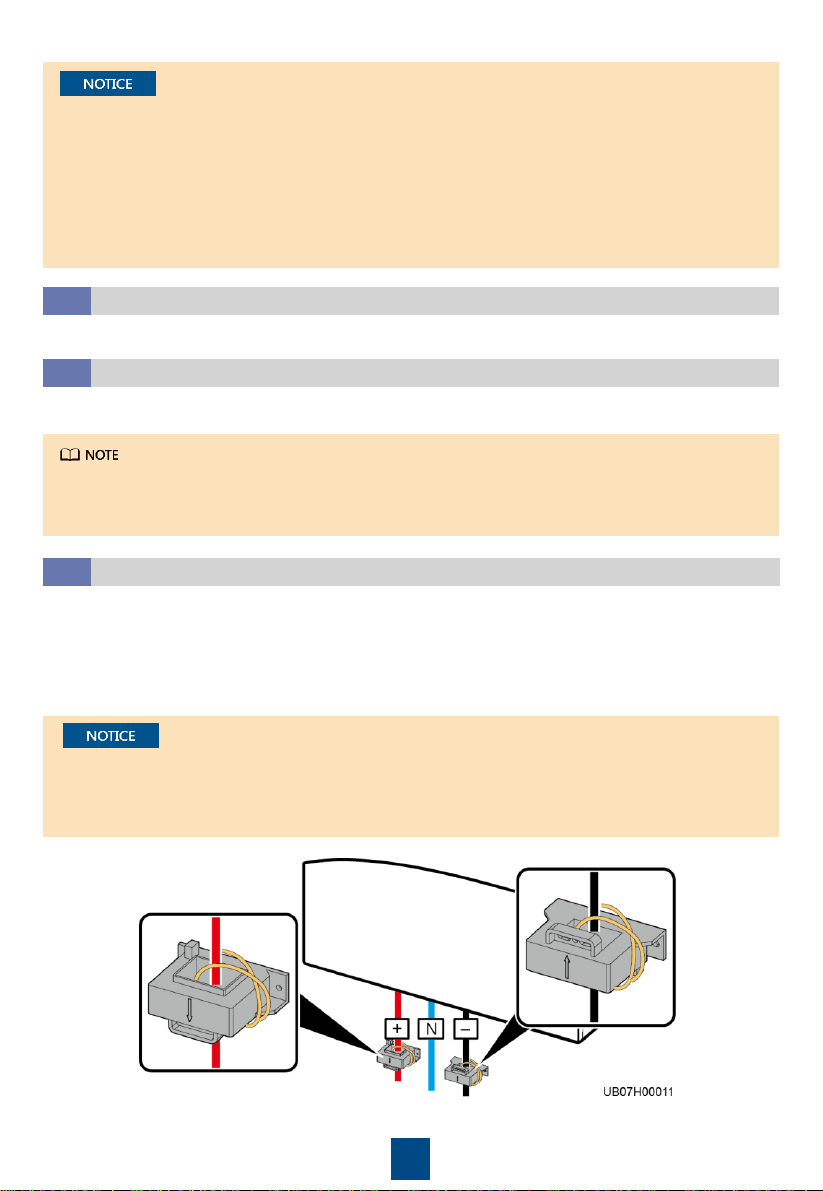

1. Route the positive and negative battery string cables through the Hall effect sensor. The
positive and negative battery string cables must be routed in directions shown by arrows on the
Hall effect sensors. The positive battery string cable routes from the UPS to the battery, and the
negative battery string cable routes from the battery to the UPS.
2. Secure the Hall effect sensor to the positive and negative battery string cables using cable ties.
If the positive or negative battery string cable is too thick to be routed through the Hall effect
sensor, or the measurement range of the Hall effect sensor is insufficient, use multiple Hall effect
sensors to detect the current of one battery string. The CIM supports the sum of the monitoring
results of multiple Hall effect sensors, which is implemented by setting Multi-Hall cur. setting.
6
Installing an Adapter
3.5
ST3.5x35 tapping screw
Washer
6x30 plastic expansion sleeve
ST3.5
0.3 N·m

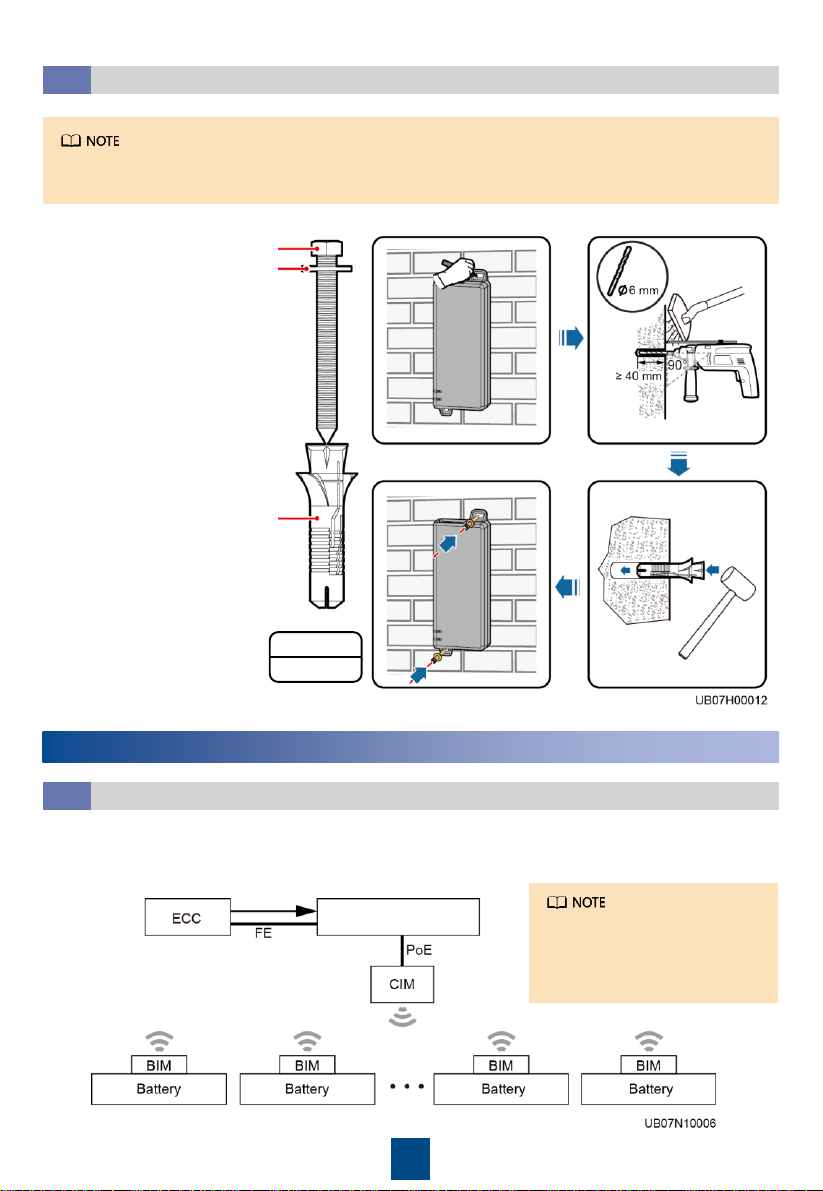

•Install an adapter if only the CIM communications cable connects to the UPS.
•Prepare ST3.5x35 tapping screws, washers, and 6x30 plastic expansion sleeves by yourself.
Smart ETH gateway
DC input
4Installing Cables (ECC Scenario)
This chapter uses the ECC scenario where the CIM communications cable connects to a smart ETH
gateway as an example to describe how to connect cables. In ECC scenarios, connect cables by
following instructions in this section.
System Networking
4.1
In the ECC scenario, the CIM
communications cable can
also connect to the PoE
switch.
7
Smart ETH gateway
Connecting Cables
4.2
When a battery system needs to be managed by multiple CIMs, the CIMs can be connected to
northbound devices through straight-through cables (the ECC supports four CIMs in parallel).

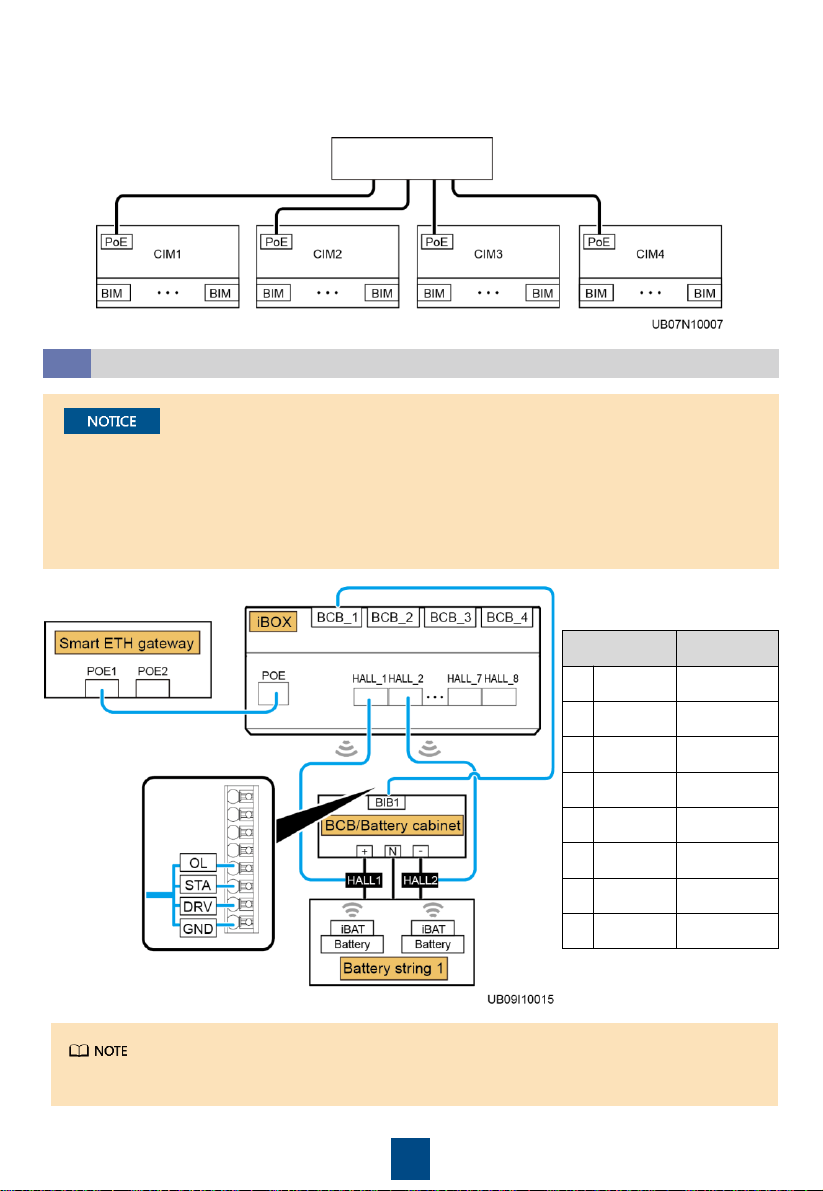

•Connect the Hall effect sensor on the positive battery string terminal to the HALL_1 current
monitoring port on the CIM, and connect the Hall effect sensor on the negative battery string
terminal to the HALL_2 current monitoring port on the CIM.
•The positive and negative battery string cables must be routed in directions shown by arrows
on the Hall effect sensors. The positive battery string cable routes from the UPS to the
battery, and the negative battery string cable routes from the battery to the UPS.
BCB box J1
CIM BCB
1
EXDRV+
-
2
EXDRV
-
-
3
EXAUX+
-
4
EXAUX
-
-
5
OL
OL
6
STA
STA
7
DRV
DRV
8
GND
GND
In the foregoing figure, the iBOX is equivalent to the CIM, and the iBAT is equivalent to the BIM.
8
5Installing Cables (UPS Scenario)
This chapter uses the UPS scenario where the CIM power cable connects to an adapter, and the
CIM communications cable connects to the UPS as an example to describe how to connect cables.
If only the UPS is used, connect cables by following instructions in this section.
System Networking
5.1
Adapter
AC input

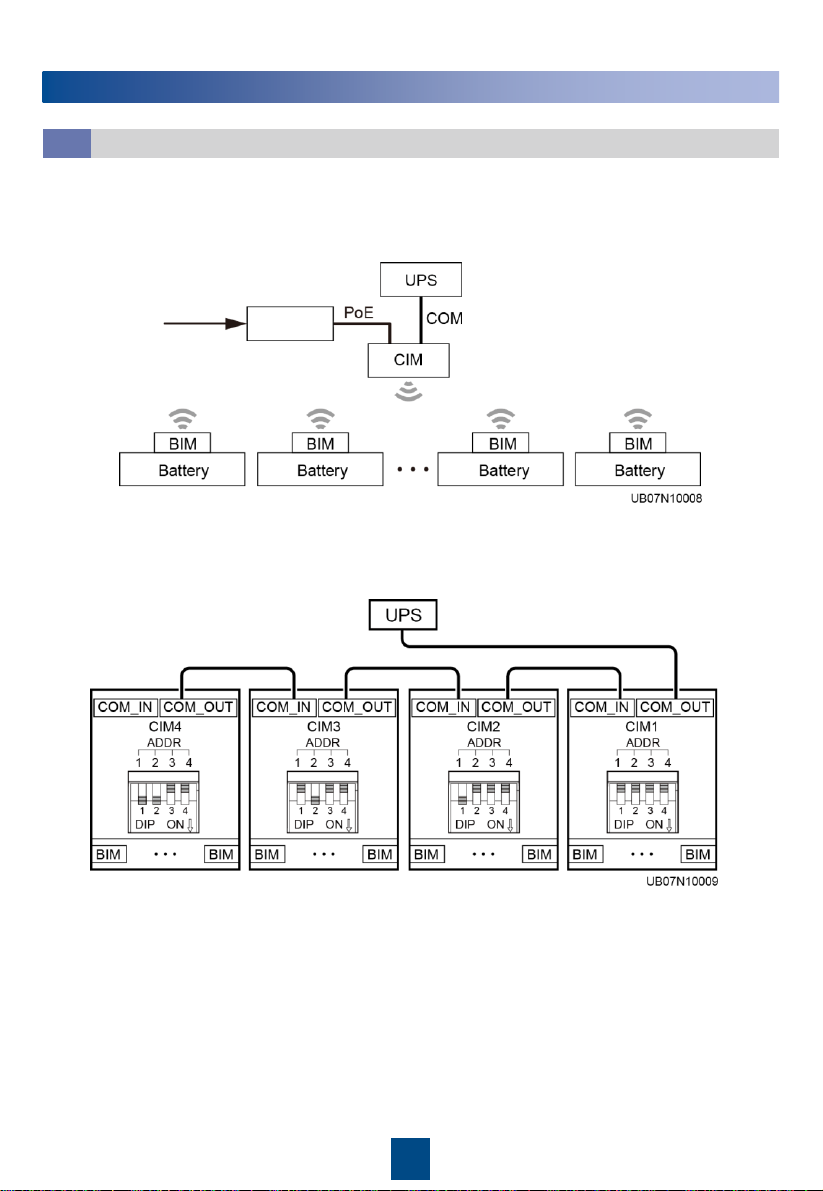

When a battery system needs to be managed by multiple CIMs, the CIMs can be cascaded
through RS485 buses for capacity expansion, and then connected to northbound devices (the UPS
supports four cascaded CIMs).
9
Connecting Cables
5.2

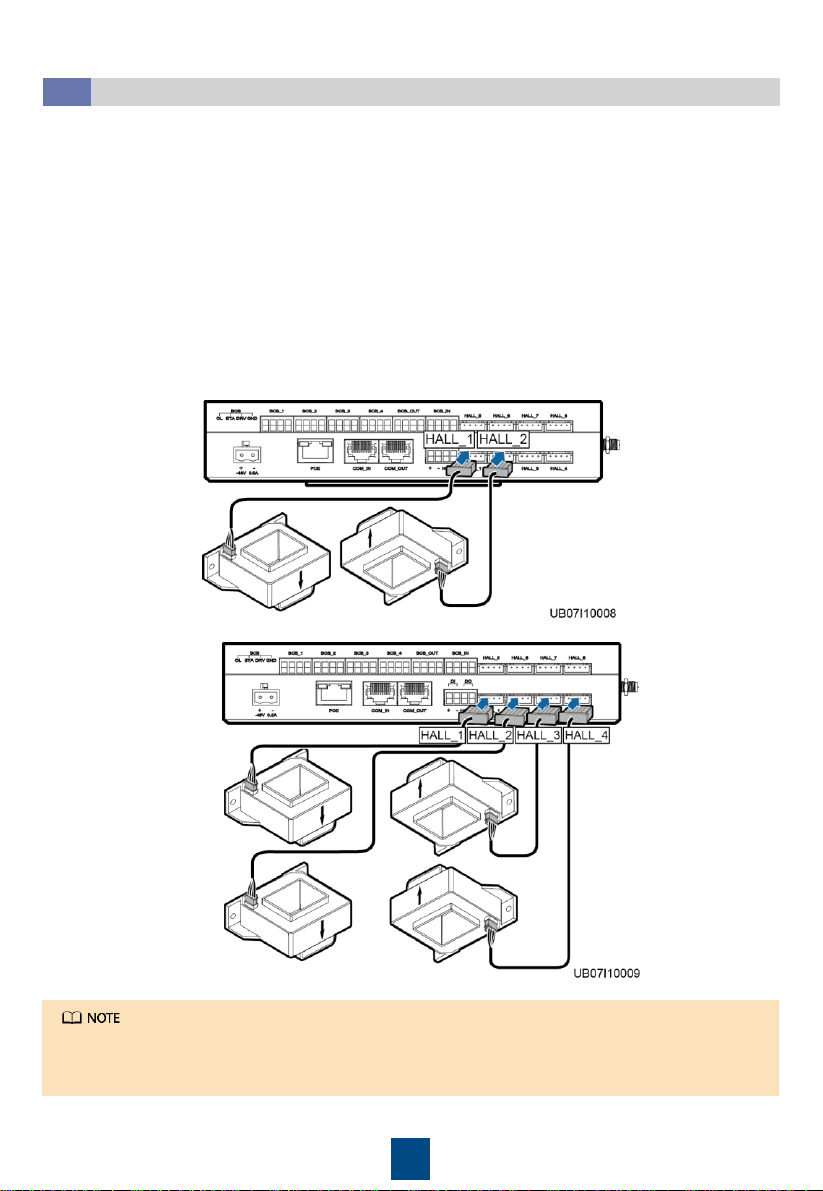

1. Connect the cable between the CIM and the Hall effect sensor.
•If each of the positive and negative battery string cables connects to one Hall effect sensor,
connect the Hall effect sensor on the positive battery string terminal side to the HALL_1 current
monitoring port on the CIM, and connect the Hall effect sensor on the negative battery string
terminal side to the HALL_2 current monitoring port on the CIM.
•If each of the positive and negative battery string cables connects to two or more Hall effect
sensors, connect the Hall effect sensors on the positive battery string terminal side to the former
HALL current monitoring ports, and the Hall effect sensors on the negative battery string terminal
side to the latter HALL current monitoring ports. For example, if each of the positive and negative
battery string cables connects to two Hall effect sensors, connect the Hall effect sensors on the
positive battery string terminal side to the HALL_1 and HALL_2 current monitoring ports on the
CIM, and connect the Hall effect sensors on the negative battery string terminal side to the
HALL_3 and HALL_4 current monitoring ports on the CIM.
When one CIM manages multiple battery strings, first connect the Hall effect sensors on the
positive and negative cables for battery string 1 to the corresponding ports on the CIM. Then
connect the Hall effect sensors on battery string 2 to the CIM in the same way, and so on.
10
UPS dry contact card (MUE05A)

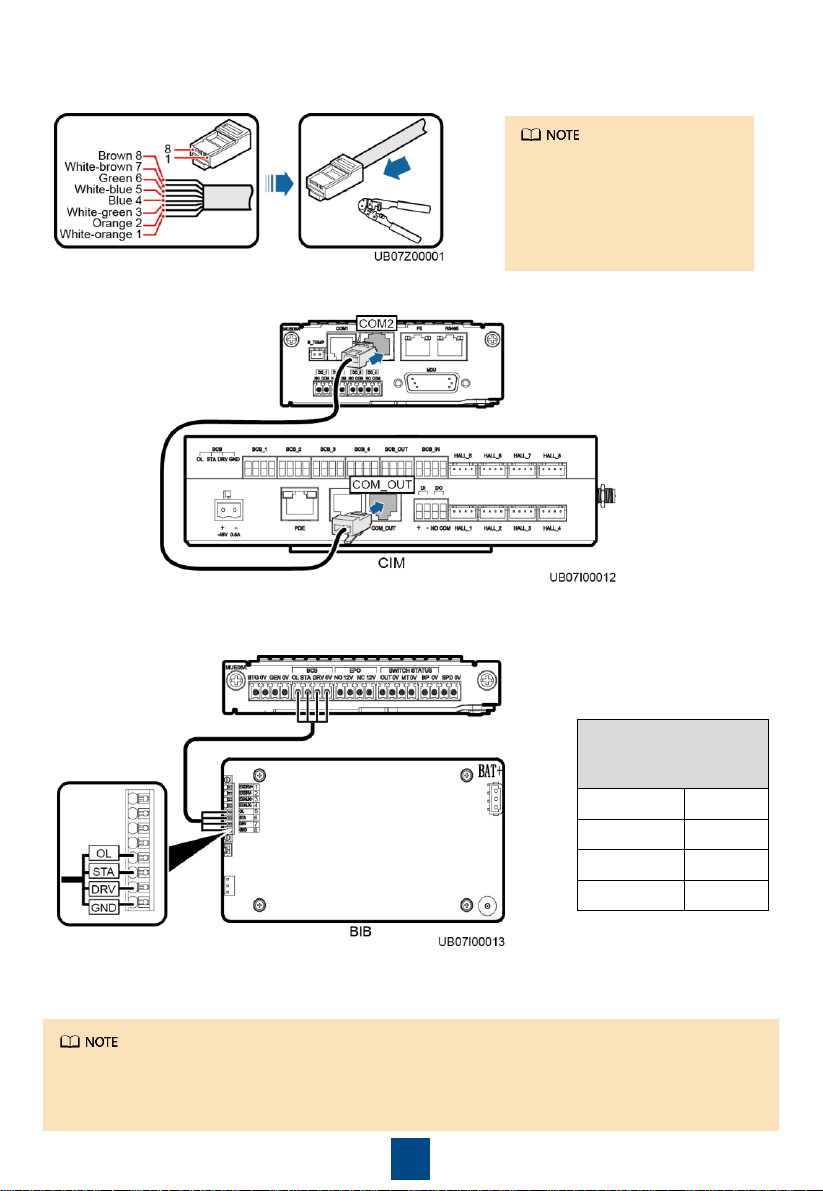

3. Connect the cable between the UPS and the BIB.
Signal Port Mapping
Between the UPS and
the BIB
OL OL_5
STA STA_6
DRV DRV_7
0V GND_8
UPS monitoring interface card (MUS05A)
4. Connect a straight-through cable between the CIM and the adapter, and connect the adapter
AC power cable to a socket.
•Prepare a straight-through cable and socket by yourself.
•The socket and plug appearances are for reference only. The actual objects prevail.
•The socket can obtain power from the UPS AC output port.
•Prepare an RS485 cable
by yourself.
•The previous figure shows
how to prepare an RS485
cable and a straight-
through cable.
2. Connect the CIM communications cable.
