Huawei MA5833 Manuale utente

MA5833-DD60

Hardware Commissioning Guide

Issue 01

Date 2018-12-26

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the

customer. All or part of the products, services and features described in this document may not be within the

purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information,

and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: [email protected]

Contents

1 Measuring the 60 V AC Output Voltage...................................................................................1

2 Checking Upstream Optical Port Optical Power.....................................................................3

3 Commissioning the Optical Power of the Optical Receiver................................................. 5

4 Commissioning the Output Optical Power of the Optical Transmitter............................. 7

5 Adjusting the Signal Level.......................................................................................................... 9

5.1 Adjusting the CATV Signal Level..................................................................................................................................9

5.2 Adjusting the Downstream DOCSIS Signal Level.......................................................................................................11

5.3 Adjusting the Upstream DOCSIS Signal Level........................................................................................................... 12

6 Checking Device Running.........................................................................................................15

MA5833-DD60

Hardware Commissioning Guide Contents

1 Measuring the 60 V AC Output Voltage

NOTE

lIf the MA5833 needs to transmit power to a lower-layer device, check the 60 V power pass-through

indicator to identify whether the 60 V output power supply is available. The indicator is on

when power is transmitted through a port.

lCheck the 12 V DC and 34 V DC power supply indicator .The indicator is on when the power

supply is within the specified range.

lAlternatively, test whether the voltage on the test point of the 12 V DC and 34 V DC power

supply meets requirements. To do so, adjust the multimeter for the DC voltage test, connect the

black probe of the multimeter to the metal place on the front panel, and connect the red probe to the

test point of the 12 V DC and 34 V DC power supply.

MA5833-DD60

Hardware Commissioning Guide 1 Measuring the 60 V AC Output Voltage

Voltage Test Points and Indicators on MA5833

MA5833-DD60

Hardware Commissioning Guide 1 Measuring the 60 V AC Output Voltage

2 Checking Upstream Optical Port Optical

Power

lWhen measuring upstream optical port optical power, do not stand close to or look into the

optical port without eye protection.

lThe Rx optical power of the upstream optical port on the MA5833 must be within the Rx

optical power range. Otherwise, the optical module will be damaged (excessively high Rx

optical power) or cannot receive signals properly (excessively low Rx optical power).

lWhen the receive optical power is close to the critical value, the MA5833 can be

functional for a short period of time. To ensure that the MA5833 is functional for a long

period of time, adjust the receive optical power.

Step 1 Set the wavelength of an optical power meter to 1490 nm and use it to measure the output

power on optical fibers.

Step 2 If the test result exceeds the preceding range, use an optical attenuator on the OLT side to

decrease the input optical power of the MA5833.

Step 3 Measure and verify that the input optical power of the MA5833 is within the supported range.

MA5833-DD60

Hardware Commissioning Guide 2 Checking Upstream Optical Port Optical Power

Upstream Mode Range of the Rx Optical Module

GPON -8 dBm to -27 dBm

10G GPON -8 dBm to -28 dBm

GE -3 dBm to -19.5 dBm

10GE -1 dBm to -11.1 dBm

lRanges of the Rx optical power of the upstream port may be different according to

optical modules of different types used in the same upstream direction. Specifications of

the actual optical module prevail.

lIf the test result exceeds the upper limit of the Rx optical power, optical attenuator can be

added on the ONU side to reduce the input optical power of the MA5833.

----End

MA5833-DD60

Hardware Commissioning Guide 2 Checking Upstream Optical Port Optical Power

3 Commissioning the Optical Power of the

Optical Receiver

NOTE

The following introduces how to use a multimeter to measure the optical power. You can also use an

optical power meter to measure the optical power of the optical receiver.

Step 1 Adjust the multimeter for the DC voltage test. Connect the black probe of the multimeter to

the screw on the front panel and connect the red probe to the optical power test point of the

optical receiver to measure the DC voltage. Obtain the optical power from the following table

based on the measured voltage.

Figure 3-1

Step 2 The input optical power ranges from -8 dBm to 3 dBm.

lIf the input optical power is greater than 0 dBm, add a fixed optical attenuator to

decrease the receive optical power of the optical receiver.

lIf the input optical power is less than -6 dBm, check the output optical power of the

optical transmitter and whether the physical connection between the optical transmitter

and optical receiver is functional.

MA5833-DD60

Hardware Commissioning Guide

3 Commissioning the Optical Power of the Optical

Receiver

Table 3-1

Input Optical Power

(dBm)

V DC (or mW) Recommended or Not

(Yes/No)

3 2 No

2 1.58 No

1 1.26 No

0 1 Yes

-1 0.79 Yes

-2 0.63 Yes

-3 0.5 Yes

-4 0.4 Yes

-5 0.32 Yes

-6 0.25 Yes

-7 0.2 No

-8 0.16 No

----End

MA5833-DD60

Hardware Commissioning Guide

3 Commissioning the Optical Power of the Optical

Receiver

4 Commissioning the Output Optical Power

of the Optical Transmitter

NOTE

The following introduces how to use a multimeter to measure the optical power. You can also use an

optical power meter to measure the optical power.

Step 1 Adjust the multimeter for the DC voltage test. Connect the black probe of the multimeter to

the screw on the front panel and connect the red probe to the optical power test point of the

optical transmitter to measure the DC voltage. Obtain the optical power from the following

table based on the measured voltage.

Step 2 The output optical power ranges from 2 dBm to 4 dBm. If the input optical power is out of

this range, replace the optical transmitter.

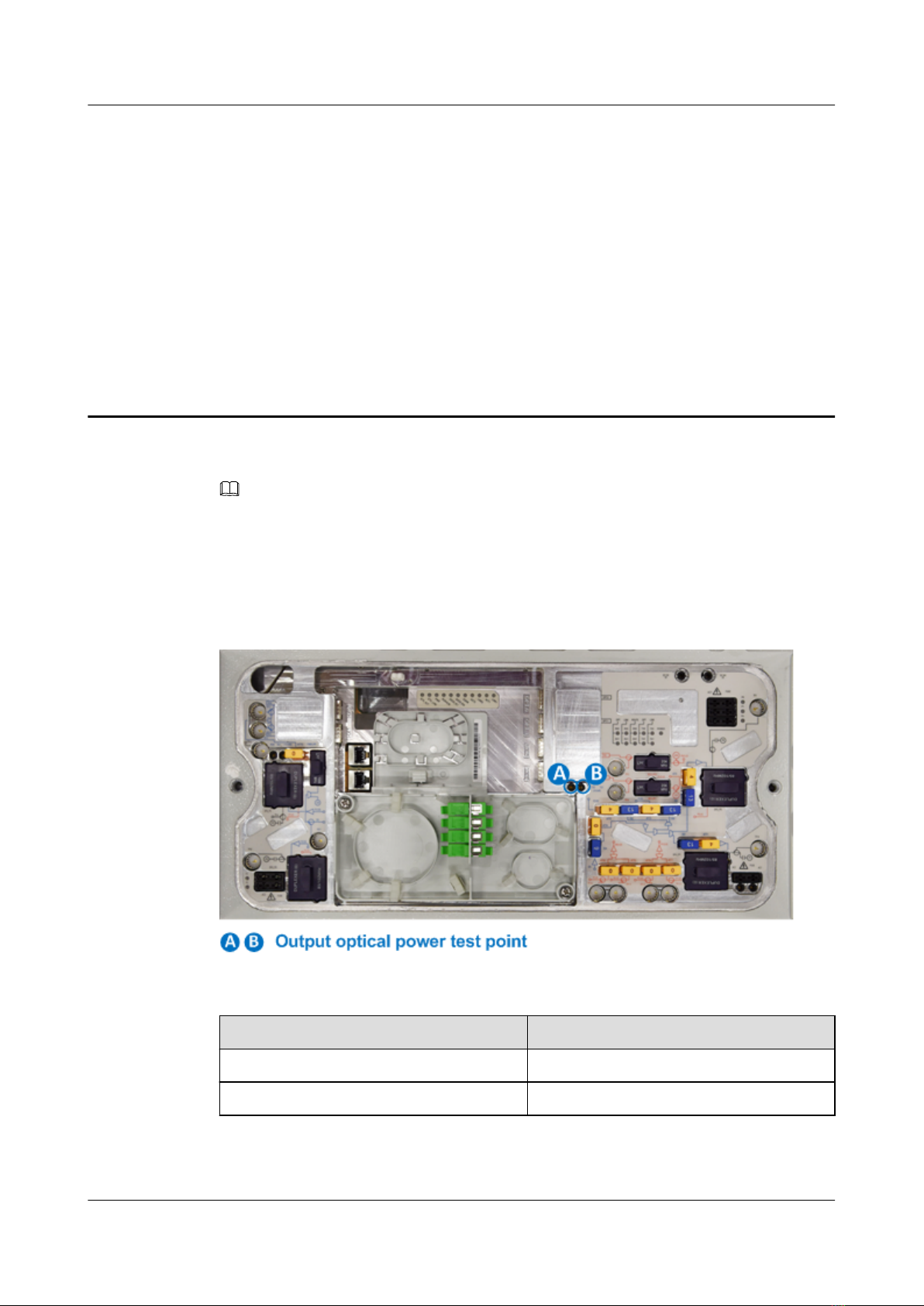

Output Optical Power (dBm) V DC (or mW)

4 2.51

3 2

MA5833-DD60

Hardware Commissioning Guide

4 Commissioning the Output Optical Power of the Optical

Transmitter
