Huawei WA8021V5 Manuale utente

31500CFY_01

1. Packing List

The following table lists the items in the product package.

Item Quantity

Edge ONT WA8021V5 1

Power Adapter 1

Ethernet Cable 1

Quick Start 1

Safety Information 1

If you find anything missing or damaged, contact the service provider.

2. Product Overview

The WA8021V5 is a home edge ONT that provides gigabit dual-band Wi-Fi network ports.

(WA8021V5 can only be used in indoor scenarios)

Product Function

WA8021V5 Network-side port:

l1 Gigabit Ethernet port or Wi-Fi

User-side ports:

l2 Gigabit Ethernet ports

l2.4GHz Wi-Fi (2×2 MIMO) + 5GHz Wi-Fi (2×2 MIMO)

3. Technical Specifications

Item Specification

Power adapter input 100–240 V AC, 50/60 Hz

System power supply 12 V, 1 A

Max power consumption 7.8 W

Ambient temperature 0°C to 40°C (32°F to 104°F)

Ambient humidity 5%–95% (non-condensing)

Dimensions (H x W x D)(Without pads) 65.5 mm x 105 mm x 105 mm

Weight(Without power adapter) About 195 g

4. Hardware Installations

4.1 Installing the First WA8021V5

In the case there is no router at home, it is recommended that the first WA8021V5 be used as a router.

Step 1 Use a network cable to connect Port 3 of the first WA8021V5 to LAN port of the Bridge ONT.

Step 2 Use a power adapter to connect the power port of the first WA8021V5 to a power socket.

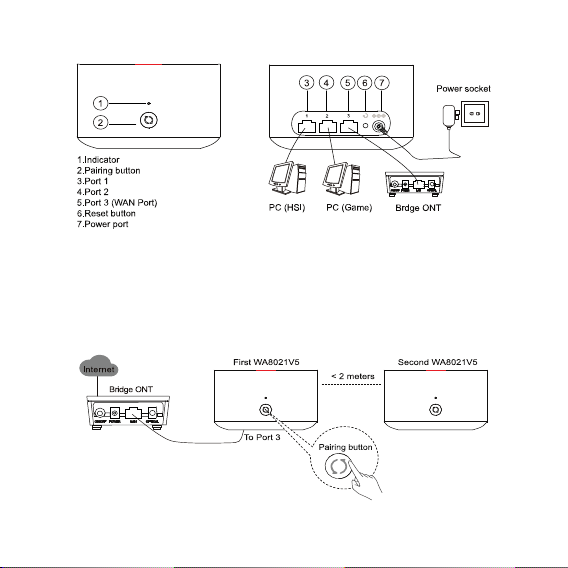

The connections between the first WA8021V5 and other devices are shown as follows.

4.2 Installing the Second WA8021V5

In the case of adding the second WA8021V5 as a Wi-Fi repeater to expand Wi-Fi coverage:

Step 1 Place the second WA8021V5 within 2 meters of the first WA8021V5 and connect the power

supply. When the first WA8021V5 successfully detects the second WA8021V5, the indicator on

the first WA8021V5 blinks slowly.

Step 2 Press the pairing button on the first WA8021V5 once. Indicators on both the first and second

WA8021V5 devices blink quickly.

Wait until the indicator on the second WA8021V5 turns steady white, which indicates that the

pairing is successful.

Step 3

Move the second WA8021V5 to a position where the Wi-Fi coverage is to be expanded, and connect it to a

power socket. After the indicator turns steady white, the second WA8021V5 can access the Internet.

4.3 Connetting to the Wi-Fi of an Edge ONT

Connect a phone or PC to the Wi-Fi of an edge ONT (For the Wi-Fi name & password, see the product

nameplate.)

The following table describes the ports on the device:

Port/Button

Description

Power port

Connects to a power adapter.

Reset button

Press and hold the Reset button of the device for more than 2 seconds using a

needle, and release the button after the indicator turns off. After the device restarts

and the red indicator turns on, the factory settings are restored.

Ethernet port

In the case an edge ONT work as a router, only port 3 can be the WAN port to

uplink to the bridge ONT, port 1 and 2 can be used as LAN ports to connect

devices such as computers.

In the case an edge ONT work as a repeater, there are 2 ways to connect to the

first router WA8021V5, one is uplink via port 3, another way is uplink via Wi-Fi.

Ports 1 and 2 can all be used as LAN ports to connect devices such as computers.

Pairing button

An edge ONT can be paired to expand Wi-Fi coverage. For details, see 4.2

Installing the Second WA8021V5.

5. Web Configurations

Content in this section applies only to the first device.

Wireless Settings

Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.254 in the address box.

Step 2 In the login page that is displayed, enter the user name, password, and verification code (see the

device nameplate for the default user name and password); and click Login.

lIf you do not perform any operations after logging in to the system within five minutes, you will

be logged out and the system automatically returns to the login page.

lThe system will be locked for one minute if you input incorrect password three consecutive

times.

Step 3 In the page that is displayed, click More to enter the Configuration page.

Step 4 In the navigation tree, choose WLAN > 2.4G Basic Network Settings or WLAN > 5G Basic

Network Settings. In the pane, select the Enable WLAN (2.4 GHz or 5 GHz) option box. In the

dialog box that is displayed, set the basic Wi-Fi parameters, including the SSID, authentication

mode, and encryption mode.

Step 5 Click Apply.

2.4G Basic Network Settings

You can find the SSID and WLAN Key information on the main label of the WA8021V5. The

WLAN Key have the same value with WPA PreSharedKey.

5G Basic Network Settings

You can find the SSID and WLAN Key information on the main label of the WA8021V5. The

WLAN Key have the same value with WPA PreSharedKey.

6. Indicator Descriptions

Status

Description

White: steady on

Internet access is available.

Red: steady on

Internet access is unavailable.

lThe edge ONT is being powered on.

The edge ONT is not connected to the upstream gateway.

Red: blinking slowly

(once per second)

An edge ONT has detected a device that can be paired.

Red: blinking quickly

(twice per second)

An edge ONT is being paired with a Huawei gateway in one-click

mode.

An edge ONT is performing WPS pairing.

7. 3BB Mobile APP Installation

How to Download the 3BB App

3BB APP can be downloaded by scanning the following QR Code or by searching the word

'3BB' at the App Store or Play Store

3BB Member APP

What are the Benefits of the 3BB App?

lRegister additional services for free.

lReceive discounts and special privileges from stores around Thailand.

lReceive 3BB Points collected for redeeming rewards.

lConvenience in payment through APP.

lCheck information on promotional services.

How to use the 3BB App

1. Download and Setup the app.

2. Register as a 3BB member in order to login and use the app.

How to register as a 3BB Member

Method 1: Registering on the website

1. Visit the website www.3bb.co.th.

2. Select for Register as 3BB Member.

3. Fill in the 9 digit customer code, followed by *, and last 4 digits of customer's Identification

Number.

4. Check for correctness of information.

5. Determine username and password.

Method 2: Registering through the 3BB App

1. Open the 3BB APP

2. Click Create 3BB Member.

3. In the 3BB Account No.field, enter the 9 digit customer code.

4. Fill in the last 4 digits of your identification number.

5. Fill in a username and password.

6. Fill in your mobile phone number and e-mail address.

Account No

4 last digit Card ID

If you forget your password, click Forgot Password, fill in your mobile phone

number, and fill in the last 4 digits of your identification number. The system will

then send a code through SMS to the specified mobile phone number.
