human care Altair Manuale utente
Page 1
www.humancaregroup.com
Description
The Human Care Altair overhead lift is a lightweight portable lift with a discreet and modern design. Its portability ensures that asset investment is
greatly reduced as the same lift easily can be used in multiple rooms. The Altair features an advanced technology platform that allows tracking of lift
usage and visualization of collected data. Altair features a unique telescoping hanger bar that offers different widths in one product to fit any patient and
resulting in a comfortable sitting position. The lift is available in three weight capacities, 150kg, 220kg and 300kg, and can be used with either a 2, 3 or
4-point suspension.

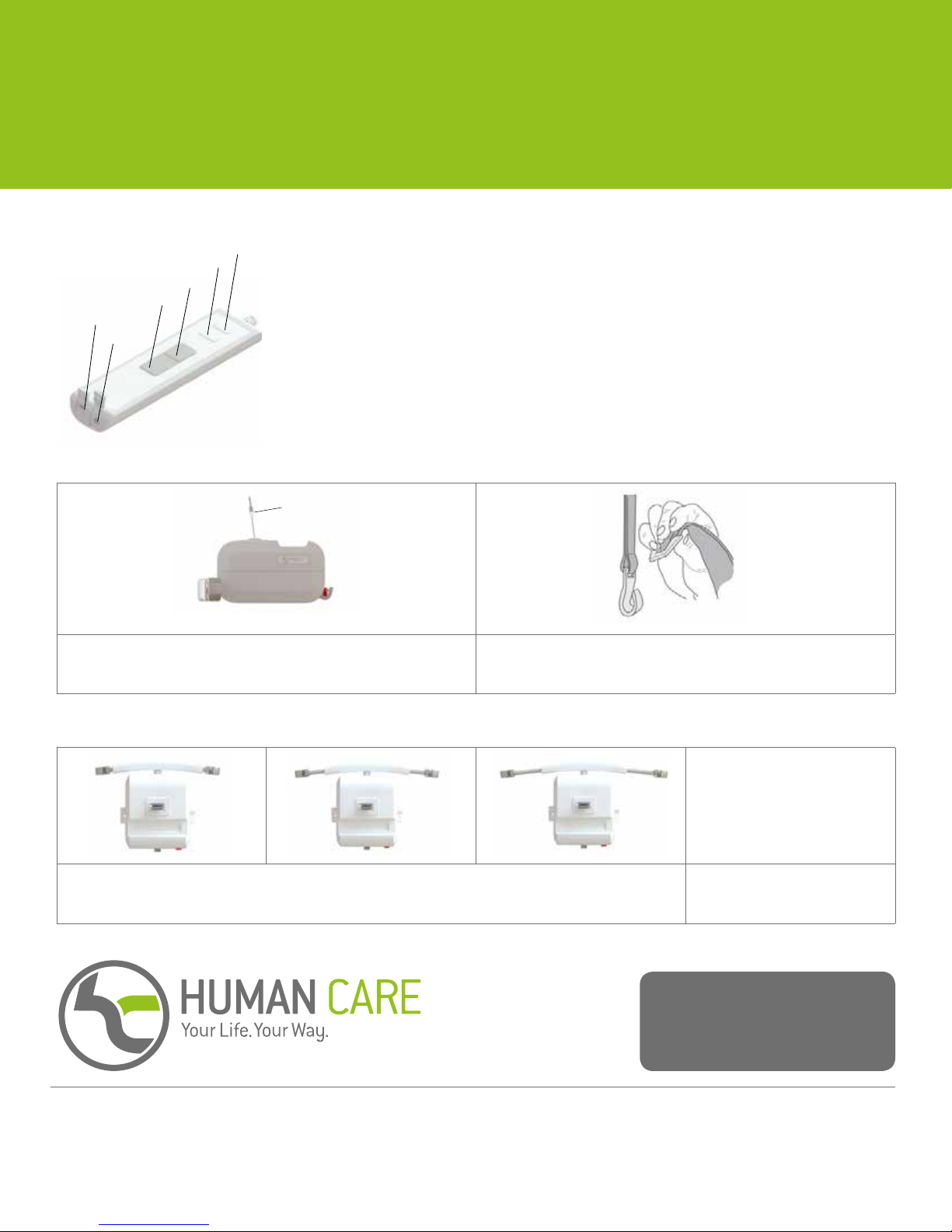

Quick Reference Guide
– Altair
Part no:
Altair 150kg/330lbs:
North America: 550030-NA
Europe: 55030-EU
Australia: 55030-AU
Great Britain: 55030-GB
Japan: 55030-JP
Altair 220kg/484lbs:
North America: 55040-NA
Europe: 55040-EU
Australia: 55040-AU
Great Britain: 55040-GB
Japan: 55040-JP
Altair 300kg/661lbs:
North America: 55050-NA
Europe: 55050-EU
Australia: 55050-AU
Great Britain: 55050-GB
Japan: 55050-JP
Emergency stop
Indicator
Emergency lowering
button
Secondary
control panel
Leg
hook
Hand control
Lift belt
Telescopic
hanger bar
Helpful Troubleshooting Tips!
The lift will not work while plugged in and/or if emergency stop is engaged
Using the lift
Select and position sling
around the patient according
to sling instructions.
Use hand control to position
carry bar directly above the
patient.
Attach the head sling loops to
carry bar first, than leg straps
to leg hooks.
Raise the patient (up on hand
control) and as raises check
to ensure straps are firmly
in place.
Raise the patient up until
obstacles are clear, hold sling
and position/move patient as
needed.
Lower patient (down on hand
control) until in desired posi-
tion. Continue to lower until
all straps are slack to remove
Page 2
IMPORTANT! This quick reference
guide does not replace the user
manual which can be downloaded
at www.humancaregroup.com
AUSTRALIA
Unit 9, 271 Wells Road
Chelsea Heights, Victoria 3196
Phone:- +61 3 8773 1111
Fax:- +61 3 9773 4008
Email: info.au@humancaregroup.com
CANADA
10-155 Colonnade Road
Ottawa, ON K2E 7K1
Phone:- 613.723.6734
Fax:- 613.723.1058
Email: info.ca@humancaregroup.com
SWEDEN
Årstaängsvägen 21C
117 43 Stockholm
Phone:- +46 8 665 35 00
Fax:- +46 8 665 35 10
Email: info.se@humancaregroup.com
UNITED STATES
4210 S. Industrial Drive, Suite 160
Austin, TX 78744
Phone:- 512.476.7199
Fax:- 512.476.7190
Email: info.us@humancaregroup.com
Quick Reference Guide
– Altair
Suspending the lift from the rail
2
Place the lift on a suitable surface. Feed out enough of the belt by pulling gently
on the hook on the lift belt (2) while at the same time keeping the Down button on
the hand control or on the control panel of the lift pressed in.
Hook onto the hook on the distance strap hanging from the rail roller diagonally
from above (see fig) Switch on at the mains and the lift is ready for use.
99587-Quick reference guide-Altair-Rev01 (2015-07-24)
The telescopic hanger bar
o
Important! Do not hold on
to the telescopic bar or the
hooks when performing a lift.
The hooks on the telescopic bar have three adjustable positions (40, 50 and 60 cm). To change position, turn the hooks
1/4 turn while pushing or pulling the hooks to the desired position. The hooks will automatically fall into place in the posi-
tion, and so it is necessary to repeat the turn (1/4 turn) when passing the middle position (position 2) (See fig).
Hand control
On/off
Up
Down
Emergency lowering
Charge
Mini USB oThe covers for the USB input and
the charging input must be closed
for the hand control’s water protection
(IPX5) to be valid.
