Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: _______________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Ceiling Plate..........................5
3 • Assembling the Fan .......................................6
4 • Hanging the Fan ..............................................8
5 • Wiring the Fan..................................................9
6 • Installing the Canopy and
Canopy Trim Ring......................................... 10
7 • Assembling the Blades.............................. 11
8 • Installing the Fan.......................................... 12
9 • Installing the Wall Control...................... 13
10 • Operating and Cleaning
Your Ceiling Fan......................................... 14
11 • Operating the Remote Control
and Mounting the Holder.................... 15
12 • Operating the Wall Control ................ 16
13 • Troubleshooting......................................... 17
Welcome
© 2004 Hunter Fan Company
2
Hunter Fan Company 41869-01 • 03/12/04
3
41869-01 • 03/12/04 Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Pro le, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.

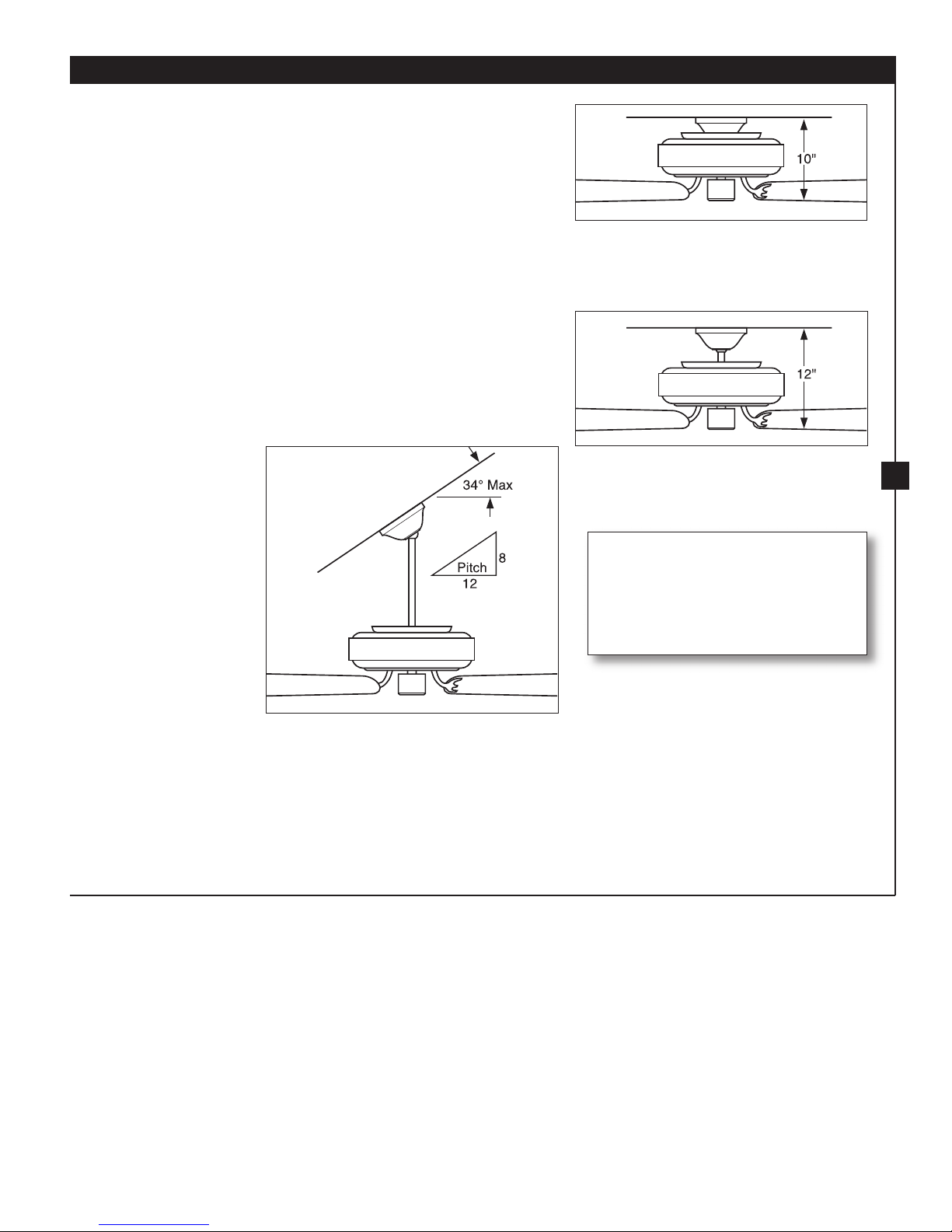

Low Pro le Mounting ts close to the
ceiling, for recommended or low ceilings
less than 8 feet high
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 8 feet or higher
Angle Mounting recommended for a
vaulted or angled ceiling
For ceilings higher than 8 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.
4
Hunter Fan Company 41869-01 • 03/12/04
5
41869-01 • 03/12/04 Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
Check Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Check
for any shipping damage to the motor or fan blades. If one of the fan
blades was damaged in shipment, return all the blades for replacement.
If any parts are missing or damaged, contact your Hunter dealer or call
Hunter Parts Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum e ciency, and energy savings.
1 • Getting Ready
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades in
sets, as they were shipped.
4
Hunter Fan Company 41869-01 • 03/12/04
5
41869-01 • 03/12/04 Hunter Fan Company

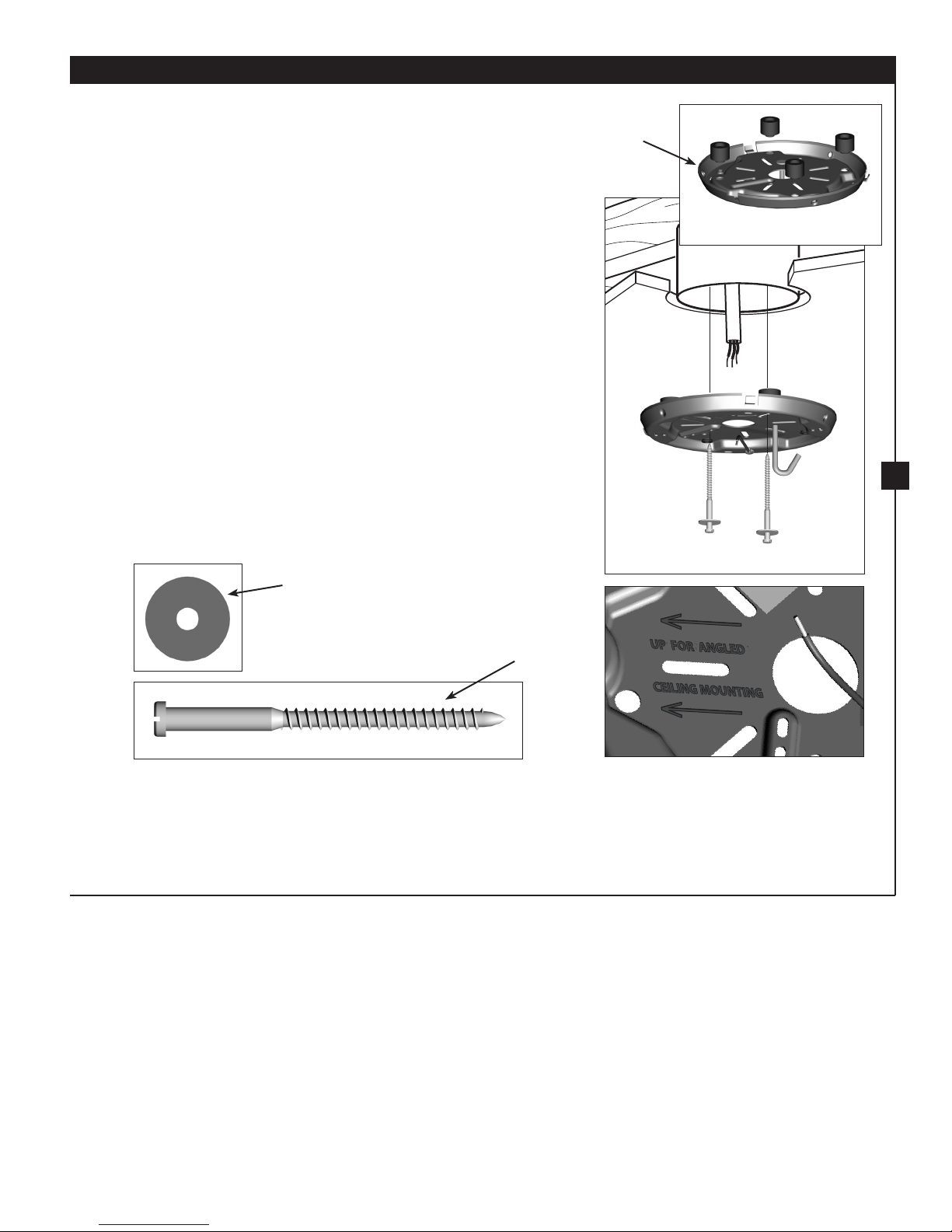

2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Your fan comes with four neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be ush against the ceiling.
2-5. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the ceiling plate into the pilot
holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Step 2-2
Flat Washer
3” Screw
Steps 2-3 – 2-5
2 • Installing the Ceiling Plate
For Angled Ceilings: Be sure to
orient the ceiling plate so that the
arrows printed on the ceiling plate are
pointing towards the ceiling peak.
Ceiling
Plate
6
Hunter Fan Company 41869-01 • 03/12/04
7
41869-01 • 03/12/04 Hunter Fan Company

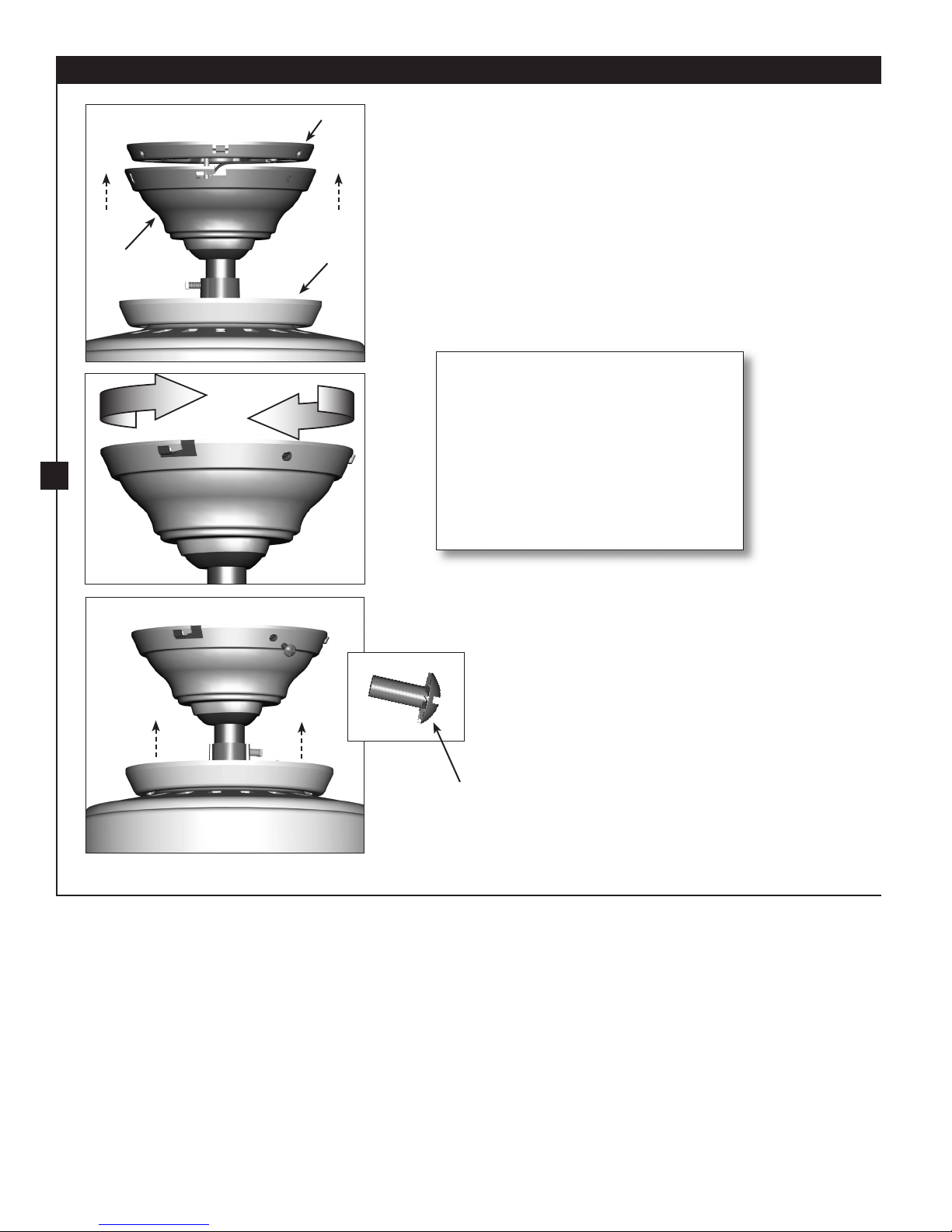

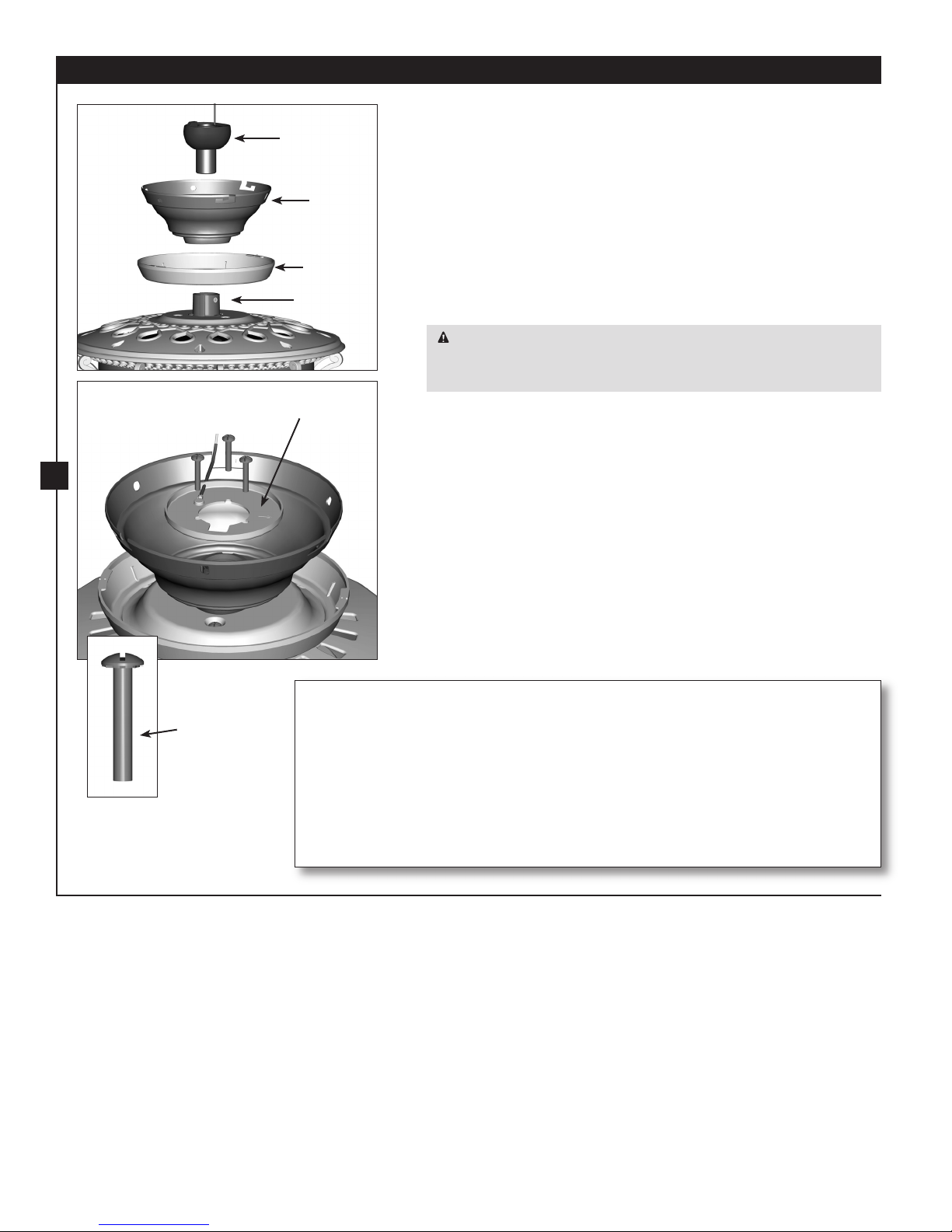

You can assemble your fan for standard mounting (steps 3-1 – 3-2) or
for low pro le mounting (steps 3-3 – 3-4).
To install the remote control you will need to strip electrical wires. If
you are uncomfortable doing so, seek help from a quali ed electrician.
3-1. To assemble fan to hang down from a at or angled ceiling, insert
the downrod through the canopy and canopy trim ring. Feed the
wires from the fan through the downrod.
3-2. Screw the downrod into the fan assembly. Tighten the allen head
set screw using the included allen wrench. Skip to Step 3-5.
CAUTION: e downrod has a special coating on the threads.
Do not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-3. To assemble the fan to hang from a low ceiling, place the low
pro le washer (lip up) into the canopy. Be sure the green ground
wire is pointing up toward the ceiling.
Note: For low pro le mounting, the downrod is replaced with the
low pro le washer. See Steps 3-3 – 3-4.
3-4. Align the holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 1” screws.
3-5. Make sure that the dip switches on the back of the wall control
keypad assembly are set to match the jumper switches in the
remote receiver and transmitter. (1 on the dip switches should
match 1 on jumper switches, etc.) For instructions on how to set
the jumper switches, read the box below.
Steps 3-1 – 3-2
Steps 3-3 – 3-4
3 • Assembling the Fan
#8-32 x 1” Screw
Low Pro le Washer
Downrod
Canopy
Canopy
Trim Ring
Allen Head
Set Screw
Setting Jumper Switches
When two or more fans are located near each other, you may desire to have the receiver/
transmitter for each fan set to a di erent code, so that the operation of one fan does not
a ect the operation of the other fans.
In the transmitter you can access the jumpers from the battery compartment. e
jumpers are very small. You can move them most easily using a small pair of pliers or
tweezers. IMPORTANT! Before you change jumper switches, make sure the battery is not
connected to the transmitter.
6
Hunter Fan Company 41869-01 • 03/12/04
7
41869-01 • 03/12/04 Hunter Fan Company
3-6. Install the included 12-volt battery into the transmitter.
3-7. Cut the lead wires from the fan a maximum length of 3-1/2 inches
from the top of the downrod or the motor adapter (depending on
the mounting method you selected.). Using wire strippers on the
22AWG setting, strip 5/16 inch from each lead wire coming from
the fan.

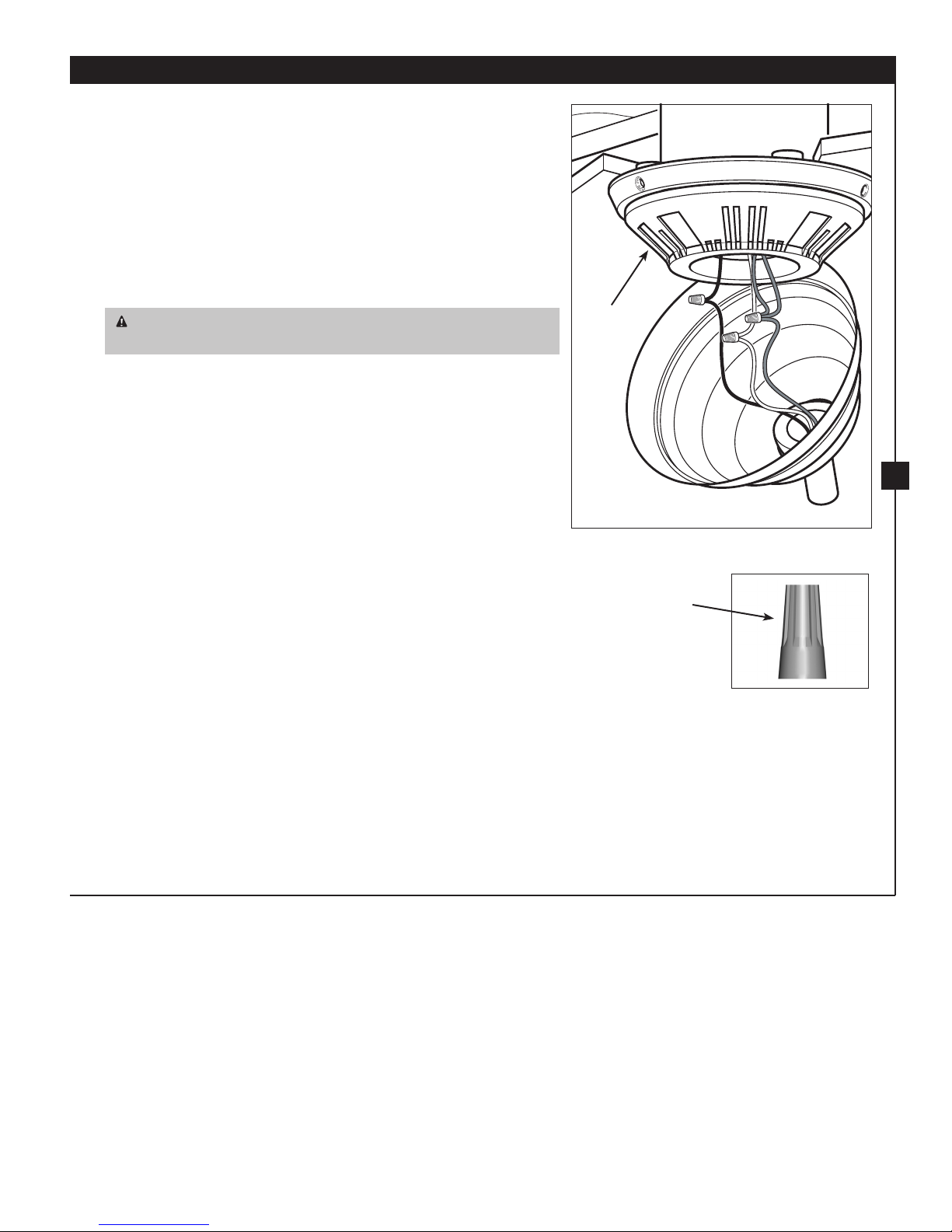

3-8. Identify the shorter wires coming out of the remote receiver. Using
the small wire nuts provided, connect the shorter receiver wires to
the matching colored wires coming out of the fan. To connect the
wires, hold the bare metal leads together and place a small wire
nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
Note that you will use the longer black wire and white wire
coming from the remote receiver later when wiring to the power
wires from the ceiling. You will connect all the ground wires later
too.
CAUTION: e remote control device complies with part 13 of the FCC rule.
Changes or modications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference that may
cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-o wall switch).
WARNING: Maximum fan load is 100 Watts; maximum lamp is 300 Watts. Do not
use any speed control with this product.
Small Wire Nut
8
Hunter Fan Company 41869-01 • 03/12/04
9
41869-01 • 03/12/04 Hunter Fan Company

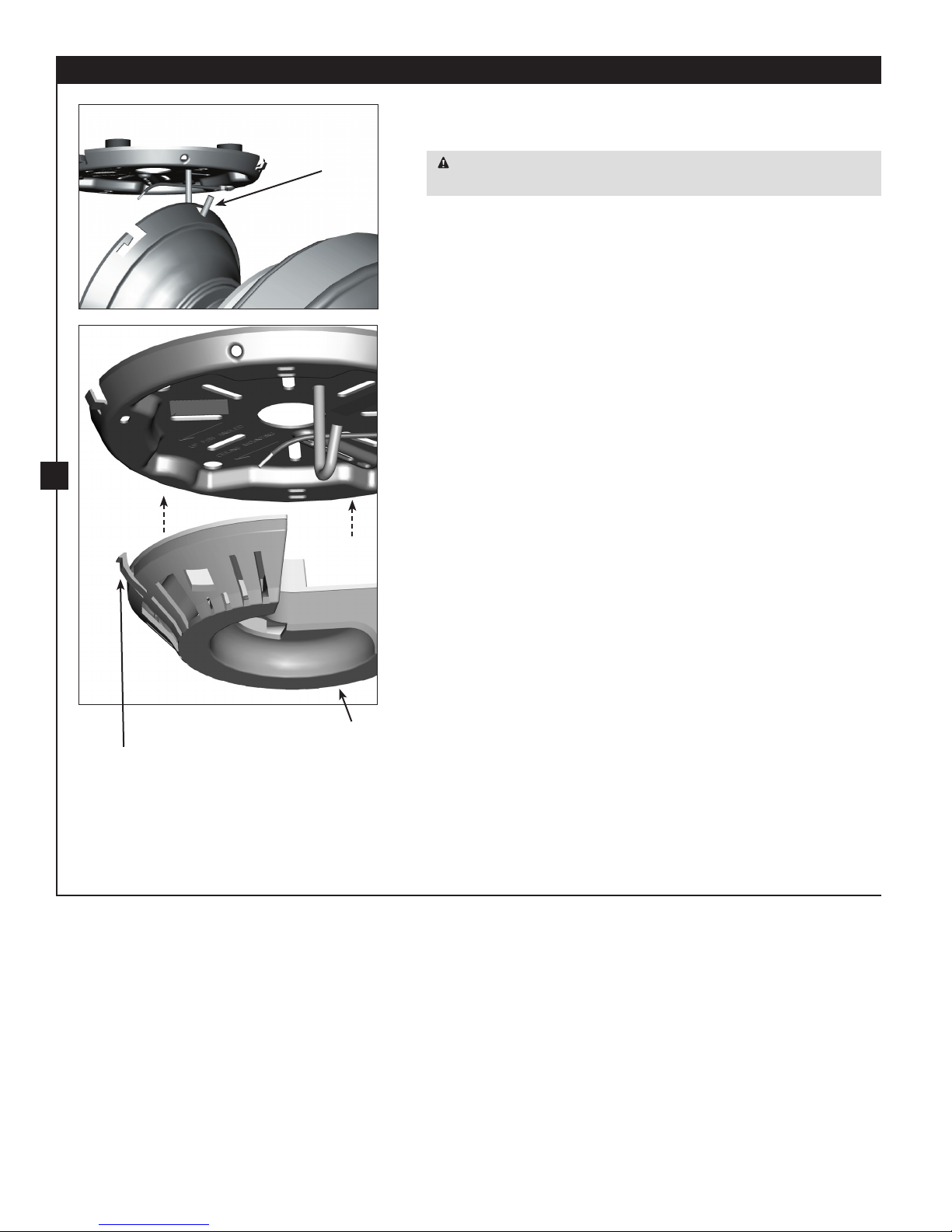

4-1. Raise the fan and place the hook on the ceiling plate through the
U-shaped hole in the rim of the canopy.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
4-2.
Align the hooks on the receiver with the appropriate slots in the
ceiling plate. Also be sure the slot in the receiver and the hook in
the ceiling plate line up. Snap the receiver into place on the ceiling
plate.
Step 4-1
U-shaped
Hole
Step 4-2
Receiver
Receiver
Hook
4 • Hanging the Fan
8
Hunter Fan Company 41869-01 • 03/12/04
9
41869-01 • 03/12/04 Hunter Fan Company
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
5-1. Disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location.
5-2. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight. For all these
connections use the larger wire nuts provided.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
5-3. Connect the wires as follows:
• e ground wire from the ceiling to the green ground wire
from the ceiling plate and the green ground wire from the
downrod or low prole washer
• e white (common) power wire from the ceiling to the longer
white wire from the receiver
• e black power wire from the ceiling to the longer black wire
from the receiver
5-4. Push all wires and wire nuts back through the ceiling plate hole
into the outlet box.
5-5. Run the white antenna wire from the receiver through one of the
slots in the ceiling plate so that it rests between the ceiling plate
and the ceiling. Push it to the edge of the ceiling plate for clear
reception.
5 • Wiring the Fan
Steps 5-2 – 5-3
Wire Nut
Receiver
10
Hunter Fan Company 41869-01 • 03/12/04
11
41869-01 • 03/12/04 Hunter Fan Company
6-1. Holding the canopy, raise the fan o the hook.
6-2. Align the slots in the canopy with the tabs on the ceiling plate.
6-3. Raise the canopy over the ceiling plate. Rotate the canopy
clockwise until the tabs on the ceiling plate totally engage with
the slots in the canopy.
6-4. Loosely assemble the three canopy screws into the canopy one at
a time. Once all three screws are in, tighten them.
6-5. Using both hands, push the canopy trim ring up to the top of the
canopy. e canopy trim ring will snap and lock into place.
6 • Installing the Canopy and Canopy Trim Ring
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press rmly on opposite sides of the
ring towards the canopy. e tabs
will ex out releasing the trim ring
from the canopy
Canopy
Screw
Step 6-2
Canopy Trim
Ring
Canopy
Ceiling Plate
Step 6-3
Steps 6-4 – 6-5
Indice
Altri manuali Hunter Fan
Hunter
Hunter Saturn 90053 Manuale
Hunter
Hunter 21894 Manuale
Hunter
Hunter Louden 51047 Manuale di istruzioni
Hunter
Hunter Organic 82020 Manuale
Hunter
Hunter Crown Park Manuale di istruzioni
Hunter
Hunter Norway 20490 Manuale di istruzioni
Hunter
Hunter Zeal Manuale utente
Hunter
Hunter Bristol 20495 Manuale di istruzioni
Hunter
Hunter 28875 Manuale
Hunter
Hunter 85095 Manuale utente
Hunter
Hunter 20543 Manuale
Hunter
Hunter 42775-01 Manuale utente
Hunter
Hunter Donegan 50274 Manuale utente
Hunter
Hunter 28496 Manuale
Hunter
Hunter 90434 Manuale utente
Hunter
Hunter Grove Park Manuale utente
Hunter
Hunter Baseball 23252 Manuale utente
Hunter
Hunter 42426-01 Manuale di istruzioni
Hunter
Hunter 21617 Manuale
Hunter
Hunter 59134 Manuale utente
