Hunter 41462-01 Manuale utente

41462-01 10/14/2005

Installation and Operation Manual

For Hunter Ceiling Fans

41462-01 10/14/2005

CONGRACONGRA

CONGRATULATULA

TULATULA

TULATIONS!TIONS!

TIONS!TIONS!

TIONS!

Your new Hunter ceiling fan is an

addition to your home or office that

will provide comfort and perfor-

mance for many years. This manual

gives you complete instructions for

installing and operating your fan.

We are proud of our work. We ap-

preciate the opportunity to supply

you with the best ceiling fan avail-

able anywhere in the world.

Before installing your fan, record the

following information for your

records and warranty assistance.

Please refer to the carton and the

Hunter nameplate (located on top

outside fan motor housing) for the

proper information.

10/14/2005

Model Name ___________________

Catalog No. ___________________

Serial No.______________________

Date Purchased _________________

Where Purchased _______________

Attach Your Receipt

or a Copy of

Your Receipt Here

41462-01 10/14/2005

CONTENTSCONTENTS

CONTENTS

Important Information .......................................................................................................................... 5

Step 1 - Getting Ready .......................................................................................................................... 6

Step 2 - Installing The Ceiling Plate ........................................................................................................ 8

Step3-AssemblingTheFan ................................................................................................................ 10

Step 4 - Hanging The Fan .................................................................................................................... 11

Step 5 - Wiring The Fan ....................................................................................................................... 12

Step 6 - Attaching The Canopy ............................................................................................................ 14

Step 7 - Assembling Fan Blades ............................................................................................................ 15

Step 8 - Attaching The Switch Housing ................................................................................................ 16

Step 9 - Remote Control ...................................................................................................................... 18

Operating Your Hunter Fan ................................................................................................................. 22

Cleaning And Maintenance ................................................................................................................. 23

Troubleshooting .................................................................................................................................. 24

41462-01 10/14/2005

IMPORIMPOR

IMPORTT

TANT INFORMAANT INFORMA

ANT INFORMAANT INFORMA

ANT INFORMATIONTION

TIONTION

TION

let box and associated wall

switch location. If you can-

not lock the circuit breakers

in the off position, securely

fasten a prominent warning

device, such as a tag, to the

service panel.

• All wiring must be in accor-

dance with national and lo-

cal electrical codes and

ANSI/NFPA 70. If you are

unfamiliar with wiring, you

should use a qualified elec-

trician.

• To reduce the risk of per-

sonal injury, do not bend

the blade attachment sys-

tem when installing, bal-

ancing, or cleaning the fan.

Never insert foreign objects

between rotating fan

blades.

DO YOU NEED HELP?DO YOU NEED HELP?

DO YOU NEED HELP?

To install a ceiling fan, be sure you

can do the following:

• Locate ceiling joist or other suit-

able support in ceiling.

• Drill holes for and install wood

screws.

• Identify and connect electrical

wires.

• Lift 40 pounds.

If you need help installing the fan,

your Hunter fan dealer can direct you

to a licensed installer or electrician.

• To reduce the risk of fire,

electrical shock, or motor

damage, do not use a solid-

state speed control with this

fan. Use only Hunter speed

controls.

WARNINGSWARNINGS

WARNINGS

• To avoid possible electrical

shock, before installing

your fan, disconnect the

power by turning off the

circuit breakers to the out-

CAUTIONSCAUTIONS

CAUTIONS

• Read entire booklet care-

fully before beginning in-

stallation and save these

instructions.

• To reduce the risk of per-

sonal injury, attach the fan

directly to the support

structure of the building ac-

cording to these instruc-

tions, and use only the

hardware supplied.

• Do not hang fan on ceilings

that have a height less than

9 feet.

41462-01 10/14/2005

GAGA

GATHERING THE TOOLSTHERING THE TOOLS

THERING THE TOOLSTHERING THE TOOLS

THERING THE TOOLS

You will need the following tools for

installing the fan:

• Electric drill with 9/64" bit

• Standard screwdriver

• Phillips-head screwdriver

• Wrench or pliers

PREPPREP

PREPARING THE FAN SITEARING THE FAN SITE

ARING THE FAN SITEARING THE FAN SITE

ARING THE FAN SITE

Ceiling height must be a minimum

of 9 feet.

The location of a ceiling fan and

how the fan is attached to the build-

ing structure are essential for reli-

able operation, maximum effi-

ciency, and energy savings. For this

reason, we have included a sepa-

rate booklet — “Guide to Choos-

ing and Preparing a Ceiling Fan

STEP 1 - GETTING READYSTEP 1 - GETTING READY

STEP 1 - GETTING READY

Site” — to help you select the best

location for your fan. The booklet

also provides information to ensure

your fan support and electric out-

let box meet UL-approved safety

codes for ceiling fans.

The instructions in this installation

manual assume that you have used

“Guide to Choosing and Preparing

a Ceiling Fan Site” to pick the fan

location and make certain the proper

fan support and outlet box are in-

stalled.

CHECKING YOUR FAN PARCHECKING YOUR FAN PAR

CHECKING YOUR FAN PARTSTS

TSTS

Carefully unpack your fan to avoid

damage to the fan parts. Check for

any shipping damage to the motor

or fan blades. If one of the fan blades

was damaged in shipment, return all

the blades for replacement.

Hint: If you are installing more than

one fan, keep the fan blades

in sets, as they were shipped.

If any parts are missing or damaged,

contact your Hunter dealer or call

Hunter Parts Department at

901-248-2222.

41462-01 10/14/2005

Standard MountingStandard Mounting

Standard Mounting (Figure 1a)

hangs from the ceiling by a connec-

tor pipe (included), for ceilings 9

feet or higher. For ceilings higher

than nine feet, you can purchase

Hunter extension rods. All Hunter

fans use sturdy 3/4" diameter pipe

to assure stability and wobble-free

performance.

Figure 1b - Angle MountingFigure 1b - Angle Mounting

Figure 1b - Angle Mounting

Figure 1a - Standard MountingFigure 1a - Standard Mounting

Figure 1a - Standard Mounting

12"

34°Max

Pitch

Angle MountingAngle Mounting

Angle Mounting

(Figure 1b)

hangs from a vaulted or angled ceil-

ing.

15.65"

29° Max

41462-01 10/14/2005

STEP 2 - INSTSTEP 2 - INST

STEP 2 - INSTALLING THE CEILING PLAALLING THE CEILING PLA

ALLING THE CEILING PLAALLING THE CEILING PLA

ALLING THE CEILING PLATETE

TETE

WARNINGARNING

ARNINGARNING

ARNING

• To avoid possible electrical

shock, before wiring fan,

disconnect power by turn-

ing off the circuit breakers

both to the outlet box and

to its associated wall switch

location. If you cannot lock

the circuit breakers in the

off position, securely fasten

a prominent warning de-

vice, such as a tag, to the

service panel.

1. Drill two pilot holes into the wood

support structure through the

outermost holes on the outlet

box. The pilot holes should be

9/64" in diameter by 2 3/4" in

depth.

2. Thread the lead wires from the

outlet box through the hole in the

middle of the ceiling plate.

3. Position the three isolators be-

tween the ceiling plate and ceil-

ing by inserting the raised areas

on each isolator into the holes in

the ceiling plate. Refer to Figure

2a.

4. Align the slotted holes in the ceil-

ing plate with the pilot holes in

the wood support structure.

Note: The isolation pads should

be flush against the ceiling.

FigurFigur

Figure 2a - Adding Isolators toe 2a - Adding Isolators to

e 2a - Adding Isolators toe 2a - Adding Isolators to

e 2a - Adding Isolators to

Ceiling PlateCeiling Plate

Ceiling Plate

Isolators

Ceiling

Plate

41462-01 10/14/2005

FigurFigur

Figure 2b - Corre 2b - Corr

e 2b - Corre 2b - Corr

e 2b - Correct Position of Ceilingect Position of Ceiling

ect Position of Ceilingect Position of Ceiling

ect Position of Ceiling

Plate for Angle MountingPlate for Angle Mounting

Plate for Angle Mounting

FigurFigur

Figure 2c - Attaching Ceiling Plate toe 2c - Attaching Ceiling Plate to

e 2c - Attaching Ceiling Plate toe 2c - Attaching Ceiling Plate to

e 2c - Attaching Ceiling Plate to

2 x 4 Brace2 x 4 Brace

2 x 4 Brace

Ceiling Joist

Ceiling

Outlet Box

Ceiling

Plate

Flat

Washer 3" Wood

Screw

For Angle Mounting OnlyFor Angle Mounting Only

For Angle Mounting Only: Be

sure to orient the ceiling plate so

that the arrows on the plate point

up towards the ceiling peak as

shown in Figure 2b.

5. Place a flat washer on each of the

two 3" screws and pass the screws

through the slotted holes in the

ceiling plate as shown in Figure

2c.

6. Tighten the screws into the 9/64"

pilot holes; do not use lubricants

on the screws. Do not over-

tighten.

41462-01 10/14/2005

STEP 3 - ASSEMBLING THE FANSTEP 3 - ASSEMBLING THE FAN

STEP 3 - ASSEMBLING THE FAN

CAUTIONCAUTION

CAUTION

The pipe has a special coating

on the threads. Do not remove

this coating; the coating pre-

vents the pipe from unscrew-

ing. Once assembled, do not re-

move the pipe.

1. Insert thepipe throughthe hanger

bracket and canopy as shown in

Figure 3a. Feed wires from the fan

through the pipe.

2. Screw pipe into fan assembly un-

til tight. IMPORTANT! Tighten

allenhead pipe setscrewas shown

in Figure 3 with the included allen

wrench.

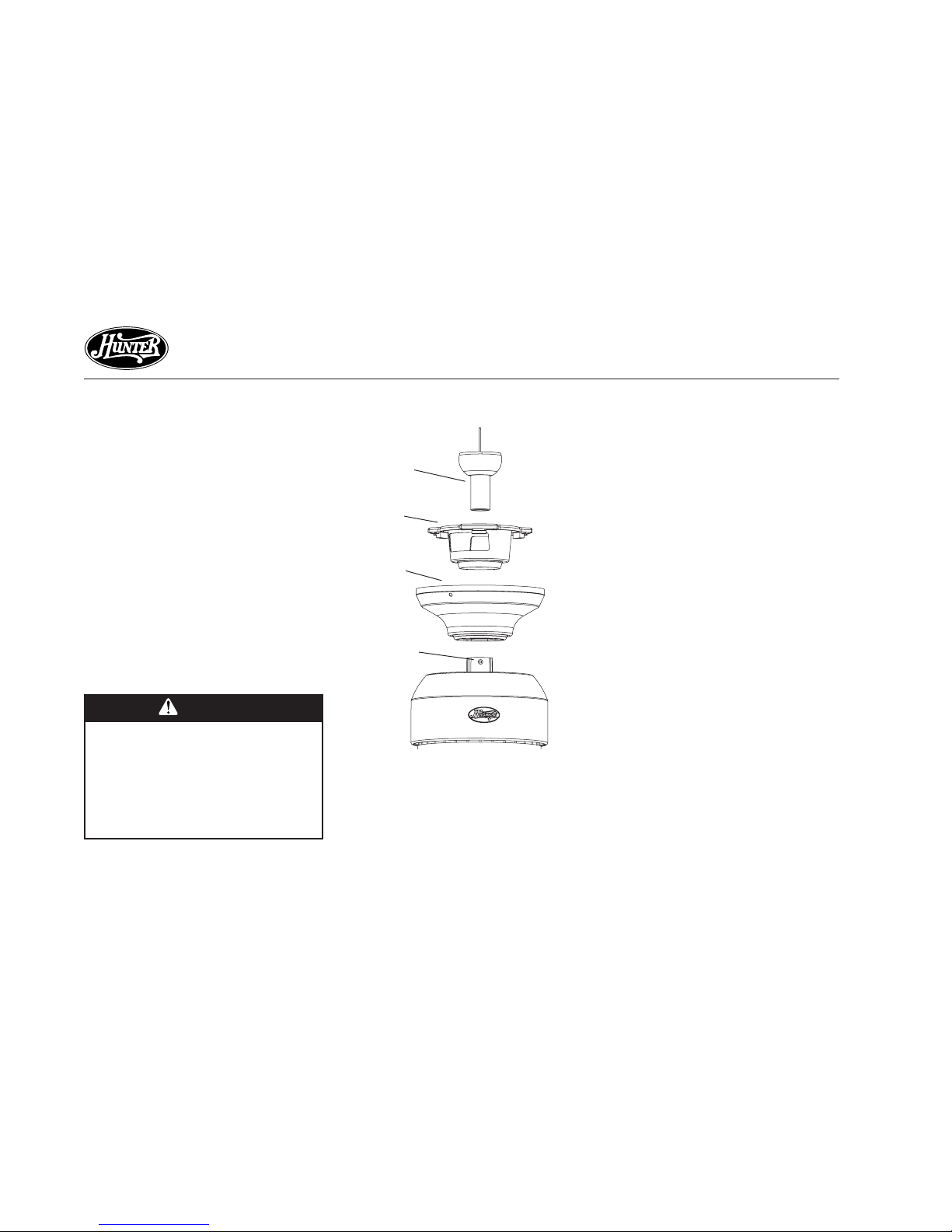

Figure 3 - Inserting Pipe throughFigure 3 - Inserting Pipe through

Figure 3 - Inserting Pipe through

Hanger Bracket and CanopyHanger Bracket and Canopy

Hanger Bracket and Canopy

Pipe

Canopy

Allen

Head

Pipe Set

Screw

Hanger

Bracket

Indice

Altri manuali Hunter Fan

Hunter

Hunter 21538 Manuale di istruzioni

Hunter

Hunter 21187 Manuale utente

Hunter

Hunter Cedonia 53180 Manuale di istruzioni

Hunter

Hunter 26106 Manuale utente

Hunter

Hunter 53069 Manuale utente

Hunter

Hunter 20717 Manuale

Hunter

Hunter Seville Manuale utente

Hunter

Hunter 90052 Manuale utente

Hunter

Hunter Builder Deluxe 53089 Manuale di istruzioni

Hunter

Hunter 28671 Manuale utente

Hunter

Hunter Gallery Edotion Manuale utente

Hunter

Hunter 42408-01 Manuale di istruzioni

Hunter

Hunter 42616-01 Manuale utente

Hunter

Hunter Baseball 23252 Manuale di istruzioni

Hunter

Hunter Ashbury 81001 Manuale

Hunter

Hunter Type T series Manuale utente

Hunter

Hunter X-BOARD 20727 Manuale di istruzioni

Hunter

Hunter 23488 Manuale di istruzioni

Hunter

Hunter Type 2 Models Manuale di istruzioni

Hunter

Hunter Fairhaven 53031 Manuale di istruzioni

Hunter

Hunter 25703 Manuale utente

Hunter

Hunter Hunter Ceiling Fan Manuale utente

Hunter

Hunter 90401 Manuale utente

Hunter

Hunter Advocate 59373 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio

Litex Industries

Litex Industries E-CGL52CB5C1 Manuale utente

Lindab

Lindab LTDF Manuale utente
