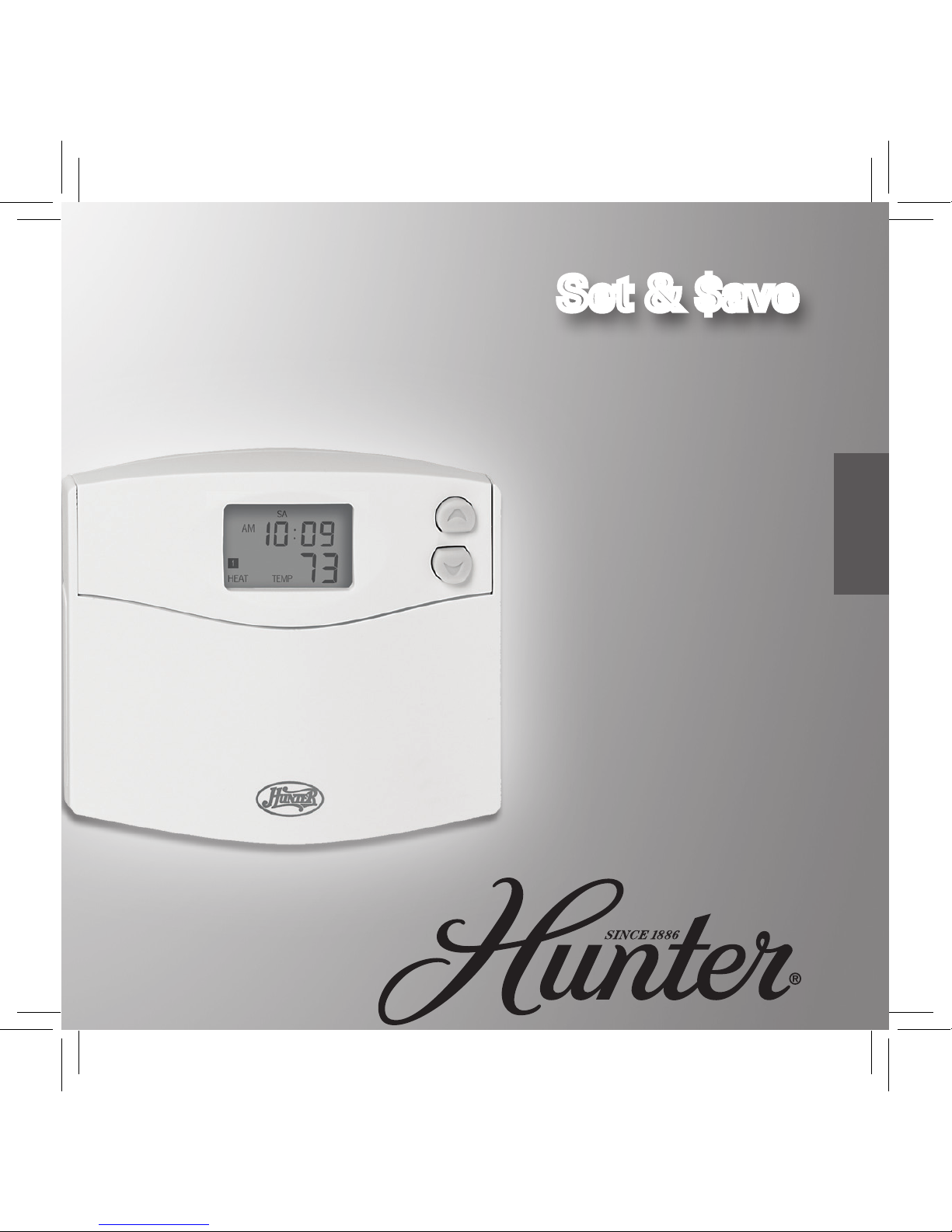

Hunter 44156 Manuale utente

Form# 44042-01

20100224

Set & $aveSet & $aveSet & $ave

Installation and

Operation manual

Model

44156W

Programmable Thermostat

English



Important Information....................................... 5

Tools ................................................................ 6

Uninstalling the Existing Unit ........................... 7

Installing the Thermostat ............................... 12

installing the wall plate ................................ 12

connecting the wires ................................... 16

attaching the thermostat ............................. 18

Settings ......................................................... 22

Methods of Operation ................................... 26

manual operation ........................................ 28

default programs ......................................... 32

creating custom programs .......................... 34

Icons and Features ....................................... 38

Wiring Diagrams.............................................49

Troubleshooting ............................................ 52

Warranty.........................................................55



Thank you for choosing a Hunter programmable

thermostat. Your new Hunter thermostat will

provide years of reliable service and year-round

energy savings.

Please read this manual before beginning

installation and save this booklet for complete

operation instructions.



Programmable Thermostat





Programmable Thermostat



This thermostat is designed to work on the following

heating and cooling systems:

Gas – Standing Pilot

Gas – Electronic Ignition

Gas – Fired Boilers

Gas – Milivolt Systems

Oil – Fired Boilers

Oil – Fired Furnace

Electric Furnace

Electric Air Conditioning

Single Stage Heat Pump - No auxilary

This thermostat is not designed for multi-stage heat

pump systems or 110/220 V baseboard heating

systems.

If you are unsure what kind of heating and cooling

system you have, please contact a qualied HVAC

Technician for assistance.



This thermostat includes two #8 slotted screws

and two wall anchors for mounting.

To install your new thermostat, you will need the

following supplies:

Flat-head screwdriver

....................................................................................

Small Phillips-head screwdriver

....................................................................................

Hammer

....................................................................................

Electric drill and 3/16” bit

....................................................................................

Two 1.5 Volt (AA) size alkaline batteries

....................................................................................















1. Turn the system power OFF from the existing

thermostat. Turn the power to the HVAC

system OFF at the main power panel or at

the furnace.

2. Remove the existing thermostat cover to

access the wires from the wall.

(Some thermostats may have multiple covers, screws

or other locking devices that must be removed or

disengaged.)

3. Locate, but do not disconnect the wires.

(If wires are not visible, they may be connected to the

back of the wall plate. Some models may have doors

that open to expose the wires and mounting screws.)



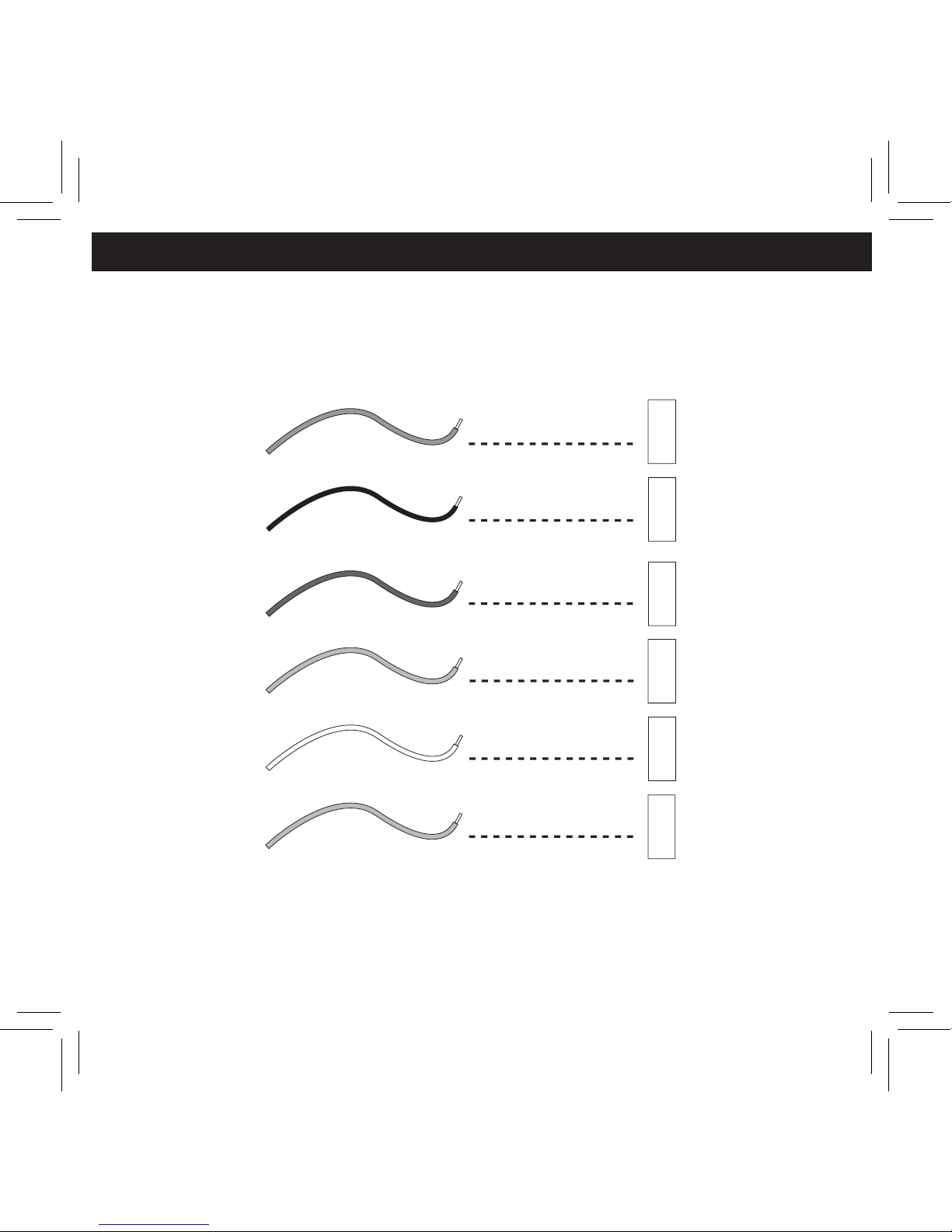

G RC RH Y W

if your existing

thermostat is marked...

label the wire

with this sticker:

G / F

W / H / B

W/B

Y / C* / M / O

Y/0

RC / VC

RH / R / VR / 4

24 Volt

24 Volt cool

air conditioning

compressor

heating

fan

heat pump

compressor
