Hunter 44377 Manuale utente

Owner’s Manual

Model

44372

44377

Form# 44040-01

20100511

English

7 Day Programmable

I N S T A L L A T I O N

5 MINUTE

M T WT F S S

44040-01 • 05/11/2010

Table Of Contents

At A Glance

Know Your ermostat ....................................................3

Setup

Setting Day and Time .....................................................10

Scheduling

Scheduling Introduction ..................................................12

Personal Scheduling Charts ...............................................13

Setting Your Schedule .....................................................14

Temporary Temperature Change ..........................................20

Turning Oﬀ Scheduling ...................................................22

Home Today ..............................................................24

Save Away .................................................................26

Features

Alerts .....................................................................28

Menu Options ............................................................32

Energy Saver Bar ...........................................................38

Additional Features .......................................................40

ermostat Assistance

Troubleshooting and Support .............................................41

Technical Support .........................................................43

Warranty

1 Year Guarantee ..........................................................44

Your thermostat has been pre-programmed from the factory with no programming necessary.

We recommend using these pre-programmed settings for a few days before altering them as

they offer maximum energy saving benets. If you do decide to alter your programs, use the

charts on page 13 to write out your scheduled times and temperatures. After you have recorded

your preferences, follow the instructions on page 14 to alter your temperature settings.

There is no need to program the thermosat at the wall it is mounted to! Remove the thermostat

from the backplate by gripping the sides rmly and pulling it straight off. This allows you to

program the thermostat in comfort.

After you have programmed your thermostat, no other setting changes are necessary unless you

wish to browse through the menu to see how you may further adjust the independent settings of

your thermostat to meet your lifestyle. The features section starting on page 32 of this manual will

describe these settings. Most setting have been preset for optimal performance.

If you need any assistance with installion or setup of your new Hunter Thermostat, please call us,

our technical support staff are ready to help!

USA: 1-888-830-1326

Canada: 1-866-268-1936

Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on

Saturday, Central Time. You may also contact us over the Internet at:

www.hunterfan.com

3Know Your ermostat

At A Glance

44040-01 • 05/11/2010

At A Glance

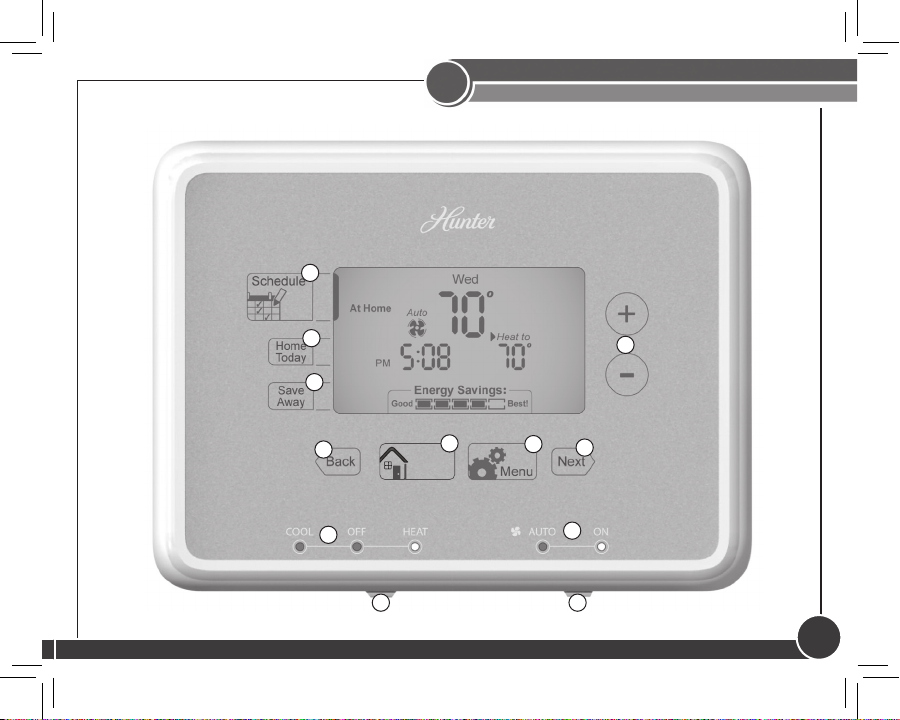

1. Enters Schedule Setup for altering scheduled programs.

2. Sets the Home Today feature for when you are home during a regularly scheduled Away

period.

3. Sets the Save Away feature for when you will not be home during a regularly programmed

time.

4. Conrms completion of an action or returns you to the Home screen.

5. Allows access to the advanced features of the thermostat.

6. Moves you forward or backward while setting up features or schedules.

7. Adjusts time and temperature settings as well as moving up or down menu lists.

8. Indicates whether the system is set to Heat, Cool, or Off.

9. Shows if the fan is set to Auto or On modes.

10. Allows you to switch between Heat, Cool, and Off modes.

11. Allows you to switch between fan Auto and On modes.

Know Your ermostat

At A Glance

3Know Your ermostat

one

44040-01 • 05/11/2010

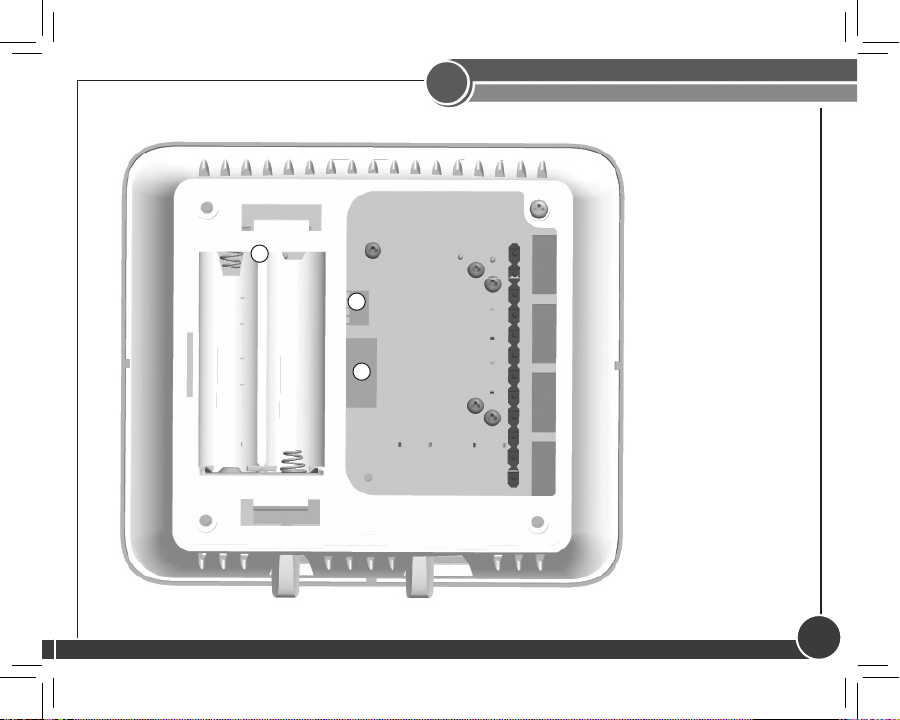

1. Holds 2 “AA” Batteries.

2. HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type of

system you have.

3. Conventional/Heat Pump System Switch - Allows your thermostat to operate your HVAC

system properly by selecting the system type that you have.

* Conventional System: Uses a condensing unit for cooling and a seperate

furnace system for heating.

* Heat Pump System: Uses the condensing unit for both heating and cooling.

NOTE: If you are unsure of your system type it may be necessary to contact our

technical support department, your HVAC manufacturer, or a local HVAC technician

to determine this. Improper selection of your system type could cause the thermostat to

not operate your system properly.

At A Glance

Know Your ermostat

At A Glance

3Know Your ermostat

44040-01 • 05/11/2010

At A Glance

1. Shows the current day of the week or weekend.

2. Indicates the thermostat is running in schedule mode.

3. Flashes when the furnace lter should be checked for replacement.

4. On when the current schedule period is running.

5. Shows the current mode of the fan: Auto or On.

6. C will display when in Celsius mode. Nothing will display when set to Fahrenheit.

7. Indicates the current active schedule period.

8. Shows the system fan is running.

9. Indicates the current room temperature.

10. Indicates your Heat Pumps Auxiliary Heat is running.

11. Shows when the Home Today feature is running.

12. On when the current operating mode, heat or cool, is running.

13. Current operating mode, heat or cool.

14. Low battery warning, indicates you need to replace the batteries in the thermostat.

15. Indicates the current time in am or pm .

16. Current Set temperature the thermostat is scheduled to run.

17. Indicates the Thermostat is running in save away mode.

18. Will show when your heat pump or system is reporting a problem to the Thermostat.

19. Indicates in hours or days how long the Save Away period is set for.

20. Energy saver bar helps you make decisions on conserving energy.

21. Indicates the thermostat is locked and will not accept input.

Know Your ermostat

At A Glance

3Know Your ermostat

At Home Auto

Check H.P.!

Hours

Aux Em.

Energy Savings:

Good Best! Lock

Mon

Filter

Heat to

20 21

44040-01 • 05/11/2010

Setup

Setting Day and Time

Once you install the batteries, the thermostat will prompt you to set the current day

and time.

1. You will notice that “Mon” will be ashing at the top left of your screen. Use the

or buttons to move to your current day of the week and press the Next button to

advance to the next step.

2. Use the or button to change between am and pm. Choose Next to advance.

3. Next you will select your current hour by using the or buttons. The Next button

advances you to the next step.

4. Set your minutes using the or and press Done/

Home to nish or Back if you need to

make a correction to a previous step.

5. When nished, the thermostat will show “Updated!” to conrm your settings are

saved.

6. Your thermostat will next prompt you to set your programming, see page 14 step 2 if

you wish to alter your programs at this time.
