HUSKIE TOOLS, INC.

Operating Instruction Manual

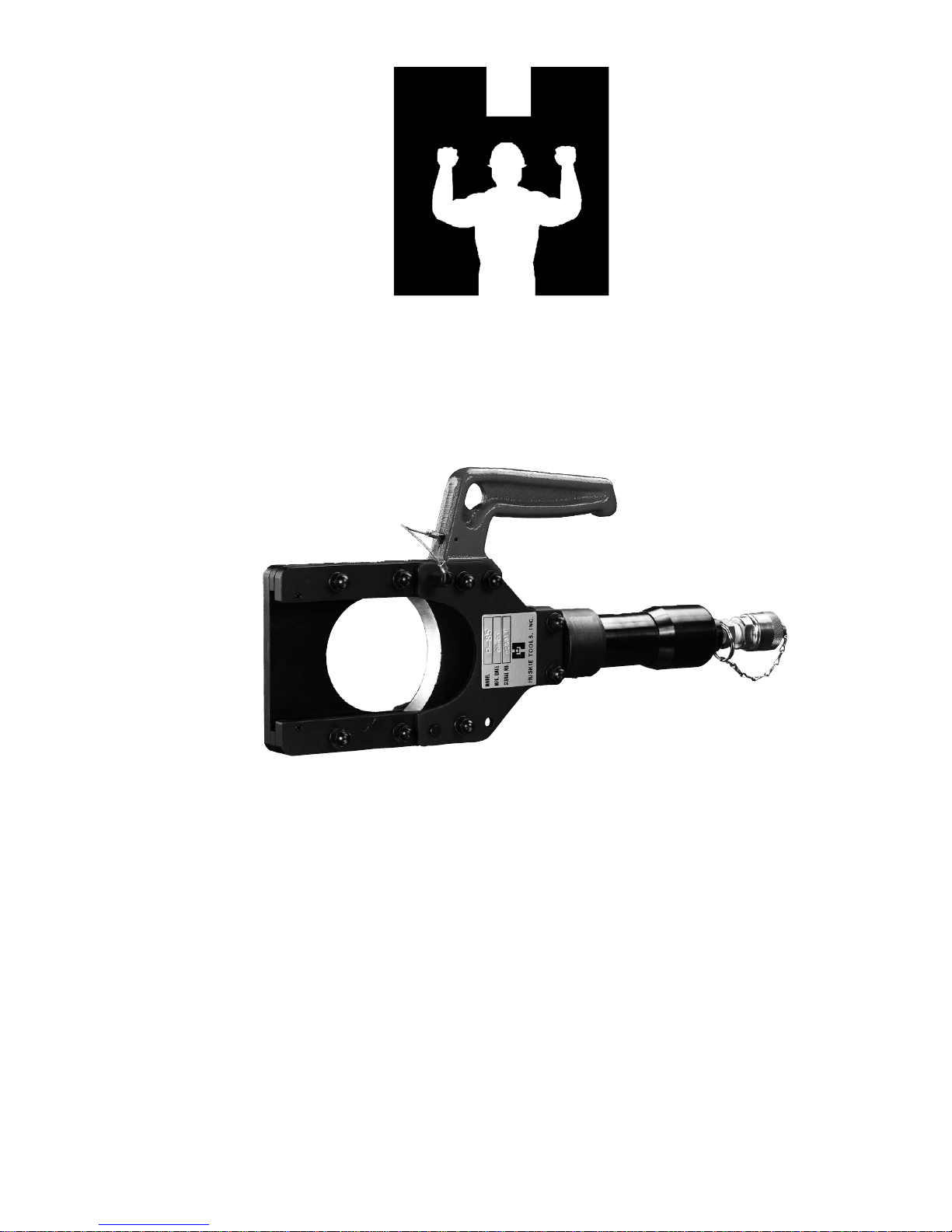

For SP-85 Hydraulic Cutters

With Parts List

http://www.huskietools.com [email protected]1

GENERAL INFORMATION GUIDE FOR SP-85CUTTER

The following steps are guidelines for safe operation of the Huskie cutters. Please take the time to review them

as these are helpful hints that have been accumulated over the years.

1. Stay within the maximum cutting limits of each tool as listed on page 5.

2. Try to keep the cutter head clean. When cleaning, use a spray lubricant to avoid a build up of dirt and

sand which will damage the cutter head.

3. Stop pumping when the blade reaches the extreme end of its advance. If the material being cut (usually

wire rope or soft cables) seems to be cut but does not break free of the tool, this indicates that the blade

is jammed on a small piece of cable. Refer to “troubleshooting” on page three to free the blade.

4. All Huskie tools require proper care. Occasional cleaning and degreasing in solvent, and sharpening

blade and cutter head, will keep these tools operating without problems.

5. The most common problem encountered is blade breakage. Ninety-nine percent of all breakage

occurs because the cutter head is not securely latched before cutting. If the latch is not secured, the

blade will push open the cutter head and damage both the body head and blade. This causes the outside

ear of the blade to break on an angle. In some cases the whole cutter head may crack in half. Cutting

material that is not specified may also cause blade damage. In time these blades will fatigue and crack

and must then be replaced.

6. There may be a residue of oil present on new tools when they are removed from the original shipping

container. This is to protect the tool from corrosion during shipment and storage, and should not be

considered defective. The tool can be cleaned with a spray degreaser or soapy water.

7. If tool is jammed, avoid beating directly on the tool with a hammer, especially avoid flattening the

piston cylinder. Use a hammer in conjunction with a block of wood or soft material to free the blade.

8. All tools can be reconditioned and overhauled. Call factory and obtain an RGA # for returning tools.

http://www.huskietools.com [email protected]2

9. If the cutters are used under water, wash them down and lubricate after each use. This whole operation takes

less than five minutes. It may be helpful to paint new tools with a light color, corrosion resistant paint.

10. Always return tools to their carrying bag to protect them from sand and dirt. Extra bags can be purchased.

11. Always carry a spare blade, preferably attached to the carrying bag.

12. Use clear hydraulic fluid MV-32 available from your dealer or HTI.

13. When cutting, keep area clear of spectators as hardened metals may fly apart when severed.

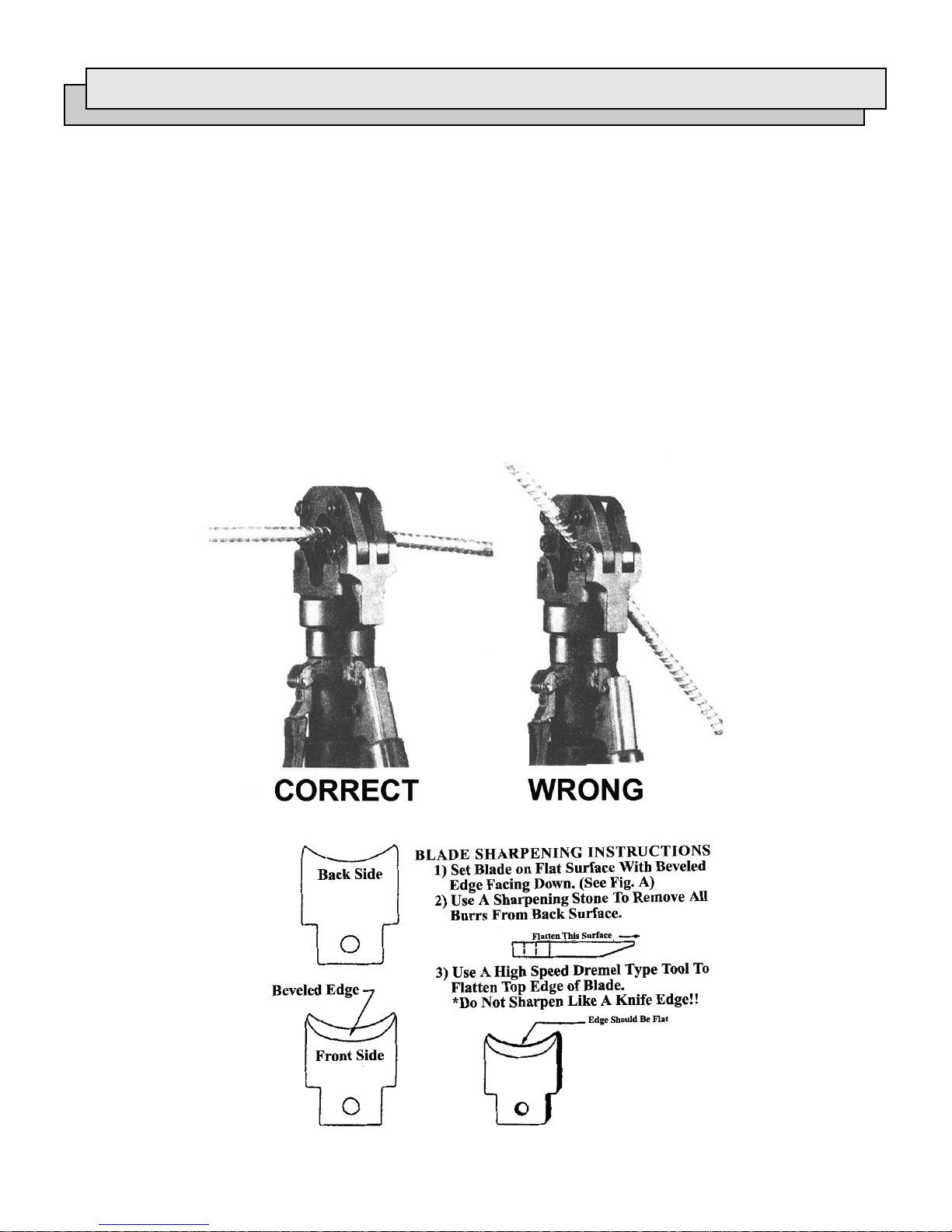

14. Always cut the material at a 90 degree angle to the blade. Any other angle may cause the blade and head

shear to fracture. See illustration below.

GENERAL INFORMATION GUIDE FOR SP-85 CUTTER

http://www.huskietools.com [email protected]3

TROUBLESHOOTING GUIDE

1. Problem: Small wire strands or pieces of cable or debris get jammed between the cutter head and blade,

not allowing the blade to retract.

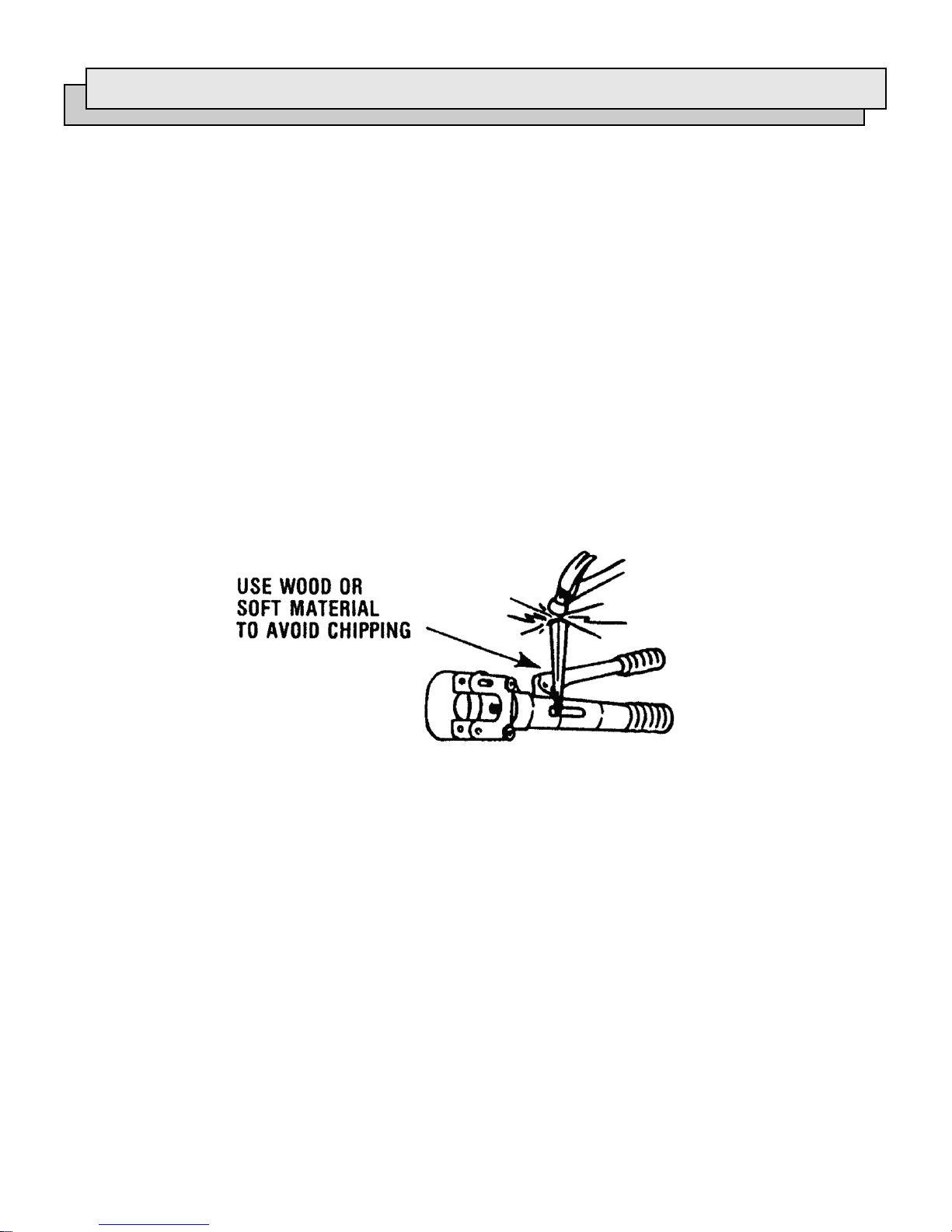

Solution: A) Hold release lever down while tapping on the ram with a block of wood and a hammer. If

this does not work or tool continues to hang up, proceed to step “B”.

B) Remove blade screw and release the ram. Then disassemble cutter head and remove burrs from both

blade and head shear, using a flat grinding stone on the rolled edge. Do not sharpen like a knife – leave

cutting edge flat! See illustration on page 2.

2. Problem: Blade is advanced under pressure with no load and the release lever seems to be stuck.

Solution: A) Use both hands to depress lever using body weight and the ground or other strong surface

for support. If this does not work, proceed to step “B”.

B) Lay tool flat on the ground or other strong surface and hit release lever with a block of wood and a

hammer to release pressure.

3. Problem: Tool will not advance when handle is pumped.

Solution: A) Remove body handle and check oil reservoir for proper fluid level. The oil should be to the

top of the reservoir when the cap is removed. Be sure the tool is fully retracted before removing cap.

B) After storing for a long period of time, or occasionally when the tool is new, a check ball may be stuck

not allowing it to advance. Invert the tool and rap the cutter head sharply on the ground. Do this several

times, then pump handle to advance the blade.

http://www.huskietools.com [email protected]4

OPERATING INSTRUCTIONS FOR ALL “SP”

SERIES HYDRAULIC CUTTERS

1. Before cutting, make sure the material being cut is within the proper cutting capacity of the tool being

used.

2. Before connecting the tool head, make sure the pump and hose being used is working properly, and

adjusted to and rated at 10,000 psi. The use of a pump or hose that is not rated for 10,000 psi working

pressure may cause severe tool damage and result in personal injury.

3. Connect the tool head to the pump or hose, making sure all coupler connections are secure. It is

important that all connections are tight for tool to function properly.

4. Open cutter head by lifting latch or removing lock pin. Depending on the model being used.

5. Insert material between cutter head and blade and secure latch. It is important that you check the latch

for proper engagement before continuing with the cut. Failure to secure the latch can result in severe

tool damage and personal injury.

6. Align the material at a 90 degree angle to the blade. This will ensure a proper cut with minimal

distortion. If the material is cut at any other angle, severe blade damage may occur. Refer to diagram

on page two for proper alignment.

7. Proceed by operating pump to advance blade. If the pump has a hold feature, it is important to check

for proper alignment of material and blade before cutting. Continue to operate pump and cut material.

8. Once the cut is made stop the pump and release pressure to retract the blade. It is not necessary to

advance the tool any further after the cut has been completed. If the tool blade hangs up, be sure to

check if coupler connections are tight, release mechanism on pump is functioning properly, or refer to

page three “troubleshooting” to release blade.

9. Always wear eye protection and any other specified safety equipment when cutting. Be sure

surrounding area is clear, as hardened metals may fly apart when severed.

10. For EHS guy wire or bridge strand, use models SP-24CC, S-24CC or S-32CC only! The use of

any other SP-series cutter will result in severe blade damage and may cause personal injury.

11. Models SP-85 and SP-100 are designed for use on non-ferrous metals only! Do not cut steel or severe

tool damage and personal injury may occur.

http://www.huskietools.com [email protected]5

SP SERIES SPECIFICATIONS

SP-20 SP-24 SP-32 SP-40 SP-55 SP-85 SP-100

output 4.4 ton output 7.8 ton output 20 ton output 6.28 ton output 13.12 ton output 2.7 ton output 8.3 ton

weight 3 lbs weight 5 lbs weight 19 lbs weight 7.2 lbs weight 18 lbs weight 11 lbs weight 27 lbs

size 5"Lx3"W size 1 1"Lx3.5"W

size 14"Lx3.25"W

size 12"Lx4"W size 15"Lx4.5"W size 19"Lx5"W size 24"Lx6"W

Wire 20mm 22mm 32mm Do not cut 26mm Communication 100mm

Ropes 9/16" 7/8" 1-1/4" 1" cables 3.35" 4"

Sof t Steel 14mm 20mm 32mm 16mm 32mm Lead sheath 100mm

Bolt s 9/16" 3/4" 1-1/4" 5/8" 7/8" cables 3.35" 4"

Rebar, 13mm 16mm 26mm 16mm 20mm Soft CU & AL 89mm

ground & 1/2" 5/8" 1" 5/8" 3/4" cables 3" 3-1/2"

anchor rod

ACSR 20mm 22mm 32mm 40mm 50mm

3/4" 7/8" 1-1/4" 1-1/5" 2"DO NOT CUT

Standard 14mm 16mm 22mm 16mm 20mm

*Guy 1/2" 5/8" 7/8" 5/8" 5/8" DO NOT CUT

strand

http://www.huskietools.com [email protected]6

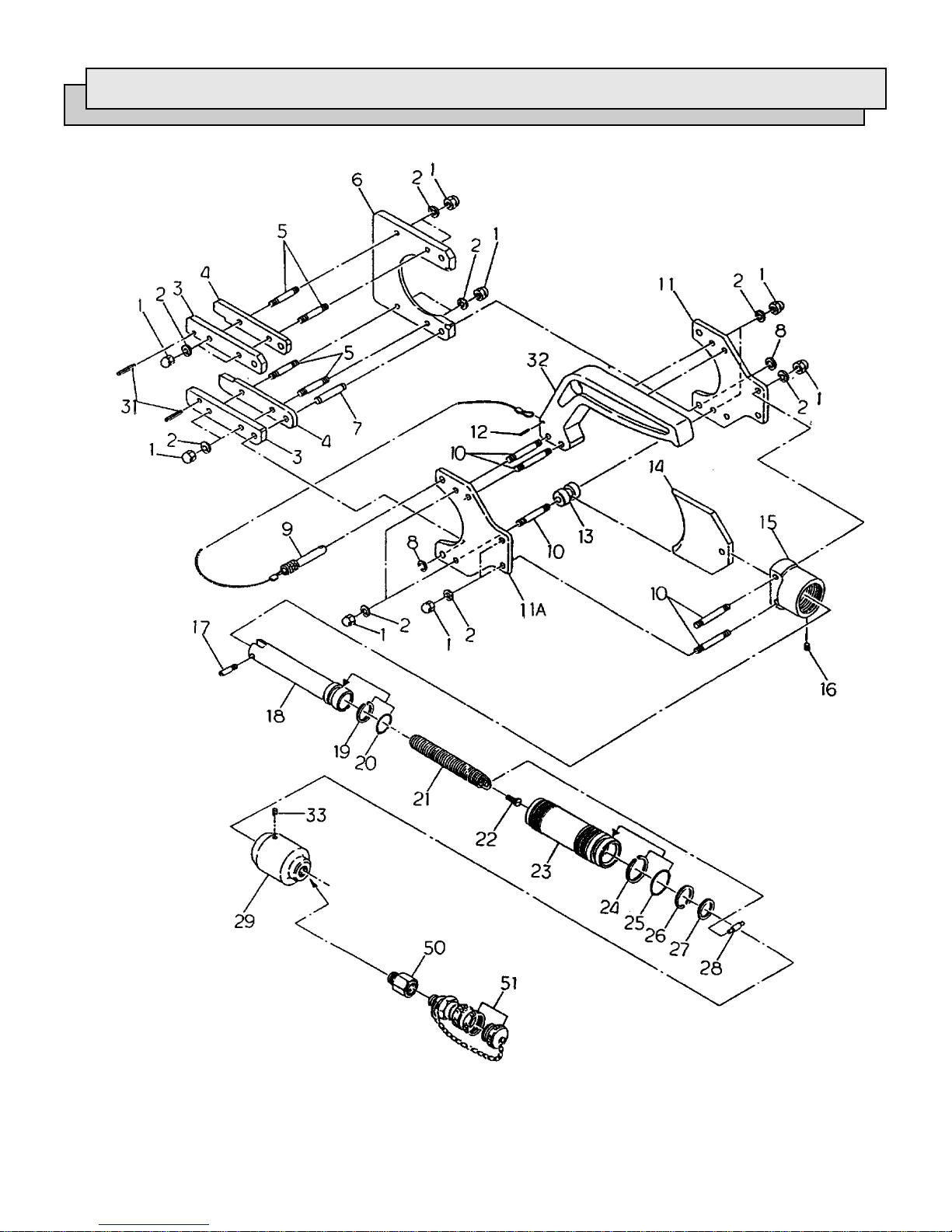

MODEL SP-85 PARTS DIAGRAM

http://www.huskietools.com [email protected]7

MODEL SP-85 PARTS LIST

1 M8 Cap Nut 85-01 18

2 M8 Lock Washer 40-25 18

3 Head Shear Plate 85-02 2

4 Spacer 85-03 2

5 Stud Bolt (3) 85-04 4

6 Head Shear 85-05 1

7 Pin (44) 85-06 1

8 CE-9 Snap Ring 75-05 2

9 Lock Pin Ass'y 85-07 1

10 Stud Bolt (4) 85-09 5

11 Support Plate P85E-01 2

12 3 X 20 Drive Pin (AW) P55-06 1

13 Roller 85-11 1

14 Blade 85-12 1

15 Cylinder Head P85E-02 1

16 M5 X 8 Screw (C.P.) P55A-02 1

17 Blade Screw 85-14 1

18 Ram 85-15 1

19 P-24 Back-Up Ring (B.C.) 85-16 1

20 P-24 O-Ring 85-17 1

21 Spring (147) 85-18 1

22 Spring Anchor Screw 85-19 1

23 Cylinder P85-02 1

24 P-34 Back-Up Ring (B.C.) 85-22 1

25 P-34 O-Ring 85-23 1

26 JO-30 Snap Ring 85-24 1

27 Retainer Washer 85-25 1

28 Spring Anchor Pin 85-26 1

29 Cylinder Extension P85-03 1

30 Female Coupler IZUMI 100-24 1

31 5 X 18 Drive Pin (AW) P85-06 2

32 Carrying Handle P85-07 1

33 M4 X 5 Screw (C.P.) 55A-24 1

P85-80 1

51 Female Coupler P.H. Type P85-81 1

CODE

NO.

DESCRIPTION

QTY.

NO.

DESCRIPTION

QTY.

CODE

All Huskie REC-Series battery driven products carry a 5 year warranty, and the ECO-Series

carry a 3 year warranty. The BP-70E, BP-70EI, and the BP-70MH batteries carry a 5 year

warranty from the date stamped on the battery. The LED indicator on the BP-70-EI battery

carries a 1 year warranty from purchase date. Hydraulic hammers carry a one year warranty

and all other Huskie products carry a 5 year warranty. Huskie reserves the right to determine

all warranty claims. Failure due to misuse, abuse or repairs attempted by anyone other than

Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our

patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life

of the tool. All factory repaired or reconditioned hydraulic tools carry a one year warranty

on parts and labor.

REPAIR AND WARRANTY CLAIMS

All claims must be sent to Huskie for inspection and authorization. A Return Goods

Authorization is required before shipping tools to Huskie. Secure the authorization by

telephoning 1-800-860-6170 or writing to Huskie's main office with details of claim. Non-

warranty repairs are handled using the same procedure. Repairs exceeding 50% of the cost

of a new tool will be advised before repairs are made.

PLEASE RETAIN FOR YOUR RECORDS

Purchaser’s Name _____________________________________________________

Address _____________________________________________________

City, State, Zip _____________________________________________________

Tool Model Number _____________________________________________________

Serial Number _____________________________________________________

Date Purchased From _____________________________________________________

Purchased From _____________________________________________________

MODEL SP-85 WARRANTY
