Husqvarna Viking Viking E20 Manuale utente

E20

USER’S GUIDE

This houshold sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions should always be followed,

including the following:

Read all instructions before using this household sewing machine.

DANGER -To reduce the risk of electric shock:

• A sewing machine should never be left unattended when plugged in. Always unplug this

sewing machine from the electric outlet immediately after using and before cleaning.

• Always unplug before relamping. Replace bulb with same type rated 10 Watt (110-120V),

15 Watt (220-240V).

WARNING - To reduce the risk of burns, ﬁre,

electric shock, or injury to persons:

• Do not allow to be used as a toy. Close attention is necessary when this sewing machine is

used by or near children and inﬁrm persons.

• Use this sewing machine only for its intended use as described in this manual. Use only

attachments recommended by the manufacturer as contained in this manual.

• Never operate this sewing machine if it has a damaged cord or plug, if it is not working

properly, if it has been dropped or damaged, or dropped into water. Return the sewing

machine to the nearest authorized dealer or service center for examination, repair,

electrical or mechanical adjustment.

• Never operate the sewing machine with any air openings blocked. Keep ventilation

openings of the sewing machine and foot controller free from the accumulation of lint, dust,

and loose cloth.

• Keep ﬁngers away from all moving parts. Special care is required around the sewing

machine needle.

• Always use the proper needle plate. The wrong plate can cause the needle to break.

• Do not use bent needles.

• Do not pull or push fabric while stitching. It may deﬂect the needle causing it to break.

• Switch the sewing machine off (“0”) when making any adjustment in the needle area, such

as threading needle, changing needle, threading bobbin, or changing presser foot, etc.

• Always unplug sewing machine from the electrical outlet when removing covers,

lubricating, or when making any other user servicing adjustments mentioned in the

instruction manual.

• Never drop or insert any object into any opening.

• Do not use outdoors.

• Do not operate where aerosol (spray) products are being used or where oxygen is being

administrated.

• To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

SAVE THESE INSTRUCTIONS

CONTENTS

PRINCIPAL PARTS............................................................................................................. 4

ACCESSORIES .................................................................................................................. 6

SLIDE ON THE SNAP-IN ACCESSORY BOX.................................................................... 7

CONNECTING THE MACHINE TO POWER SOURCE...................................................... 8

CHANGING THE BULB....................................................................................................... 9

TWO-STEP PRESSER FOOT LEVER.............................................................................. 10

ADJUSTING THE PRESSER FOOT PRESSURE............................................................ 10

PRESSER FOOT SHANK..................................................................................................11

WINDING THE BOBBIN.................................................................................................... 12

INSERTING THE BOBBIN................................................................................................ 13

CHANGING THE NEEDLE (SYSTEM 130/705H)............................................................ 14

THREADING THE UPPER THREAD................................................................................ 15

BRINGING UP THE BOBBIN THREAD ............................................................................ 16

THREAD TENSION........................................................................................................... 17

RAISE OR LOWER THE FEED DOG............................................................................... 18

REVERSE SEWING.......................................................................................................... 19

CHANGING SEWING DIRECTIONS ................................................................................ 19

REMOVING THE FABRIC................................................................................................. 19

CUTTING THE THREAD................................................................................................... 19

HOW TO CHOOSE YOUR PATTERN............................................................................... 20

MATCHING NEEDLE / FABRIC / THREAD ...................................................................... 21

ZIG ZAG SEWING............................................................................................................. 22

STRAIGHT STITCHINGAND NEEDLE POSITION.......................................................... 23

OVERLOCK STITCHES.................................................................................................... 24

BLIND HEM....................................................................................................................... 25

ONE STEP BUTTONHOLES ........................................................................................... 26

LEFTAND RIGHT SIDE BALANCE FOR BUTTONHOLE................................................ 27

ZIPPERS AND PIPING ..................................................................................................... 28

3-STEP ZIG-ZAG .............................................................................................................. 29

STRETCH STITCH SELECTION...................................................................................... 30

FREE MOTION DARNING................................................................................................ 31

DARNING.......................................................................................................................... 32

QUILTING.......................................................................................................................... 33

MAINTENANCE ................................................................................................................ 34

TROUBLESHOOTING GUIDE.......................................................................................... 35

PRINCIPAL PARTS

1. Thread tension dial

2. Presser foot pressure

3. Thread take-up lever

4. Thread cutter

5. Presser foot

6. Needle plate

7. Accessory box

8. Bobbin stopper

9. Stitch length dial

10. Stitch width dial

11. Stitch display

12. Reverse sewing lever

13. Feed dog adjustment lever

14. One step buttonhole lever

15. Handle

16. Bobbin winder

17. Spool pin

18. Handwheel

19. Pattern selector dial

20. Power switch

21. Main plug socket

22. Bobbin thread guide

23. Upper thread guide

24. Presser foot lever

25. Buttonhole stitch balance adjustment slot

1234

56 7

89 10

11 12 13 14

ACCESSORIES

1. All purpose foot

2. Zipper foot

3. Satin stitch foot

4. Buttonhole foot

5. Quilting foot

6. Free-Motion/Darning foot

7. Blind hem foot

8. L-screwdriver

9. Seam ripper/ brush

10. Oil bottle

11. Pack of needles

12. Bobbins

13. Seam guide

14. Spool pin felt (2x)

SLIDE ON THE SNAP-IN ACCESSORY BOX

Hold the snap-in accessory box horizontal, and push it

in the direction of the arrow. (1)

To open, lift up at the point of the arrow. (2)

CONNECTING THE MACHINE TO POWER SOURCE

- Connect the machine to a power source as illustrated (1/2).

- The power switch is located above the socket. Your machine will

not operate unless this switch is on “ I “. (1)

- Sewing light turns on automatically when the main switch is on “I“.

- To start the machine, press on the foot control (3). The speed of

the machine is regulated by the amount of pressure put on the foot

control.

Caution: Always make sure that the machine is unplugged from

power source and the main switch is on “O”. when the machine is

not in use and before inserting or removing parts.

Attention: Consult a qualiﬁed electrician if in doubt as to connect

machine to power source. Unplug power cord when machine is not

in use.

The appliance must be used with the foot controller:

- For USA and Canada, 110-120V: 4C-316B

- For Australia, 240V: 4C-326G

- For Europe, 220-240V: 4C-316C or 4C-326C

For the USA and Canada

This appliance has a polarized plug (one blade wider than the

other), to reduce the risk of electrical shock; this plug will ﬁt in a

polarized outlet only one way. If the plug does not ﬁt fully in the

outlet, reverse the plug. If it still does not ﬁt, contact a qualiﬁed

electrician. Do not modify the plug in any way.

CHANGING THE BULB

Caution: Make sure to disconnect the electrical

supply plug from wall outlet before changing light

bulb.

Replace bulb with same type rated:

10 watts (110-120V)

15 watts (220-240V)

- Loosen screw (A) as illustrated. (1)

- Remove the cover (B).

- Unscrew the bulb and put in a new one (C).

(2)

- Replace the cover and tighten screw.

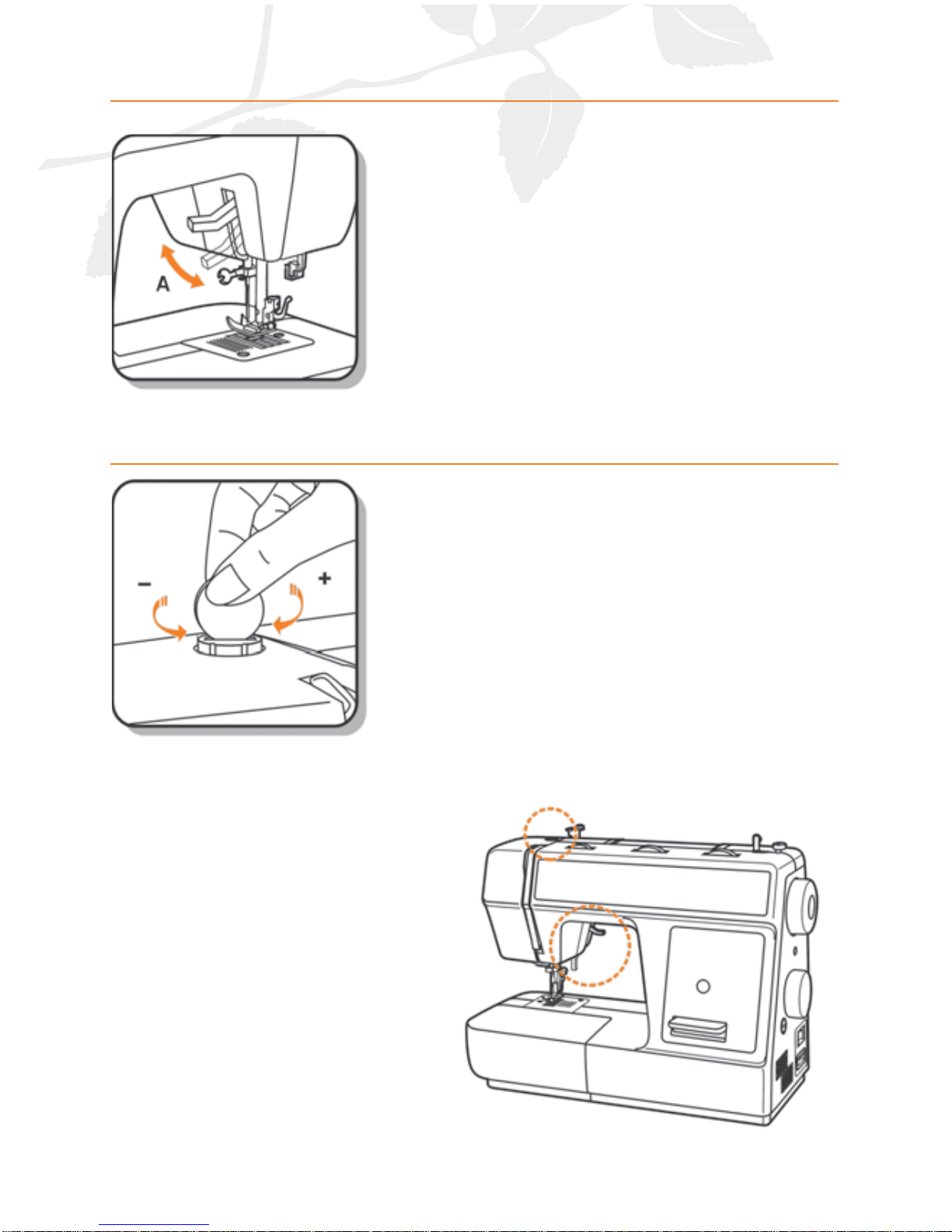

TWO-STEP PRESSER FOOT LEVER

ADJUSTING THE PRESSER FOOT PRESSURE

When sewing several layers or thick fabrics, the

presser foot can be raised a second stage for easy

positioning of the work. (A)

The presser foot pressure of the machine has been

pre-set and usually requires no readjustment for most

fabrics (light-or-heavy weight).

However, if you need to adjust the presser foot

pressure, turn the presser adjusting screw with a coin.

For sewing very thin fabric, loosen the pressure by

turning the screw counter clockwise for less pressure

on the fabric, and for heavy fabric, tighten by turning it

clockwise for more pressure on the fabric.
