Husqvarna X50

Illustrated Parts List

574 64 94-12

ITEM

NO.

PART

NUMBER

DESCRIPTION

QTY.

1 505836701

BLADE HOUSING

2 505836801

BLADE GUARD, LOWER

3 505837001

DEPTH ARM

4 505837201

ARBOR SHAFT

5 505491501

WASHER, OUTER ARBOR

6 521898202

FLANGE HEX BOLT 5/16-18 X 3/4

7 505837601

HUB, MILWAUKEE MOUNT

8 505839201

MOTOR, 120V

9 505633001

WASHER, SPLIT 5/16" S.S.

10 505838001

WHEEL, X50

11 505838101

SPACER, .375"ID X 2.000"L

12 505838201

ELBOW, DEFLECTOR

13 505839001

DEPTH LABEL

14 505748301

INSERT, 1/2-13 X 5/16-18

15 505838401

FLAT SPRING NUT, #10-24

16 505772901

FHS, 10-24 x 3/4 S.S.

17 505726601

SHSB, 5/16 X 1 1/4

18 505837101

THUMB NUT, #10-24

17 505725801

SHSB, 1/4 X 3/4

20 505635301

WASHER, #10 FLAT S.S.

21 505838701

BHS, 10-24 X 3/8 S.S.

22 505633101

WASHER, SPLIT #10 S.S.

23 505727701

HHB 3/8-16 X 3.5

24 505632801

WASHER, SPLIT 1/4" S.S.

25 505838601 NUT, 3/8-16 HEX, S.S. 1

26 505627301

HHB 1/4-20 X .375 S.S.

27 505627801

SHCS 1/4-20 X 3/4 S.S.

28 505838801

SPRING, TORSION, BLADE BLOCK

29 505627901

SHCS 1/4-20 X 1 S.S.

30 505624301

THUMB NUT, 1/4-20

31 505731001

WASHER, SPLIT 3/8" S.S.

32 505630501

NUT, NYLOC, 1/4-20 CAD

33 505630401

NUT, NYLOC, #10-24 CAD

34 505724801

FENDER WASHER, #10 FLAT

35 505837301

SKIDPLATE, 5" STANDARD, X50

36 505861102

GUIDE ARM ASSEMBLY

37 505862201

BLADE BLOCK COVER ASSEMBLY

Form No. SCI-0005 Rev. A 04/2005

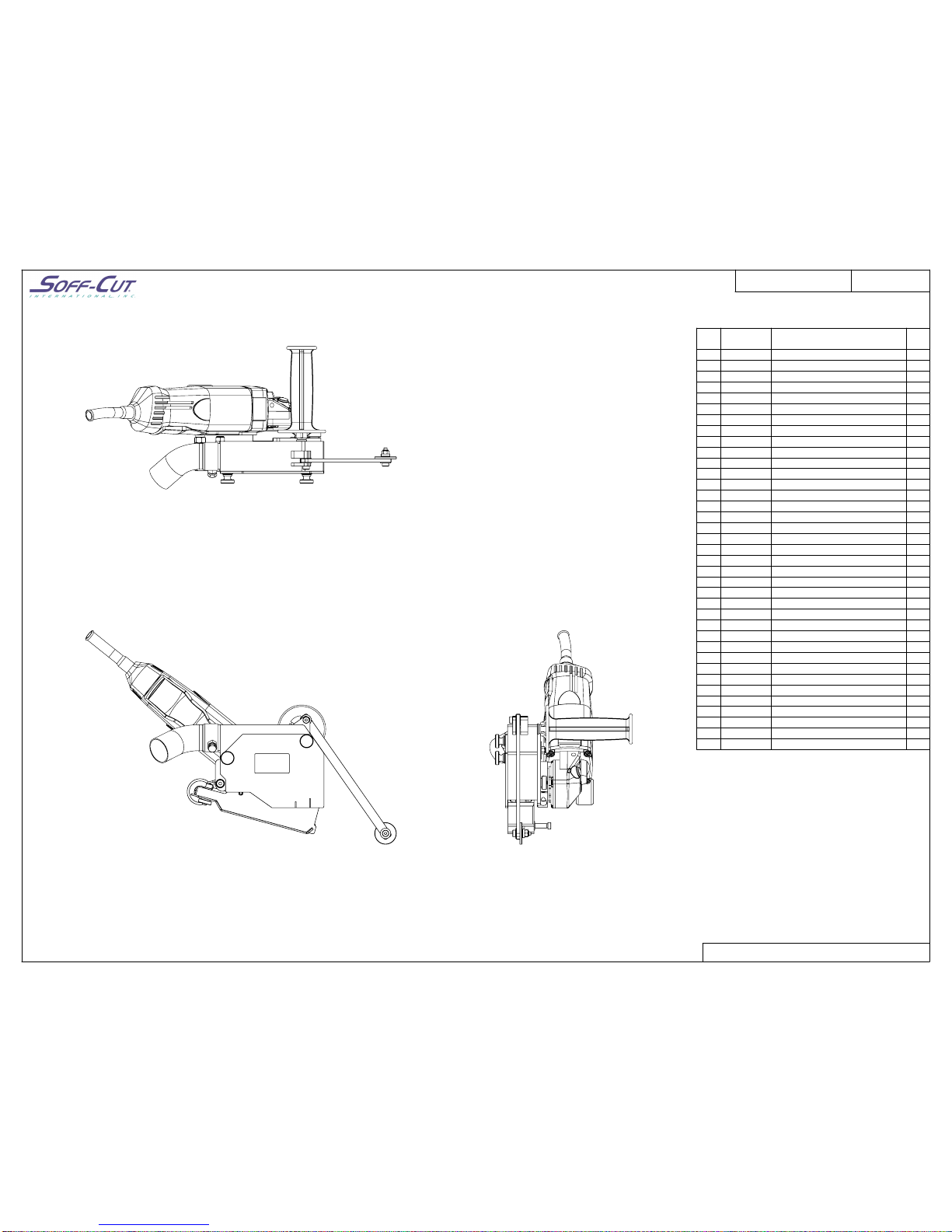

X50

HANDHELD FINISHING SAW

ASSEMBLY

GAS SAW

SUB-ASSEMBLY BILL OF MATERIAL

SOFF-CUT INT'L, INC. CLAIMS PROPRIETARY RIGHTS TO THE MATERIAL DISCLOSED IN THIS DOCUMENT. THIS

DOCUMENT IS PROVIDED IN CONFIDENCE AND MAY NOT BE REPRODUCED OR DISCLOSED WITHOUT

WRITTEN PERMISSION FROM SOFF-CUT INT'L. ©

966844701

Form No. SCI-0005 Rev. A 04/2005

X50

HANDHELD FINISHING SAW

ASSEMBLY

GAS SAW

SUB-ASSEMBLY BILL OF MATERIAL

SOFF-CUT INT'L, INC. CLAIMS PROPRIETARY RIGHTS TO THE MATERIAL DISCLOSED IN THIS DOCUMENT. THIS

DOCUMENT IS PROVIDED IN CONFIDENCE AND MAY NOT BE REPRODUCED OR DISCLOSED WITHOUT

WRITTEN PERMISSION FROM SOFF-CUT INT'L. ©

966844701

ITEM

NO.

PART

NUMBER

DESCRIPTION

QTY.

1 505836901

COVER, BLADE GUARD

2 505536301

KNOB, BB COVER

3 505536401

WASHER, BELLEVELLE

4 505536501

E-CLIP, 1/4"

5 505838901

LABEL, BLADE COVER

Form No. SCI-0005 Rev. B 02/2007

X50

BLADE BLOCK COVER ASSEMBLY

ASSEMBLY

GAS SAW

SUB-ASSEMBLY BILL OF MATERIAL

SOFF-CUT INT'L, INC. CLAIMS PROPRIETARY RIGHTS TO THE MATERIAL DISCLOSED IN THIS DOCUMENT. THIS

DOCUMENT IS PROVIDED IN CONFIDENCE AND MAY NOT BE REPRODUCED OR DISCLOSED WITHOUT

WRITTEN PERMISSION FROM SOFF-CUT INT'L. ©

505862201

ITEM

NO.

PART NUMBER

DESCRIPTION

QTY.

1 505837801

GUIDE ARM, X50, 3/16" W

2 505626901

SHSB, 1/4 X 1/2

3 505837901

GUIDE WHEEL

4 505630401

NUT, NYLOC, #10-24 CAD

5 505634401

WASHER, 1/4" DELRIN

Form No. SCI-0005 Rev. B 02/2007

X50

GUIDE ARM ASSEMBLY

ASSEMBLY

GAS SAW

SUB-ASSEMBLY BILL OF MATERIAL

SOFF-CUT INT'L, INC. CLAIMS PROPRIETARY RIGHTS TO THE MATERIAL DISCLOSED IN THIS DOCUMENT. THIS

DOCUMENT IS PROVIDED IN CONFIDENCE AND MAY NOT BE REPRODUCED OR DISCLOSED WITHOUT

WRITTEN PERMISSION FROM SOFF-CUT INT'L. ©

505861102
