ILLUSTRATED PARTS LIST

WHEELED WEED TRIMMER

MODEL NUMBER HU625HWT

MFG. ID. NUMBER 96173000203

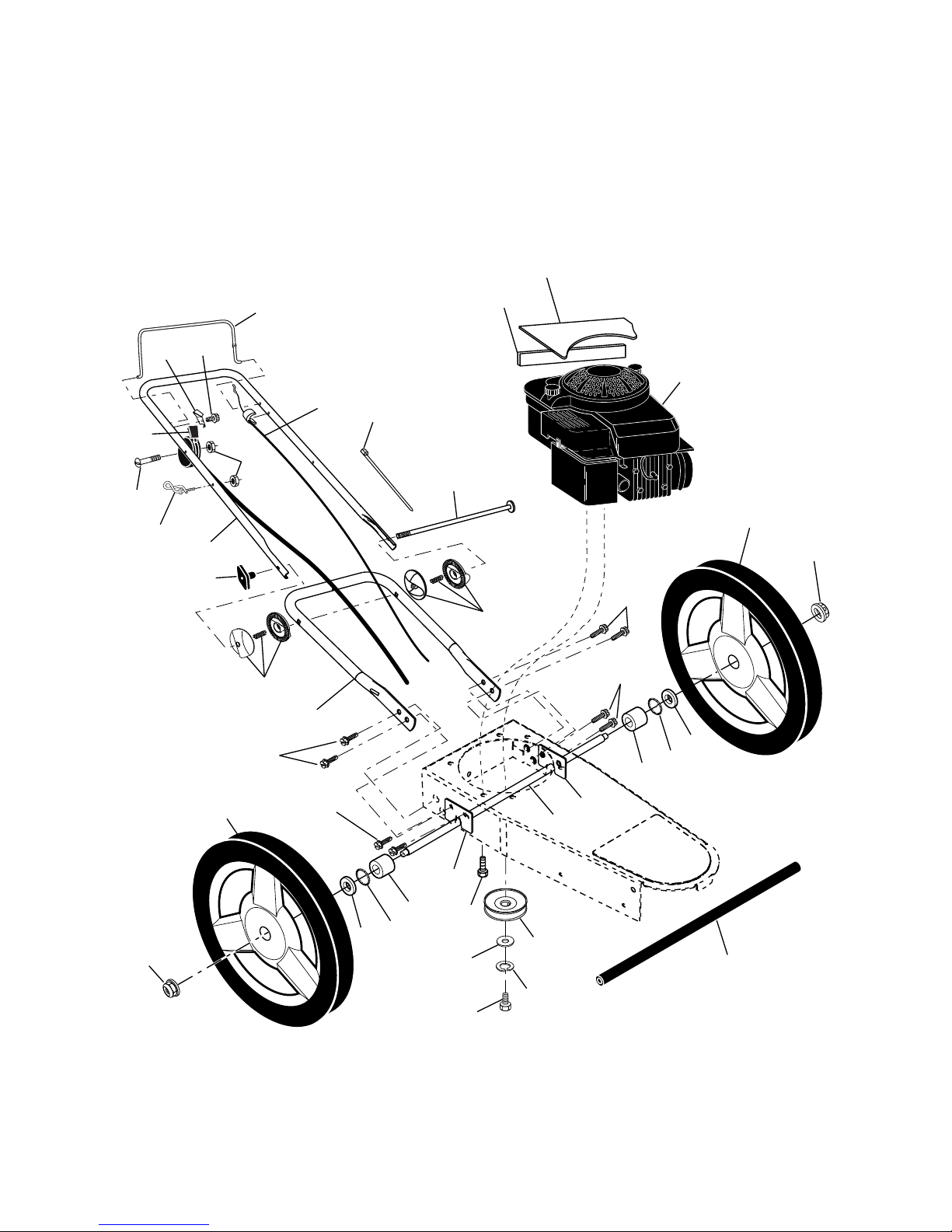

WHEELED WEEDTRIMMER - - MODEL NO. HU625HWT

(MFG. ID. NO. 96173000203)

2231

36 37

25 4

WHEELED WEEDTRIMMER - - MODEL NO. HU625HWT

(MFG. ID. NO. 96173000203)

KEY PART

NO. NO. DESCRIPTION

1 - - - Engine, Briggs & Stratton, Model Number 122M02-

1617-F1 (For engine service and replacement parts,

call Briggs & Stratton at 1-800-233-3723)

2 532 15 04-06 Bolt, Engine Mounting 3/8-16

3 532 17 94-66 Pulley, Engine

4 532 19 74-80 O-Ring

8 532 44 68-38 Handle, Lower

9 532 42 88-67 Screw, Hex Washer Head 5/16-18 x 3/4

10 532 44 68-37 Handle, Upper

11 532 17 09-80 Bolt, Handle

12 532 44 50-19 Knob, Handle

15 532 17 97-51 Handle Adjuster Assembly

16 532 19 47-88 Guide, Rope

18 532 06 64-26 Wire Tire

19 532 17 69-83 Control Bar

20 532 41 72-38 Throttle Control

21 532 15 87-55 Screw 1/4-20

22 532 16 97-87 Axle Shaft Assembly

23 532 42 88-67 Screw, Hex Washer Head 5/16-18 x 3/4

24 532 16 98-23 Washer, Axle

25 532 08 83-48 Washer, Flat 1/2

26 532 41 81-73 Wheel & Tire Assembly 12 x 1-3/4

27 532 40 91-49 Locknut, Hex 3/8-16

28 532 18 16-99 Drive Control Cable

29 532 40 66-78 Decal, Warning

30 532 17 83-65 Decal, Warning

31 532 42 62-97 Bracket, Axle

33 532 13 20-04 Nut, Hex

34 532 43 00-34 Bracket, Upstop

35 532 17 88-48 Screw #10-16 x 5/8

36 532 85 10-84 Bolt, Hex Head

37 532 85 02-63 Washer, Lock

38 532 85 10-74 Washer, Flat, Hardened

41 532 44 83-36 Tube, Axle

- - 532 17 78-17 Manual, Operator's, English

- - 532 18 01-02 Manual, Operator's, French

WHEELED WEEDTRIMMER - - MODEL NO. HU625HWT

(MFG. ID. NO. 96173000203)

52 51

30*

27*

40 45

20 44

WHEELED WEEDTRIMMER - - MODEL NO. HU625HWT

(MFG. ID. NO. 96173000203)

KEY PART

NO. NO. DESCRIPTION

1 532 17 40-31 Chassis Assembly

2 532 18 22-19 Line, Trimmer .155 diameter x 18.75 long

3 532 17 37-15 Screw, Self-Tapping 5/16-18 x 1

4 532 18 54-76 V-Belt

5 532 18 67-51 Bracket, Idler

6 532 16 60-42 Pulley, Idler, V-Groove

7 532 17 37-16 Bolt, Hex Head 3/8-16 x 1.25

8 873 93 06-00 Locknut, Hex 3/8-16

9 532 16 60-43 Pulley, Idler, Flat

10 532 16 08-29 Bolt, Shoulder

11 873 93 05-00 Locknut, Hex 5/16-18

12 532 17 37-17 Spacer

13 532 17 47-19 Bolt, Shoulder

14 532 40 91-49 Locknut, Flange

15 532 17 38-11 Spring, Return

16 532 18 02-68 Deﬂector, Bottom

17 817 06 04-10 Screw 1/4-20 x 1/2

18 532 17 88-48 Screw #10-24 x 3/4

19 532 19 95-74 Belt Keeper

20 532 44 66-65 Cover, Chassis, Top

21 532 14 97-46 Screw #10-24 x 1-3/4

22 873 61 06-00 Nut, Hex 3/8-24 UNF

23 532 85 02-63 Washer, Lock 3/8

24 819 12 12-14 Washer, Flat 3/8

25 532 18 03-40 Pulley, Driven

26 532 17 25-51 Spacer, Pulley

27 532 17 45-49 Bearing

28 532 17 25-20 Jackshaft

29 532 18 67-52 Cover, Chassis, Bottom

30 532 17 45-43 Spindle Housing Assembly

(* Includes Upper Bearing, Key No. 27)

31 532 17 45-81 Ring, Retaining, External, 17mm

32 532 17 39-73 Spring, Locking Plate

33 532 17 25-19 Locking Plate

34 532 18 03-38 Carrier Plate Assembly

35 532 18 22-17 Mow Ball Assembly

(Includes Key Numbers 27, 37 and 38)

36 532 17 25-16 Cover, Bearing

37 532 17 45-80 Ring, Retaining, Internal, 40mm

38 532 17 25-23 Mow Ball

39 532 18 03-34 Bolt, Mow Ball

40 532 18 03-33 Spindle Assembly, Complete

(Includes Key No. 22-28 and 30-39)

41 532 17 40-29 Spacer

43 532 44 65-68 Decal, Instruction

44 532 42 86-77 Decal, Chassis Cover

45 532 18 67-53 Belt Keeper, Bottom

46 817 06 04-08 Screw, Self-Tapping

47 532 44 65-67 Decal, Instruction

51 532 18 90-06 Deﬂector, Rear

52 532 17 88-48 Screw
